Week 9 - Attachment Feature Creation - Challenge 2

Attachment Feature Creation - Challenge 2

Aim:- To Create Dog House Feature for given Class A Surface.

Objectives:

• Thickness is 2.5mm.
• Draft analysis.
• creating Dog House Considering Design Rules

Design Rule for Dog House

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

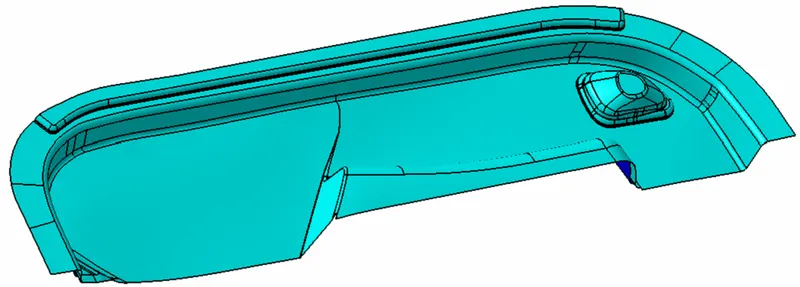

CLASS A SURFACE

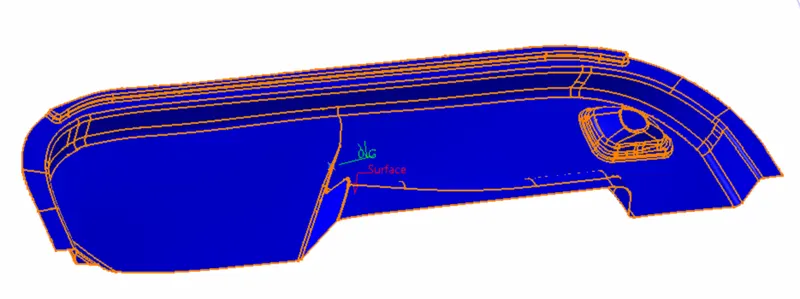

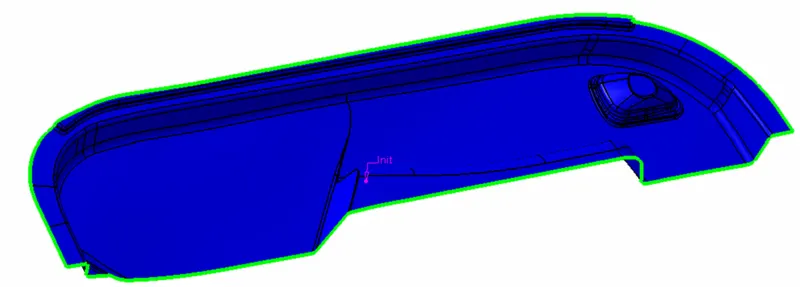

check surface is having any patches by using boundry feature as shown in fig.

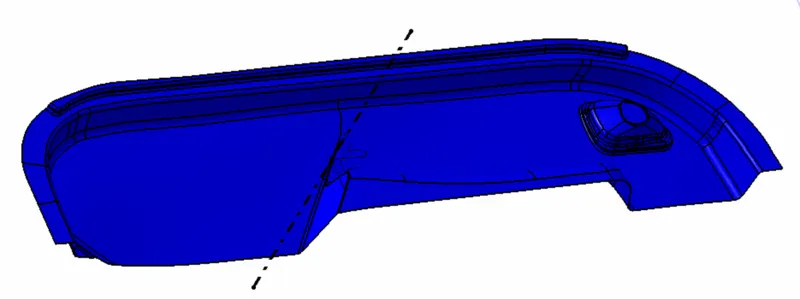

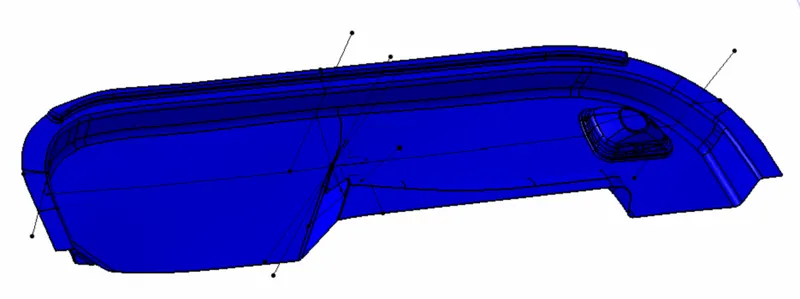

TOOLING AXIS

Point creation

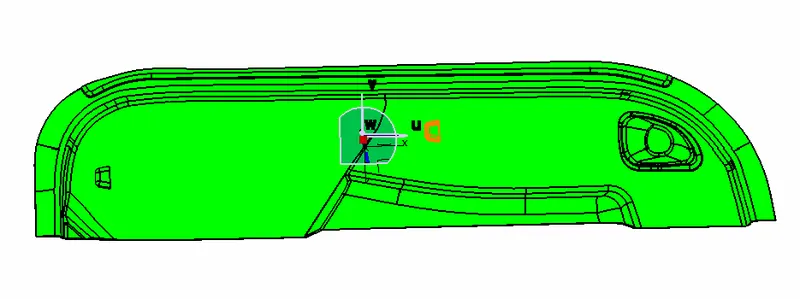

Axis System on Point

Intersections

Dummy toolig axis

TOOLING AXIS

B SURFACE CREATION

OFFSET

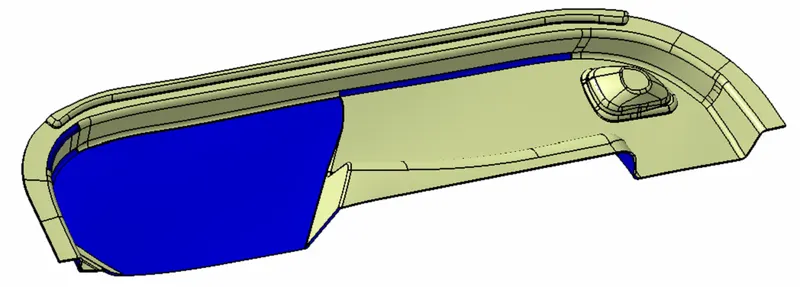

the offset surface is not clear so we have to repair the surface.

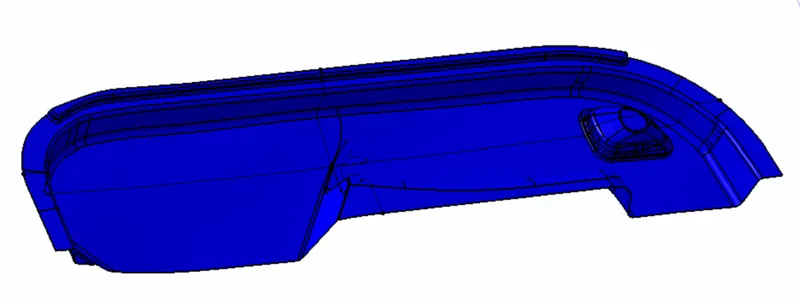

CLASS B SURFACE

C SURFACE CREATION

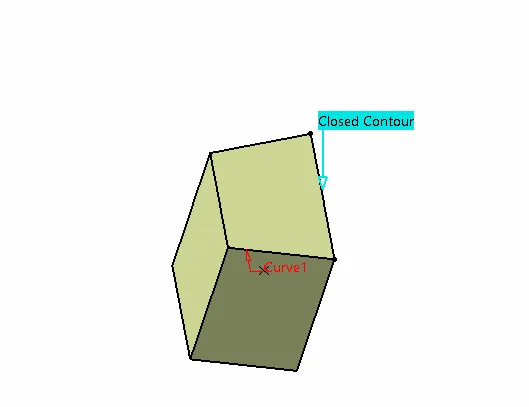

Using Sweep feature C Surface is created

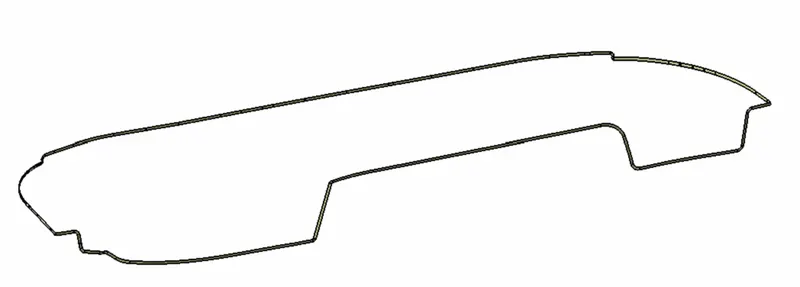

CLOSED DOOR TRIM

THICKNESS

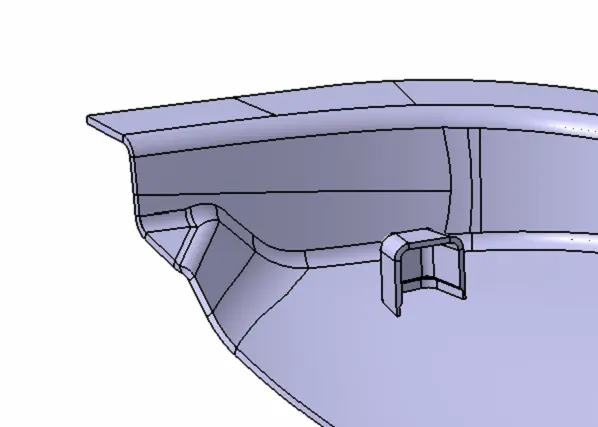

DOG HOUSE CREATION

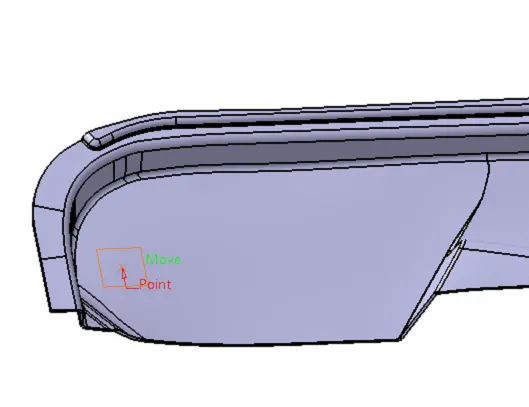

POINT

PLANE

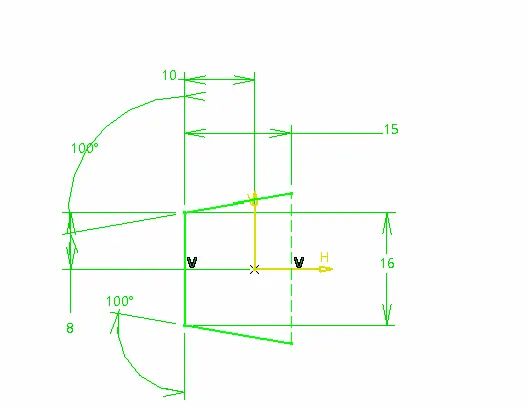

SKETCH

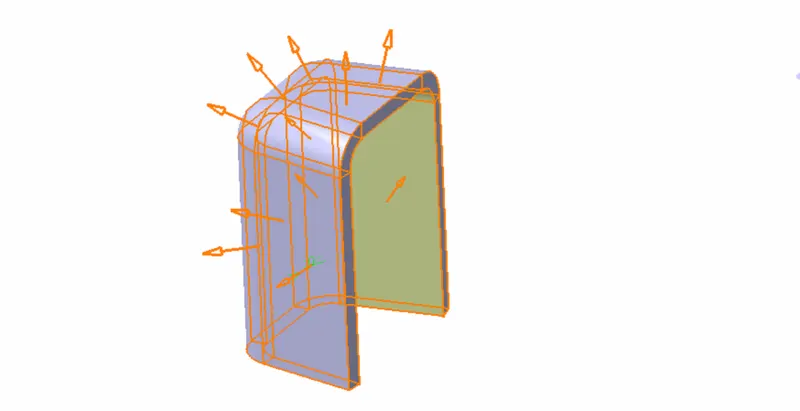

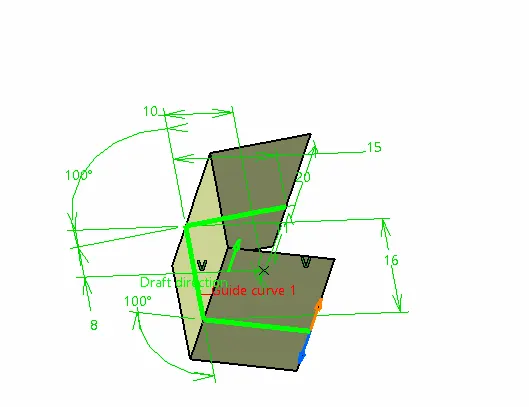

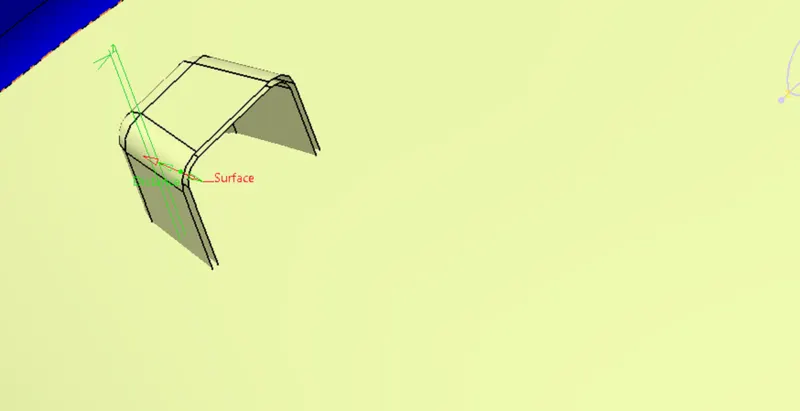

SWEEP

Swee with draft direction to tooling axis

FILL

Filling top with fill feature

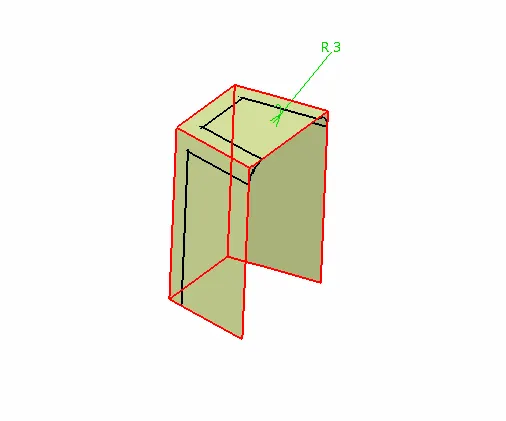

EDGE FILLET

THICKNESS

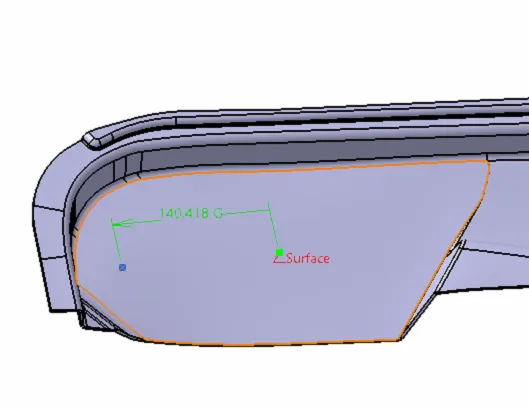

extract base furface offset to 6 mm

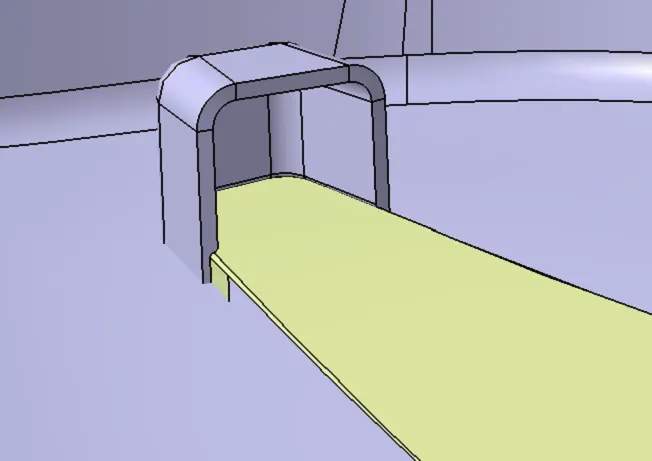

OFFSET

TRIM AND FILLET

UNION TRIM

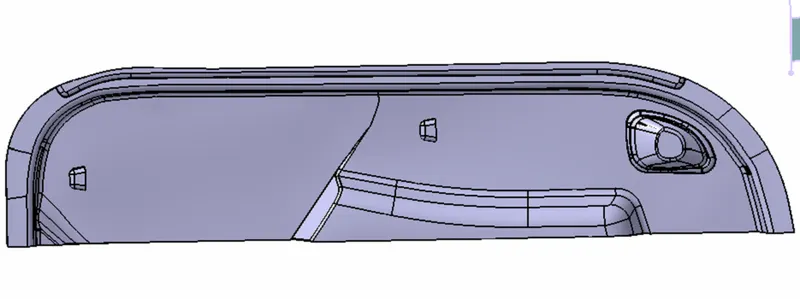

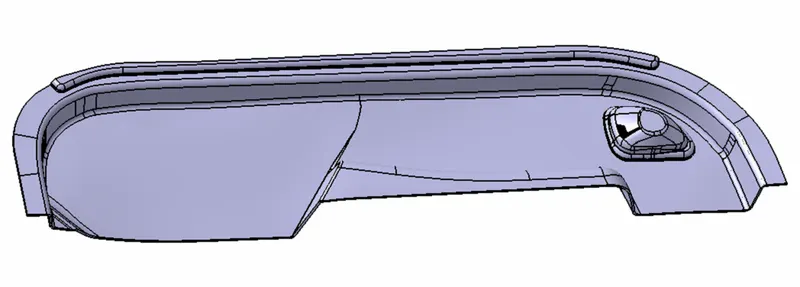

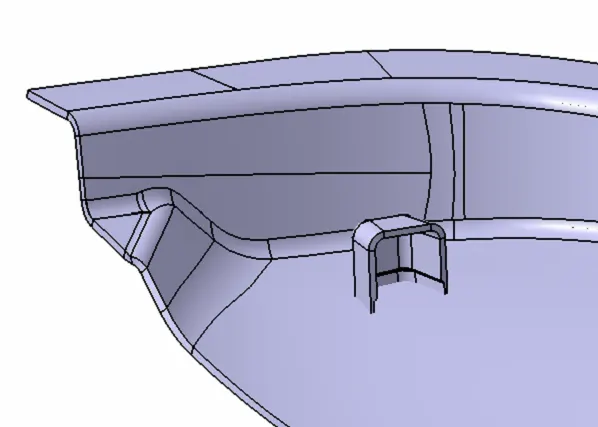

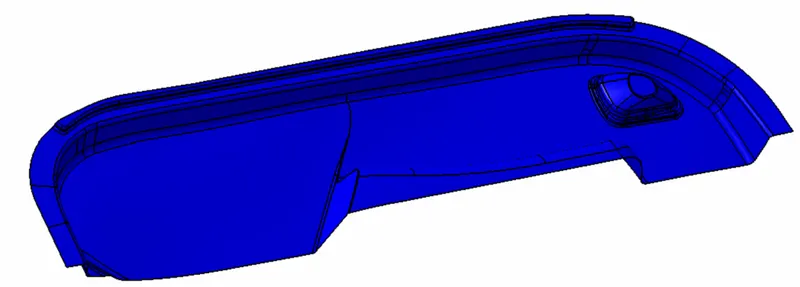

FINAL DOOR TRIM WITH DOG HOUSE

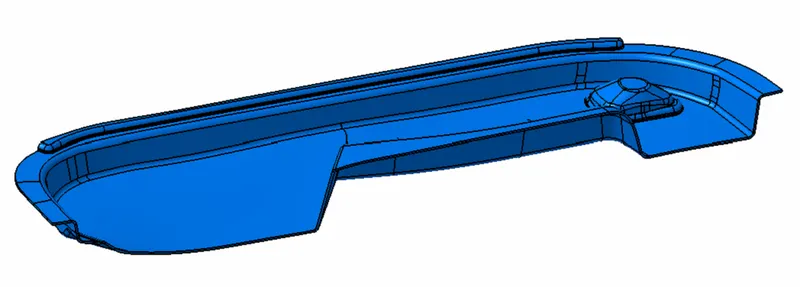

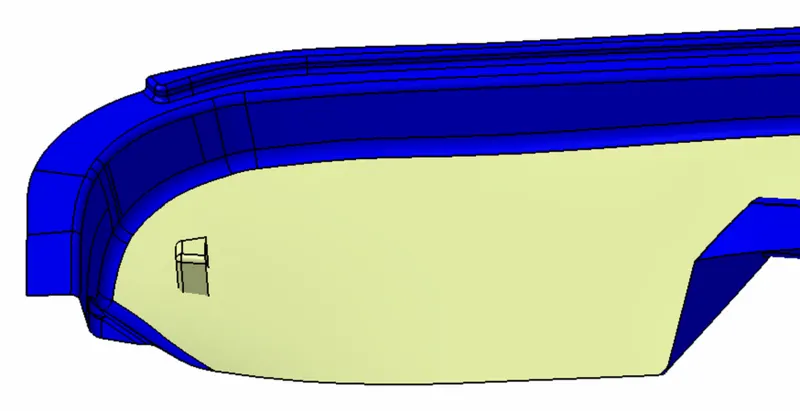

DRAFT ANALYSIS

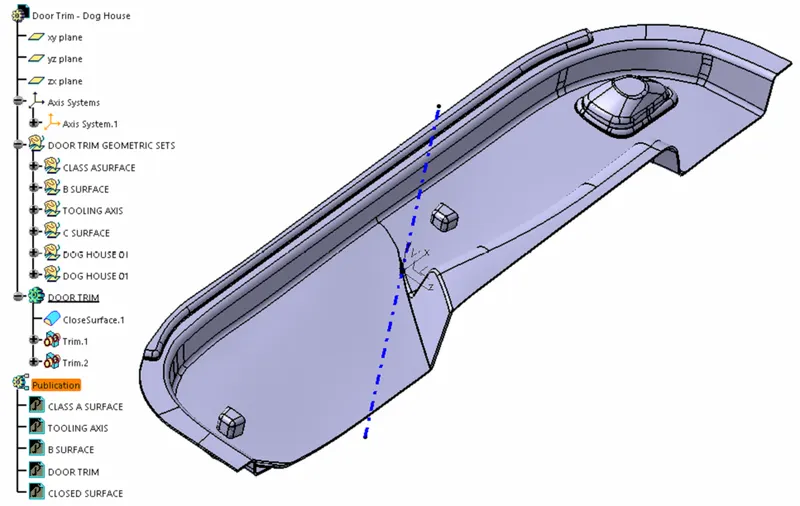

TREE STRUCTURE
