Week 9 - Attachment Feature Creation - Challenge 2
Attachment Feature Creation - Challenge 2
- Report
- A detailed report should be done explaining the draft analysis and the tooling axis creation.
- An explanation should be given on the way of creating the tooling axis, particularly the Bisecting method.
Here i explain in brife about tooling axis creation.

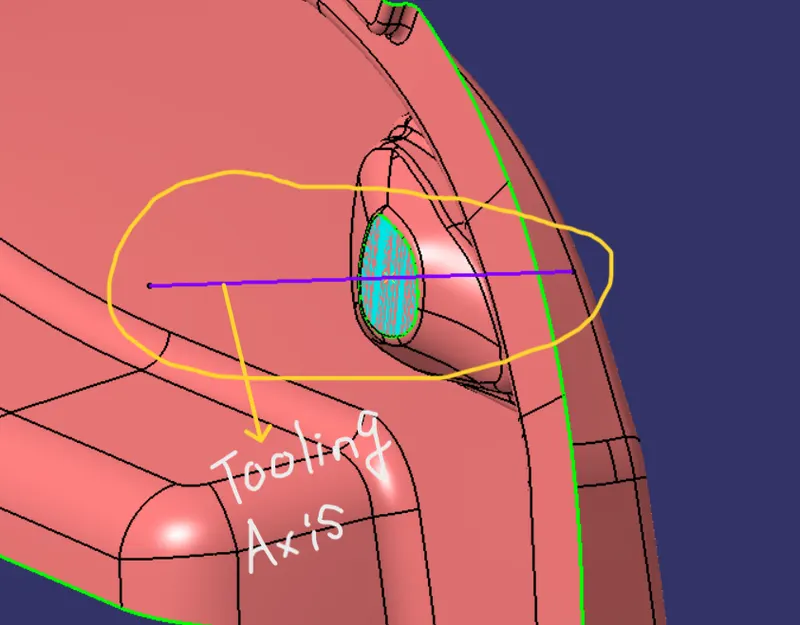

- To creating the tooling axis we use Normal to Surface method. First extract the flat surface of the Door Trim model then create a point on extracted surface. As shown in below image in light blue colour.
- Now create a aixis on that point using Axis System Command. And here in below image shown the Tooling Axis.
And here i explain in brife about draft analysis creation.
In the above image we are able to see the draft analysis of class-A surface. With the help of draft analysis command we can easly make draft analysis.

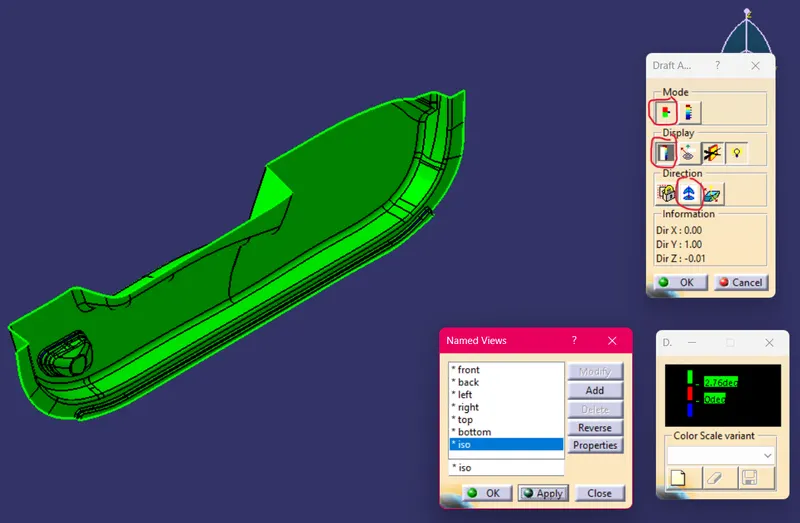

First apply a draft analysis command. From mode section choose first option as shown in above image highlight in red circle., then in display opt allow first opt to activate show/hide colur scale,
and the in last direction opt select the second opt compass then use fit all in command so you are able to see the compass as show in below image highlight in yellow circle.

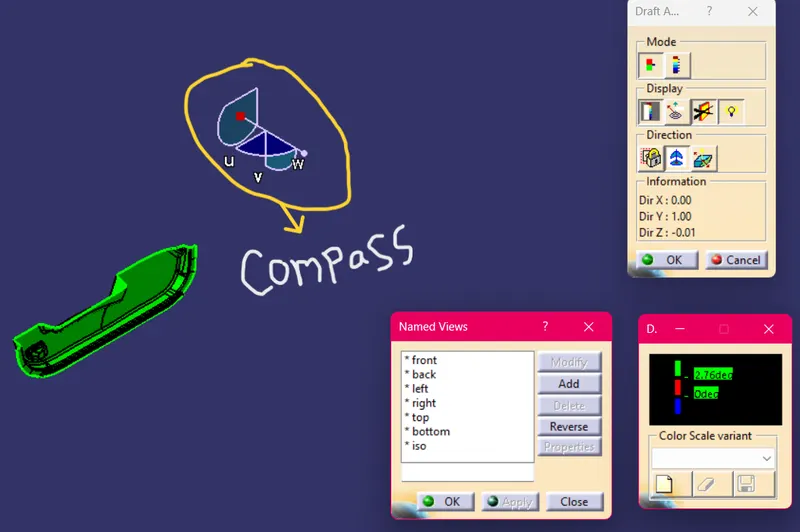

Compass

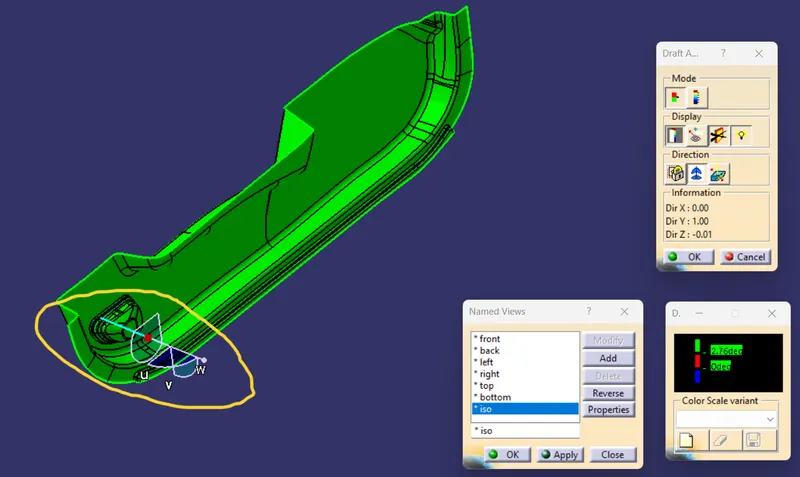

Then drag the compass to tooling axis and align to tooling axis line. Below the show alignment of compass and tooling axis image
Compass Align to Tooling Axis
- Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component.

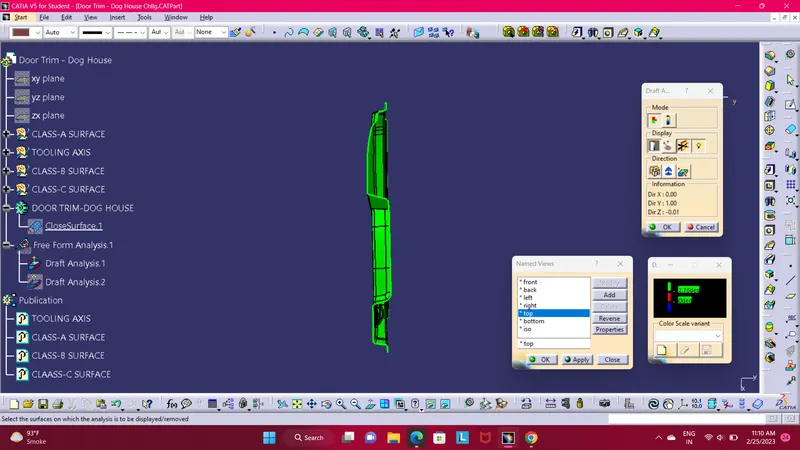

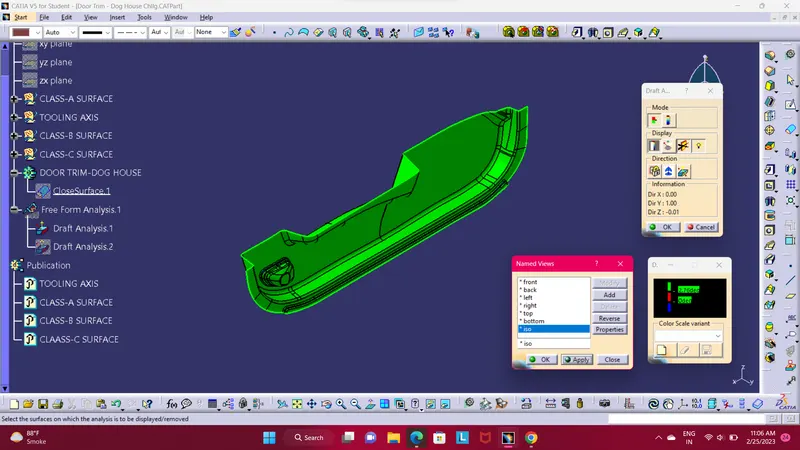

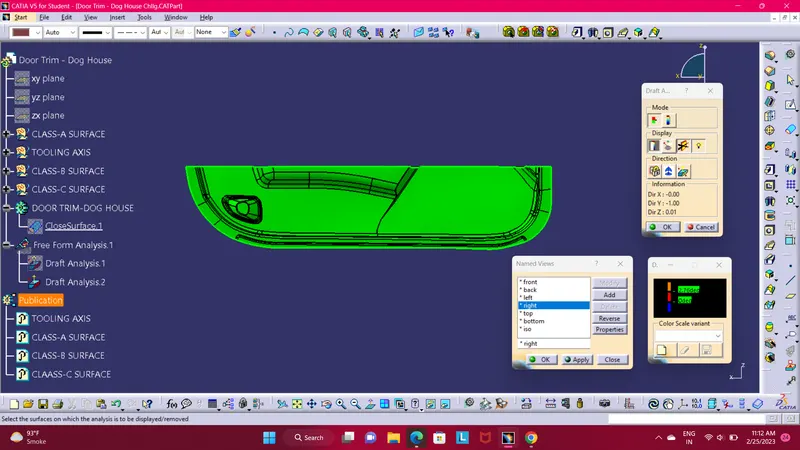

- Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

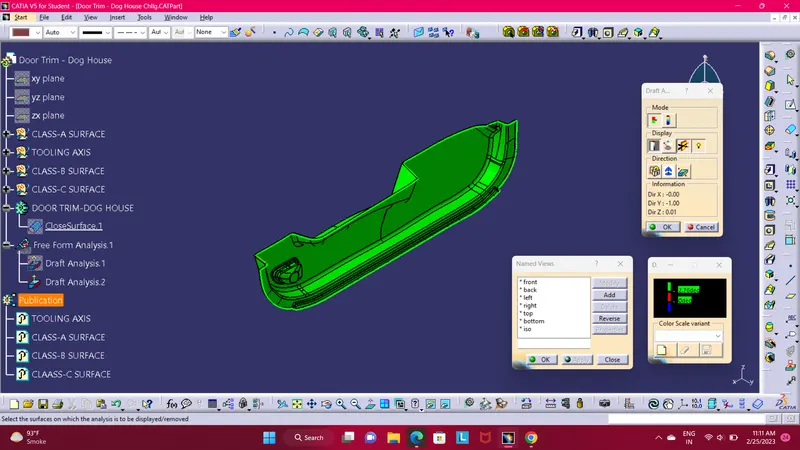

ISOMETRIC VIEW.

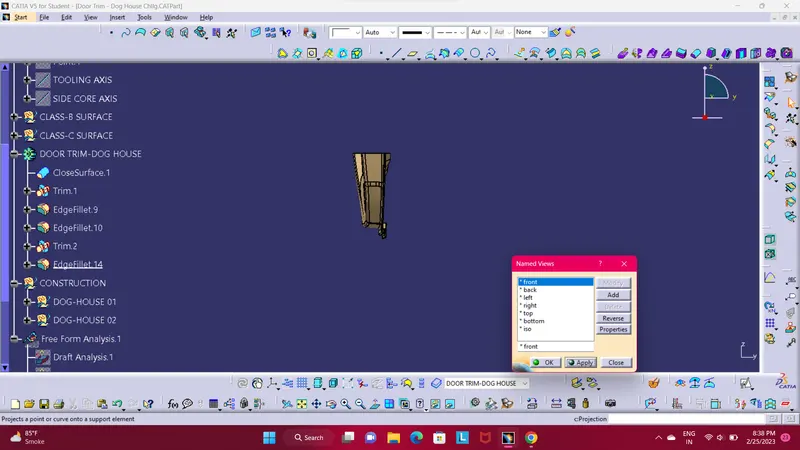

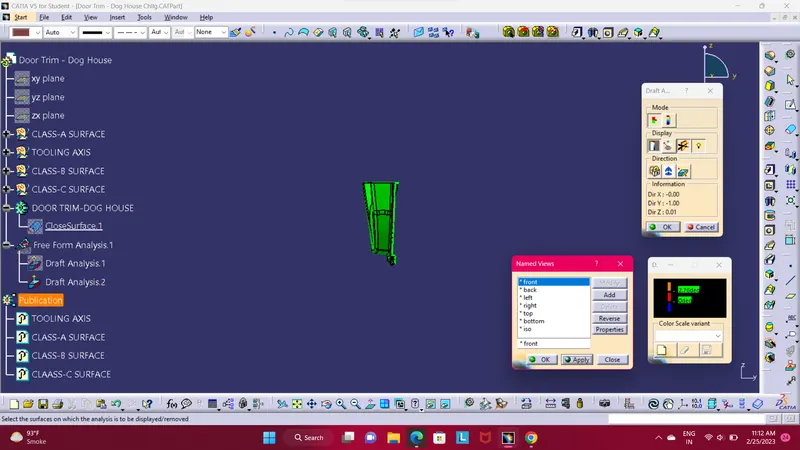

FRONT VIEW.

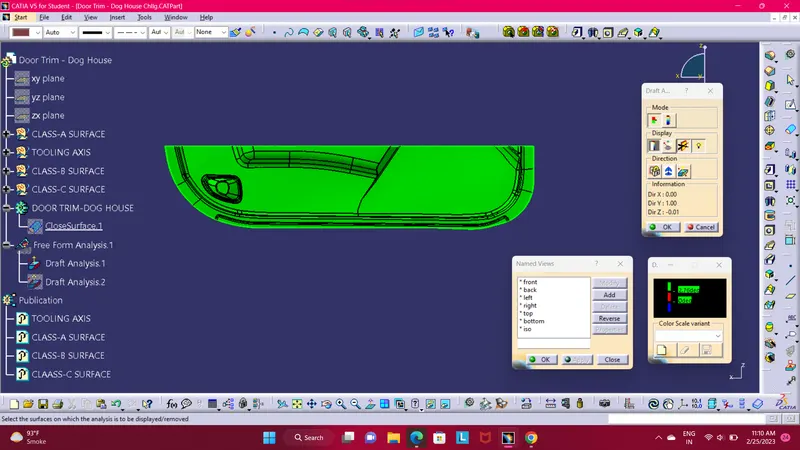

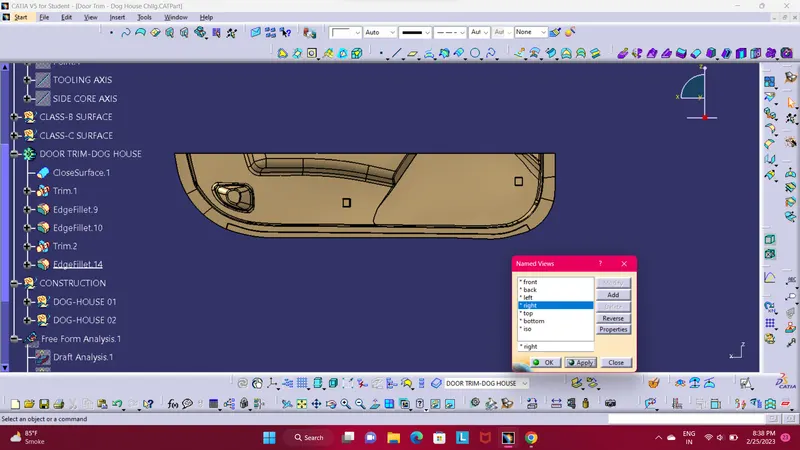

SIDE VIEW.

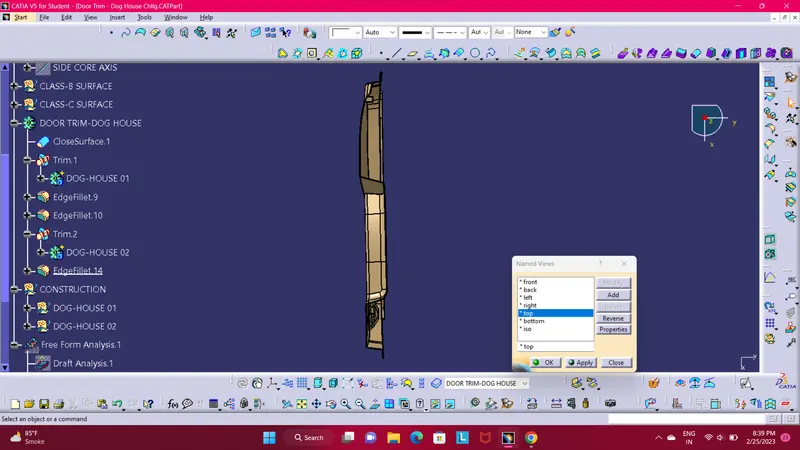

TOP VIEW.
- Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
ISOMETRIC VIEW.
FRONT VIEW.
SIDE VIEW.
TOP VIEW.

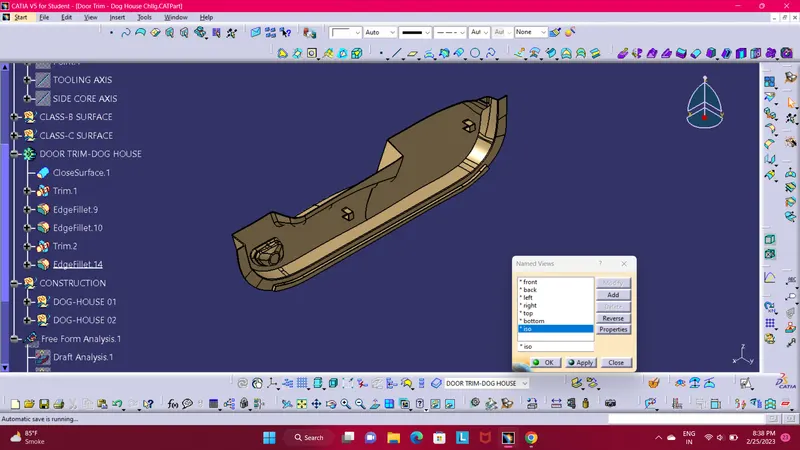

- Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View).
- Below images/screenshots should be inserted into the challenge box.
ISOMETRIC VIEW.
FRONT VIEW.
SIDE VIEW.
TOP VIEW.
