Week 9 - Attachment Feature Creation - Challenge 2

Tooling Axis :

Class-A surface is first analyzed to create the tooling axis. where the molds pull apart in injection molding. Tooling direction is essential for plastic product design as it decides the direction for mold separation.

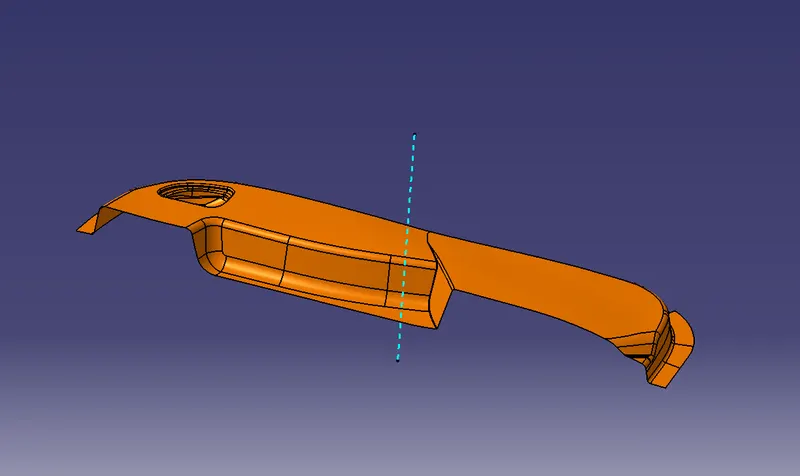

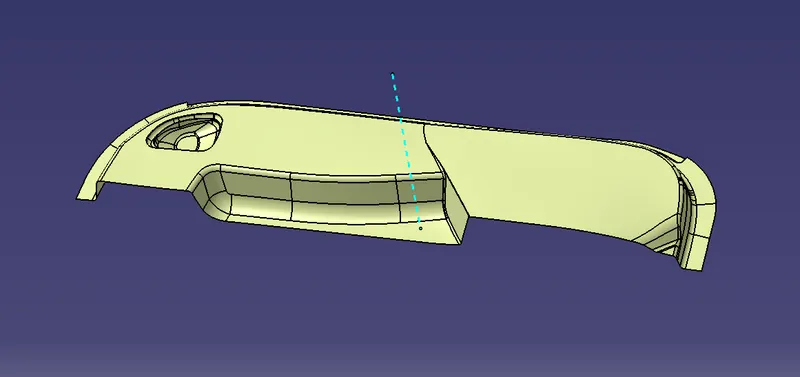

To create the tooling axis first we have to check the best suitable direction for tooling by using the compass. the y direction is suitable for creating the tooling axis because in the y direction most of the surfaces are clearing while performing draft analysis. Generally tooling axis is created using bisecting line method but here A line normal to the surface is created in the y direction and considered the tooling axis.

Y direction

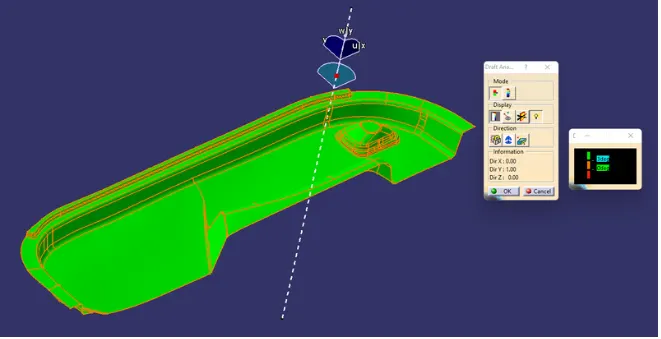

Draft analysis of Class- A

After creating a tooling axis we do the draft analysis. Before drafting we have to make sure that in the view mode it is selected for the materials.

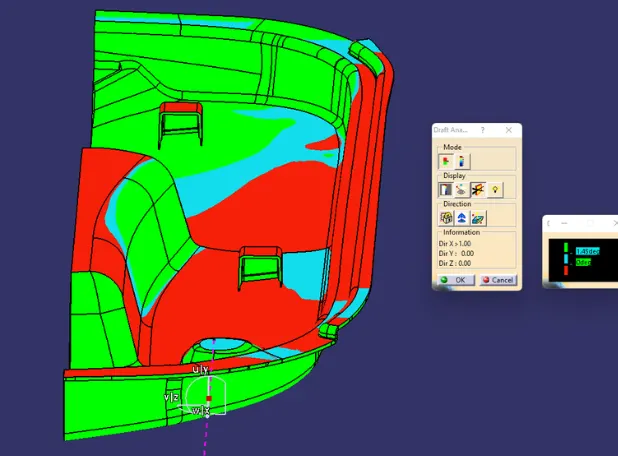

After selecting the feature draft analysis tool we drag the compass from its position to the tool axis. Then lock the compass. After that select anywhere on the component and it will give you the result.

We change the minimum draft for the component to 3°.

We can use the running point option to check the angle of the component.

CREATION OF CLASS B SURFACE:

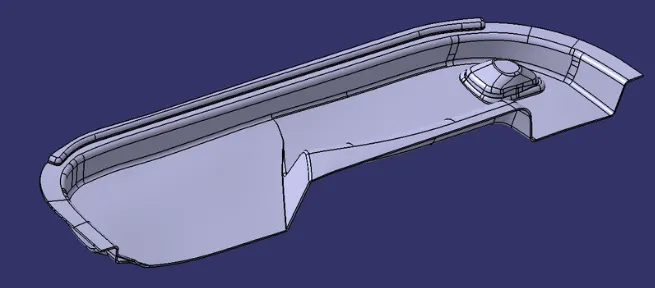

In this component Creation of the class B surface first, we have to offset the entire model by 2.5mm outward some of the surfaces give offset error and ask for offset without these subelements click okay and work on the incomplete surfaces by using the multi-section surface command, sweep and different commands used to complete the class B surface.

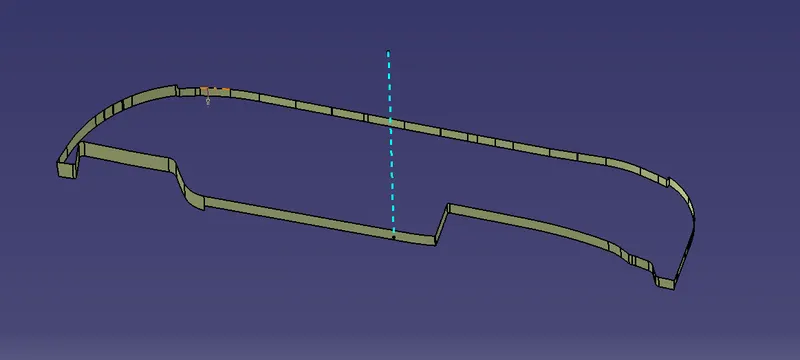

CREATION OF CLASS C SURFACE:

We first extract the edges from the Class A surface with the help of the multi extract or boundary command which we create the path for a sweep for class C

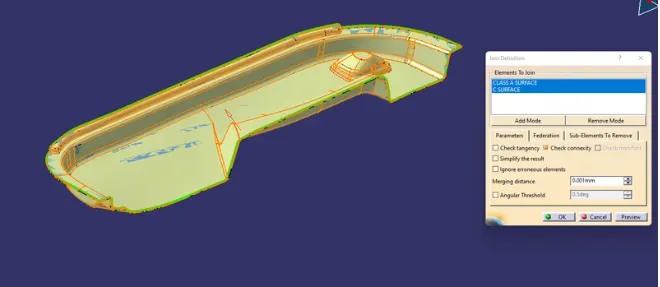

Joining class A surface and class c surface together

Then We go to the part design workbench and use to closed surface tool to create a solid body.

hence, we created our final Solid component.

DOG HOUSE DESIGN:

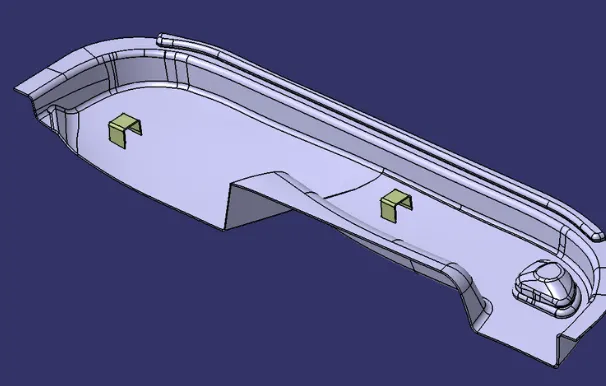

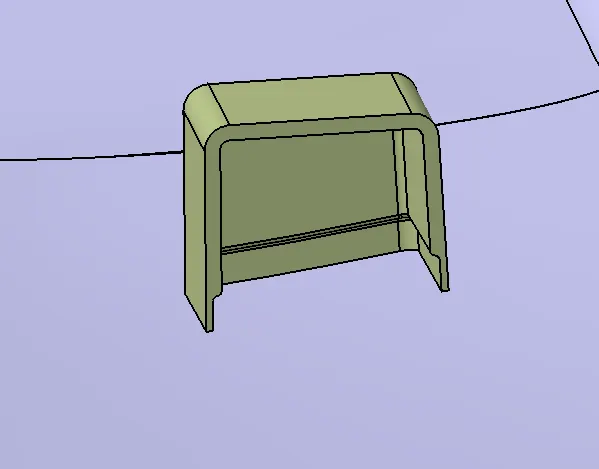

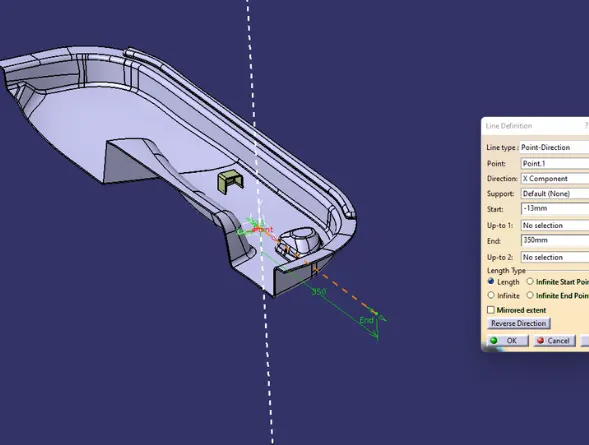

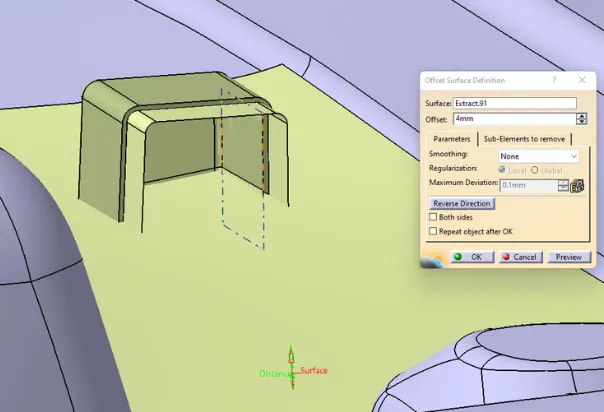

Dog house: Dog house is an engineering feature used in the plastic trim design. Dog houses are used as supporting features. Sometimes other engineering features like snaps; locators, etc. are mounded on them to increase their strength. Dog house and other engineering Features are built on B-surface.

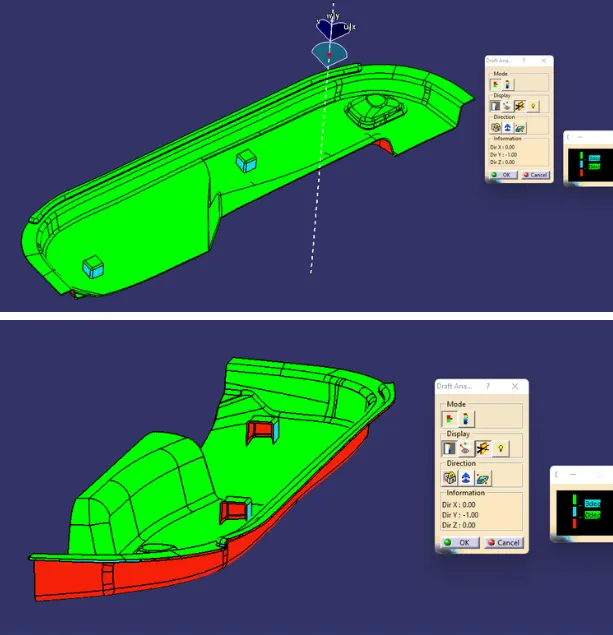

Draft Analysis on the final component :

1. The part created has to be changed to the MATERIAL mode in the display frame.
2. Compass is enabled and aligns it along with the tooling direction.
3. The lock command is then applied to fix the compass along with the tooling axis.
4. Color codes are classified and Draft angle is applied.
5. Running point analysis is used to display permissible draft angles.
