Week 8 - Challenge 1 - Base Bracket Design

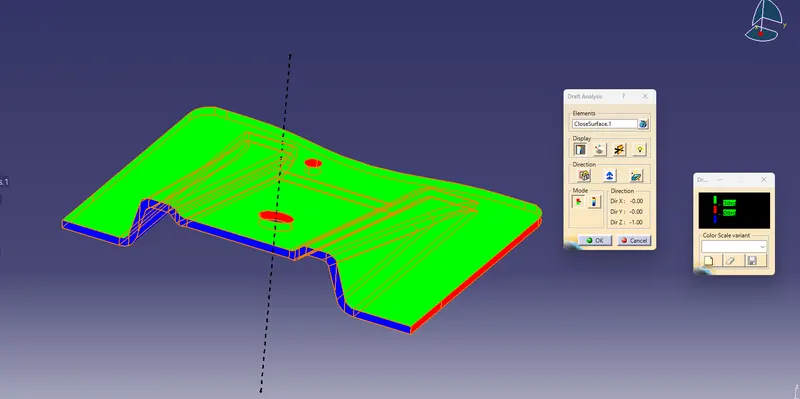

Draft Analysis is a tool that allows the user whether designed part can be removed from the tooling. In case of injection mold parts it allows to see if there is enough draft on part to ensure that it is OK.

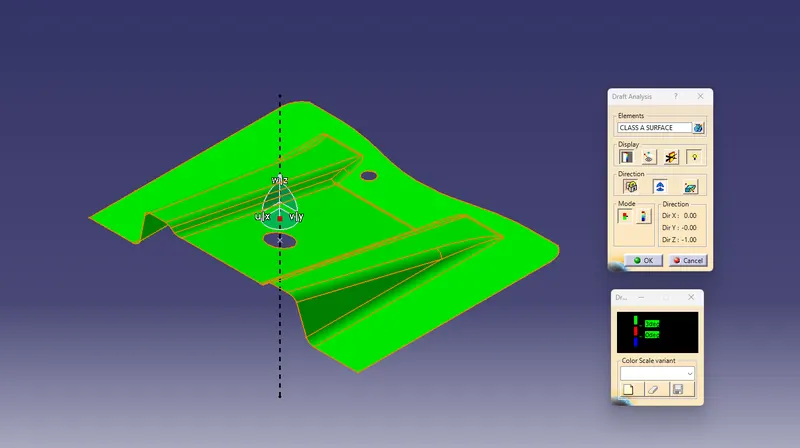

Tooling axis is a axis in which the mold or core cavity opens.

To create tooling axis first analyse visually best tooling axis.

A dummy axis can be created by using points directions method. Using the intersection lines lines needs to be created along inclined walls these lines need to be used for creation of tooling axis by bisection method
