Week 9 - Attachment Feature Creation - Challenge 1

PPrasun Maiti18 Mar 2022

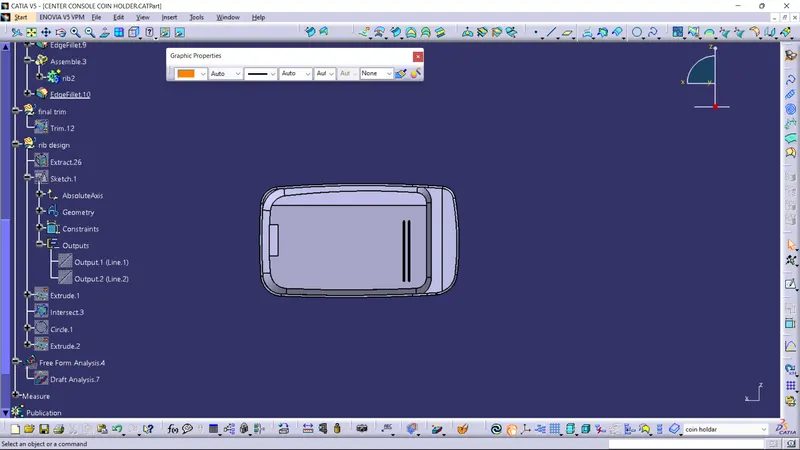

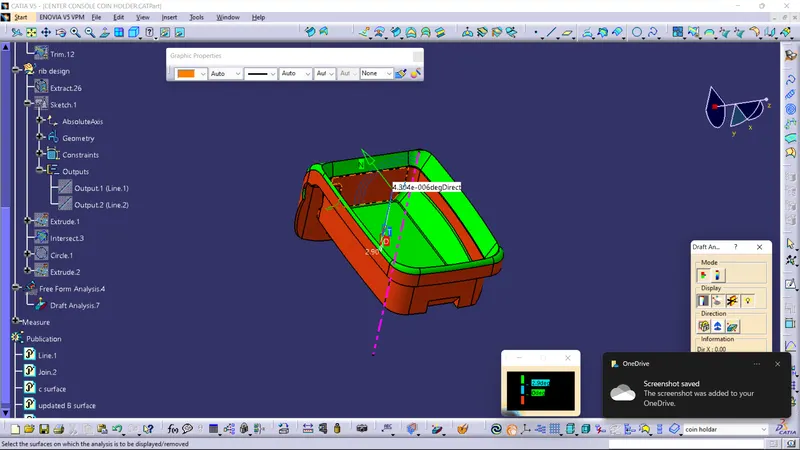

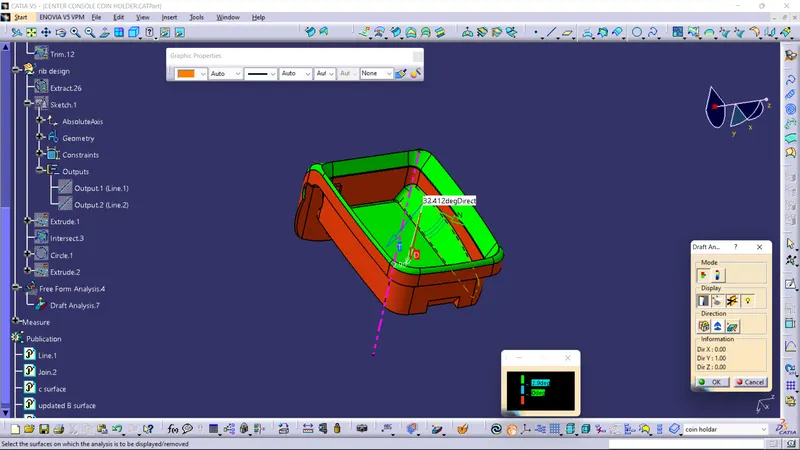

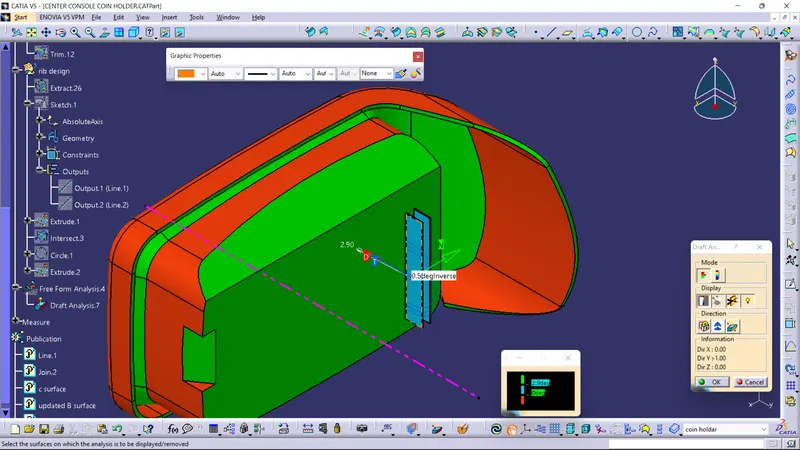

DRAFT ANALYSIS-Draft for the final component i submitted. Here the ribs have the 5 degree draft angle, thats why these are shown in blue colour. And before I said I thing the A surface is for educational purpose thats why some of the surfaces have next to 0 degree draft.

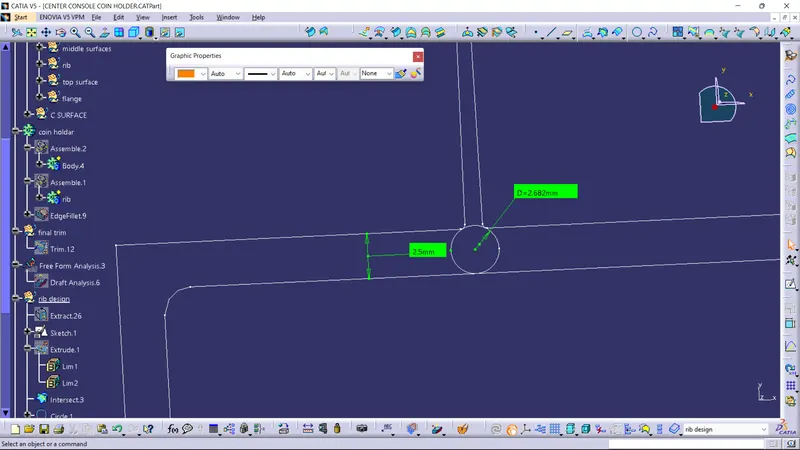

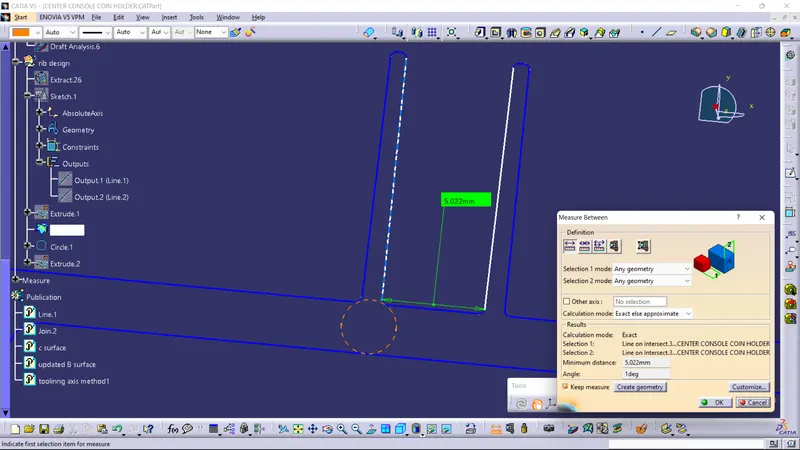

I created the ribs with 3:1 ratio.
