Week 9 - Attachment Feature Creation - Challenge 1

Thickness of the body here is 2.5mm

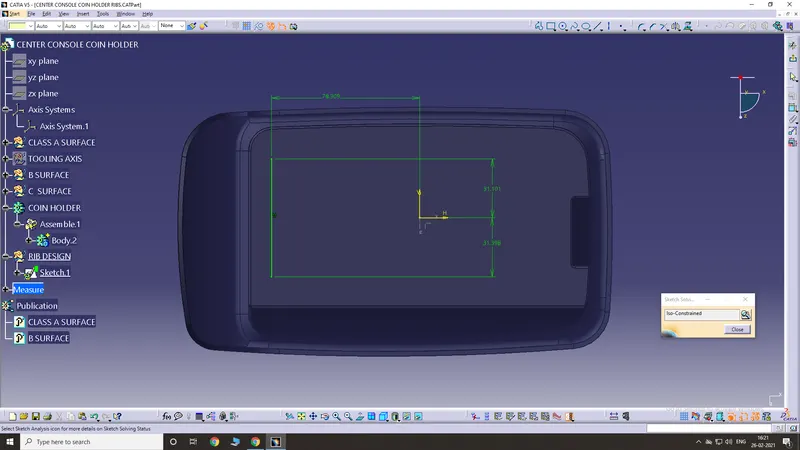

Rib initial sketch

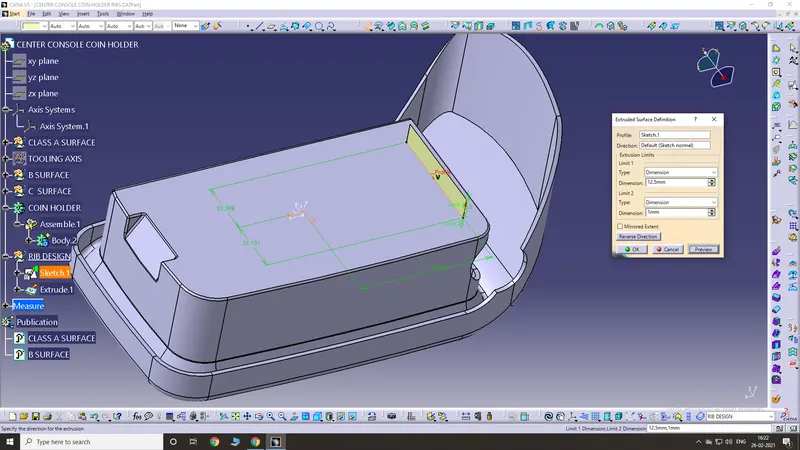

Extrude

Height of rib should be

t * 5 = 2.5 * 5 = 12.5mm

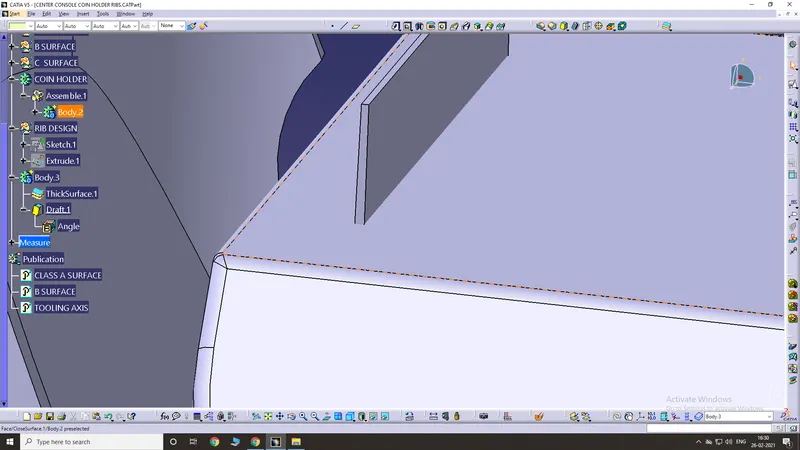

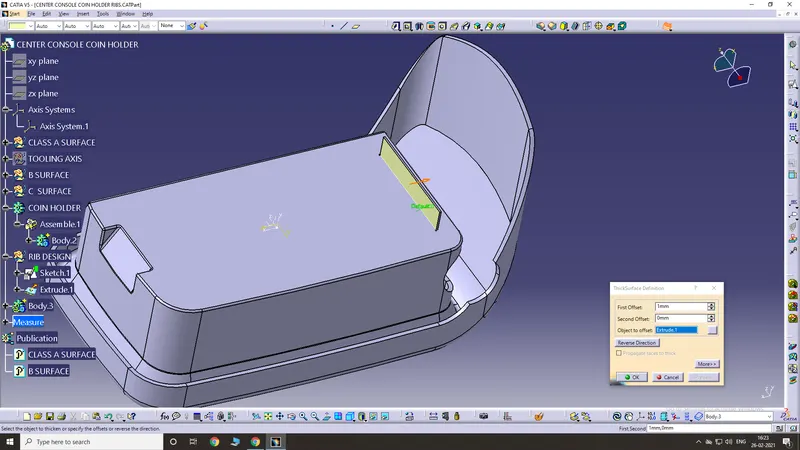

Thicken

Thickness of rib should be

t * 0.4 = 2.5 * 0.4 = 1mm

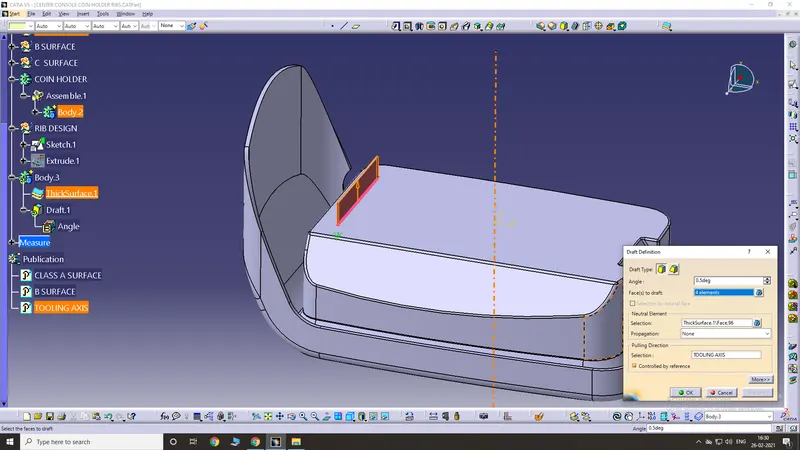

Draft

Minimum draft degree should be 0.5

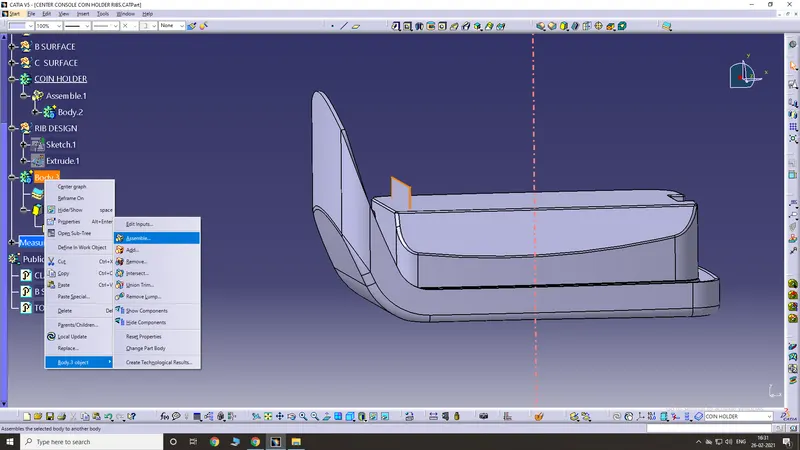

Adding to main body

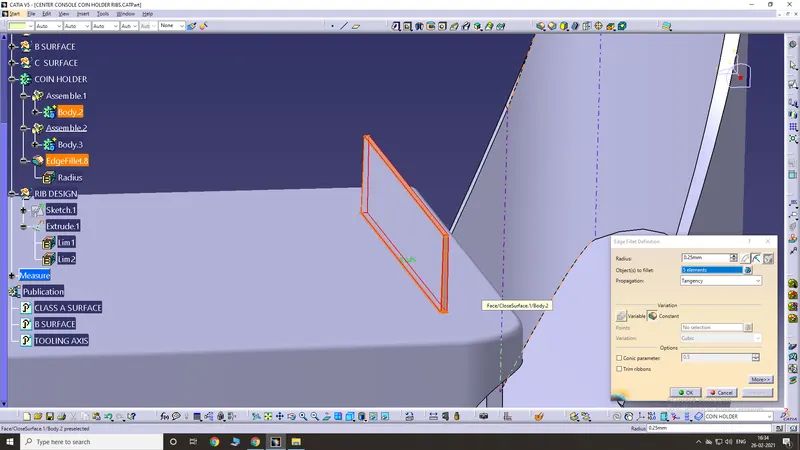

Fillets

Fillets should be 0.25mm (optional)

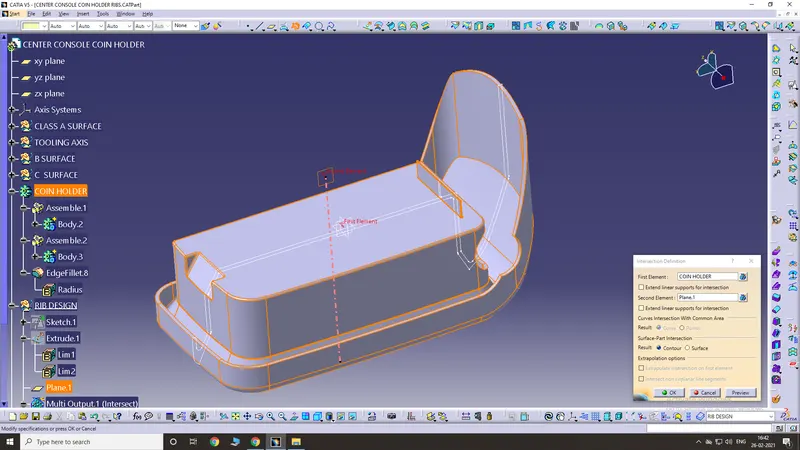

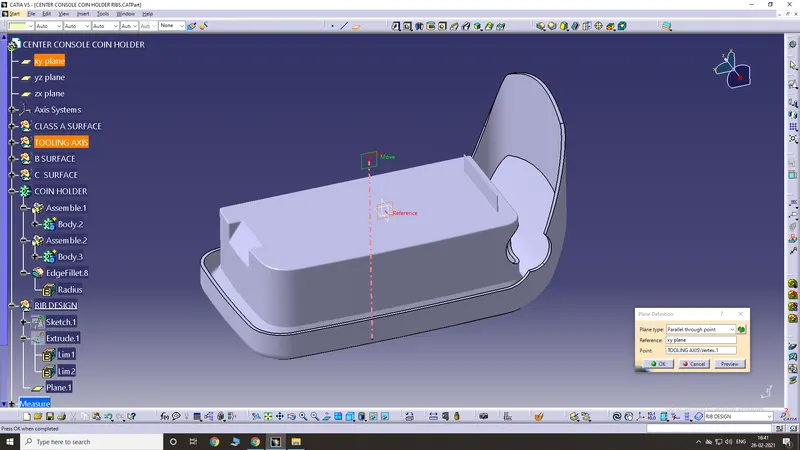

Making intersection

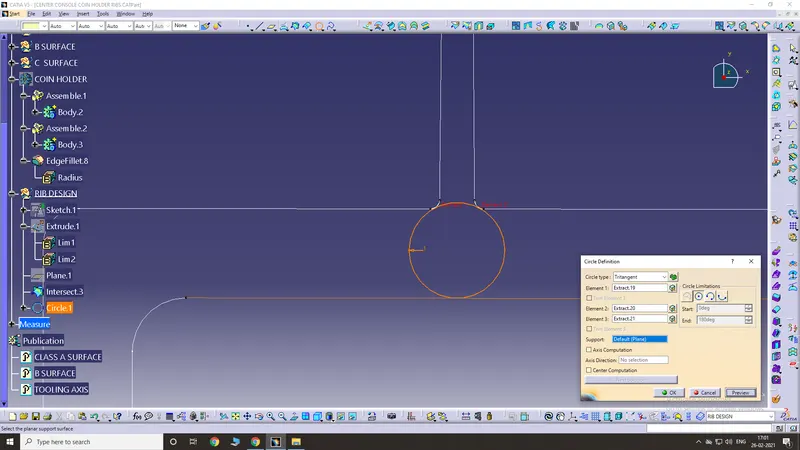

Tri-tangent circle creation

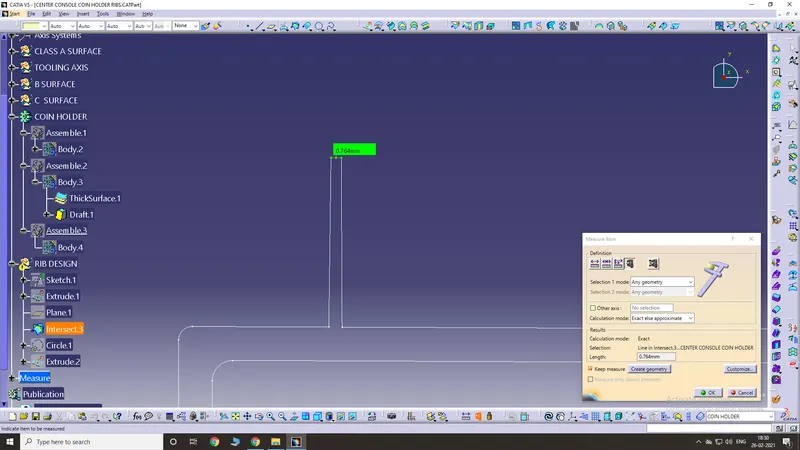

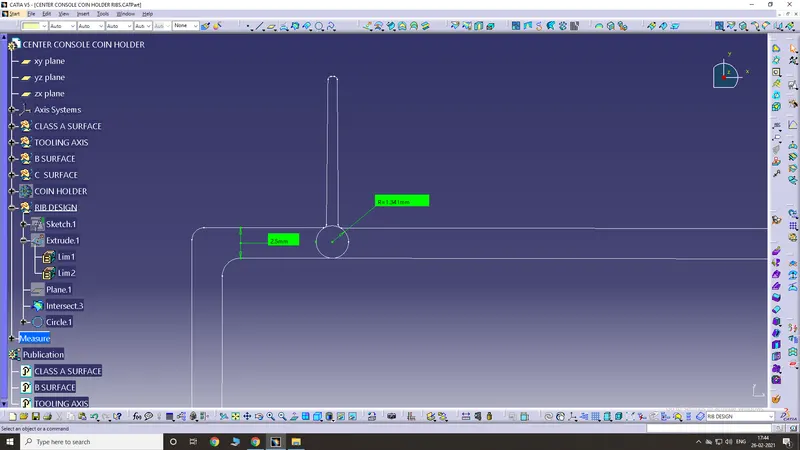

Also, top edge of rib should be at least 0.75mm

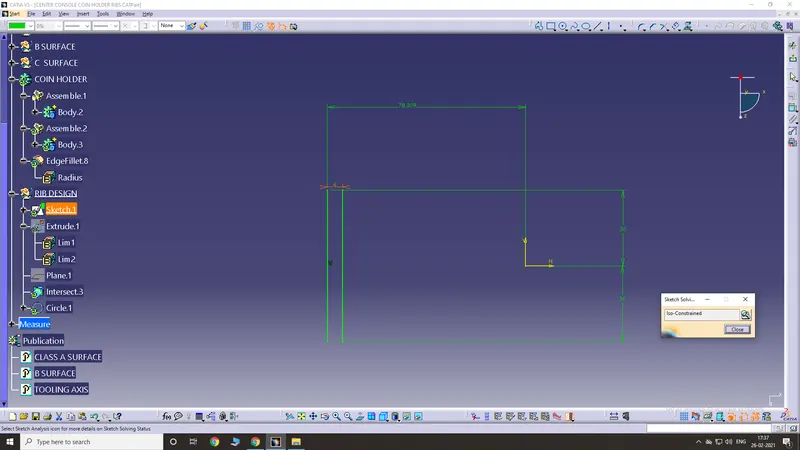

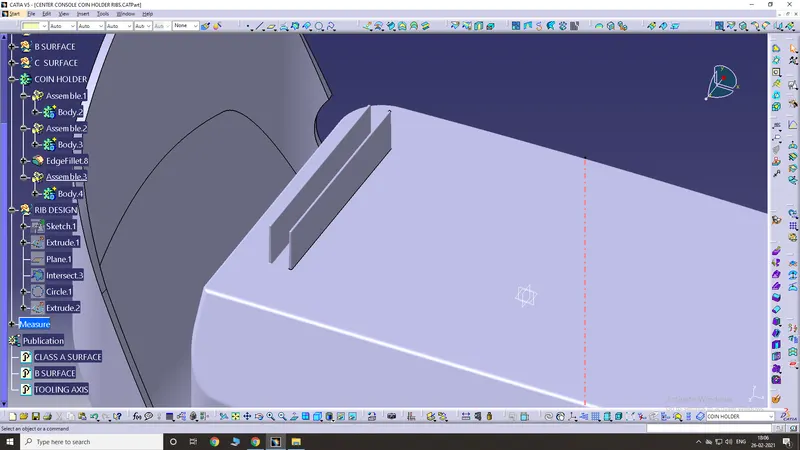

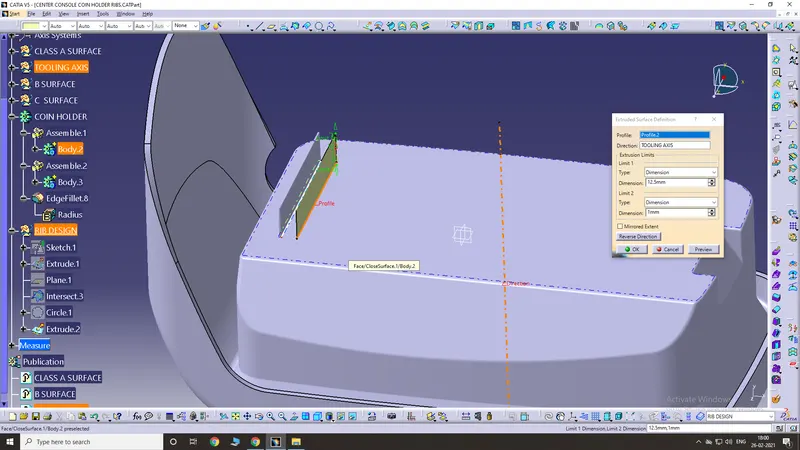

Making 2nd rib

2nd rib should be at a particular distance apart from the first. This distance is found out by

Y / X < 3, where Y is the height of rib and X is the distance between the 2 ribs.

Here. it is 12.5 / X < 3, therefore X = 4.166, rounded off to 5mm.

But we are giving the distance as 6 because we have not considered thick body here.

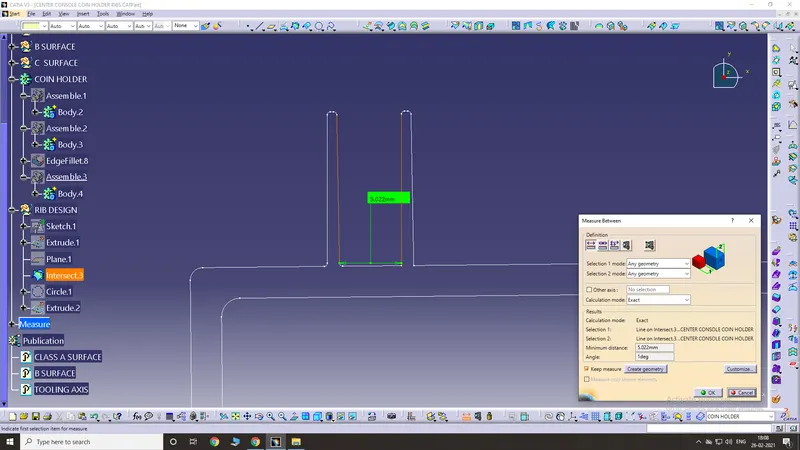

Here we can see that the distance between 2 ribs has come out to be 5, which is the desired distance.

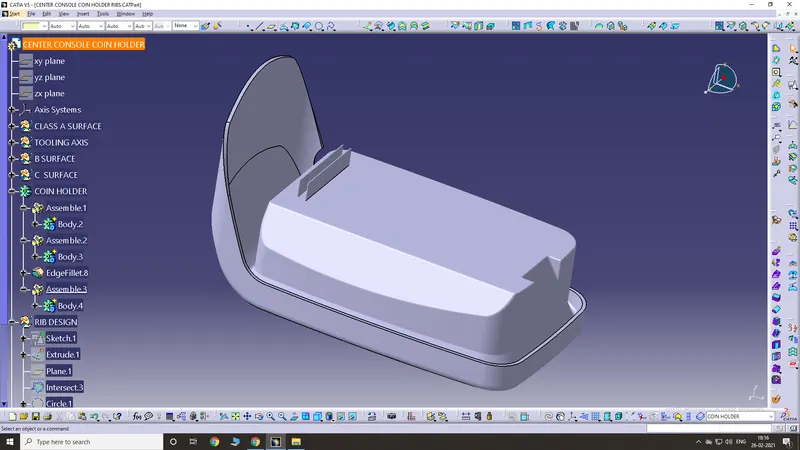

Final product
