Week 8 - Universal Joint

Aim: To see the stresses on the spring with different material (Stainless steel, Structural steel and Titanium Alloy)

Stainless Steel:

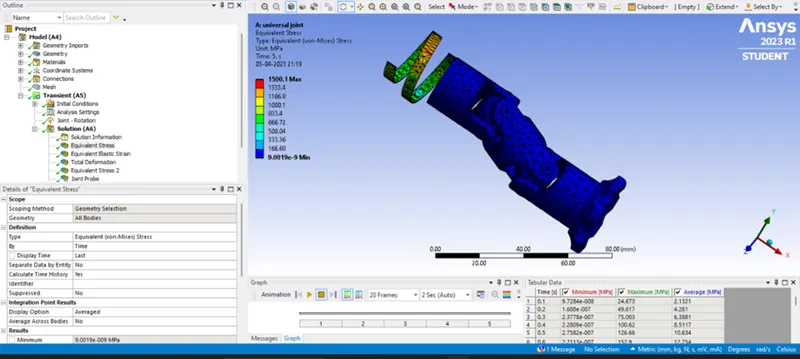

1. Equivalent Stress:

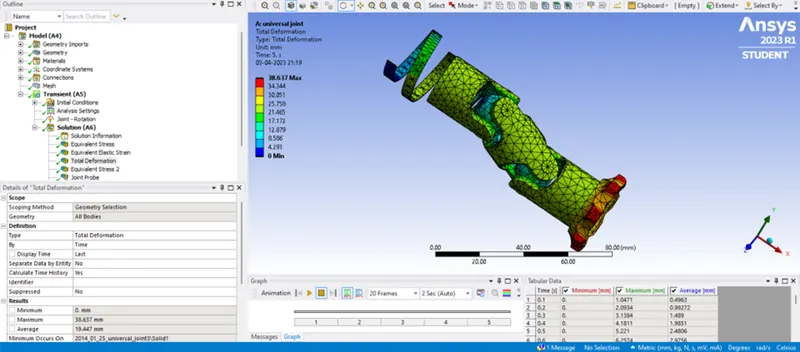

2. Total Deformation:

Structural Steel:

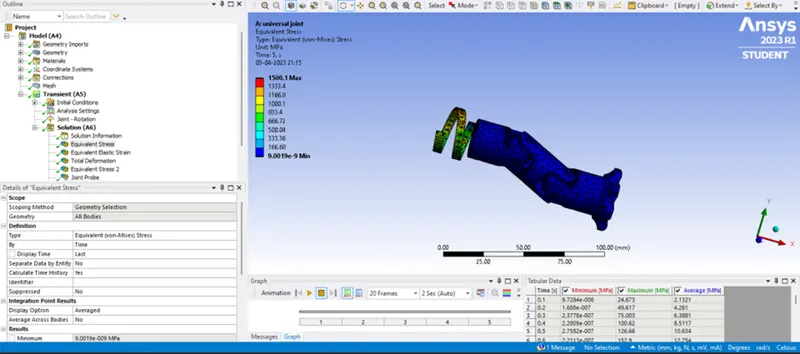

1. Equivalent Stress:

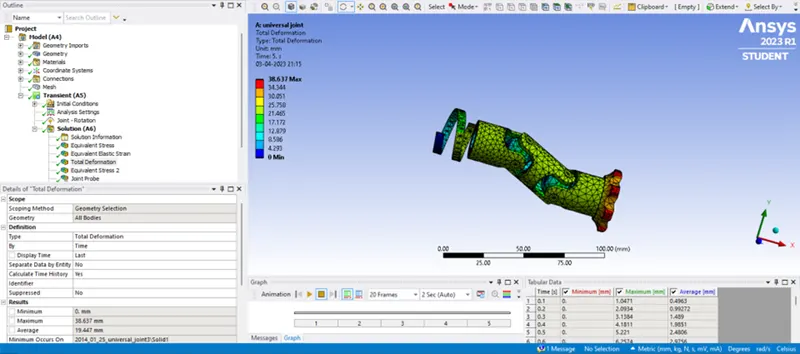

2. Total deformation:



Titanium Alloy:

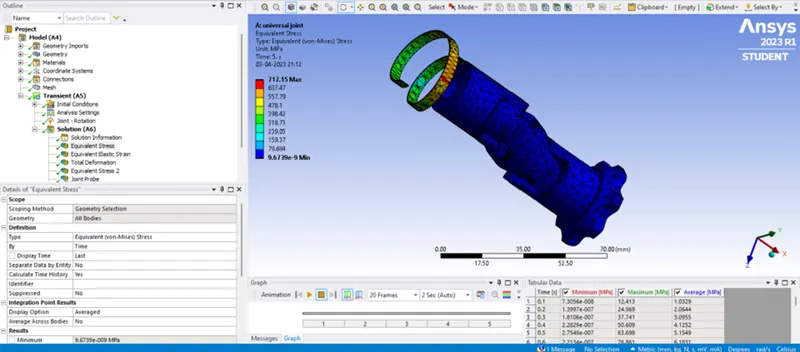

1. Equivalent Stress:

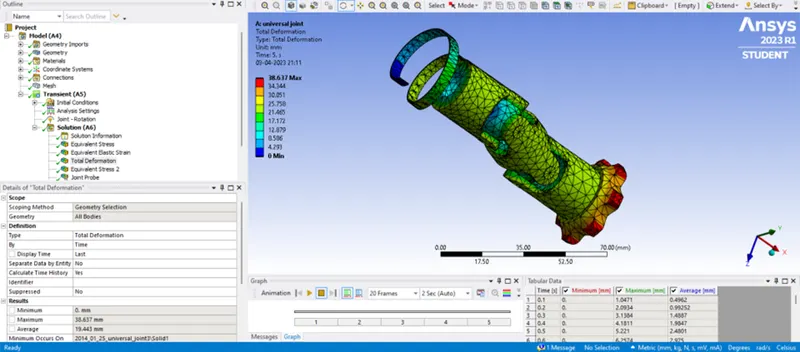

2. Total deformation:Results:

   		Stainless Steel	Structural Steel	Titanium Alloy
   1	Equivalent stress	1446.5 Mpa	1500 Mpa	171.15 Mpa
   2	Total deformation	38.63 mm	38.63 mm	38.63 mm
