Week - 8 - Morphing

aim: morphing technique and application.

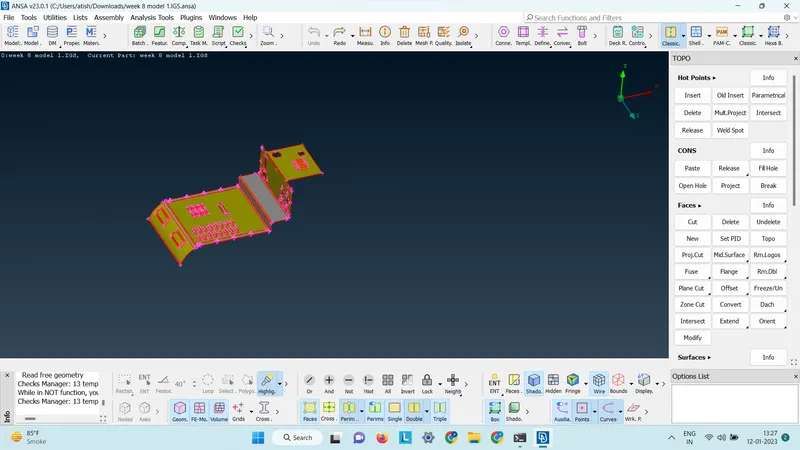

procedure: model 1:

1)topo.

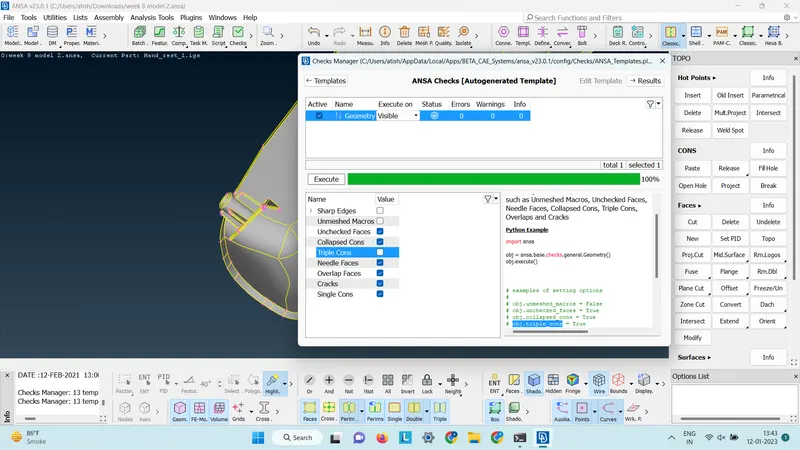

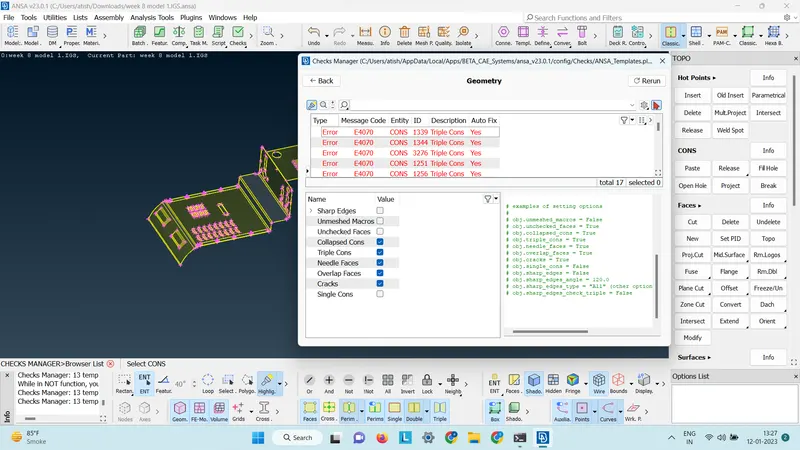

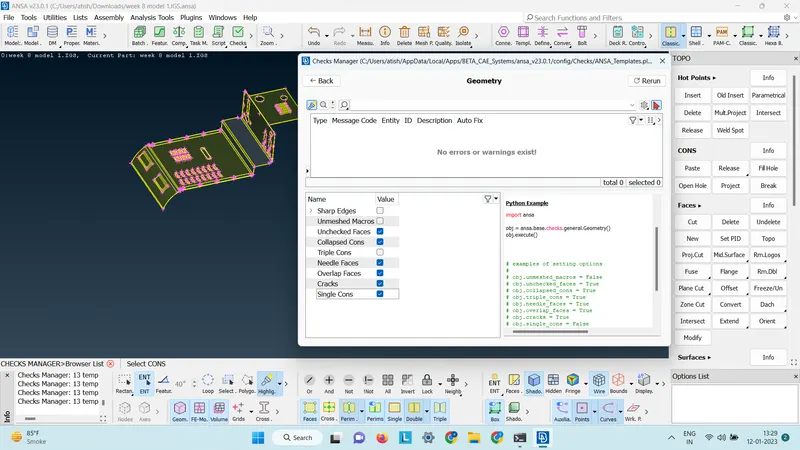

2) geometry clean up.

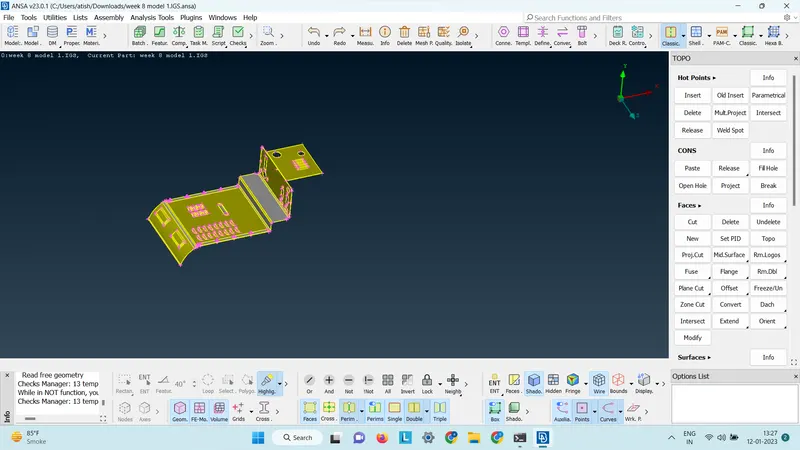

3) created morphing box where height / entity of a model should be changed.

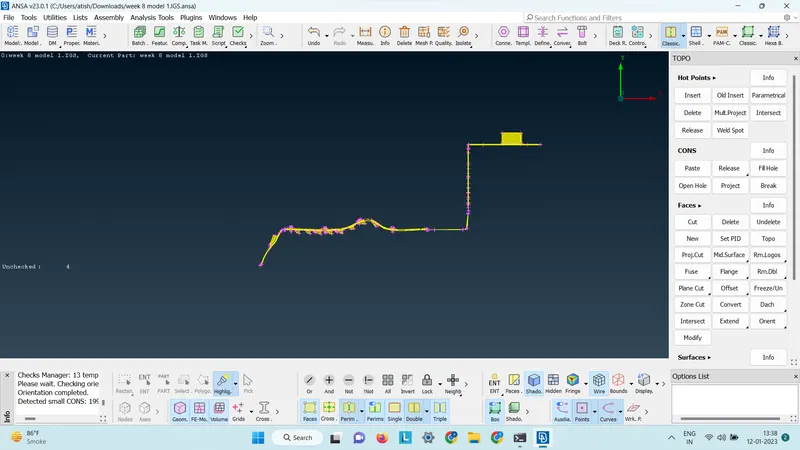

4) gone to morphing move command and selected nodes and move as per required.

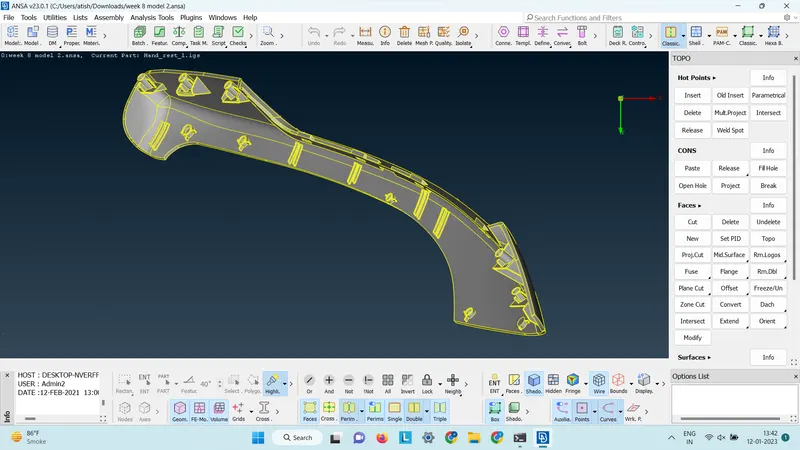

model 2):

1) topo .

2)geometry clean up.

3) created morphing box in dog house and ribs with box command.

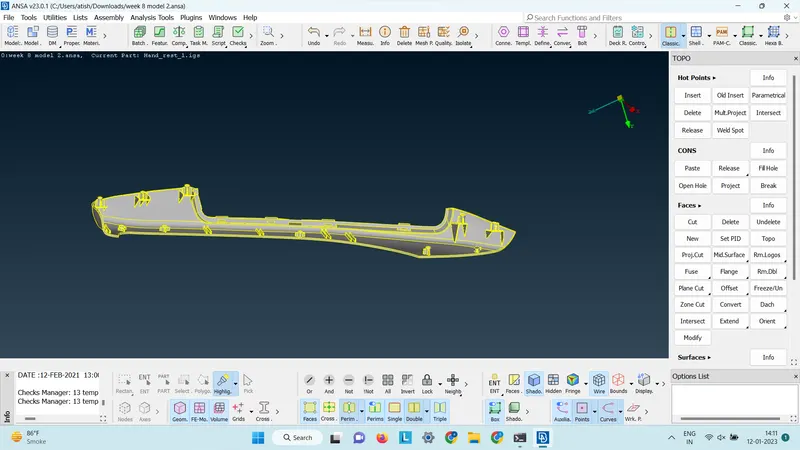

4)gone to morphing move command and selected nodes and increased height of dog house and ribs.

Application: 1) mostly in auto mobile industry to transform the type of cars.

2)morphing of wing shape of aeroplane.

3) morphing of steel metal component to increase strength or to decrease weight of material.

conclusion: learnt different type of morphing techniques and applied it .
