Week - 8 - Morphing

Aim- Perform morphing for the given two models and making the specific changes according to the question

Morphing is an effect which sees one shape or object transforms into another in a seamless transition

procedure
model 1
1.check for geo error and correct them and the topo of the model
2.ive created the boxex around parts which i later then morphed
3.i went for the box morphing - selected move
4.ive performed basic morphing techniques on the bolts and the ribs chnaging their length etc

model 2
1.After checking for geo error in the model and correcting the topo
2.i went to the morphing module in my ansa

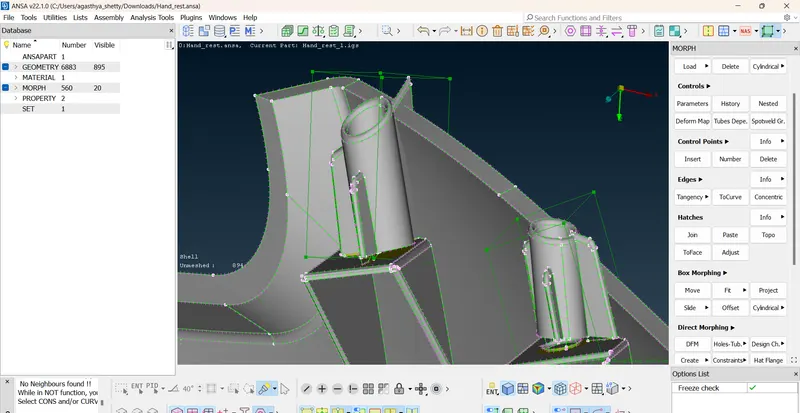

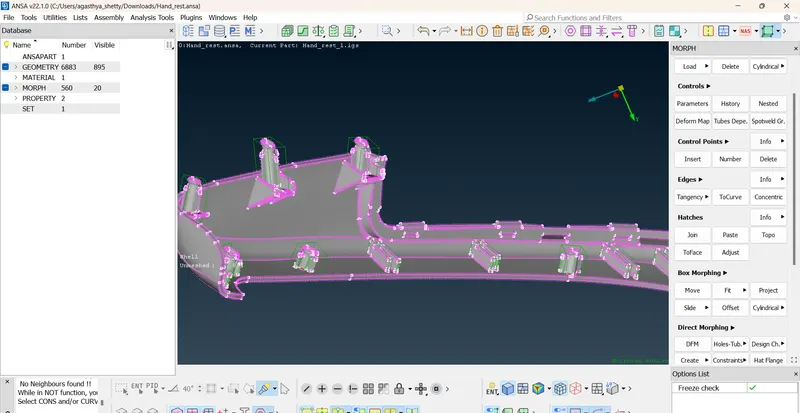

3.After cheecking with the question ive created the boxex around the ribs , dog houses in the hand_rest model
4.i went for the box morphing - selected move
5.after selecting the specific nodes in the ribs and dog houses ive morphed these parts in the model and by changing their length

conclusion -
The given models have been morphed acc to the criteria
also learnt that morphing techniques are used by the design team in making hachbacks to sedans in major automobile companies to benifit
their markets and also provid demads in the production .Its a simply change in the design
