Week - 8 - Morphing

OBJECTIVE
1. Perform morphing for the Model-2 and increase the Height of the Dog houses and Ribs.
2.To the morph the sheet metal copmpoment.

procedure

1.Before working on compoment for morphing first we need to check the copmoment for the sfree edge,crack,and the tripple con if there exist we should make the compoment free from the errors.

2.Now the geometry clean has been carried out we can begin the morphing process. This region in the compoment isolated using the inot option since the protusions are once we shall morphing.

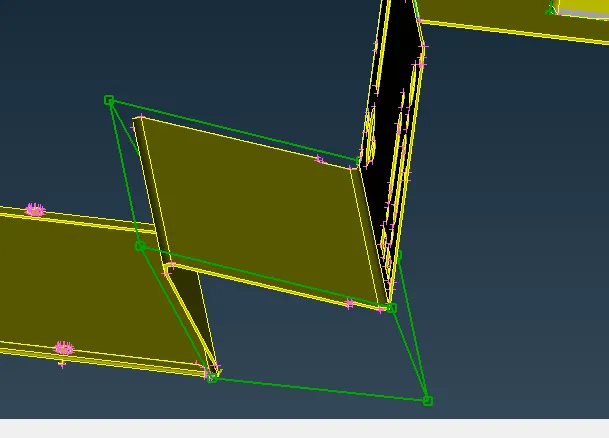

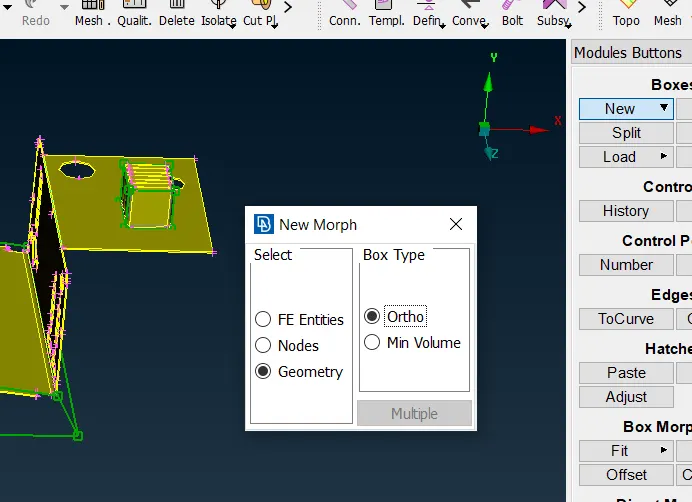

3. Then we shall go to morph deck there we need to create the box using new>ortho>geometry.then protusion are highleted.

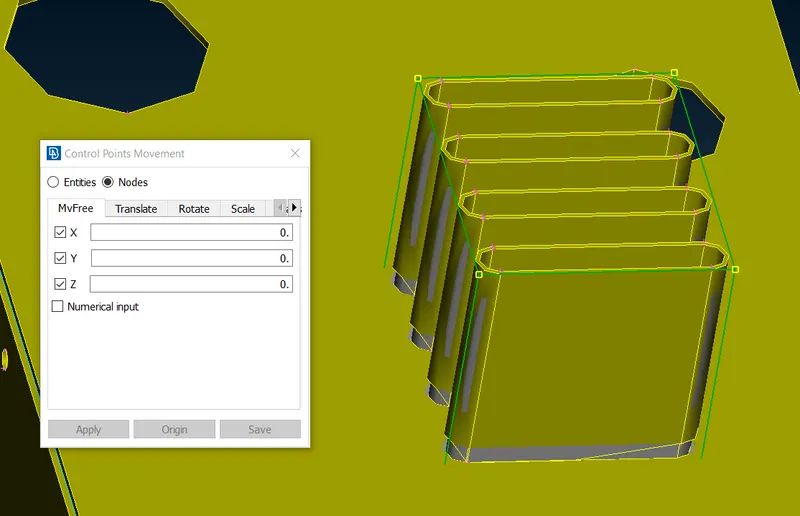

4.Then we select the Box morphing> Move to move the grids on the morph box.after the accesing the tools and selecting the nodes of the grids we can move them based on the cordinate axies by right clicking on one of nodes the tool uses the local cordinate syatem which make morphing process more invotive process.

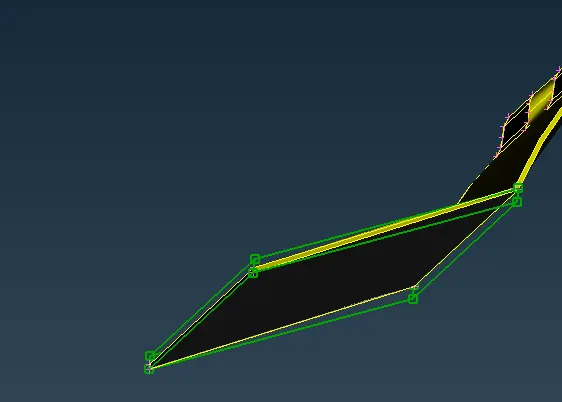

in first step we need to increase the height of the box hence we nedd to slect on x cordinate nad we will increase the height of the box.

5. morphing at another rregion.

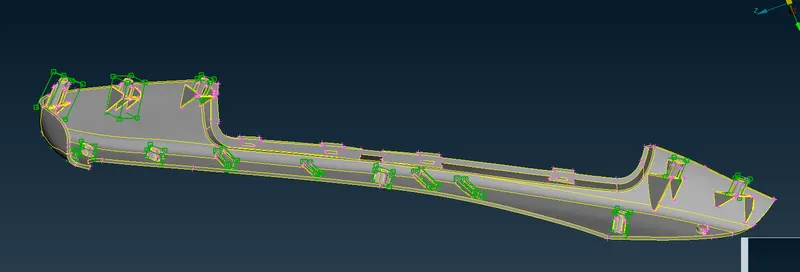

MODEL 2:-

Same procedure is followed as model1

in morpho new> ortho> geometry.

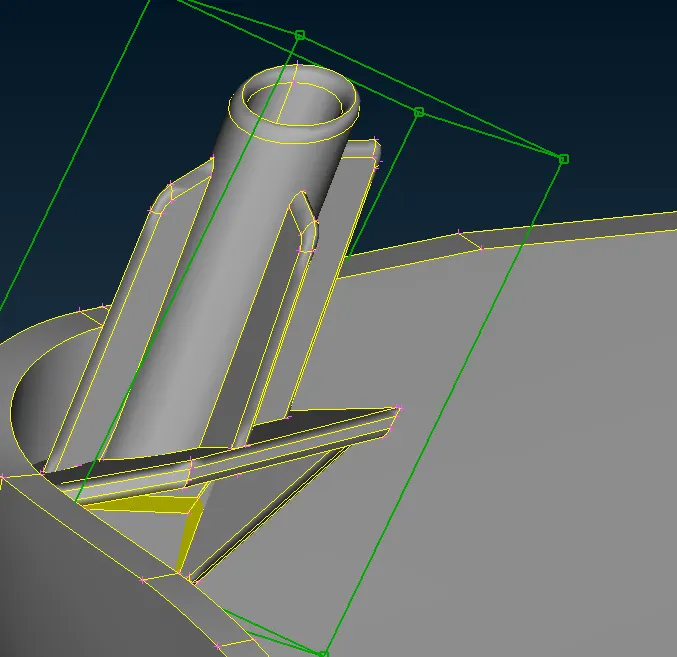

highlighting the dog house.

LEARNING OUTCOMES:-

1.UNDERSTAND THE MORPHING TECHNIQUE.

2. UNDERSTAND THE IMPORTANCE OF MORPHING TECHNIQUE IN THE INDUSTRY.

CONCLUSIONS:-

Morphing is performed for the given two components.

This is a very powerful tool and now the OEM's are using the morphing technique to redesign and reshape new models in the market. This saves a lot of time and money which is the major reason to be focused on.

Having said that this method needs a very skilled engineer to do so, who have a lot of hands-on experience dealing with these kinds of modifications.

Here we have discussed only box morphing technique with very basic overview to use it and get aware of its usage.
