Week 8 - Challenge 6 - Core & Cavity Design

Draft analysis:-

1) select material in customize view paramater in  View toolbar

2) select analysis in insert and in that select the feature draft analysis

3) In draft analysis select the compass and drag the compass to the tooling axis and lock the compass to tooling axis

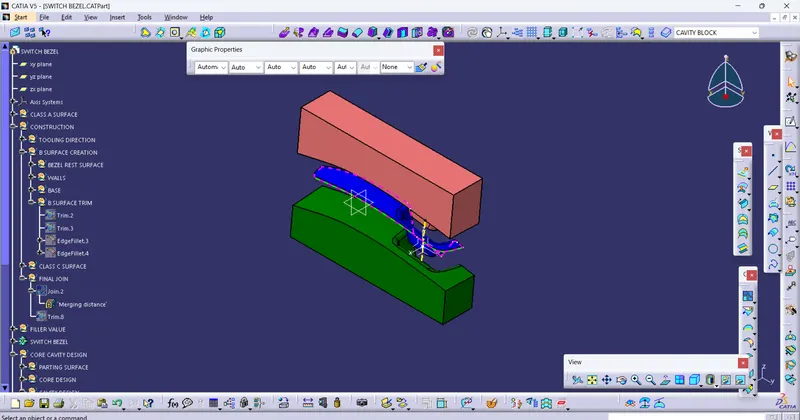

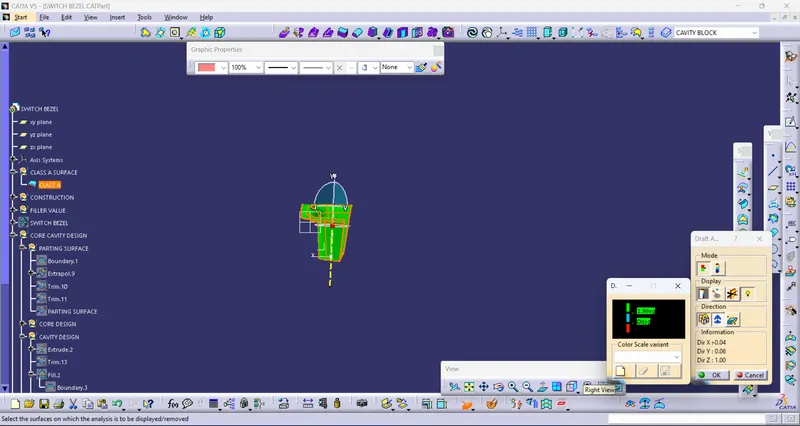

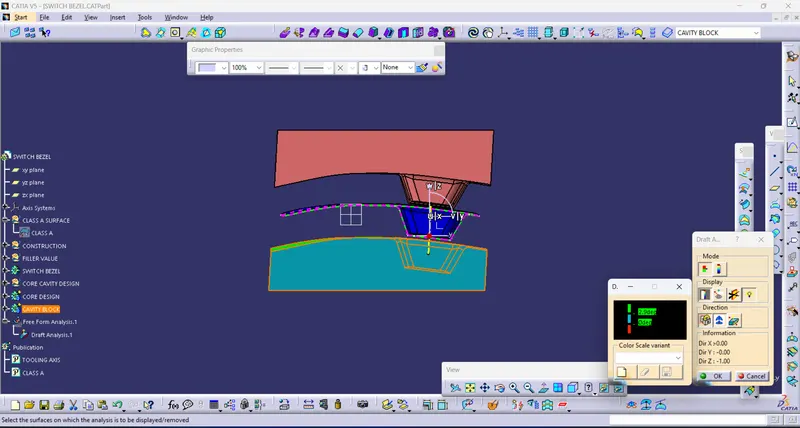

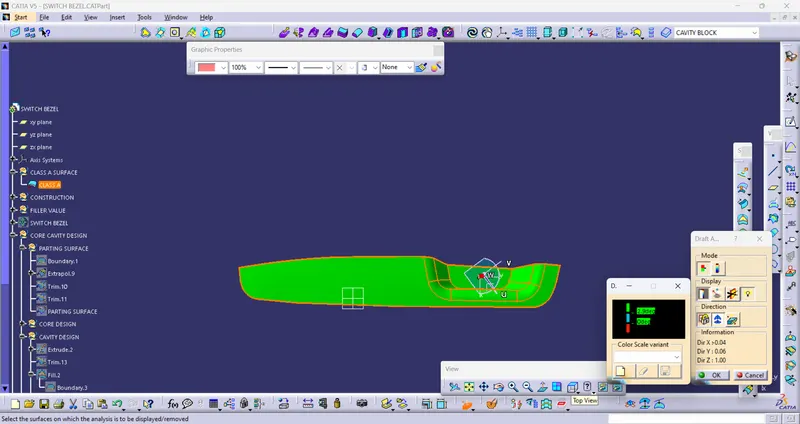

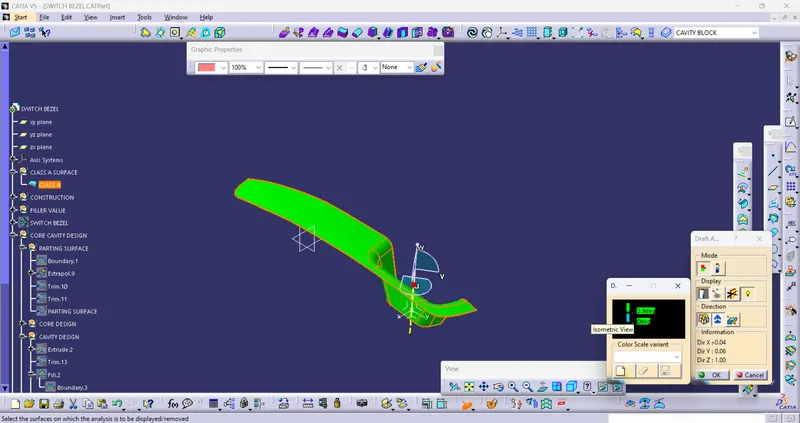

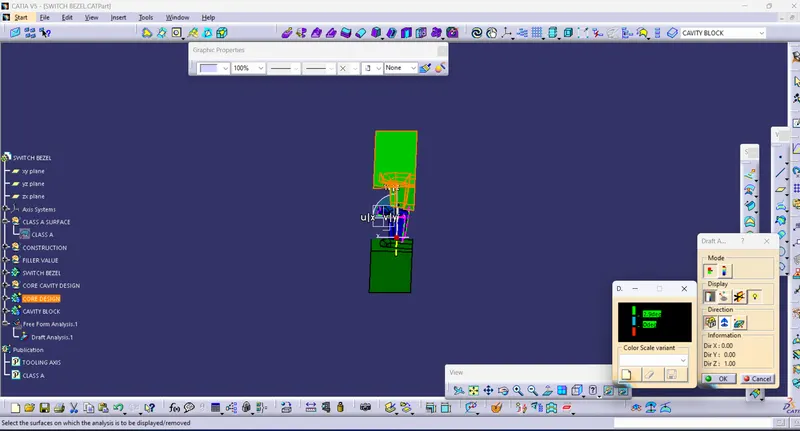

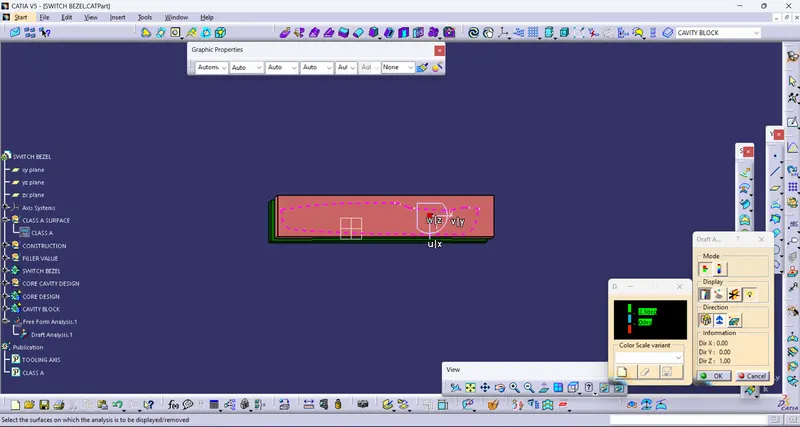

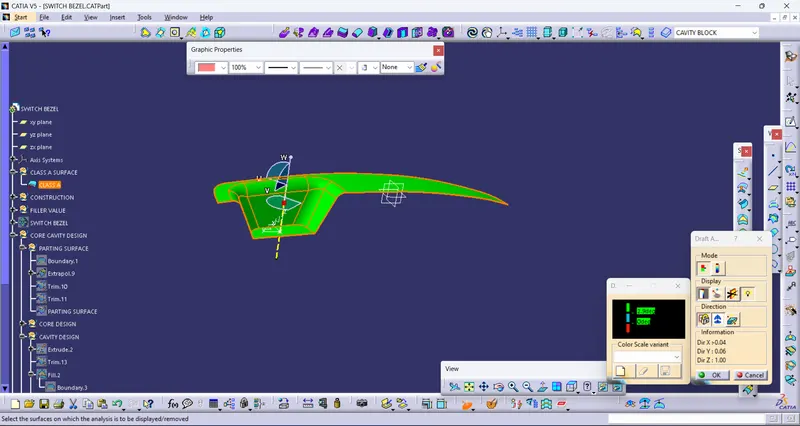

4) click on the surface to see the draft analysis of the compoment
