Week 8 - Challenge 6 - Core & Cavity Design

CREATING TOOLING AXIS :

TOOLING AXIS is used to creating draft draction and draft define the path of molden materials

STEP1:

SELECTION THE POINT POSISITION:

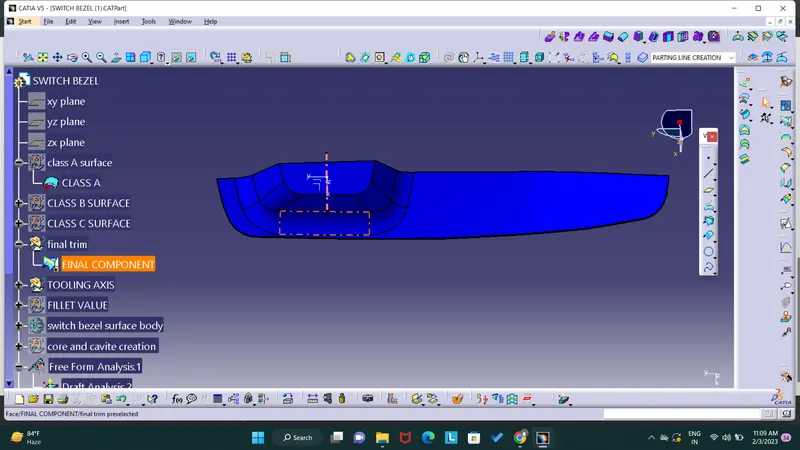

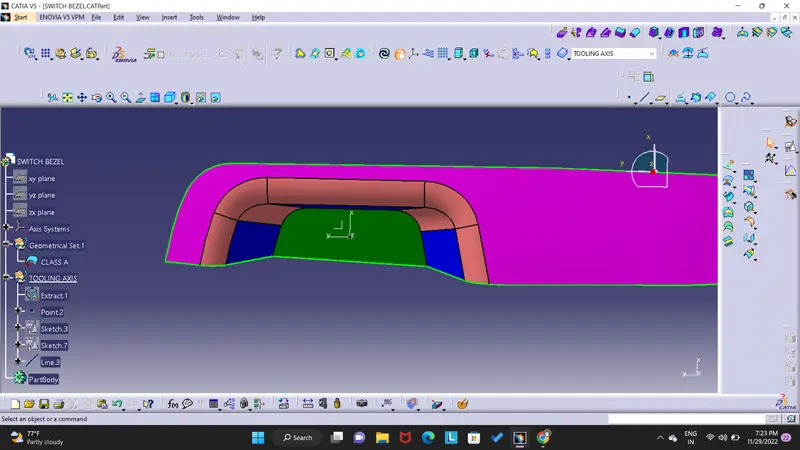

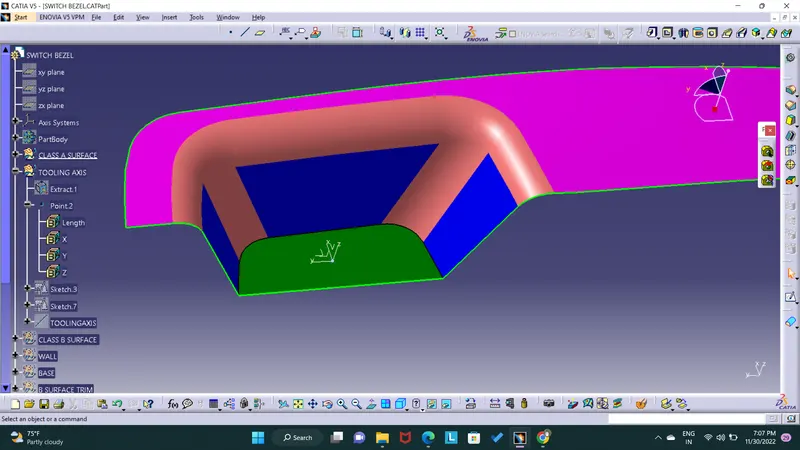

SELECTING THE POINT TO CREATING A DUMMY TOOLING AXIS THE POINT POSSITION IS VERY IMPORTENT BECAUSE WE SELECT THE WORNG POSSITION OF THE POINT WE NOT GET A PROPER TOOLING AXIS . SO WE MUST SELECT THE PROPER TOOLING AXIS ,WHO TO SELECT THE POINT?. WE SELECT THE POINT THE PORT OF THE ALL PART MUST BE VISIABLE CHANGE THE AXIS OR PLAINS TO IDENTFY THE POSITION IN THIS CHALLANGE I USE ON SURFACE COMMAND TO DRAW A ONE POINT WITH HELP OF AXIS SYSTEM .(USING EXTRACT COMMAND TO EXTRACT THE SURFACE )

STEP2:

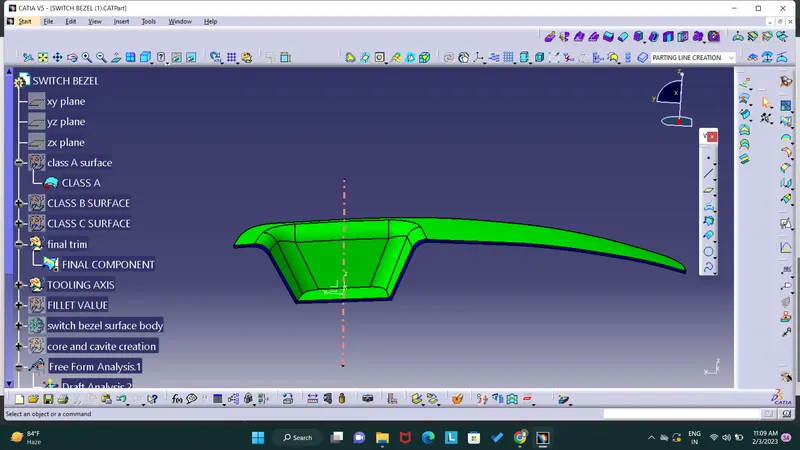

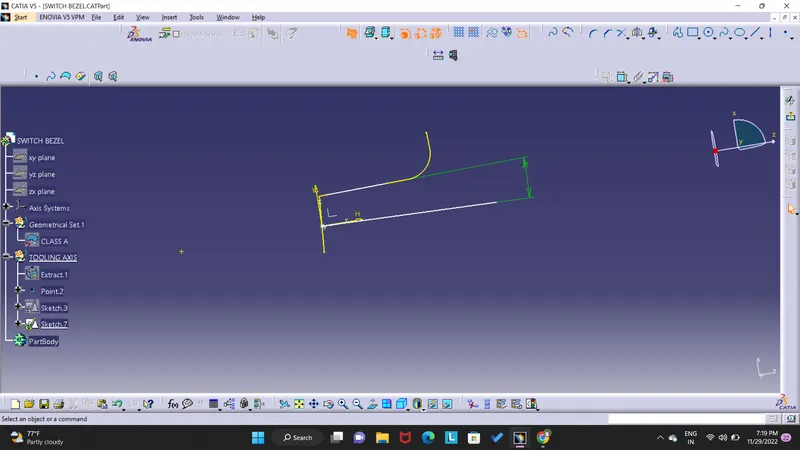

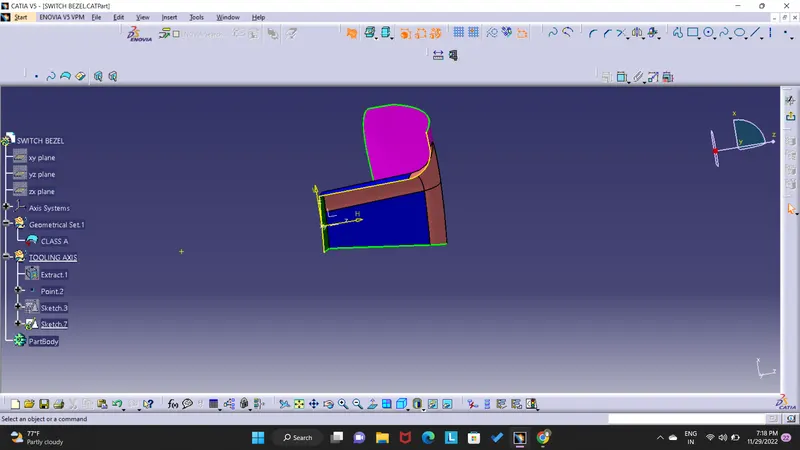

AFTER CREATING POINT DRAW ONE LINE USING POINT AND LINE OPTION THIS LINE IS KNOWN AS DUMMY TOOLING AXIS . AFTER CREATING DUMMY TOOLLING AXIS PROJECT THE INTERCTION OF THE COMPONENT TO DRA LINE USING POINT TO POINT LINE OPTION AND AFTER USING BISETING LINE OPTION TO CREATE DUMMY TOOLING AXIS .

NOW WE DRAW ONLY THE DUMMY TOOLIN AXIS FOR ONE FACE OF THE COMPONENT WE NEED TO DRAW ANOTHE DUMMY TOOLING AXIS FOR ANOTHER FACE

STEP3:

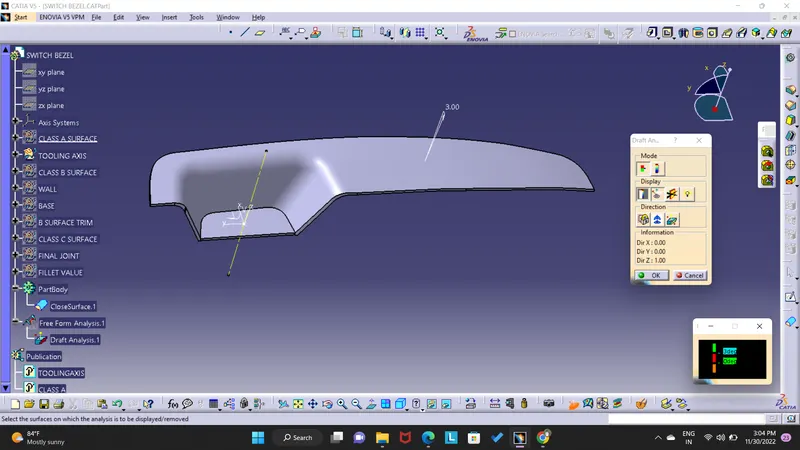

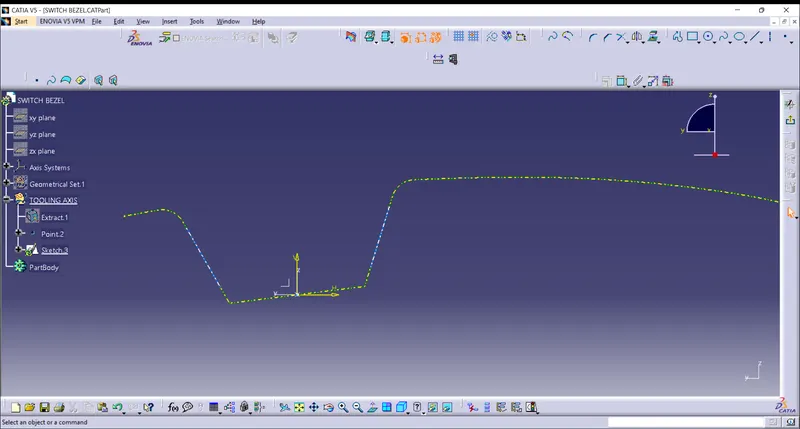

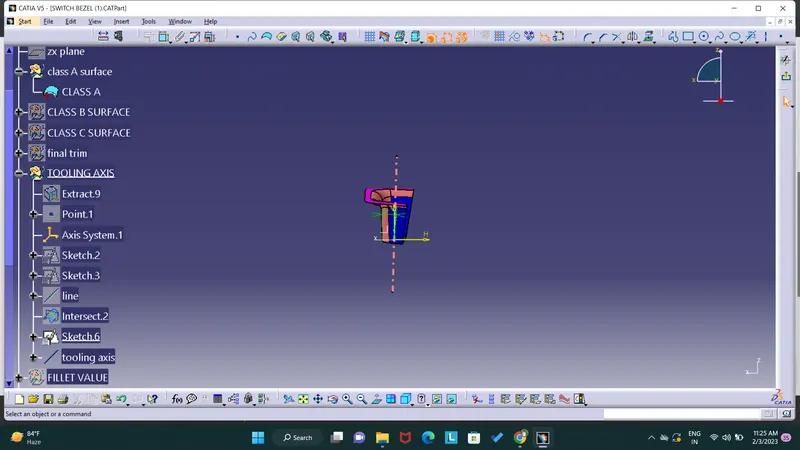

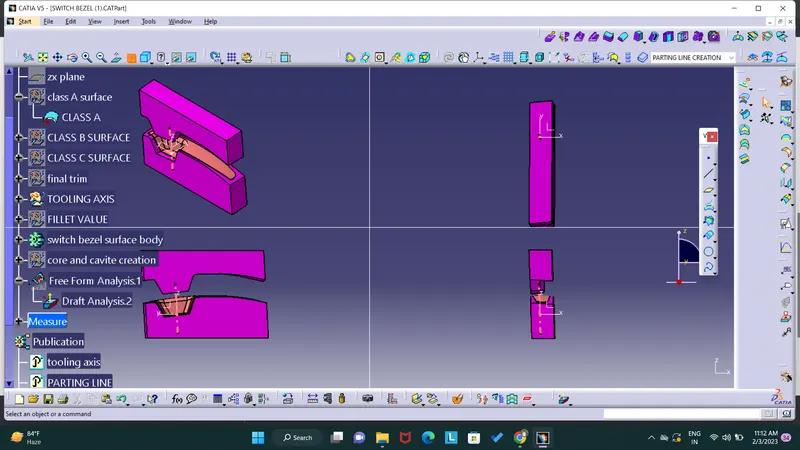

USING AXIS SYSTEM TO SELECT THE XZ PLAIN TO DRAW THE DUMMY TOOLING AXIS , CREATION OF DUMMY TOOLING AXIS USING CUTTSECTION COMMAND TO CUT THE COMPONENT FOR MORE UNDERSTAND . AFTER CUTTTING THE COMPONENT USING 3D PRIJECT ELEMENT THE PROJECT THE INTERSECTION OF THE COMPONENT HERA WE GETTING ONLY ONE LINE (PLASTICE COMPONENT DRAFT ANGLE IS 3 SO WE DRAW ONE 3DREEG ANGLE LINE )AFTER CREATING WE GET A ONE DUMMY TOOLING AXIS .

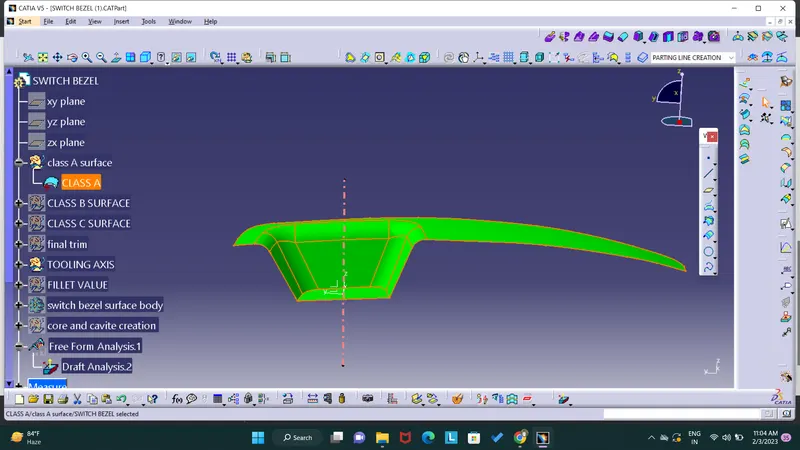

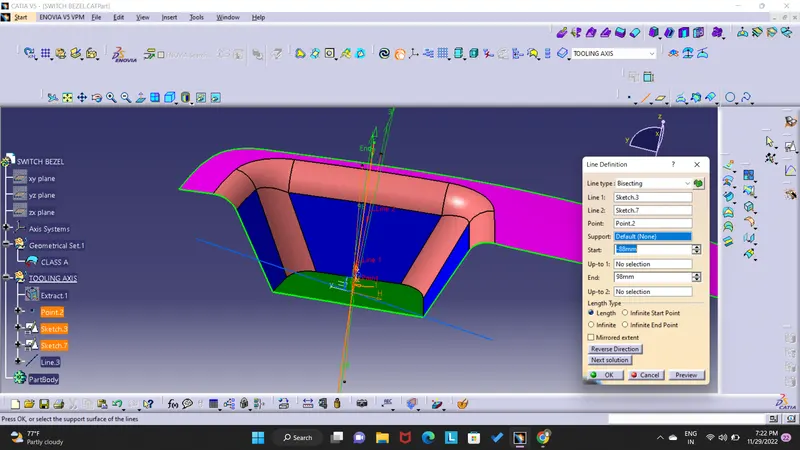

SREP4: AFTER CREATING TWO LINES USIN BISETING LINE TO CREATE A TOOLING AXIS

CREATION OF DRAFTITNG :

DRAFTING IS USED TO EJECT THE COMPONENT EASSLY FROM THE CAVITY OR CORE WE NOT USING DRAFTING IT AFFECT THE COMPONENT WHEN REMOVING FROM THE DIE SO DRAFTING IS MOST IMPARTENT.

STEP ONE 1;

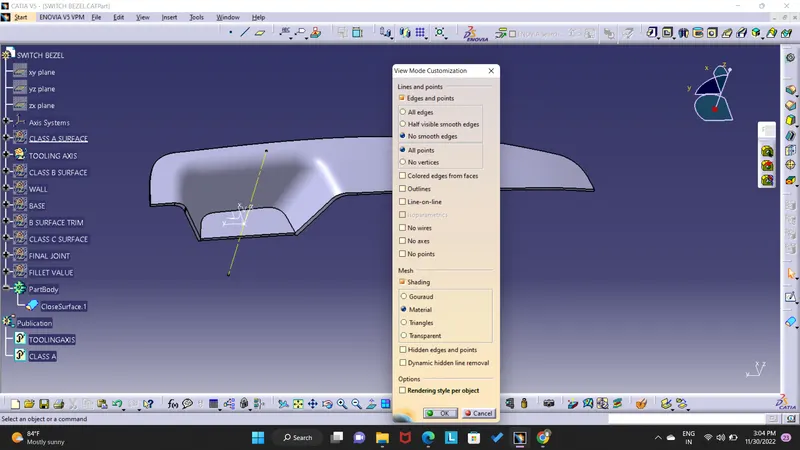

GO TO CUSTOMISE VIEW PERAMETER TO SENECT MATERIAL OPTION ,AFTER SELECTING WE DO DRAFT ANALYSIS

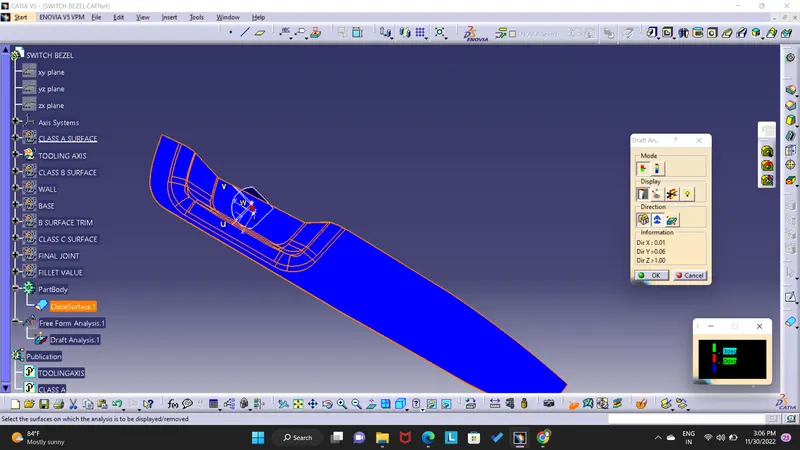

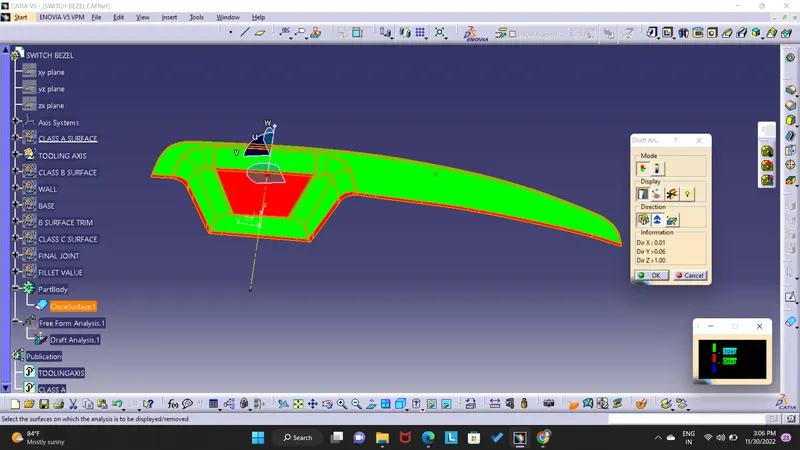

AFTER GO TO INSERT ANNALYSIS AND SELECT THE DRAFT ANNALISIS MODE AFTER CLICKING WE GET A TWO BOXES .THEN SELECT THE COMPASS TOOL THE THEN YOU GET A NEW AXIS AND PICK THE AXIS CENTER POINT AND DRAG IT CENTER OF THE TOOLING AXIS AFTER PLACING LOCK THE COMPASS.

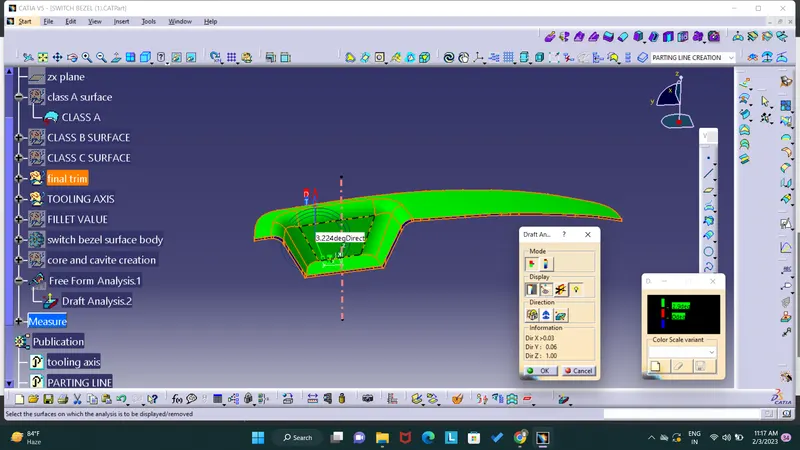

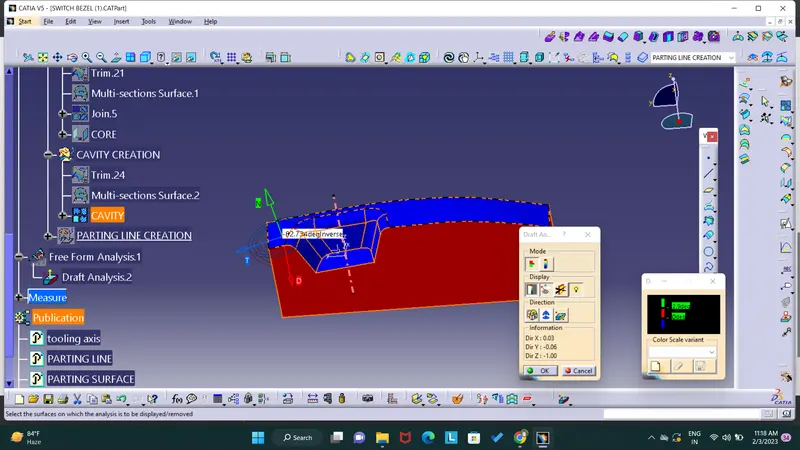

AFTER CLICK THE DRAFT DIRECTION COMMAND ,THEN CLICK THE ANLISE THE UNDER RUNNING OPTION TO ANALYISE THE DRAFT ANGLE

TILL ALL SO IT NOT CLEAR SO WE NEED TO DRAW A LINE ON SURFACE NOW THE DRAFT ANGLE IS CLEARING

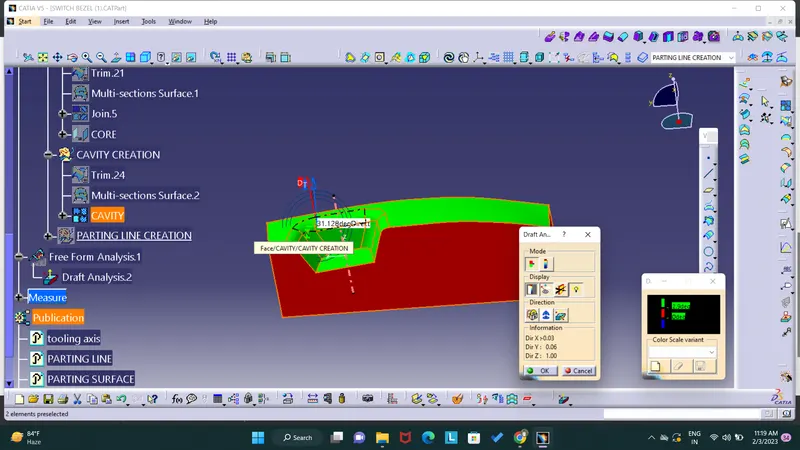

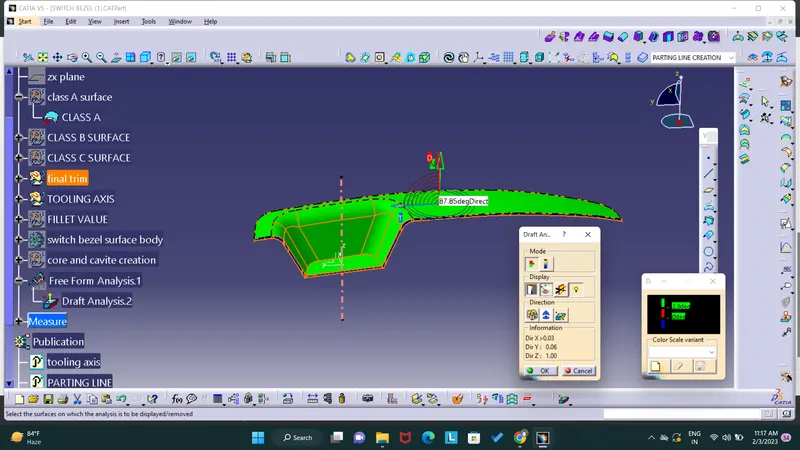

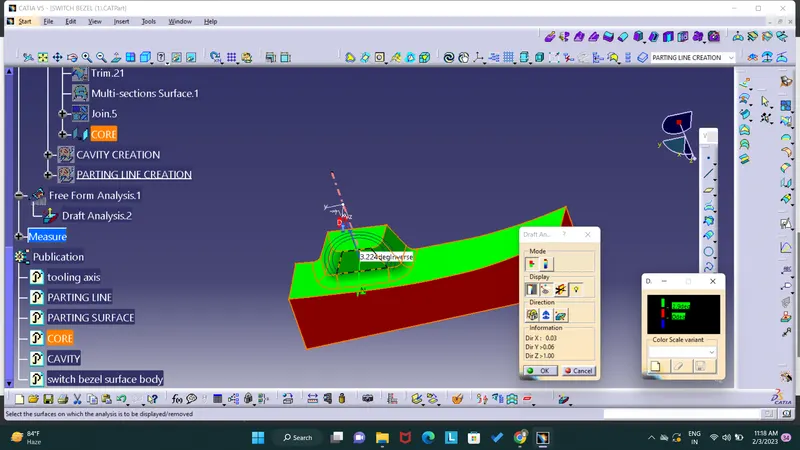

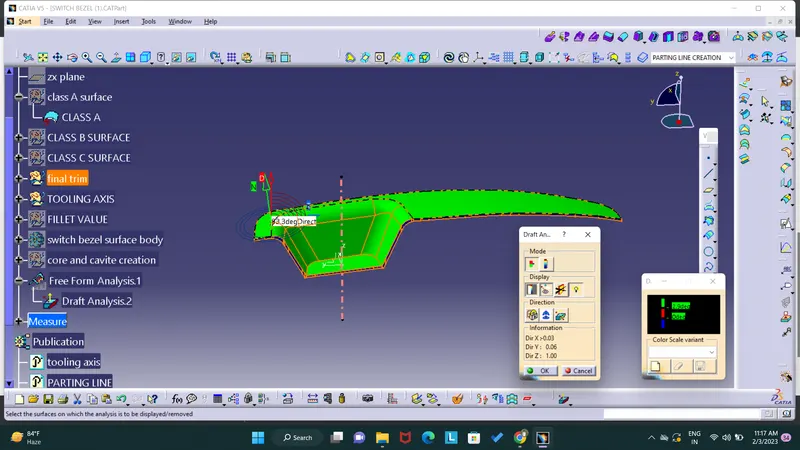

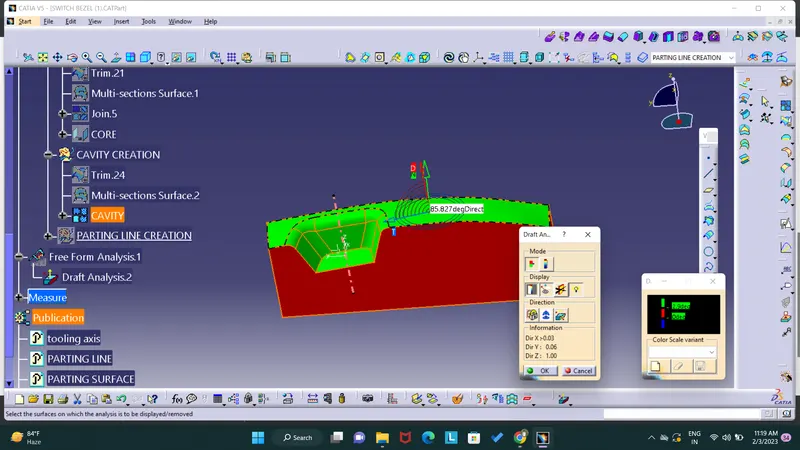

DRAFT ANALYSIS:

Draft analyses is used to wether the part model is creaded in cad model and it is undere the manufacturing condition . the plastic component draf must be in 3 degree.
