Week 8 - Challenge 6 - Core & Cavity Design

 1. TOOLING AXIS - The direction in which the mould opens and closes.

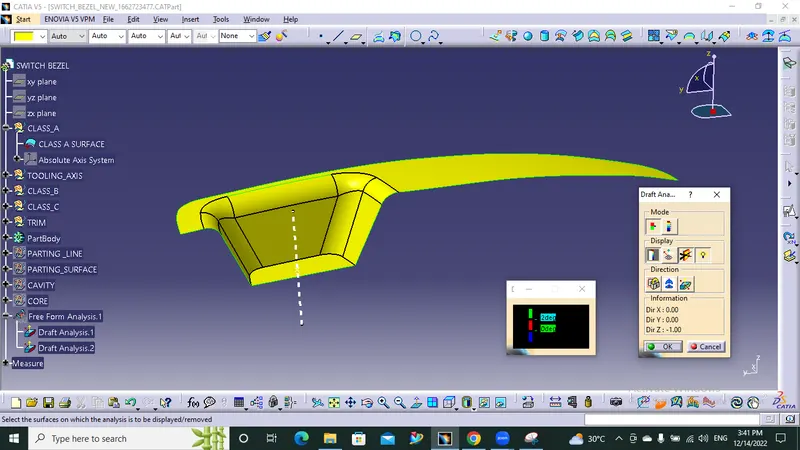

2. DRAFT ANALYSIS-

1.Draft is something to which allows the component to get release the components.

2.In draft analysis we give 3 degree draft tool because the tool will not wear and easily opens and closes the omponents.

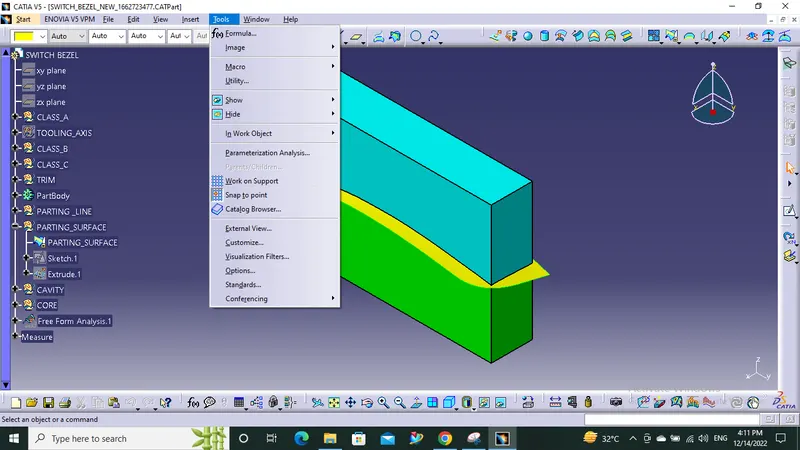

( In my catia software - in tools the publication option not showing )

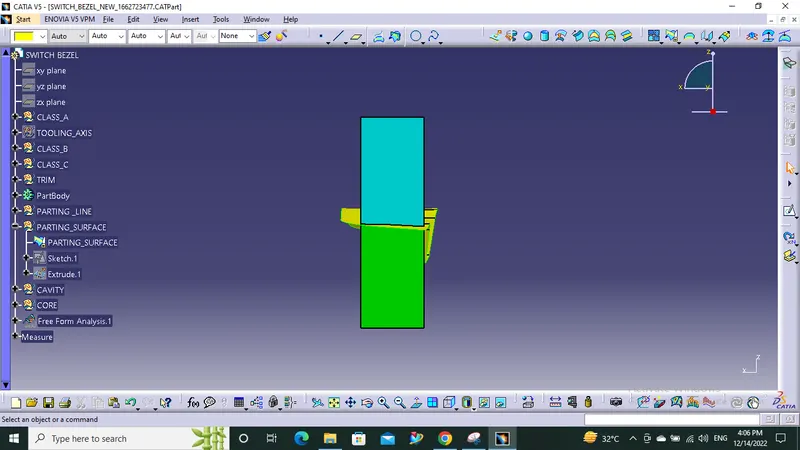

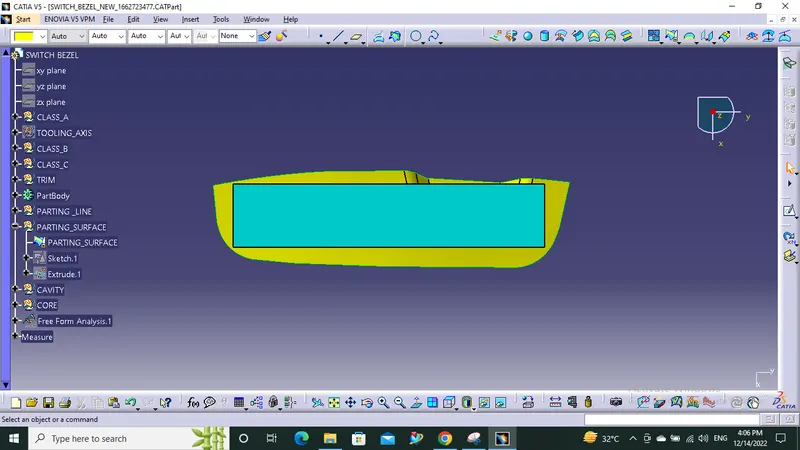

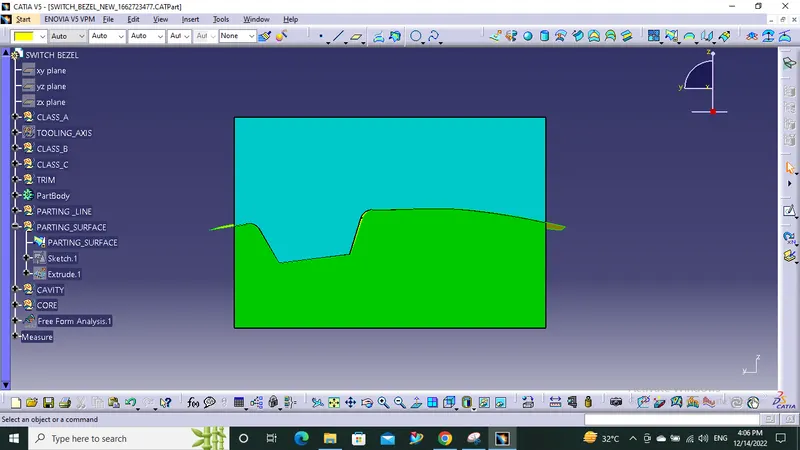

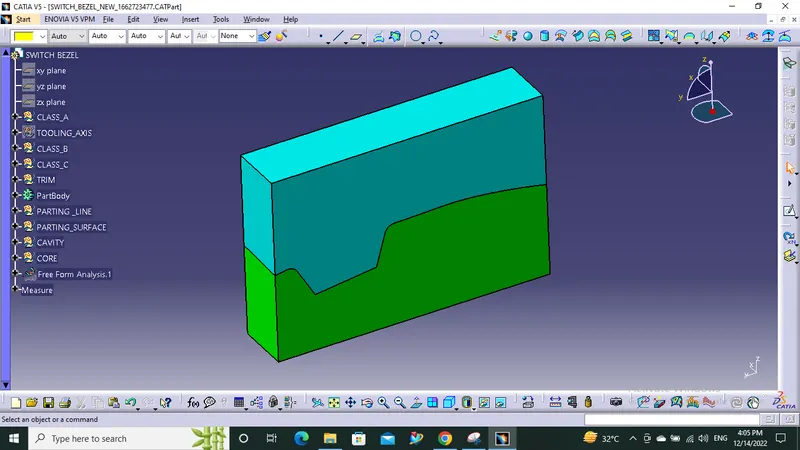

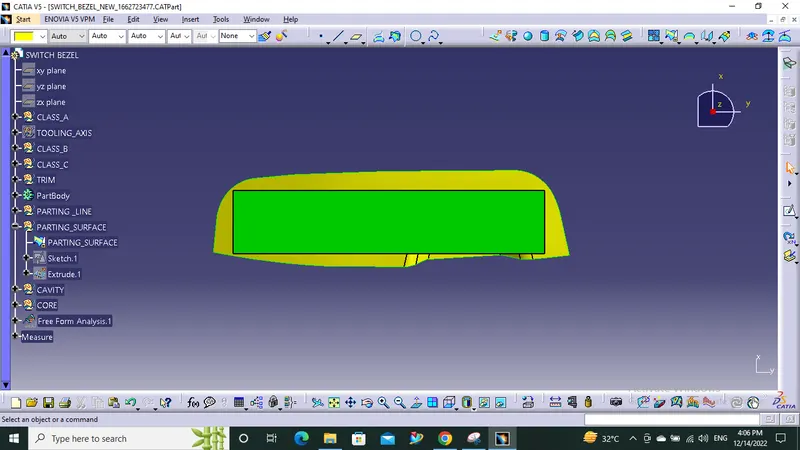

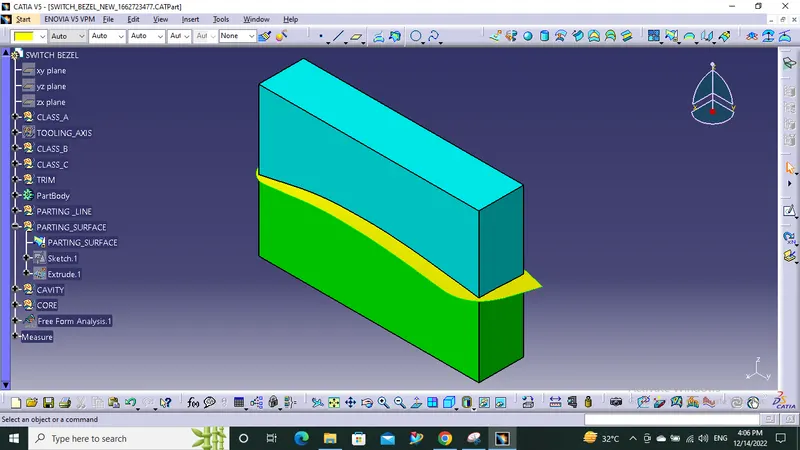

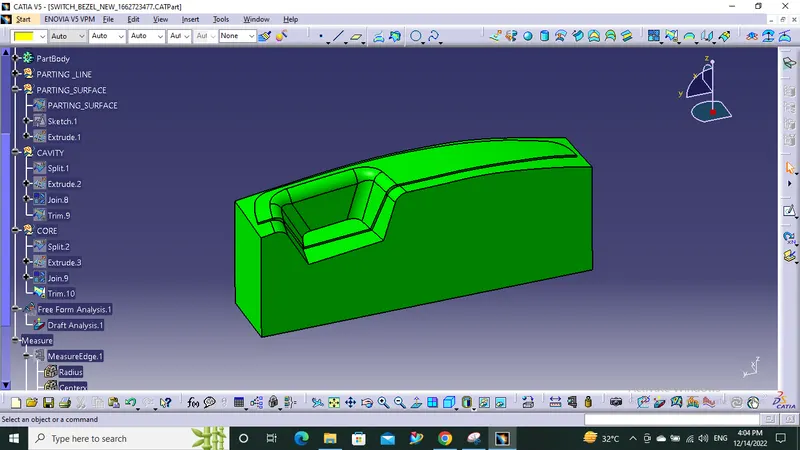

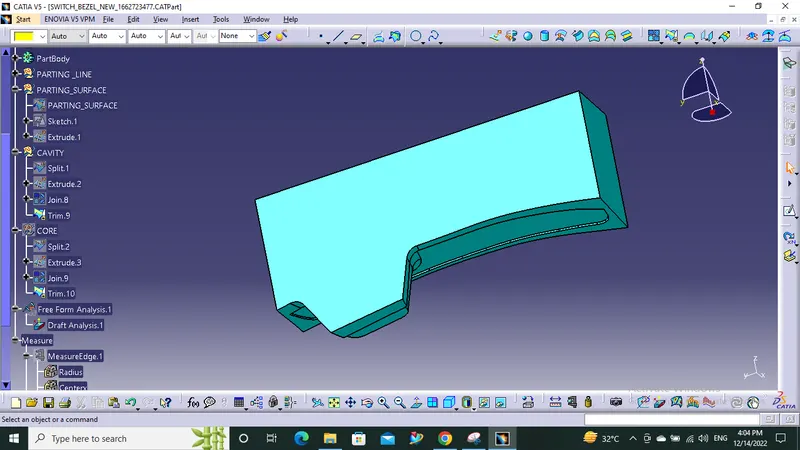

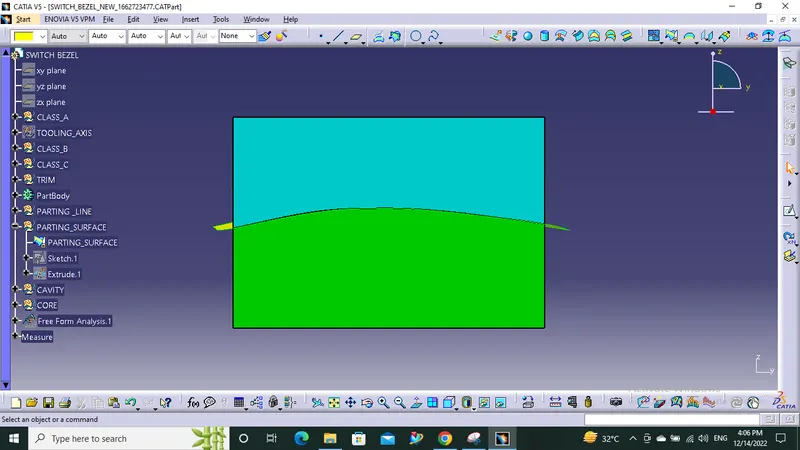

SCREENSHOTS-
