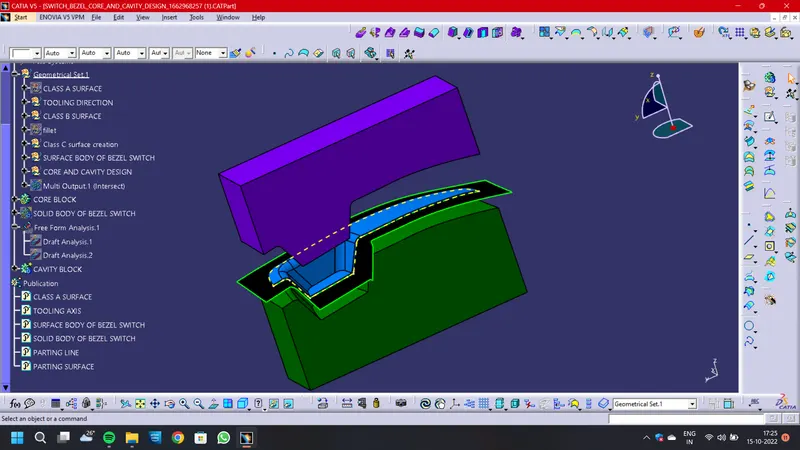

I GOT A GAP IN  [CLASS A] SURFACE I ALTERED THE GAP AND I CREATED A JOIN OF [CLASS A] SURFACE AFTER CREATED A [CLASS B]  SURFACE AND [CLASS C]. IN [CLASS C] ALSO GOT SOME MINUTE GAP IT TOOK TIME TO ARREST. AFTER TRIM [CLASS A] TO [CLASS C] FOLLOWING TRIM TO [CLASS B]
