Week 8 - Challenge 6 - Core & Cavity Design
Aim: To create the Core and cavity blocks for the switch bezel designed in the earlier challenge.
The core is the part which forms the internal shape of the components or the material wheras the cavity is the part which forms external shape of the material. Core is the side of the tool whereas the plastic part is injected from the bottom of the tool.
A tool with inly one impression is called as a single impression mould and a mould with two or more cavities of the same prt is usually called a multiple impresion mould.
The outer side will be a cavity and the inner side will be the core respectively.

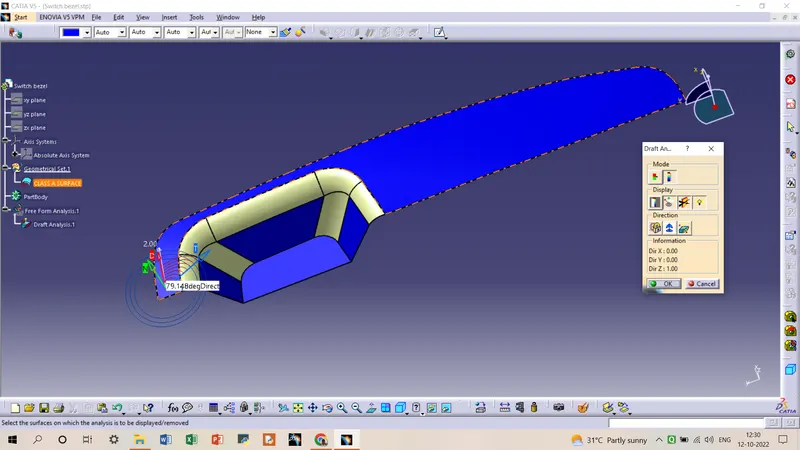

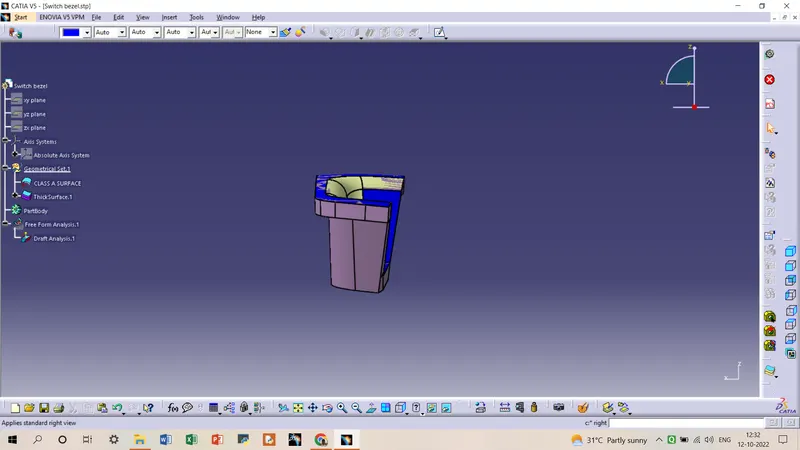

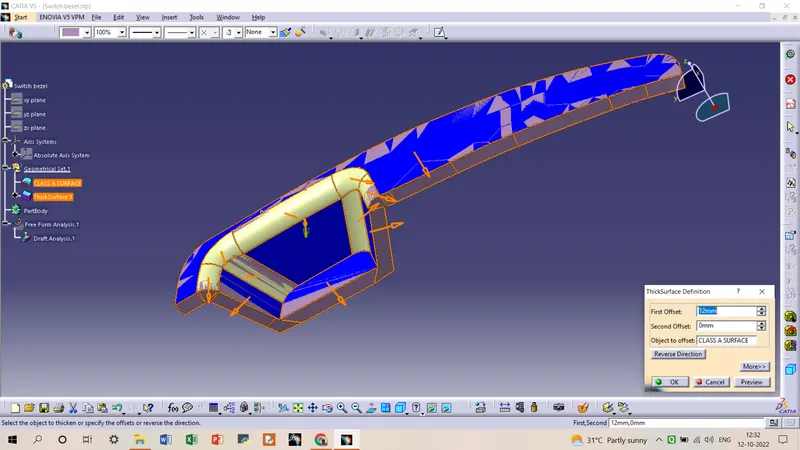

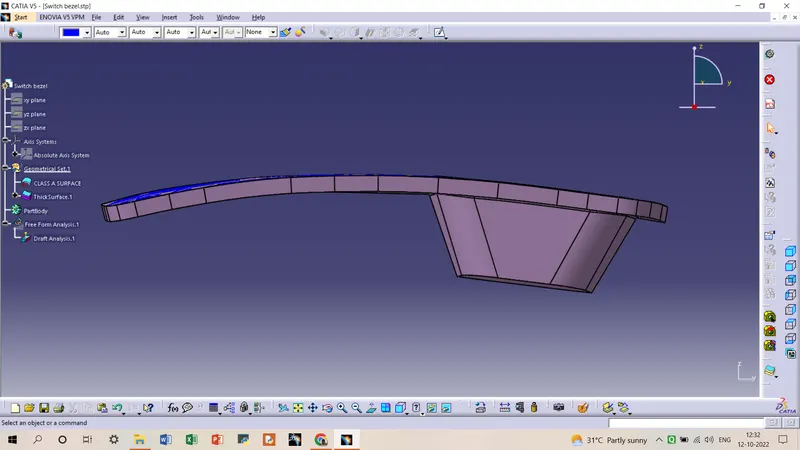

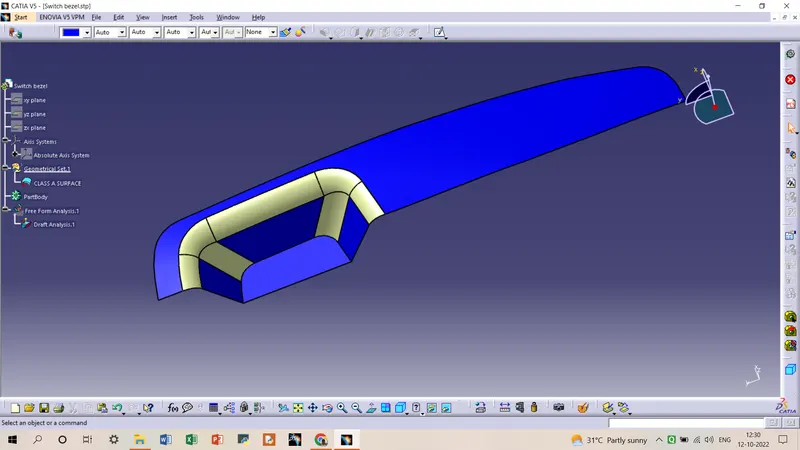

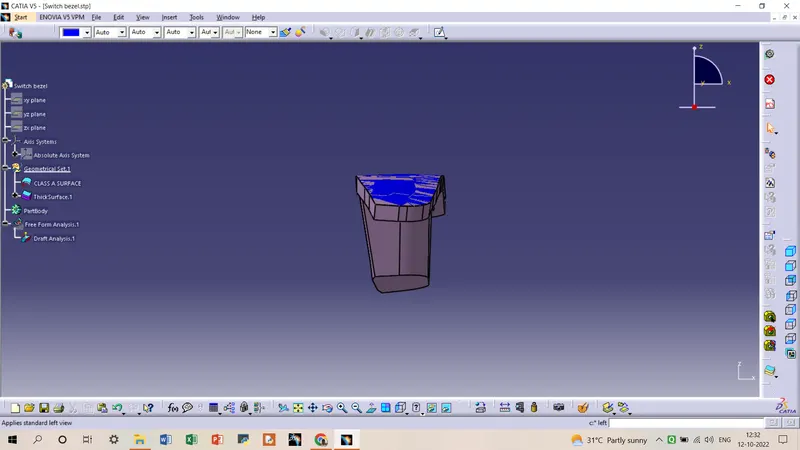

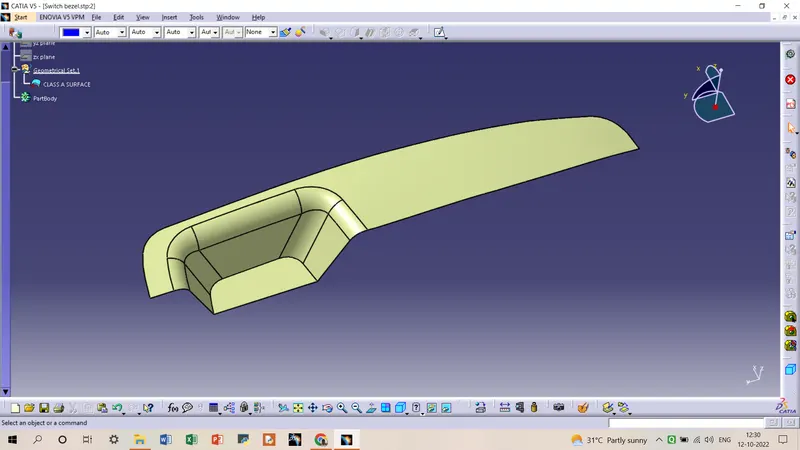

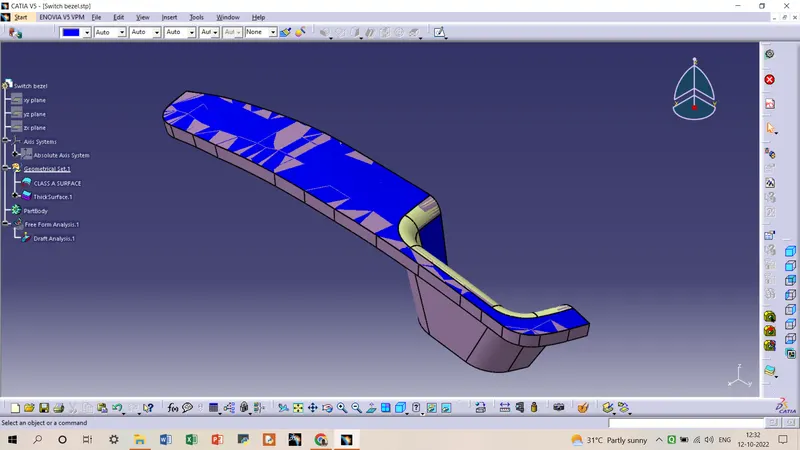

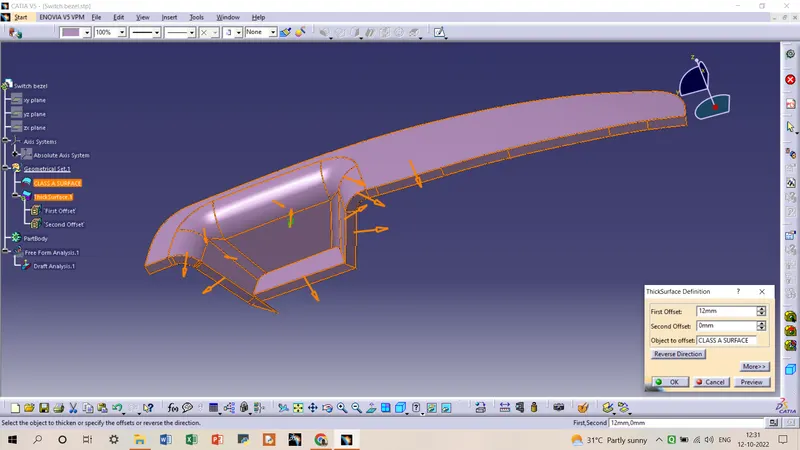

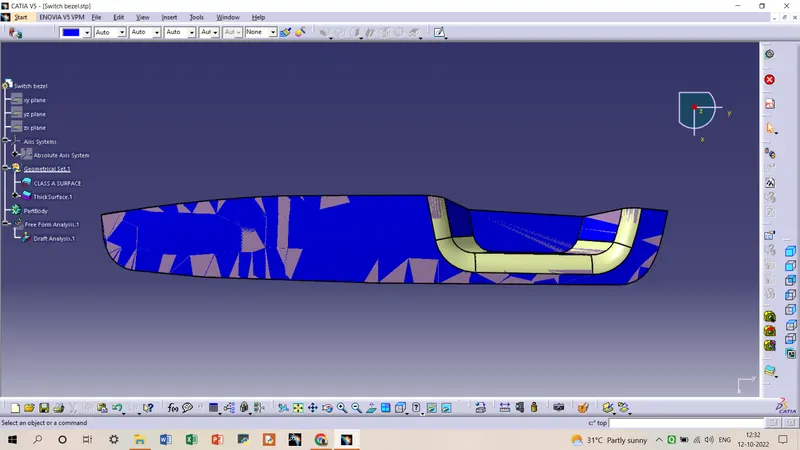

Screenshots as per the submission requirements:
