Week 8 - Challenge 5 - Door Trim Lower

AIM;
Draft Analysis.
INTRODUCTION;
Here we perform the draft analysis with our surface modeling component.
Main Objective;
For an molding component we need the minimum draft angle is 1deg and maximum draft angle is 3deg to complete our process in our future cases the maximum draft angle may vary,but minimum draft angle is always 1deg.
If draft angle is not proper some error may occur flash error and other.

Our Challenge;

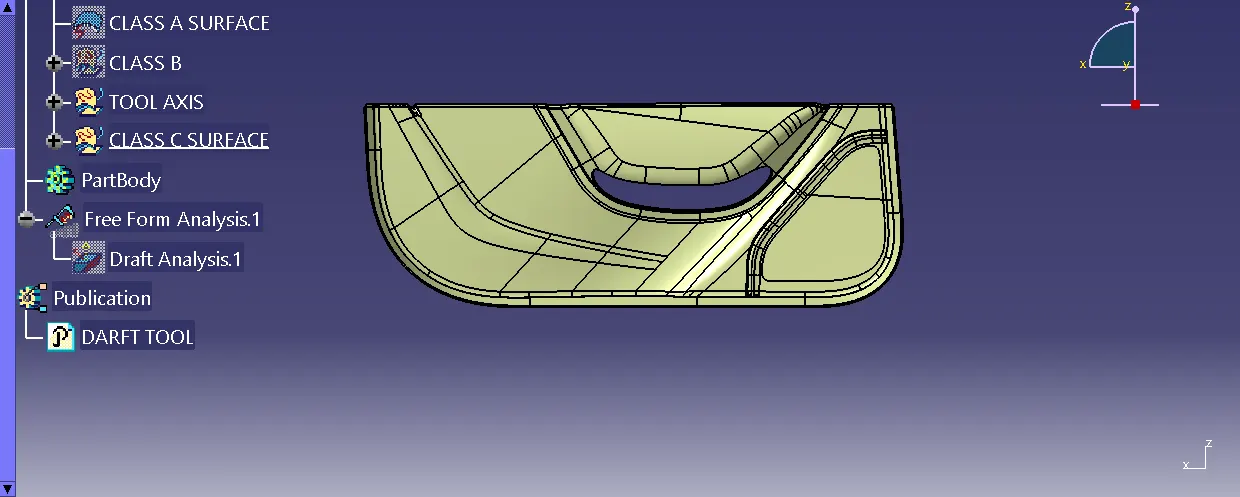

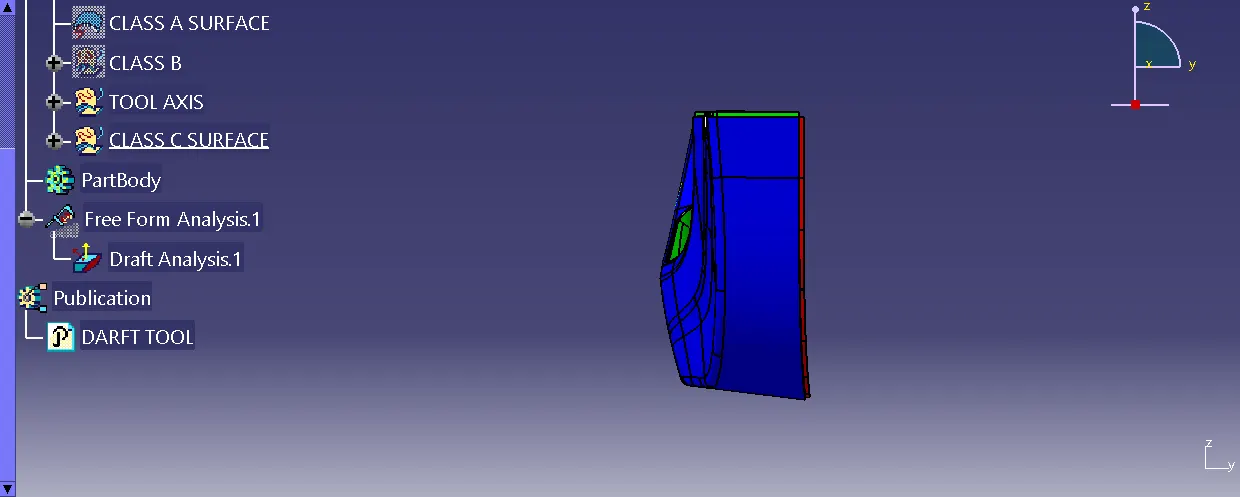

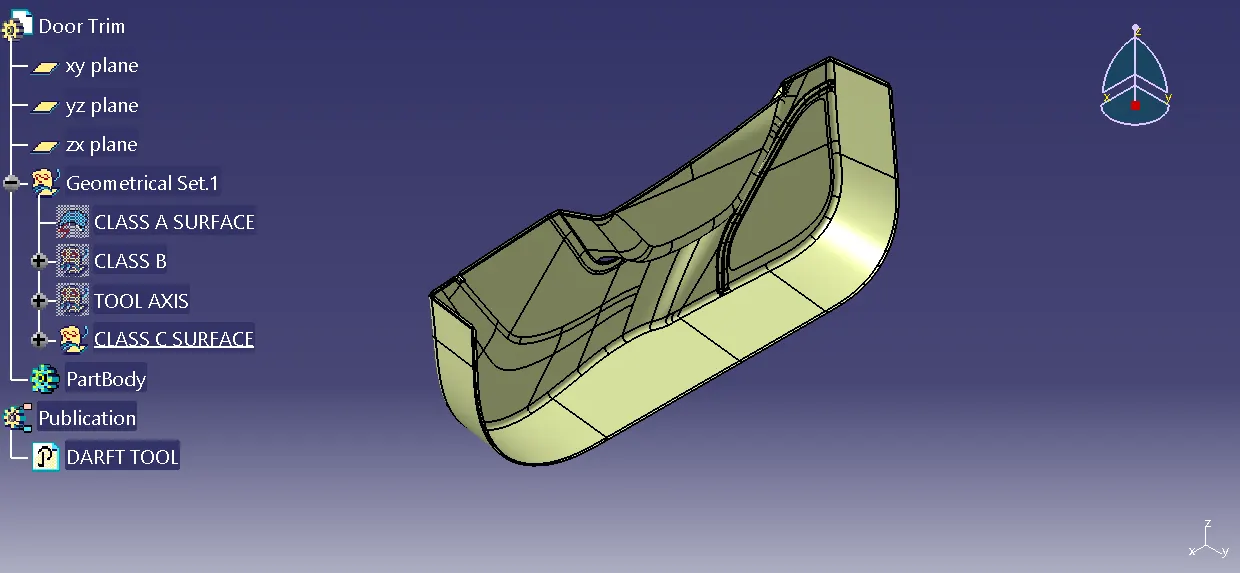

We create the model of Door trim in a car using catia V5 tool and we done draft analysis for the object like Class A and Class B surface.
