Week 8 - Challenge 5 - Door Trim Lower

Aim:

To create a Class B and Class C Surface for the Door Trim Lower with the help of the Given Class A Surface.

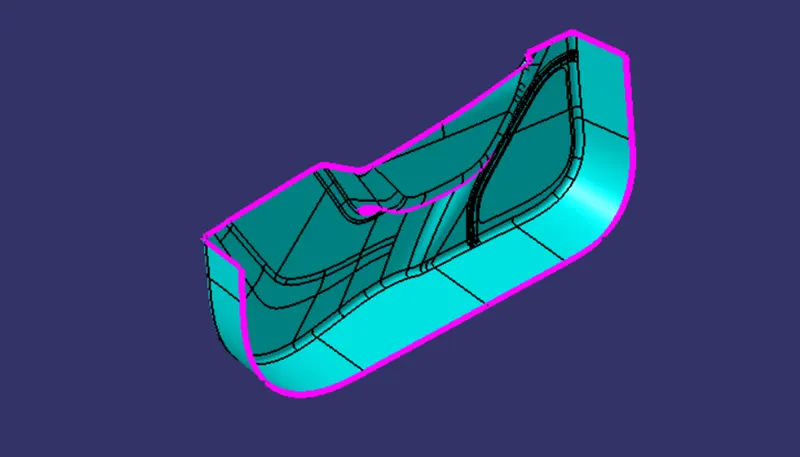

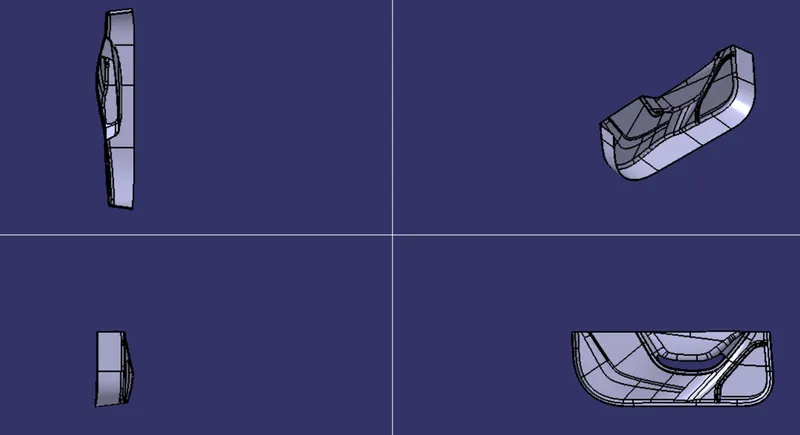

Given Data:

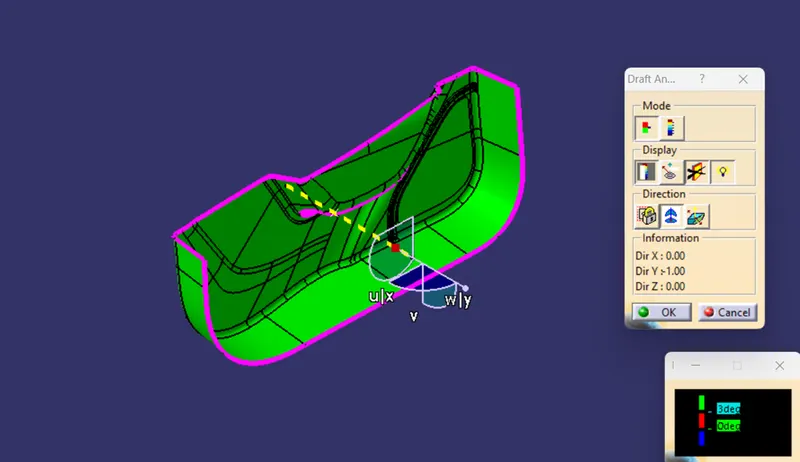

Draft Analysis of Class A:

• Draft angle is nothing but providing some tapered portion to the part for easy removal of the component from the mold during manufacturing. This is especially done in the case of plastic component design having a complex shape. Mostly the 3-degree draft angle is provided but it can vary depending upon the component which is to be designed
• Draft is Analysed by the help of tooling Direction.

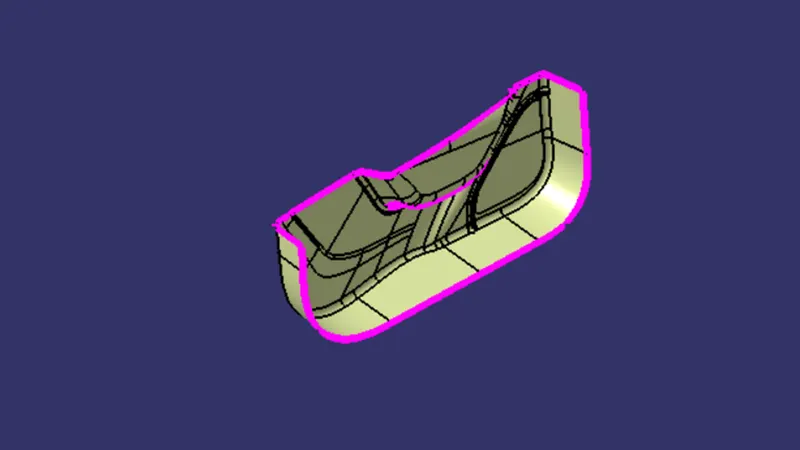

Class B:

• Class B Surface is created by offsetting the existing Class A Surface. After Offsetting the class, A untrim the offsetted surface and extrapolate the surface and then trim it for desired shape and size.

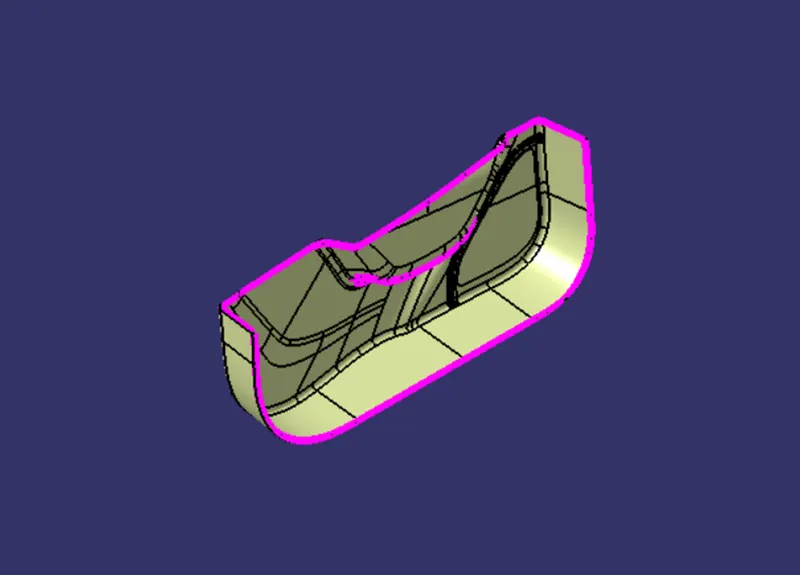

Class C:

• Class C Surface is the Width or thickness of the part. Class C surface is Either created With the of Tooling Direction or the with the support Surface.

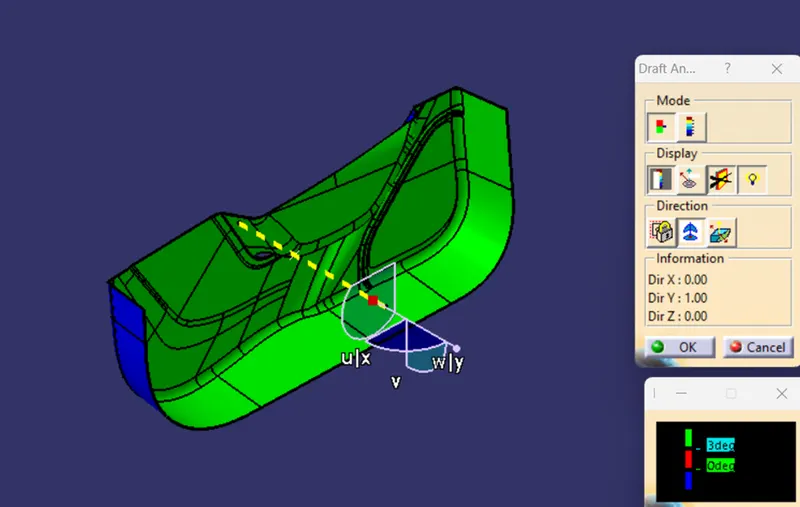

Final Draft Analysis:

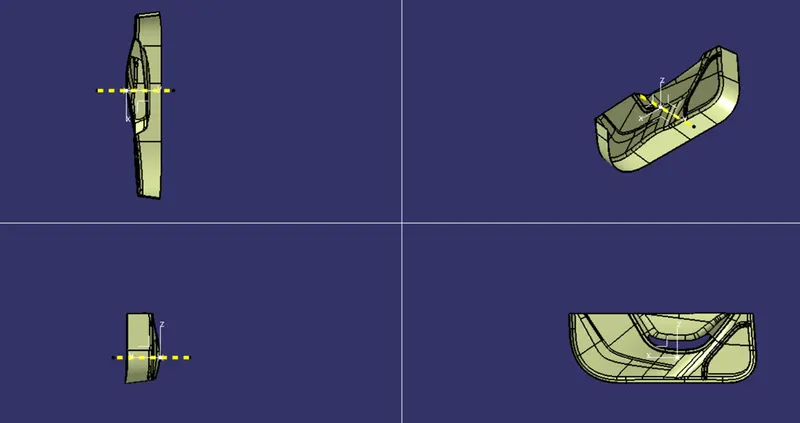

Surface Views:

Solid Views:
