Week 8 - Challenge 5 - Door Trim Lower
Aim : To create Class B & Class C surface from A surface of the Door trim.

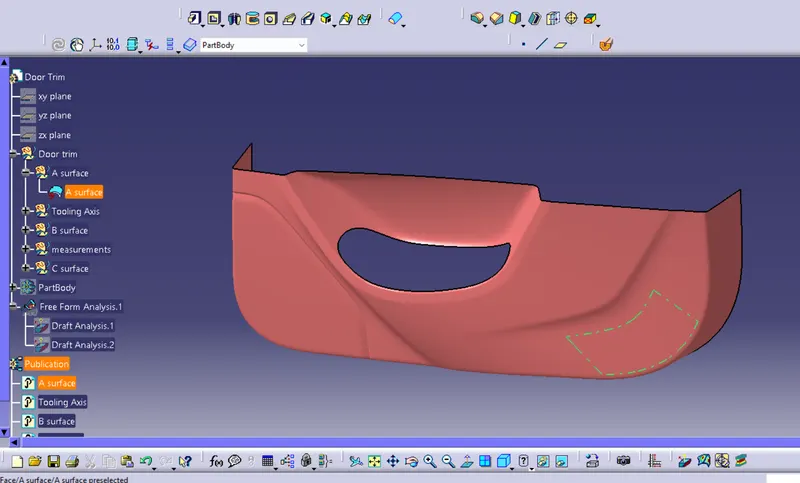

- Given Class A surface

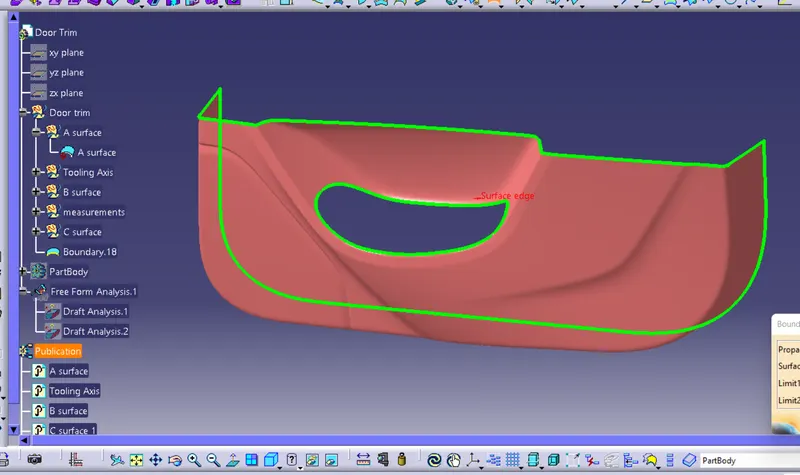

- Given A surface is examined for the irregularities by using Boundry command.

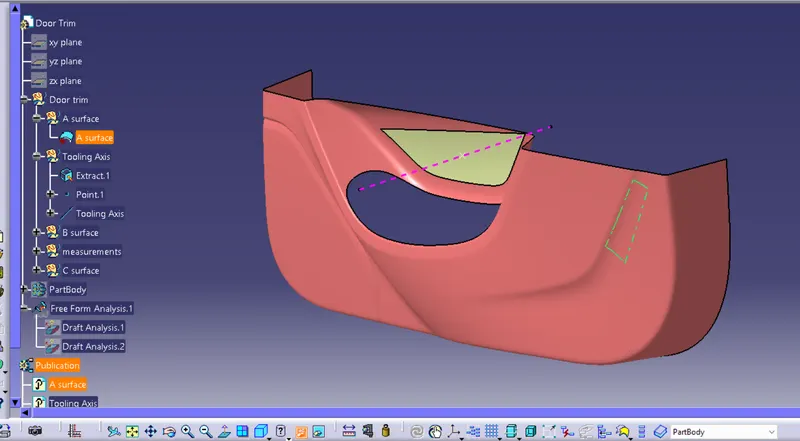

- Tooling Direction : X direction is choosed as the tooling direction a line is created in the X direction and Draft analysis is done on A surface to check the feasibility to manufature product in that perticular direction.

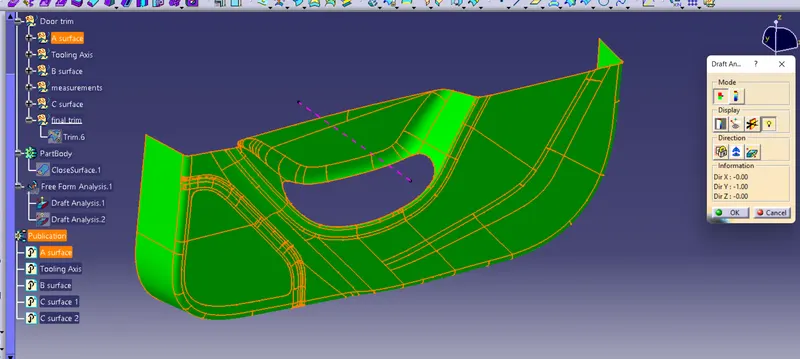

- Draft analysis: As we can see all the A surface is within the limit of positive draft so we can make the product in perticular tooling Direction.

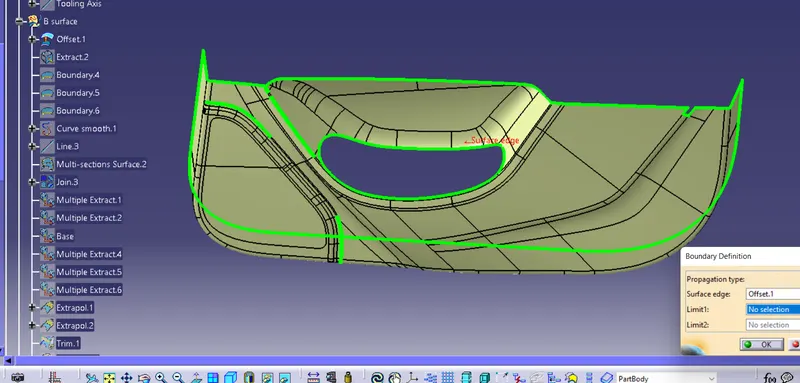

- Creation of B Surface : B surface is created by offsetting A surface irregularities which are created after offset are eliminated.

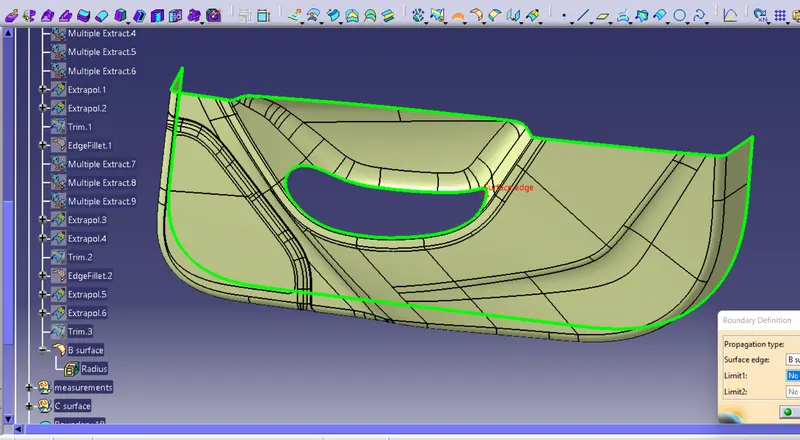

- Final B surface after all the edits

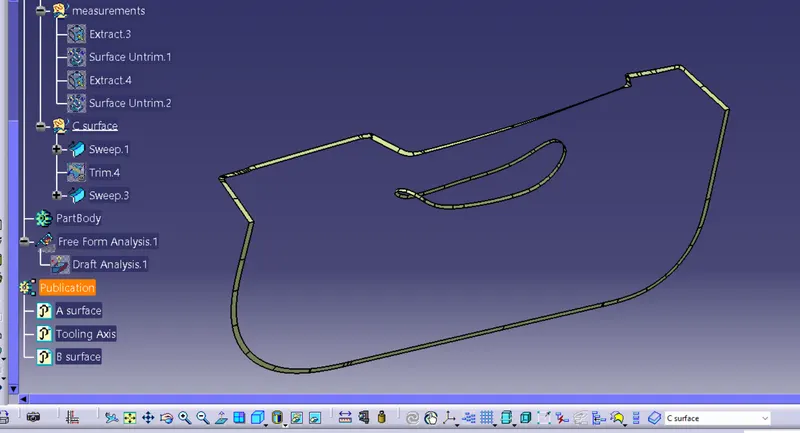

- Creation of C surface : C surface is created by using Sweep command, sweep angle is given with reference to the surface. I have tried by giving the sweep angle as 93 degrees but the draft analysis showing more negetive places on C surface. so i kept the sweep angle to be at 90.

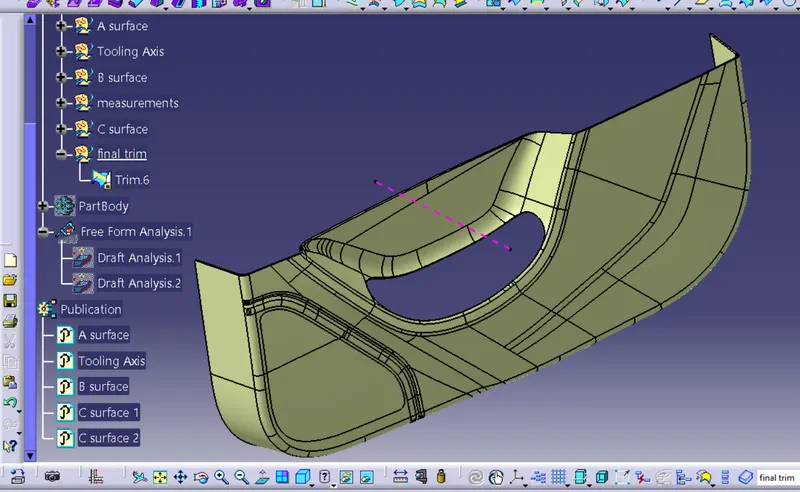

- Final Trims

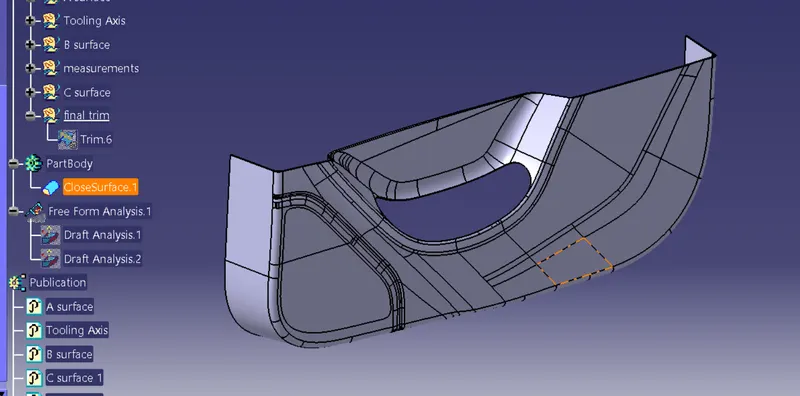

- Solid Part

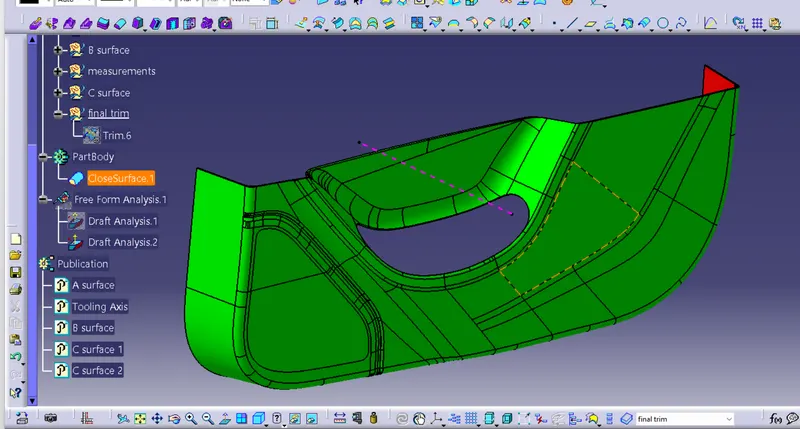

- Draft Analysis Of Solid part

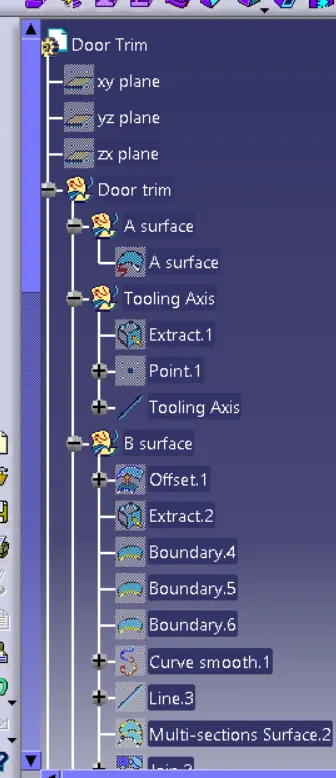

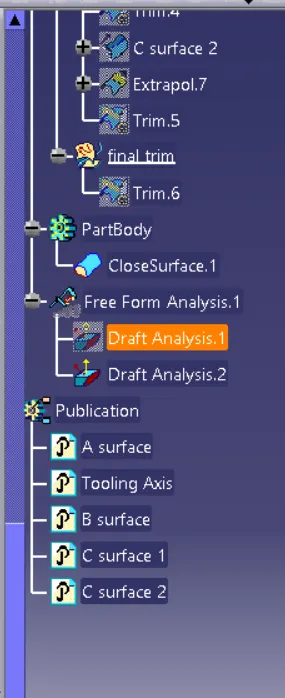

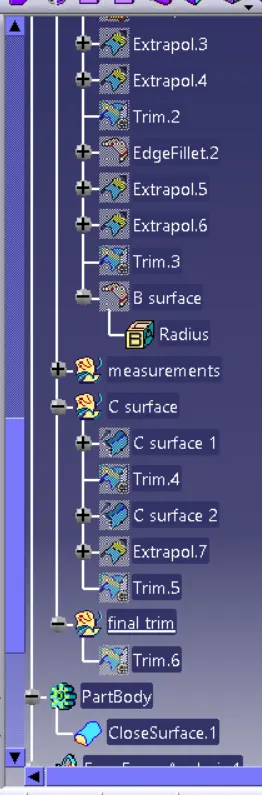

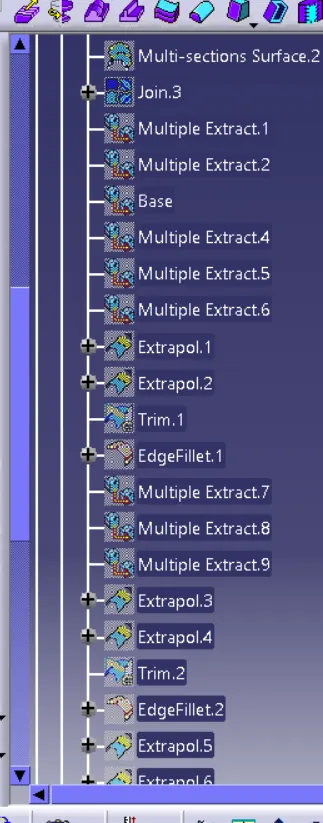

- Geometrical Set
