Week 8 - Challenge 5 - Door Trim Lower

AIM

Create the Door Trim Plastic component through the given Class-A surface.

NOTE:Take the Thickness of the component to be 2.5 mm

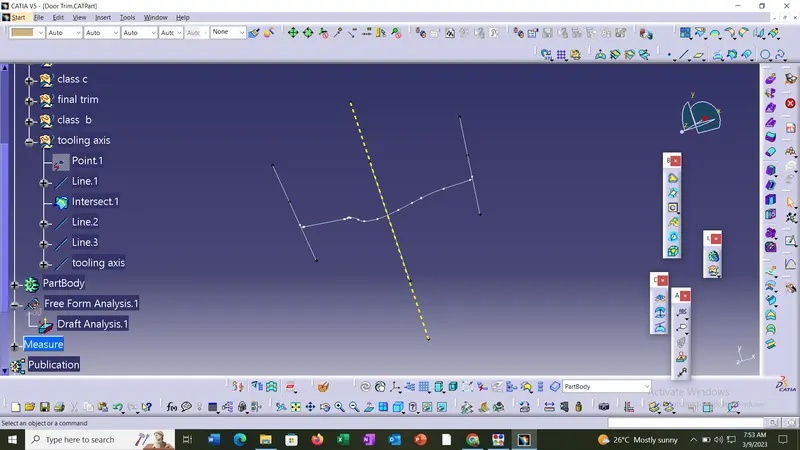

TOOLING AXIS

It is the direction for injection moulding and draft analysis.To create tooling axis a intersection is made in yz plane and bisect a line with reference of edges.

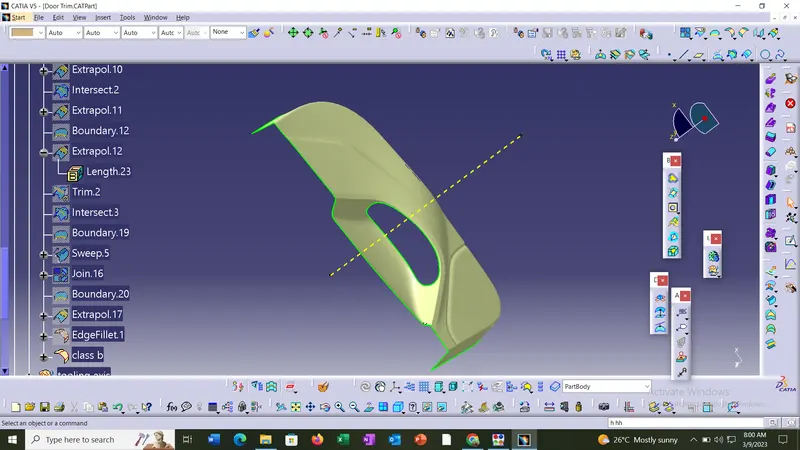

CLASS B SURFACE

For creating class b, a 2.5mm offset of class a surface is done initialy.Other operation like extrapolate,multiplle extract,trim,fillet etc are done for getting better surface.

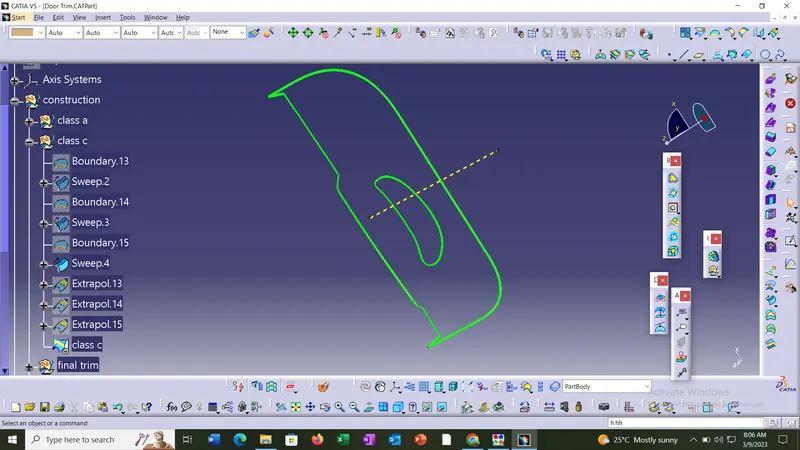

CLASS C SURFACE

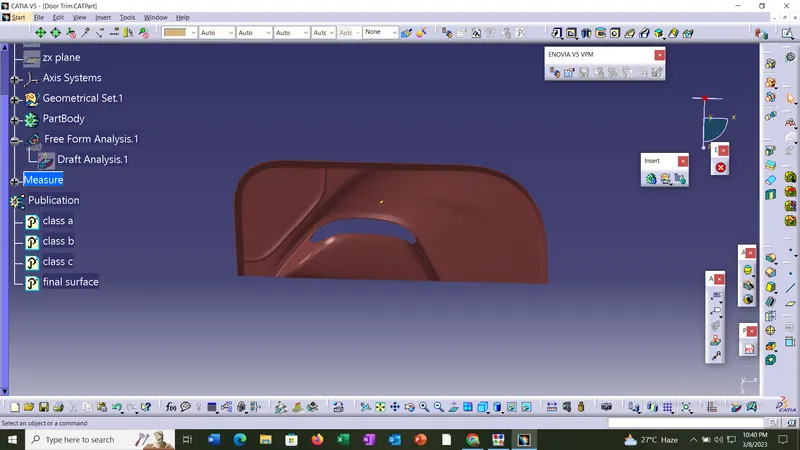

FINAL PART

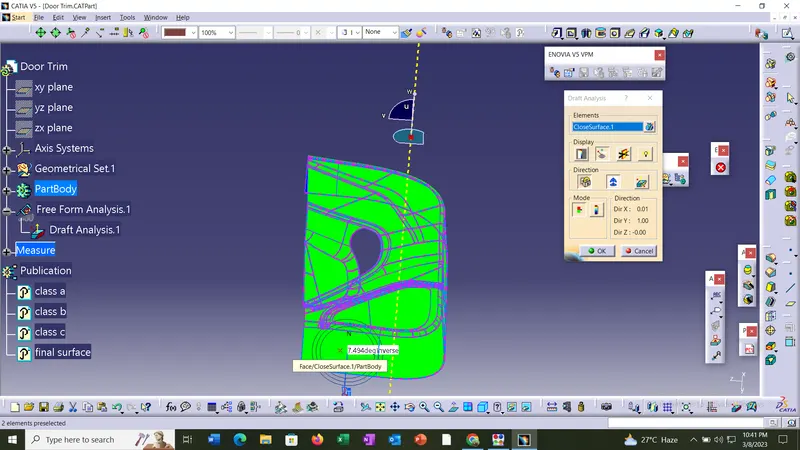

DRAFT ANALYSIS
