Week 8 - Challenge 5 - Door Trim Lower

DRAFT ANALYSIS

Step 1

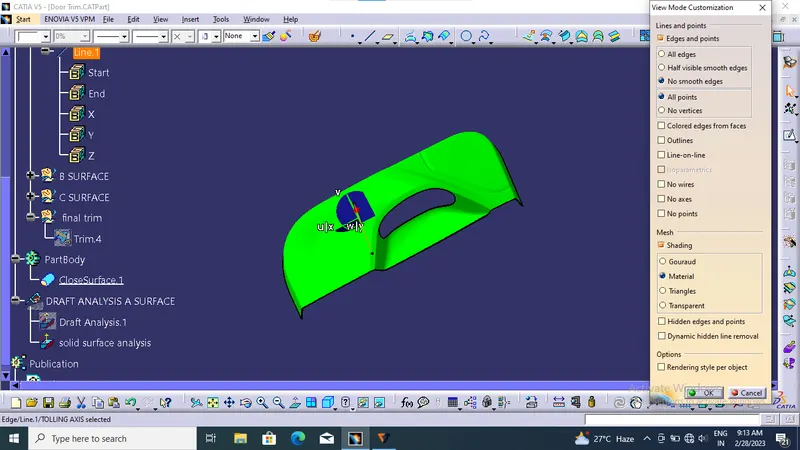

Ensure the material selection before opening the draft analysis tool

Step 2

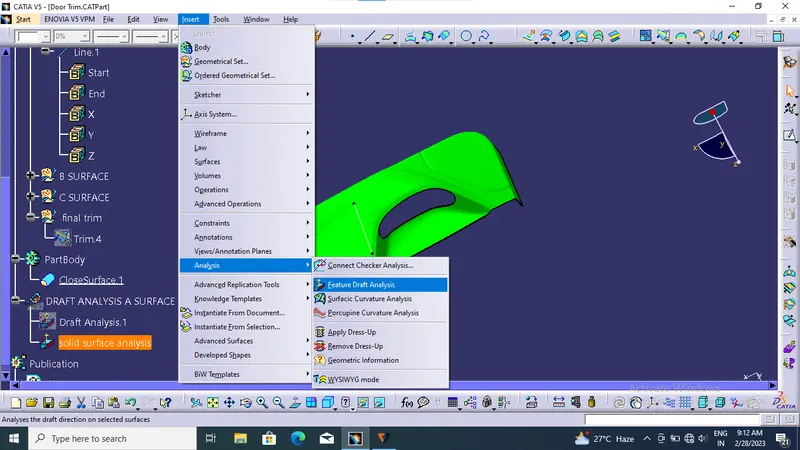

Select insert>analysis> features to draft analysis tool bar

Step 3

Place compass at tooling axis

step 4

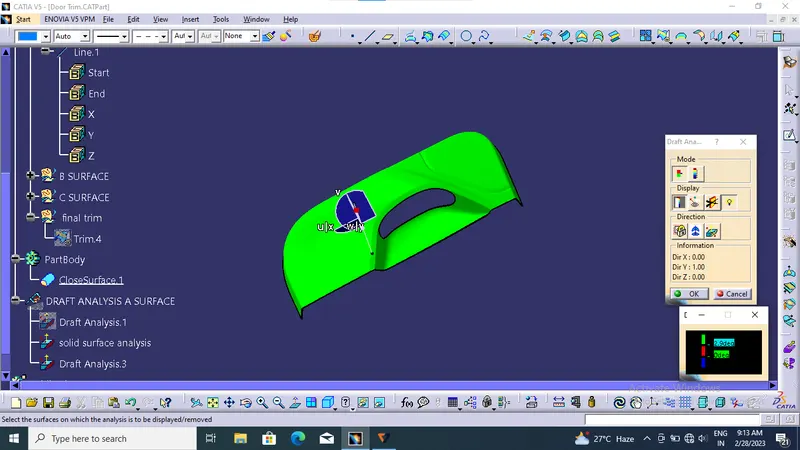

Give the maximum value draft analysis 3 degree

FINAL DRAFT ANAYSIS IN VIEW

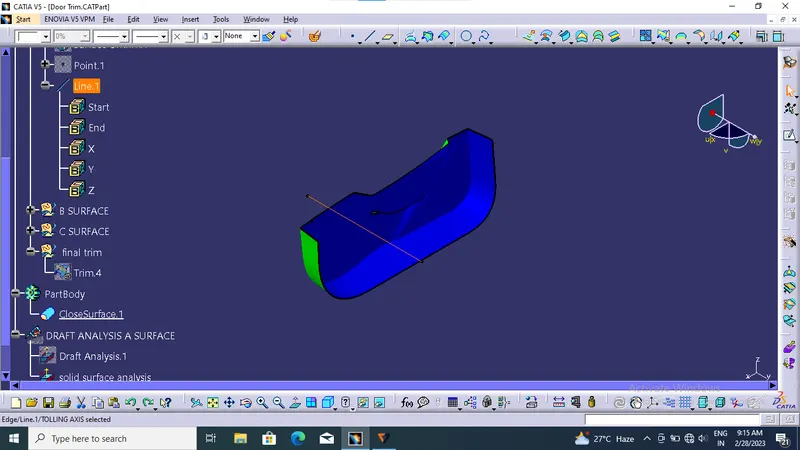

ISOMETRIC VIEW

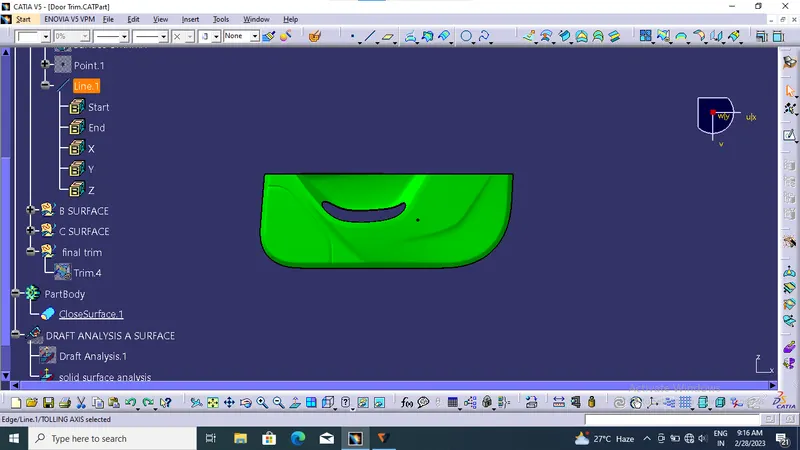

FRONT VIEW

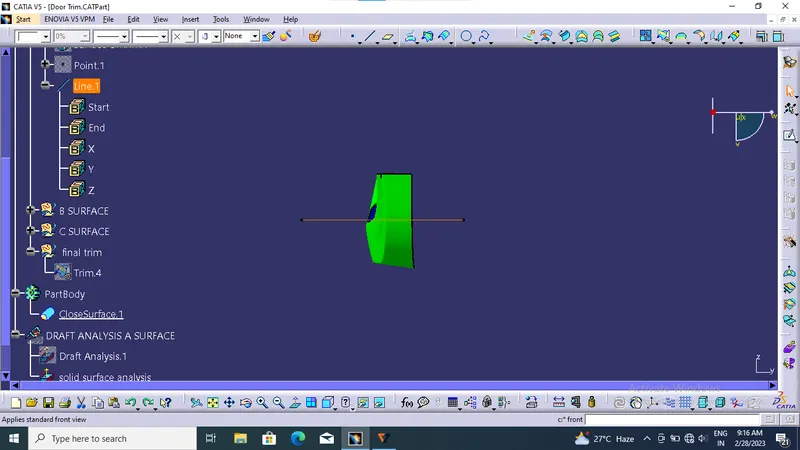

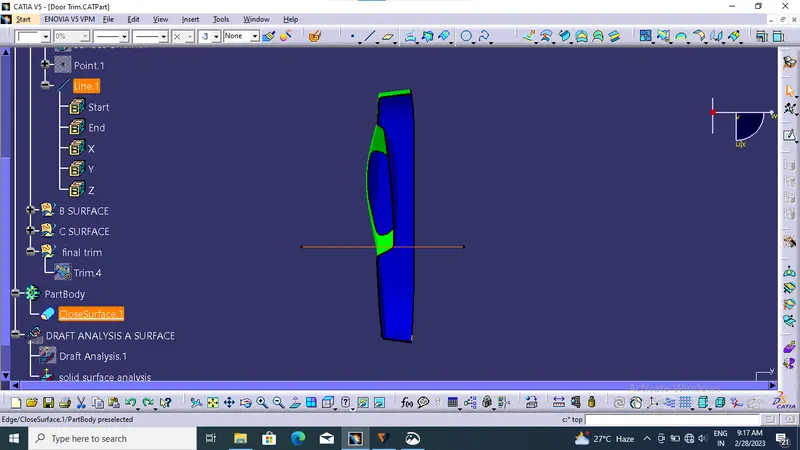

SLIDE VIEW

TOP VIEW
