Week 8 - Challenge 5 - Door Trim Lower

DOOR TRIMS

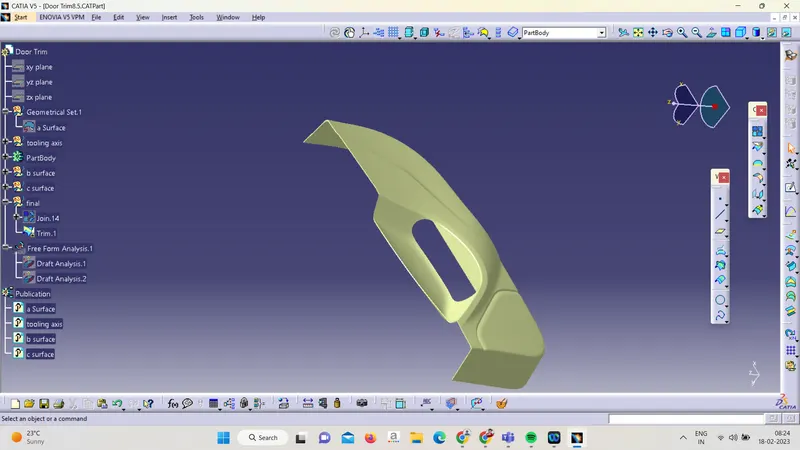

CLASS - A SURFACE

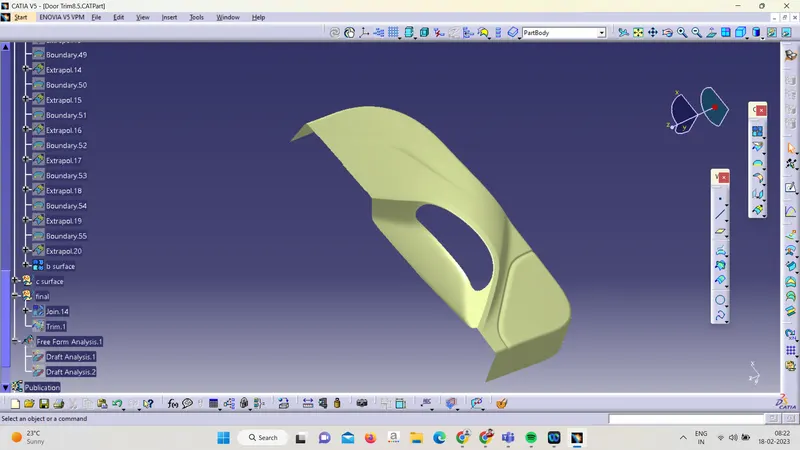

CLASS - B SURFACE

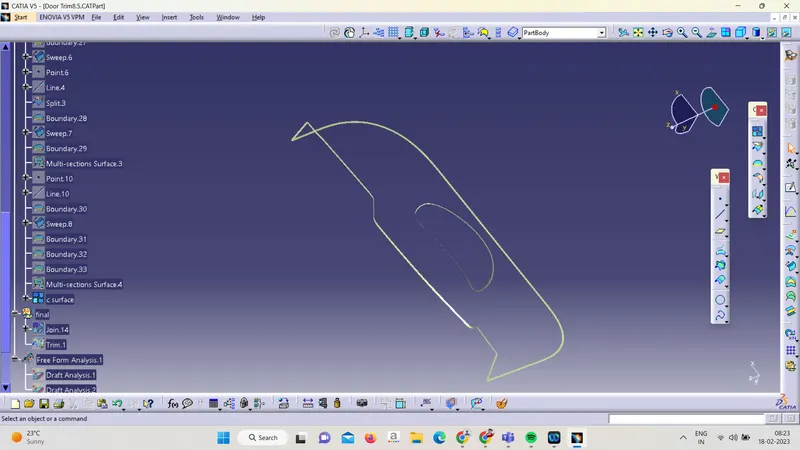

CLASS - C SURFACE

DRAFT ANALYSIS

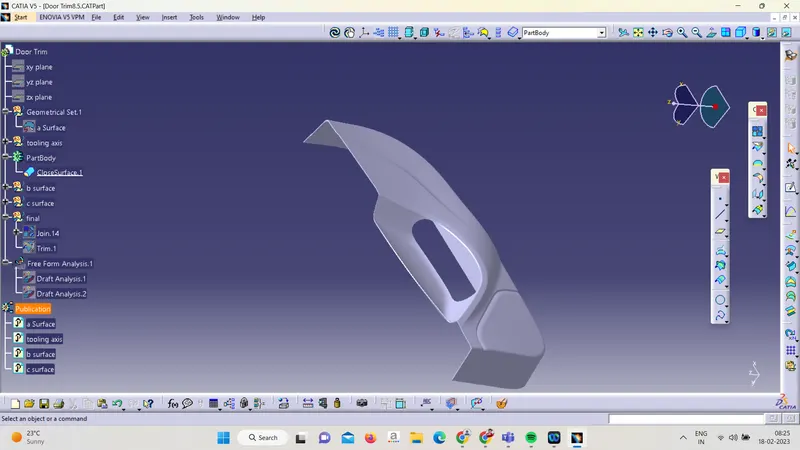

CLOSED BODY

FINALY

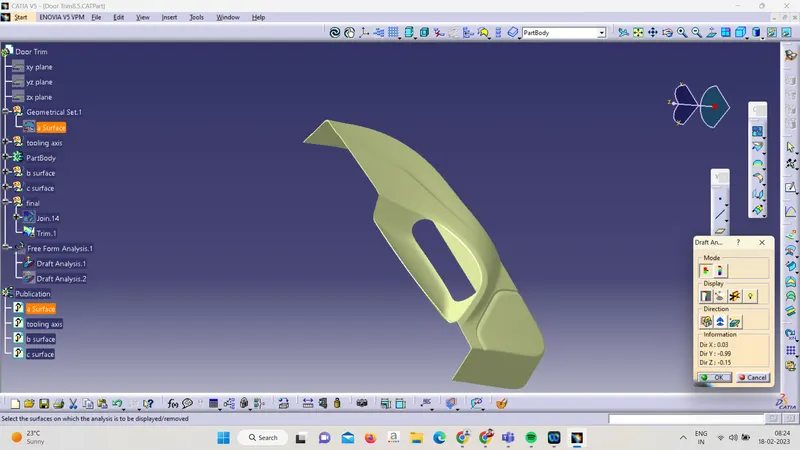

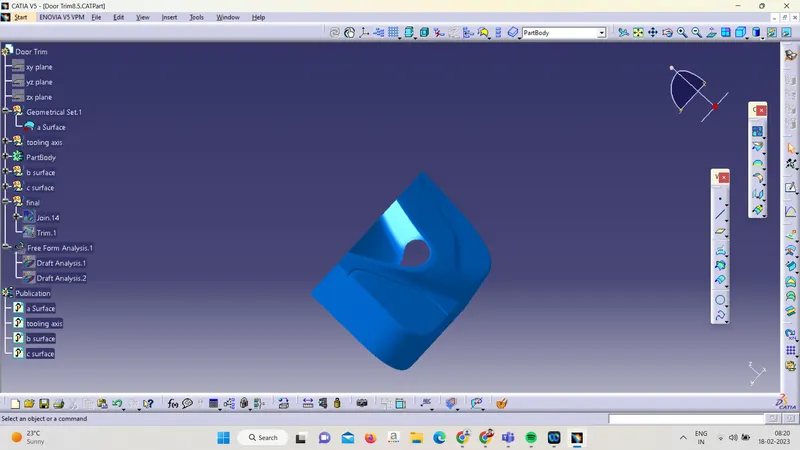

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

For the color ranges there are 3 colors presented in a simpler legend called the quick analysis mode. Beginning with Green, Red and Blue colors corresponds to the draft angle range of above 3 degrees, 0 to 3 degrees and below 0 degrees respectively.

The ideal value of the draft angle is set at 3 degrees for main tooling axis whereas for side core it is set at 0.5 degrees and accordingly the component should be representing the green colour all over the surface which indicates the appropriate value.
