Week 8 - Challenge 5 - Core & Cavity Design

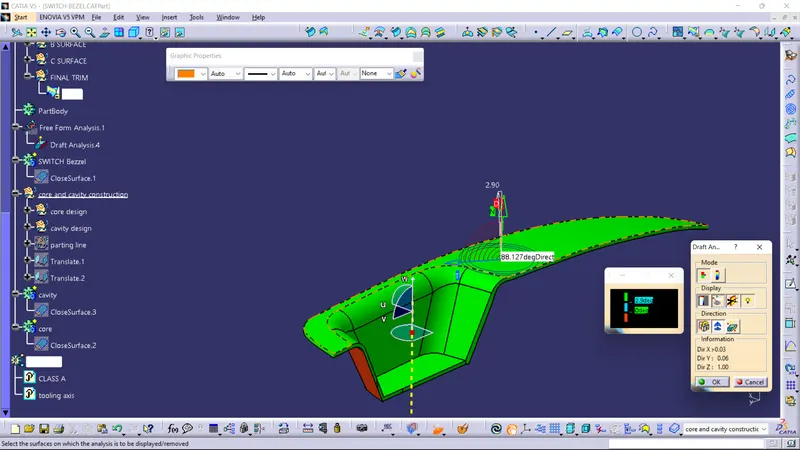

DRAFT ANALYSIS- First analysis is for the surface what i crated with the A, B & C surface.the side of the component draft is about 2.993 degrees for that I created the min draft of 2.9 degrees.

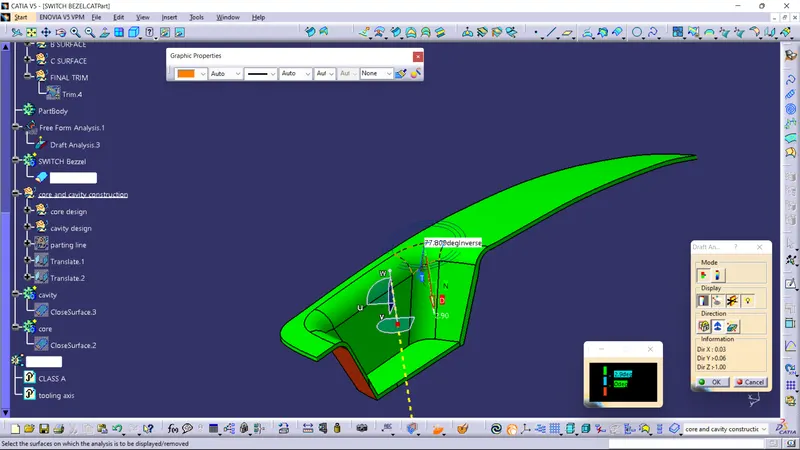

Second draft is for the part using closed surface command. This is the same what I used for the surface part.

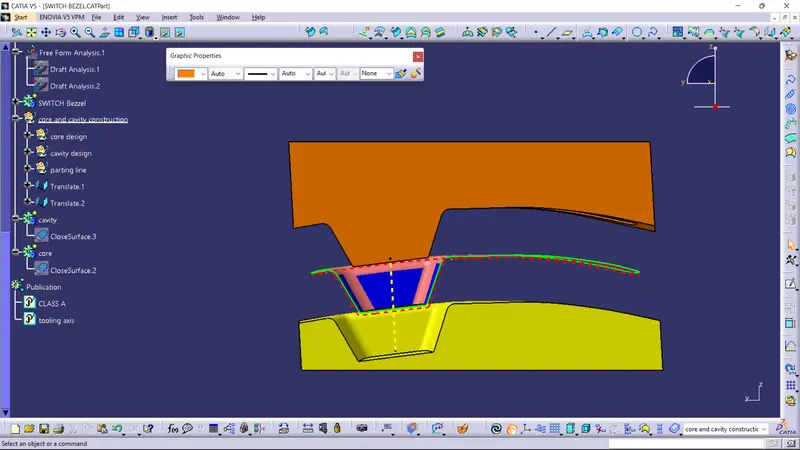

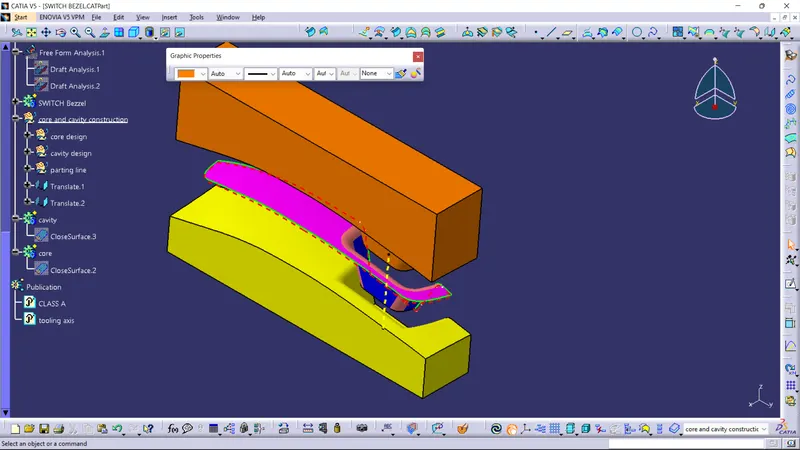

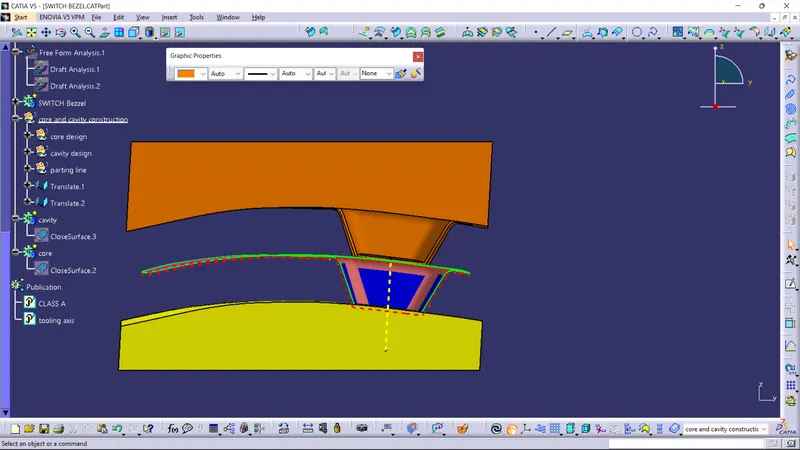

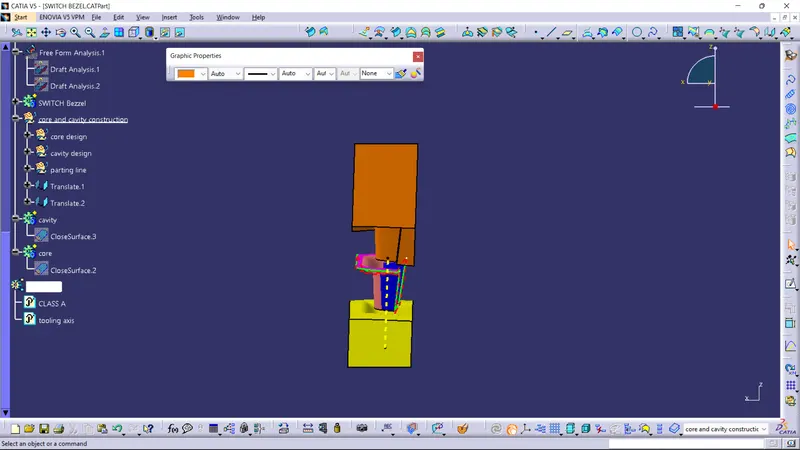

TOOLING-tooling what I created using the intersect and bisect method, is properly working.
