Week 8 - Challenge 5 - Core & Cavity Design
WEEK 8-CHALLENGE5-CORE & CAVITY DESIGN
AIM:

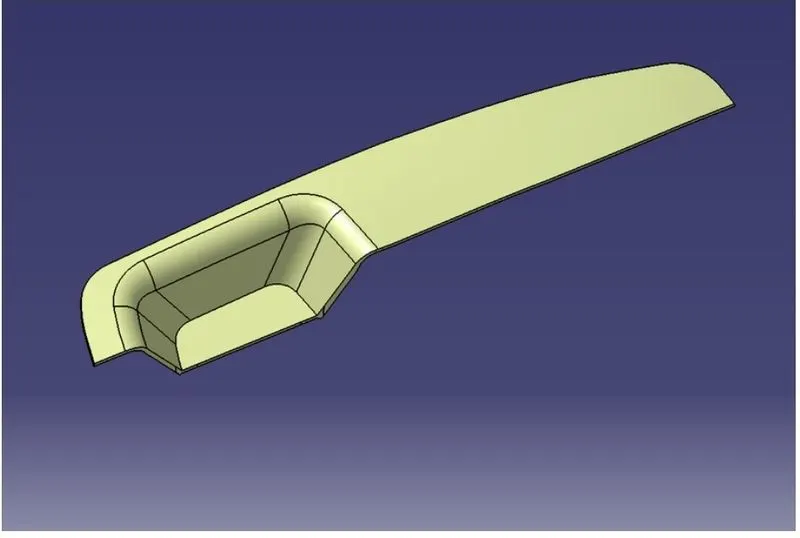

To create the core and cavity for the switch bezel condering the all design rules. to there are so many methods for creation of tooling axis. intersect is the one of the method for creating the tooling axis. to the core and cavity blocks for the switch bezel desingned in the earlier challenge a cavity mould. A mould with two or more cavities of the same parts is usually called a multiple imperssion cavity mould.
PROCEDURE:

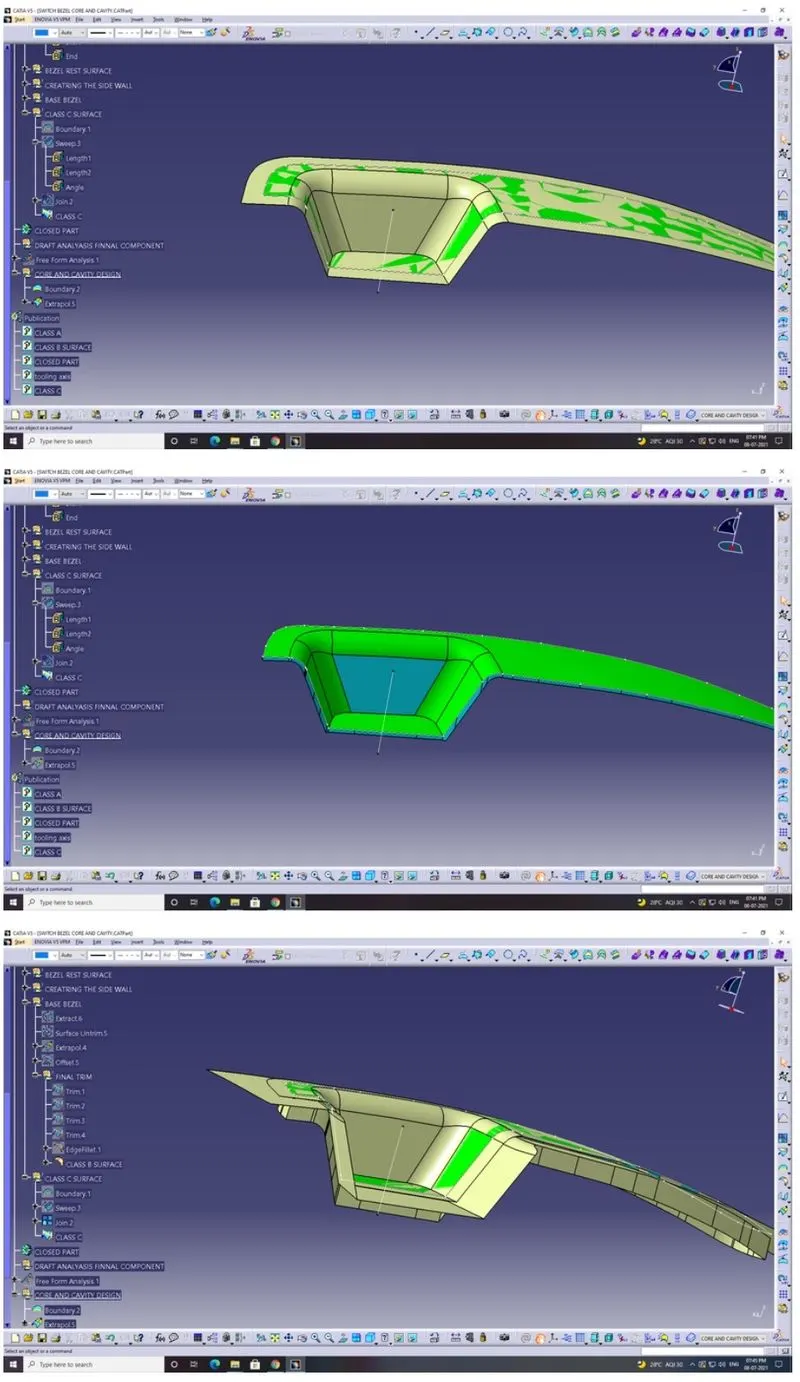

The outside of the parting line and the enclosure will be a cavity in the A side of the inside will be a core on the B side. Gonna work the parting line and the parting surface. 1st to create a core side in the give switch bezel. inser the geometric name as core cavity design. in the generative design. extract the boundary of class A. and extrapolation the class A. length curvature and tangent click ok. unhind the class B surface.
TOOLING AXIS:
The core is the part which forms the internal shape of molding. the cavity is the part which forms external shape of molding. core is the side of the tool where the plastic part is injected from also known as the bottom half of the tool. the upper half of the mold is called core. a tool with one impression mould. a mould with two or more cavities of the same parts is usually called a multiple impression mould.

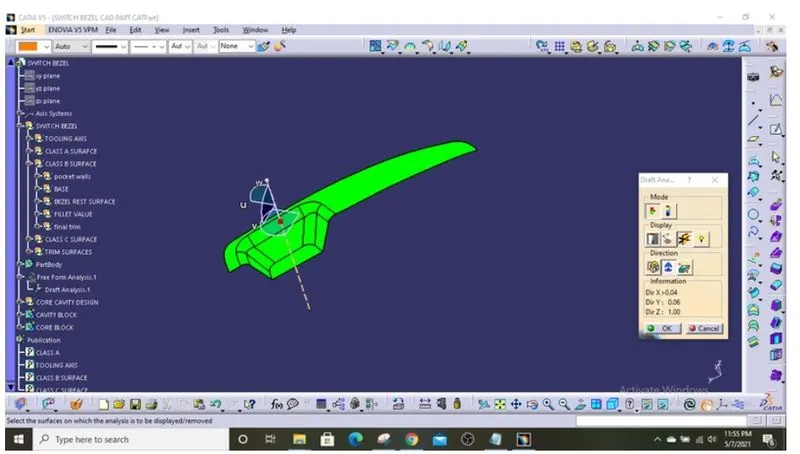

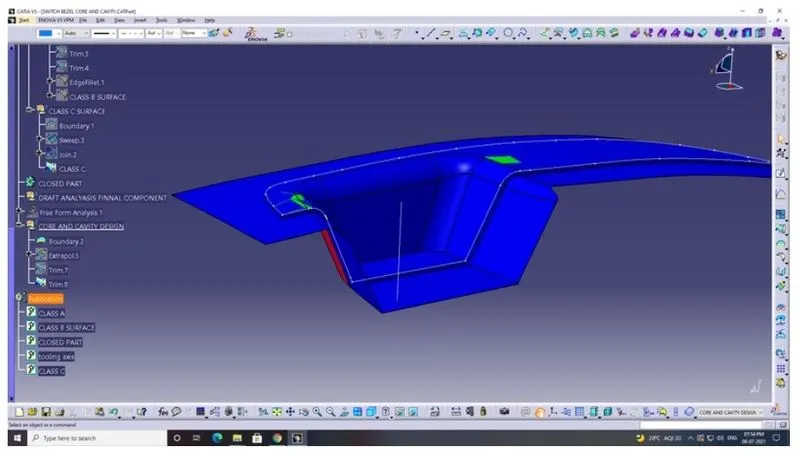

DRAFT ANALYSIS:
The purpose of draft analysis is to direct the part should be eaisily withdrawal from the core and cavity by usin of Different colour ranges. this analysis will be done by draft analysis command. for this command go to click feature draft analysis. These are the following steps to do the draft analysis on switch bezel first to click the draft analysis command.

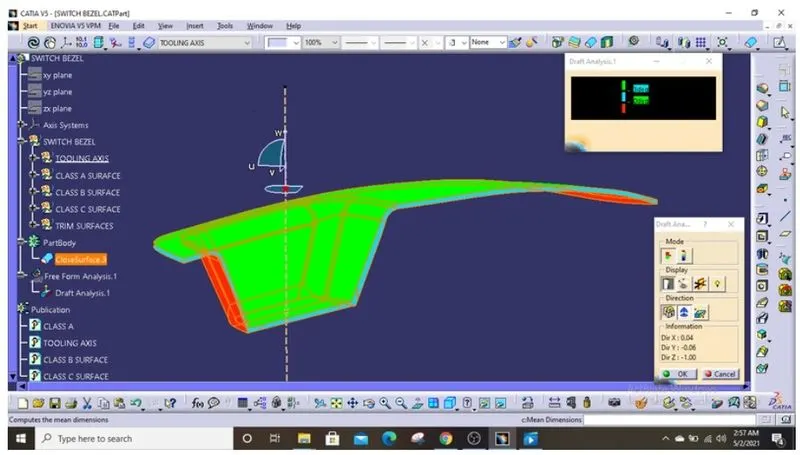

DRAFT ANALYSIS REPORT:
DRAFT ANALYSIS REPORT FOR CLASS A:
CORE AND CAVITY:
A core is the one part of the mould and it is responsible for half of the molded part. actually core is the projection of the body. these core and cavity combies to from a mould. then the plastic metarial injected into these mould to get a plastic part. ensure adquated venting if possible parting surface should be place at be advantage of filling and venting.
PARTING SURFACE:
injection mold has two major components one is core and another is cavity. during the injection moulding processed tightly from a sealed hollow to avoid the melt flow leakage and maintain certain holding pressure the pressed surface are the biggest projection outline of the part. ensure apperance reqirement of molded parts finish or mismatch usually occur on parting surface so the parting surface should not be designed on high quality requirement in surface.
PARTING LINE:
It is the area in which parting surface and component to core and cavity. and the parting surface has some set of rules because the product quality mostly depends on the parting surface. designed parting surface. Should Design the injection mold simple as possible avoid or reduce side parting as much as possible to reduce complexity of the mold making. Ease of molding as far as posible for instance the plastic to molded parts to reduce manufacturing and assembly errors.

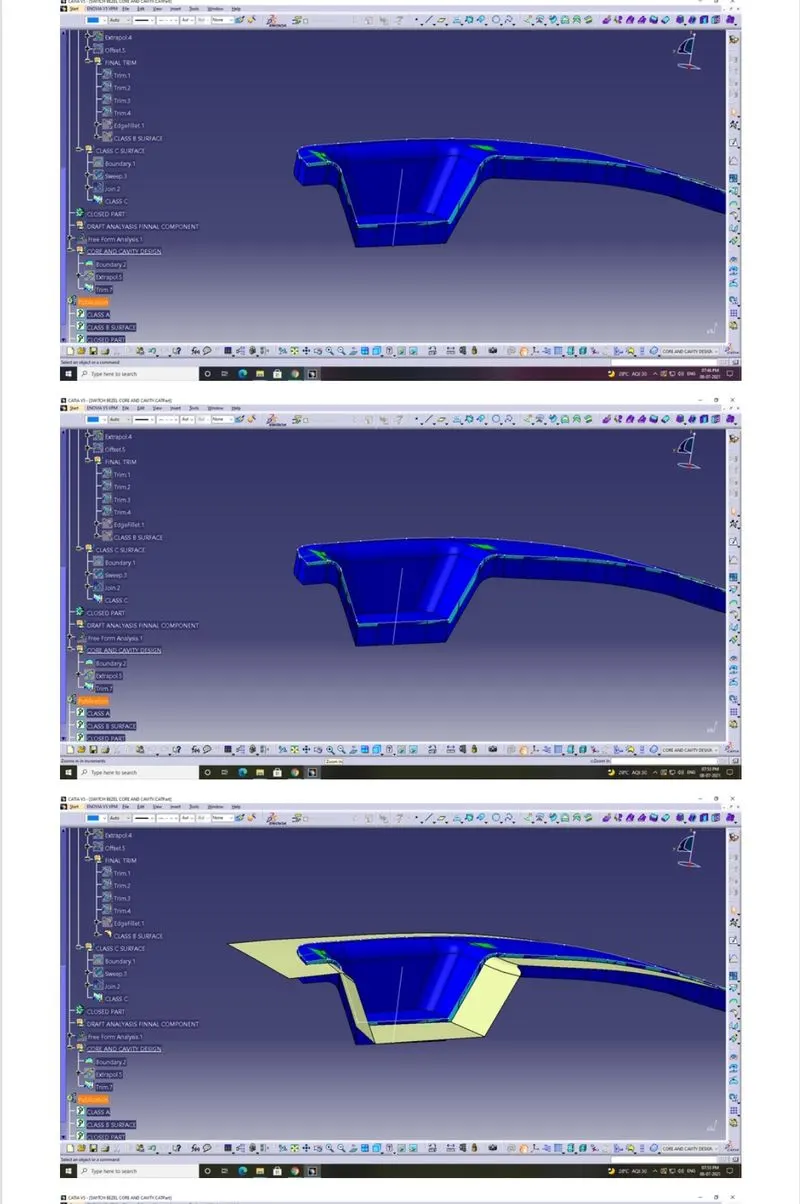

Trim the class A surface with the C surface. and trim the class B with 7 these the face which for core and cavity.

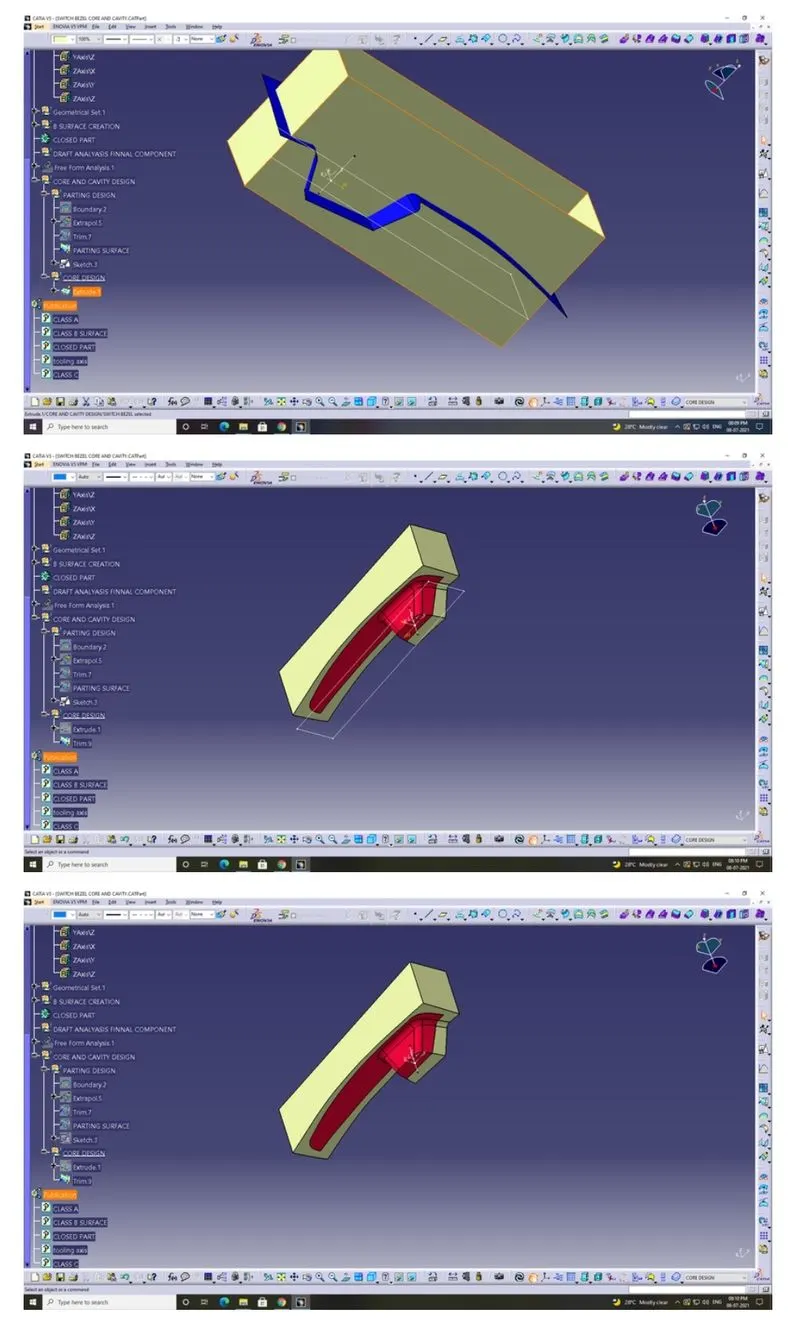

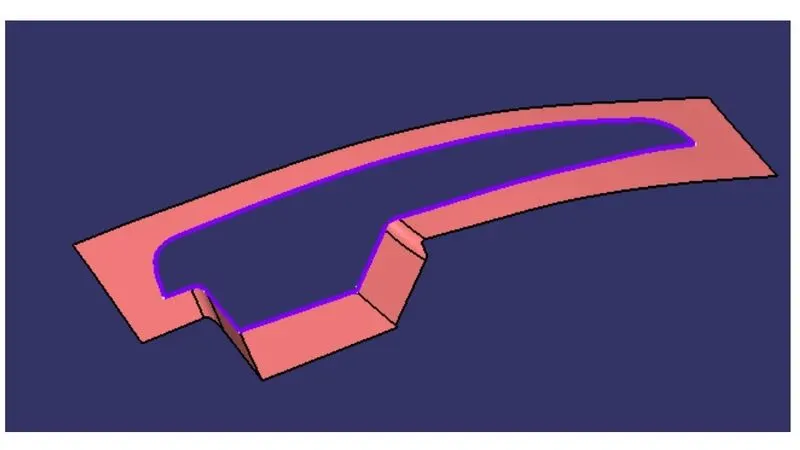

CREATE THE BOUNDARY AND FILL THE BOUNDRY:
Go this how core gonna look like.

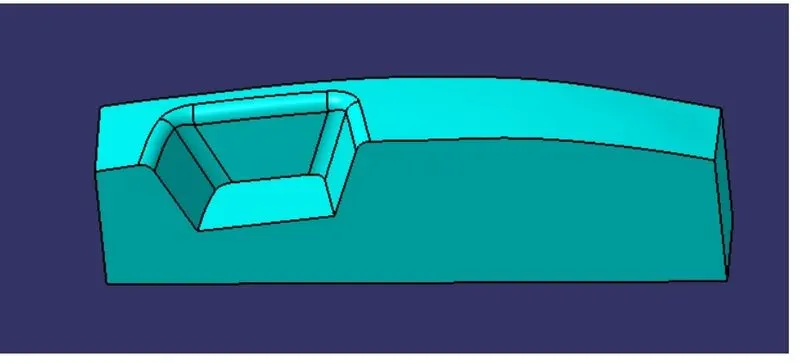

PART BODY OF CAVITY:

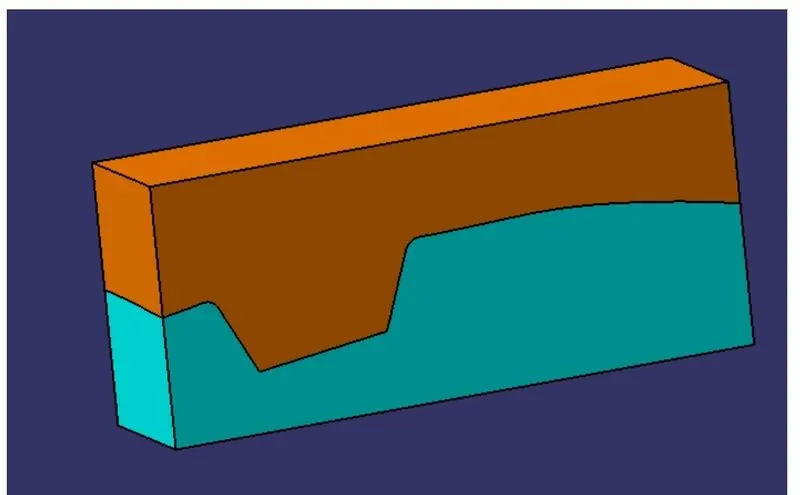

FINAL CLOSE BODY SURFACE OF CORE & CAVITY ARE,:
PARTING SURFACE AND PARTING LINE:
NEXT interest the Zx plane. insert a geometric name as pareting line. should have a class A AND C which is gonna split with the B surface. intersect with the class B AND join.

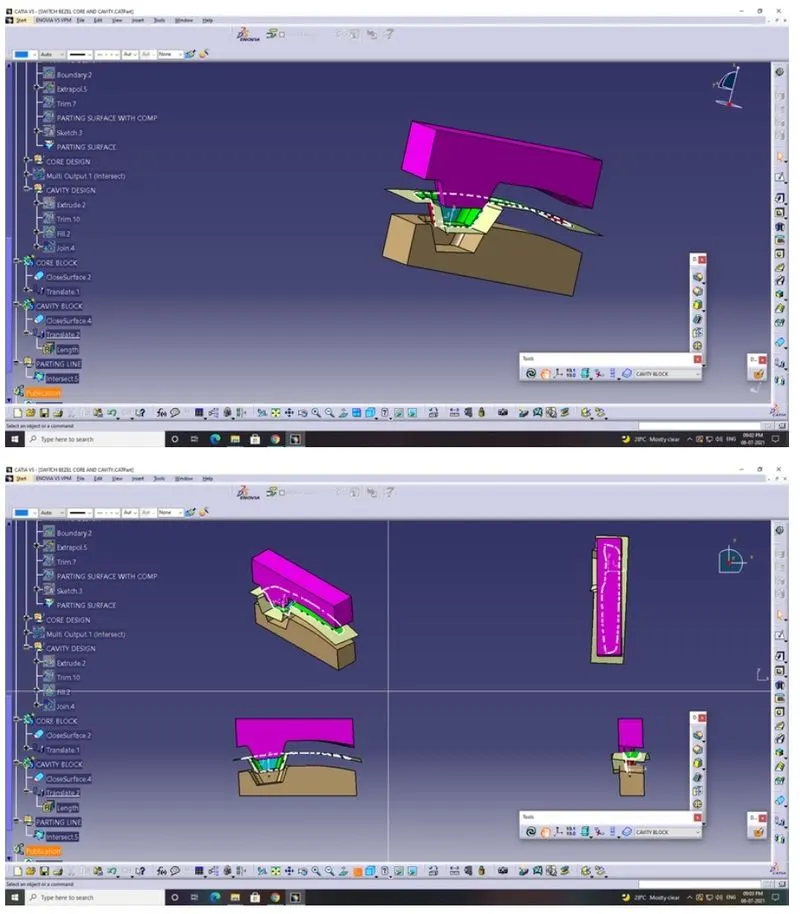

RESULT:
The core cavity are translated to the certain value foe understanding. The core and cavity for the switch bezel has been created as per the design rules. final close body surface of core & cavity are parting surface and parting line part body of cavity. similarlly respeating the same as done for the cavity part and trim it on other surfrace. Extrude the sketch over all through the tooling direction are trim it with parting surface.
