Week 8 - Challenge 5 - Core & Cavity Design

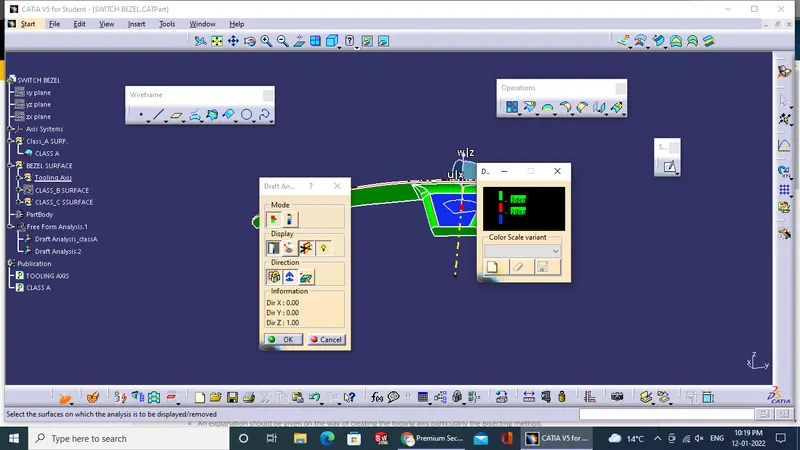

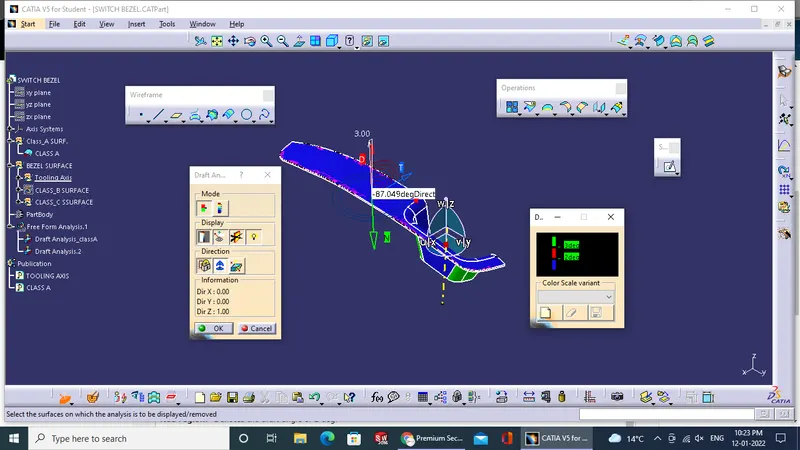

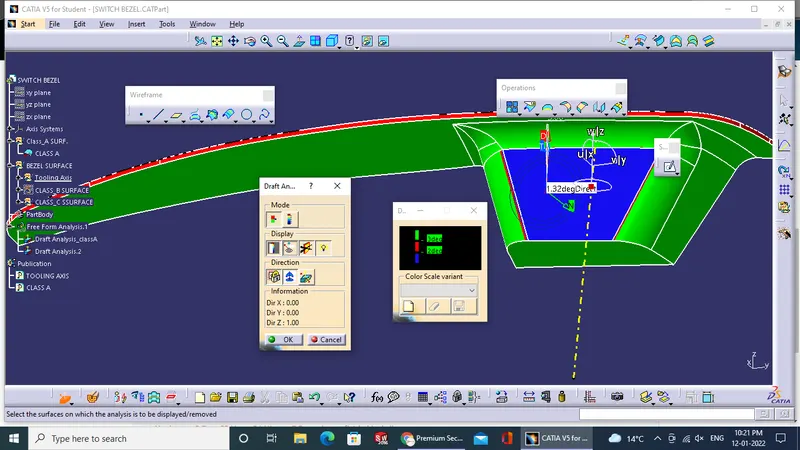

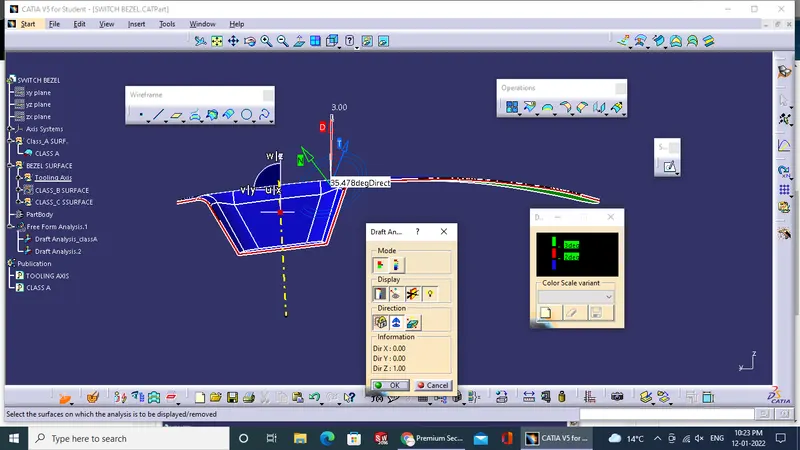

DRAFT ANALYSIS REPORT:

Green region:- Denotes the draft angle of 3deg.

Red region:- Denotes the draft angle of 2 deg.

Blue region:- Denotes the draft angle of 0deg.

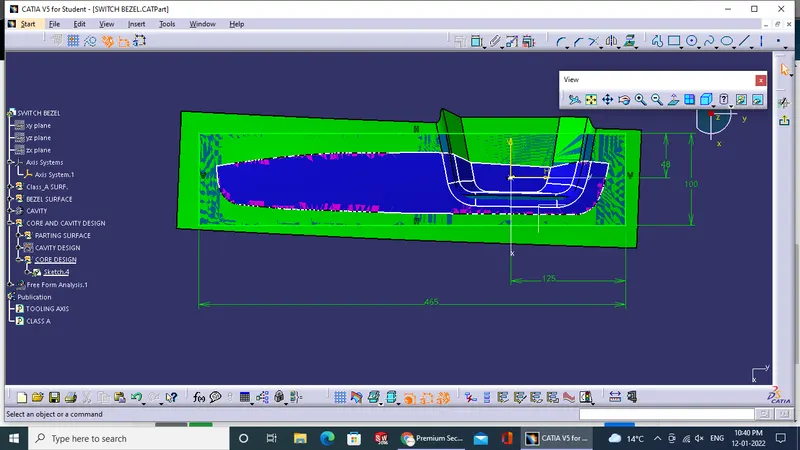

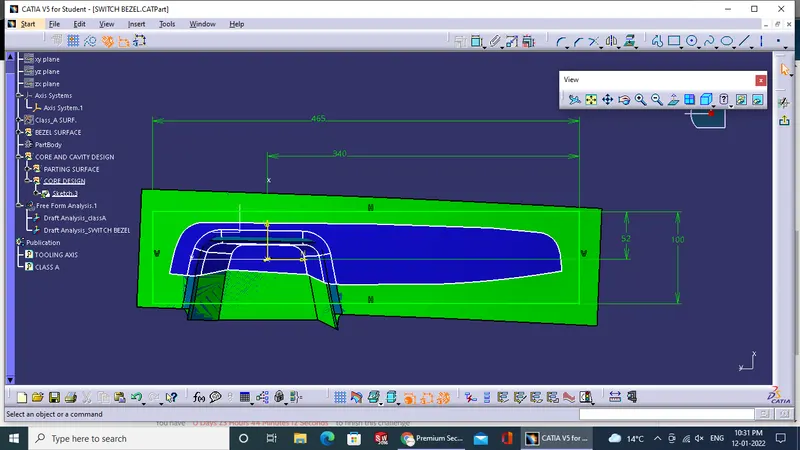

CORE AND CAVITY

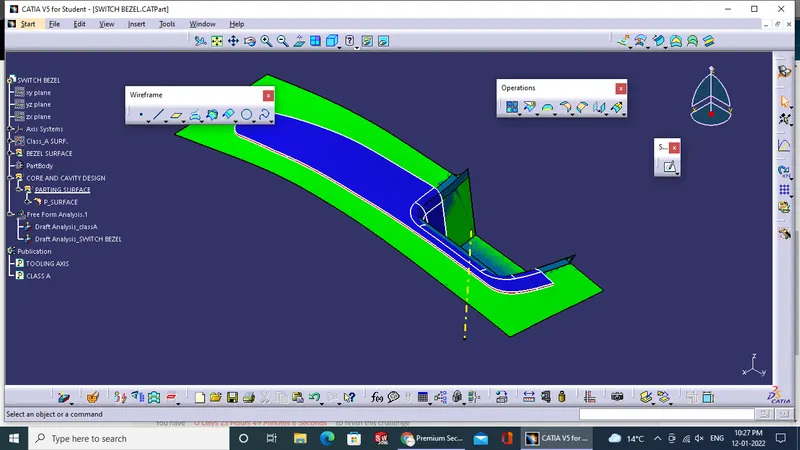

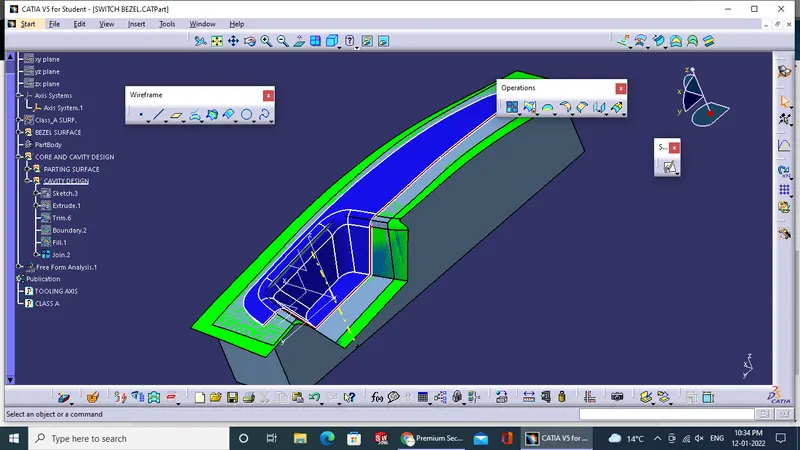

Parting Surface (Green color)

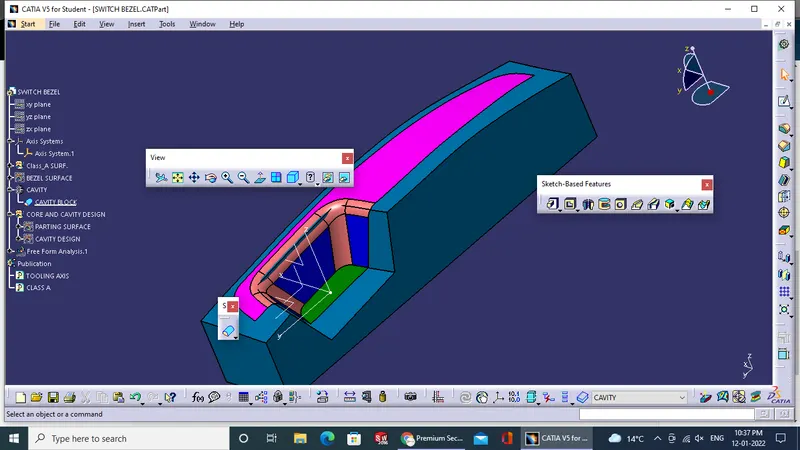

Cavity Block

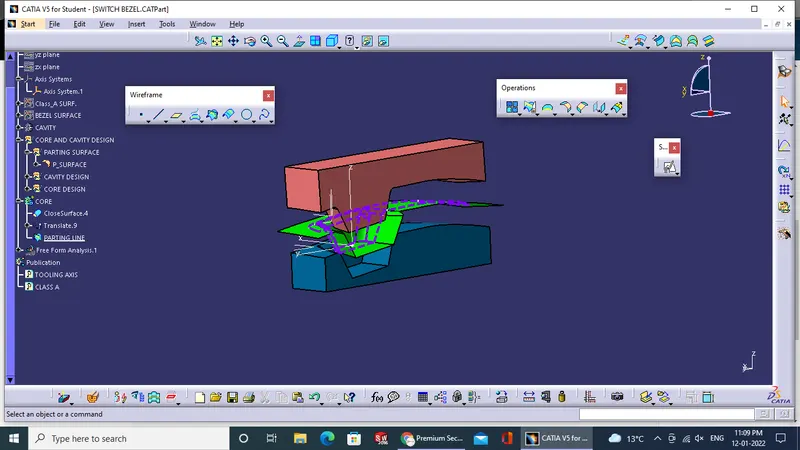

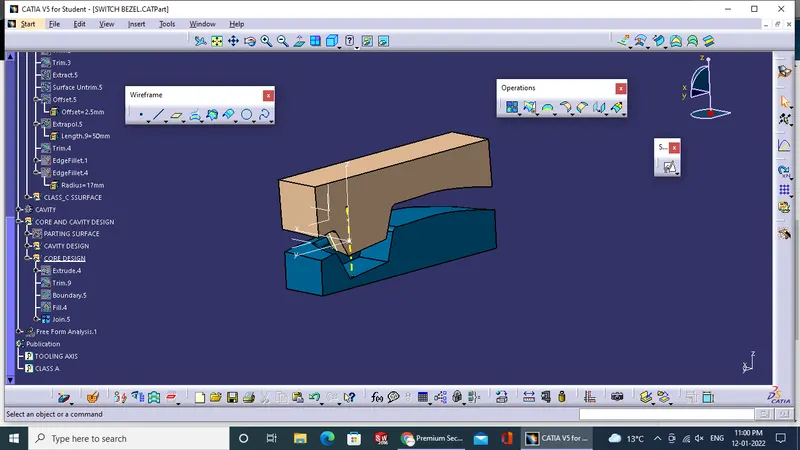

Core Block(PEACH COLOR)
