Week 8 - Challenge 5 - Core & Cavity Design

DRAFT ANALYSIS

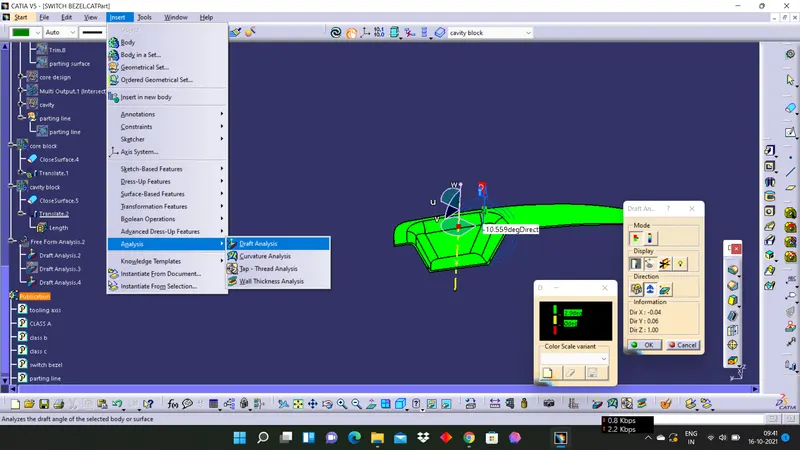

1.TO PERFORM DRAFT ANALYSIS . GO TO INSERT > ANALYSIS > FEATURE DRAFT ANALYSIS.

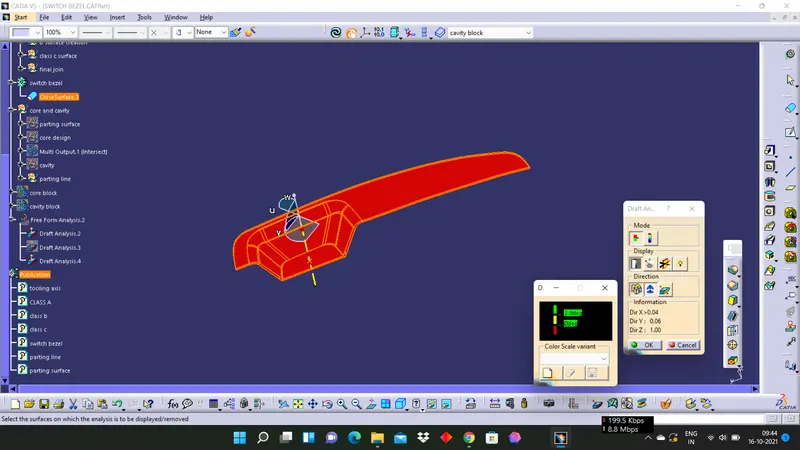

2. CLICK ON COMPASS OPTION ALLIGN WITH TOOLING AXIS.

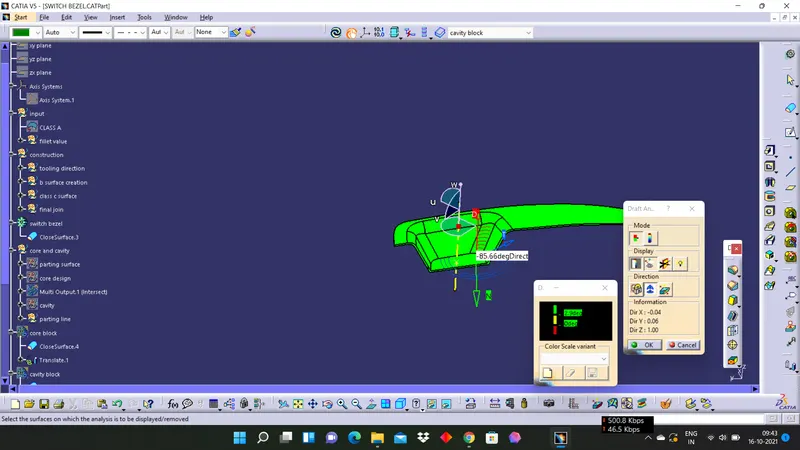

* BY INVERTING DRAFT ANGLE BE GET BELOW IMAGE

ISOMETRIC FRONT SIDE REAR VIEW

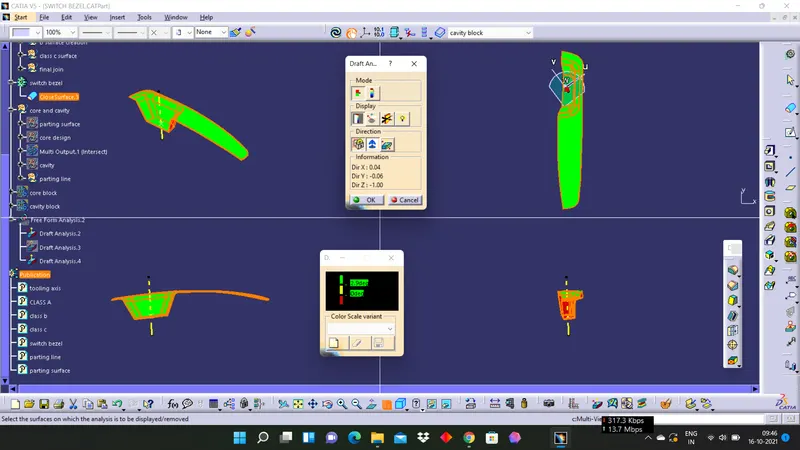

WITH THE HELP OF ANALYSIS RUNNING POINT WE CAN CHECK ANGLE OF PART.

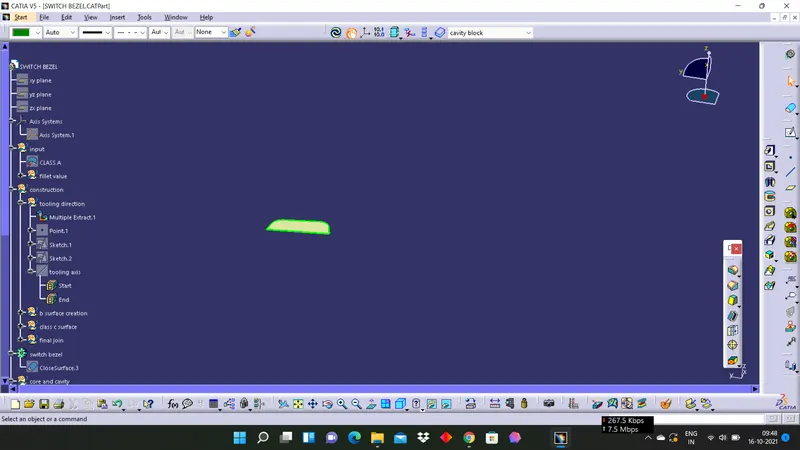

TOOLING AXIS=

1. USE EXTRACT ON SURFACE THAN ADD A POINT.

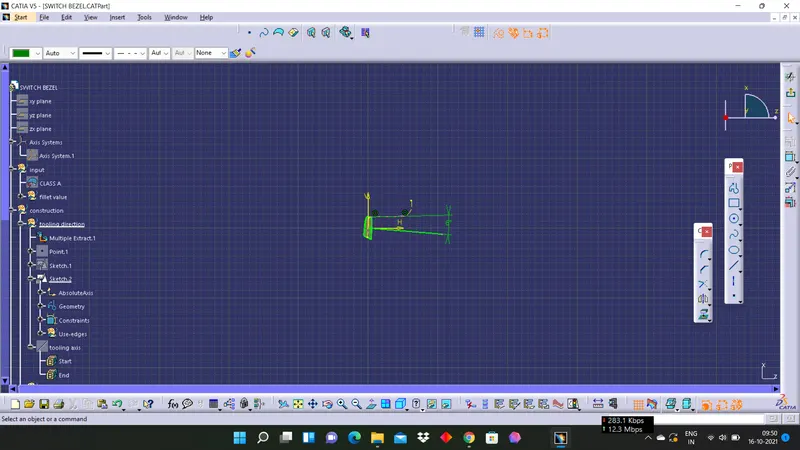

2.CREATE A POTIONED SKETCH IN ZY DIRECTION AND CREATE BISCTING LINE WITH THE HELP OF TWO OPPOSITE LINE

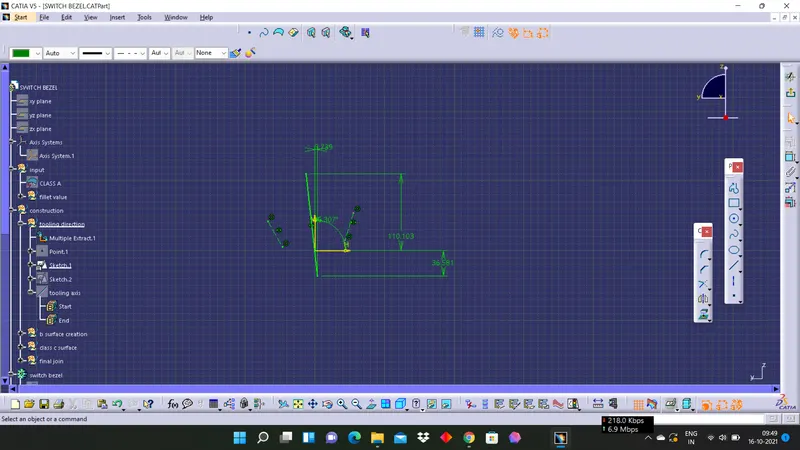

*CREATE A POTIONED SKETCH IN ZX DIRECTION AND CREATE BISCTING LINE WITH THE HELP OF TWO OPPOSITE LINE.

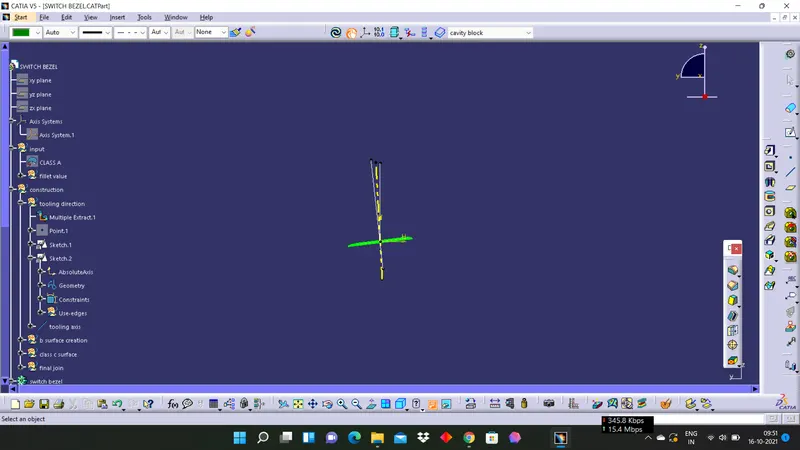

. CREATE TOOLING AXIS WITH BISECTING LINE WITH THE HELP OF PREVIOUS TWO POSION SKETCH.

SELECT BOOTH LINES THAN POINT WITH HELP OF LINE DEFINATION CREATE BISECTING LINE

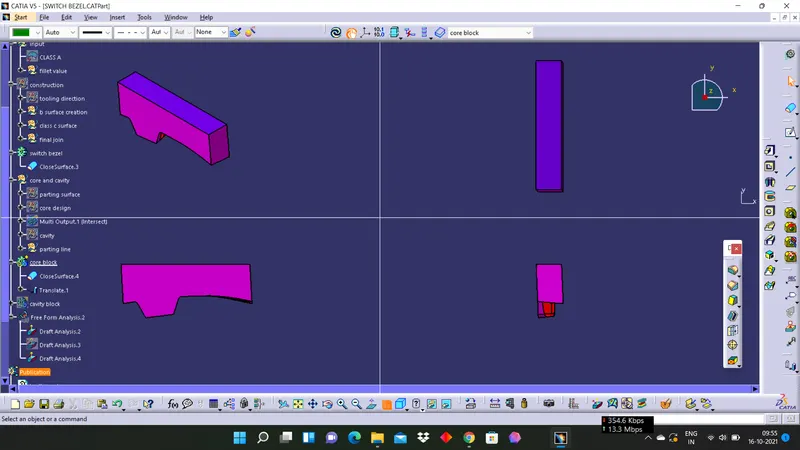

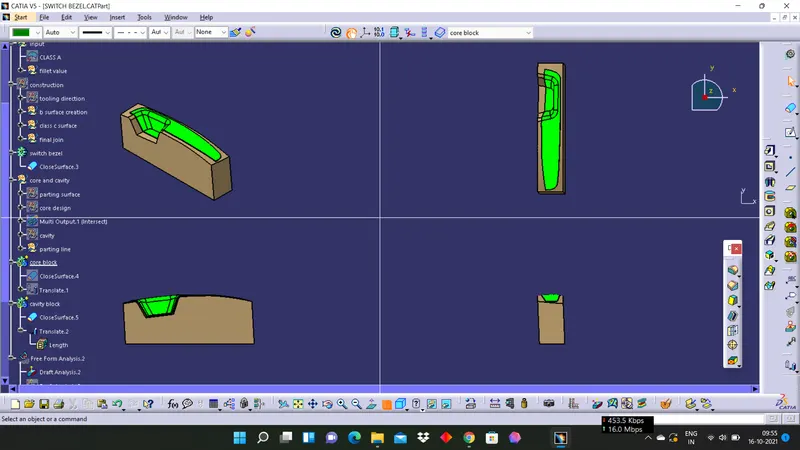

CORE BLOCK

ISOMETRIC FRONT ,SIDE, REAR VIEW

CAVITY BLOCK

ISOMETRIC FRONT ,SIDE, REAR VIEW
