Week 8 - Challenge 4 - Coin Holder Design

Coin Holder Design

procedure :

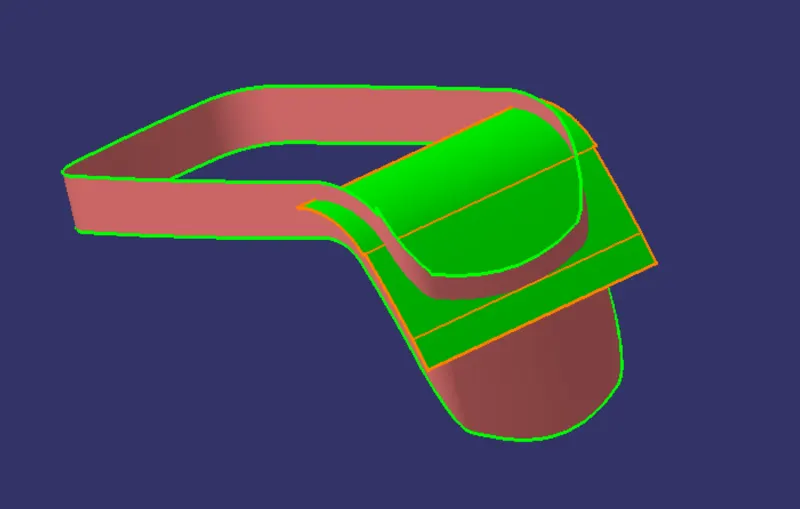

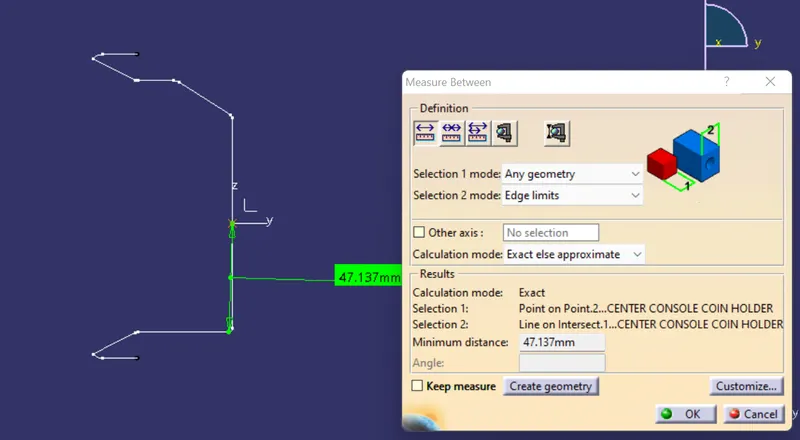

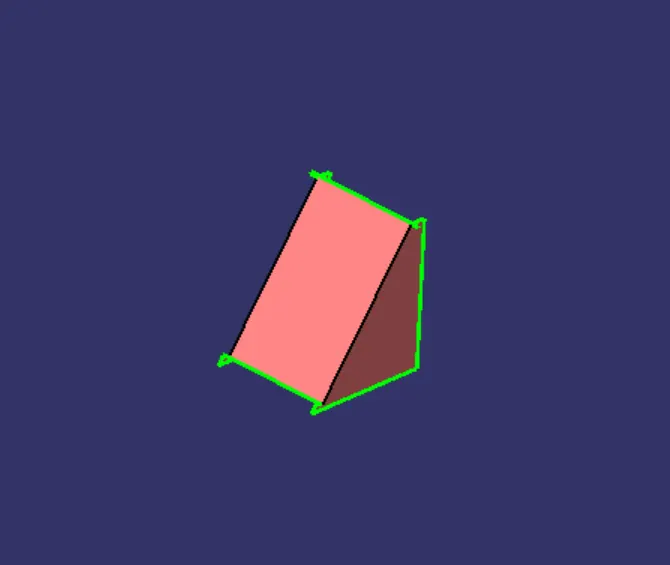

creating tooling axis to first extract the base surfsce and make point and axis creates on the surface

make in inter section line between yz plane and a class surface

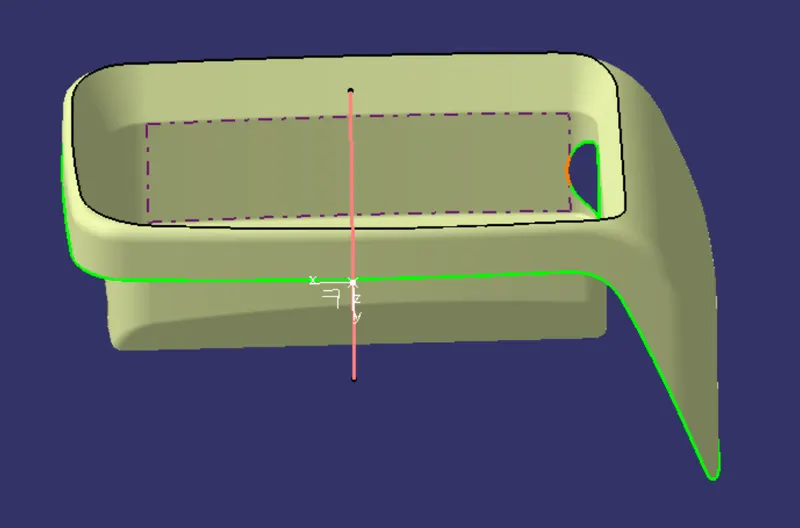

makes line at center point ant thats names as tooling axis

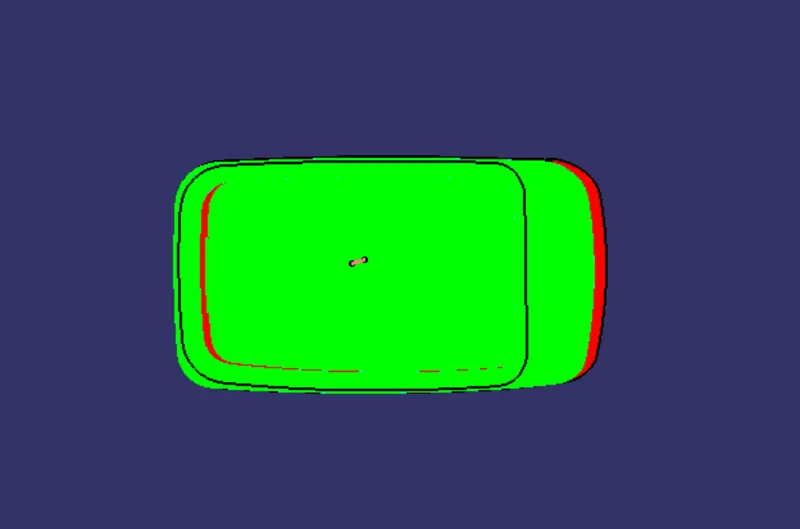

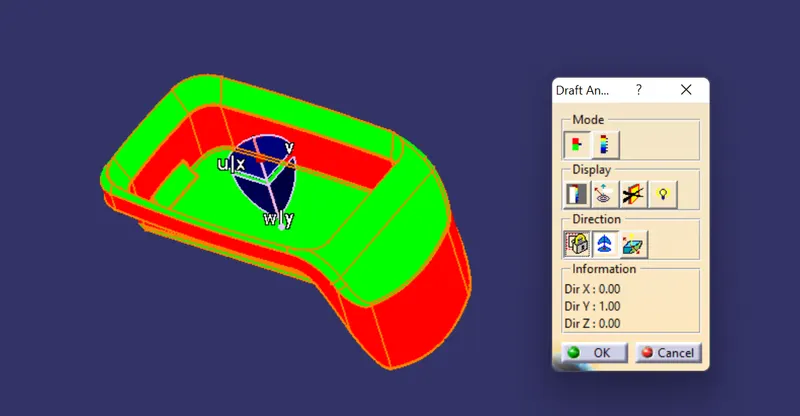

check draft analysis for the given class a surface by using tooling axis at 3deg

CLASS B SURFACE :

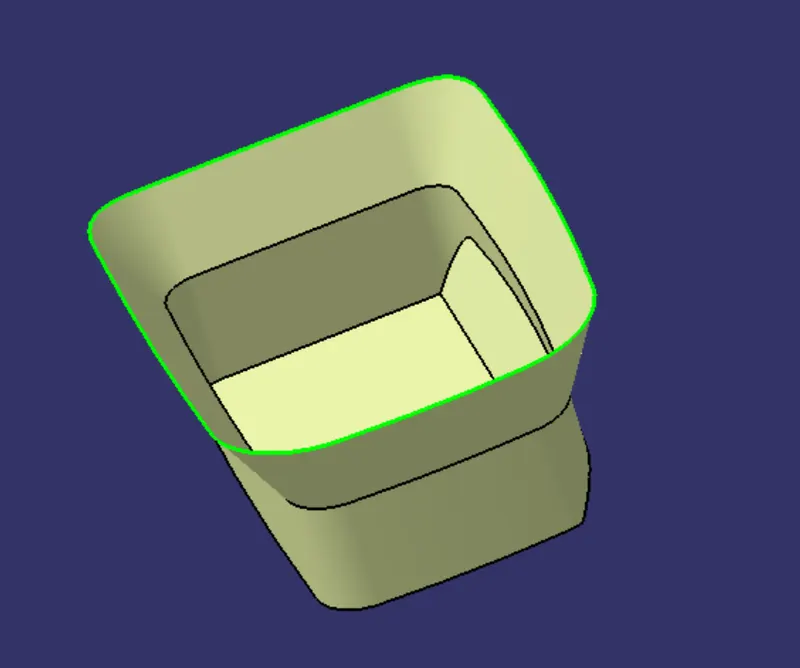

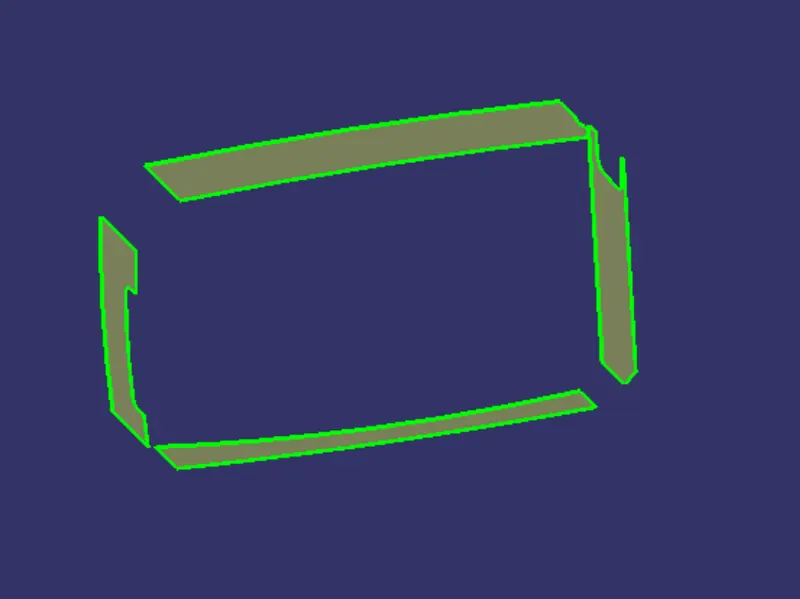

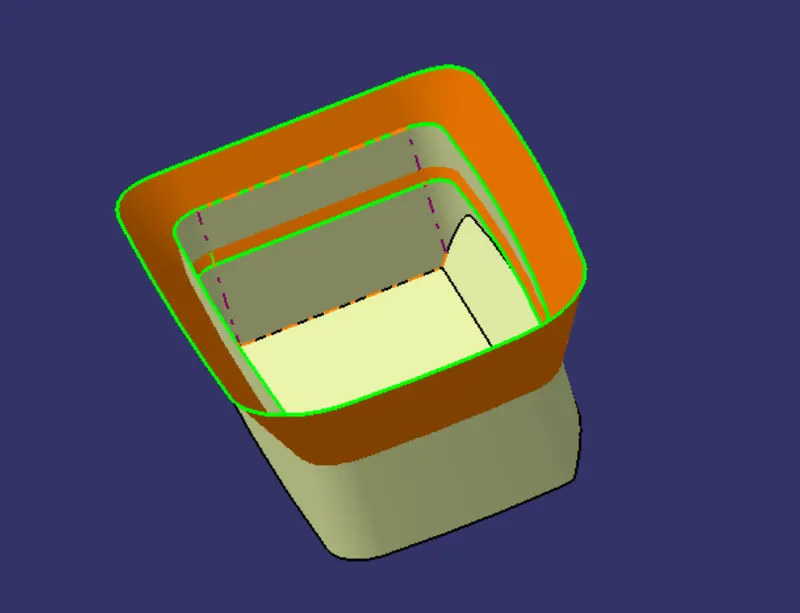

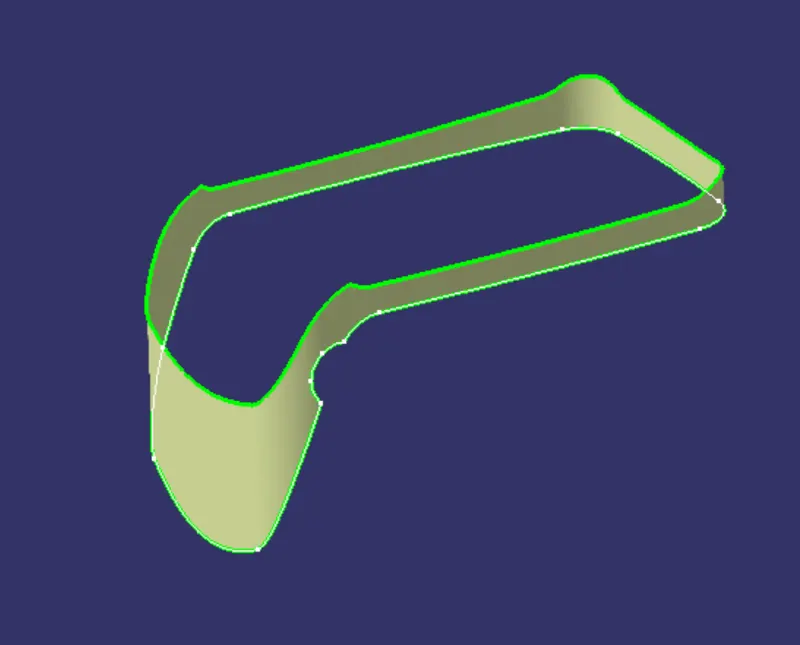

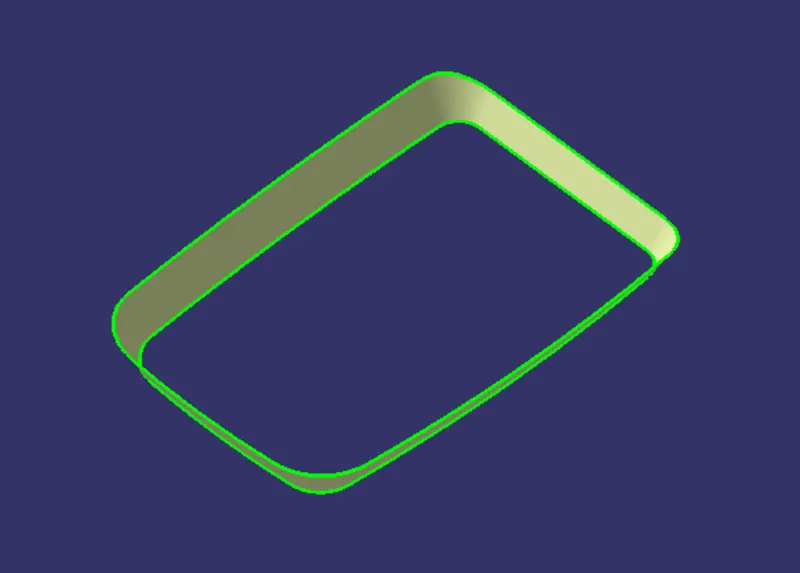

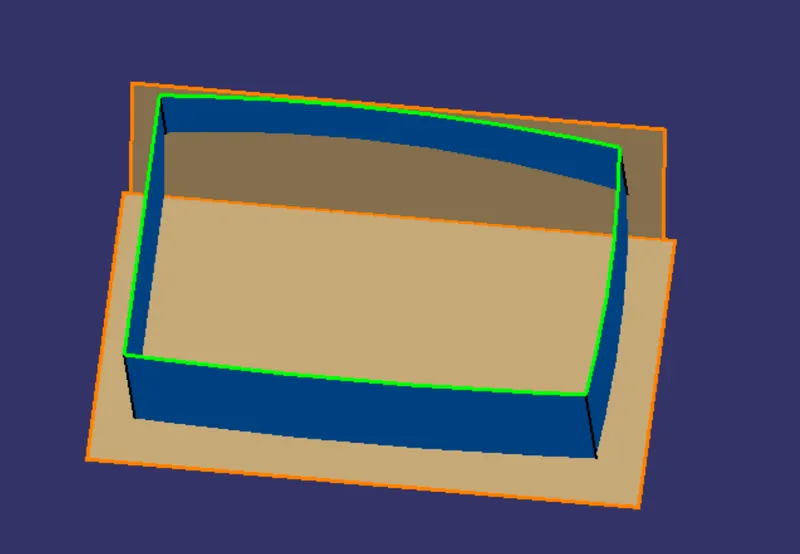

extract side wall surfaces

untrim all surface and extrapolate the surface at specified length

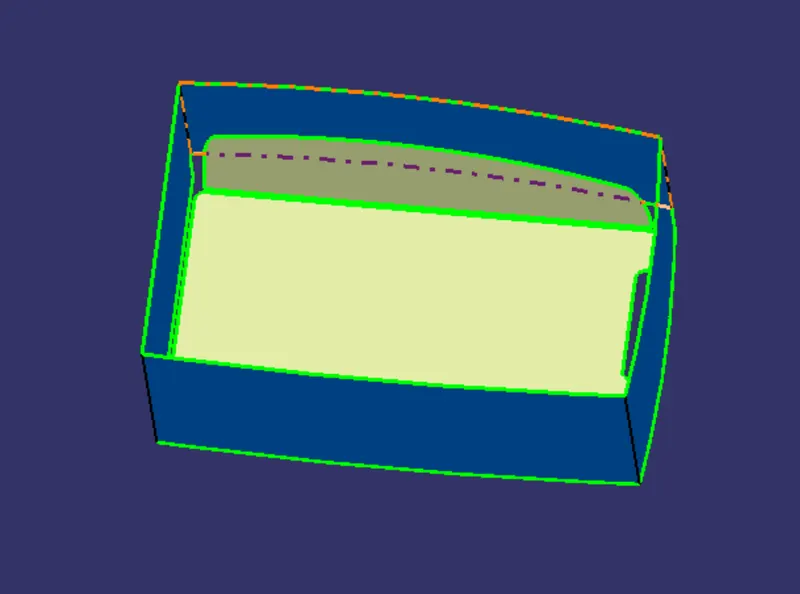

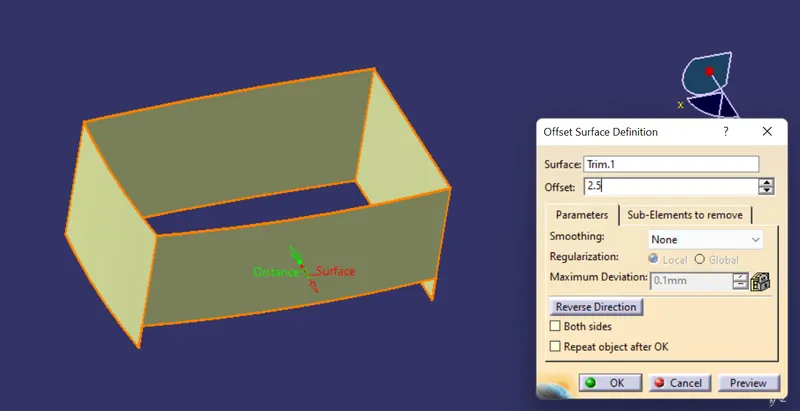

then trim all the surfaces and offsets upto 2.5mm

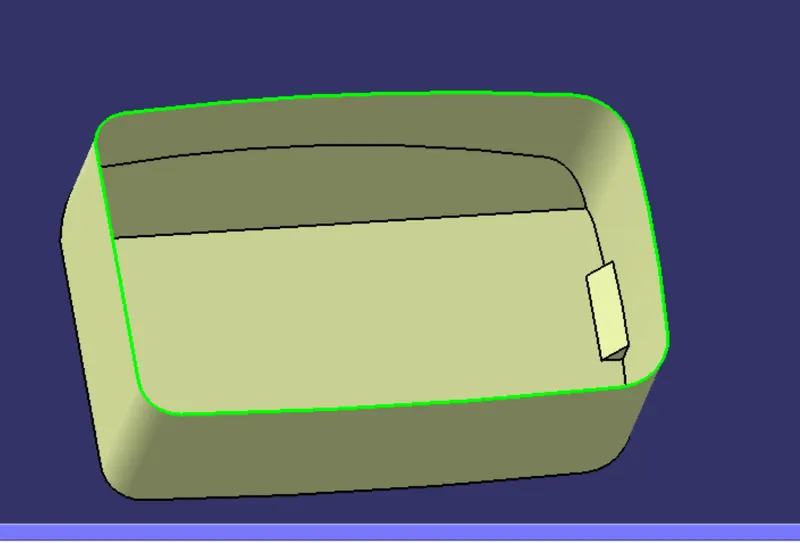

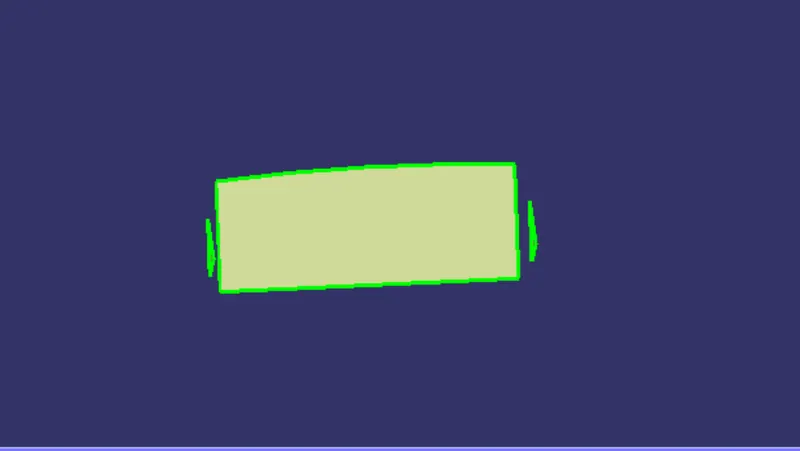

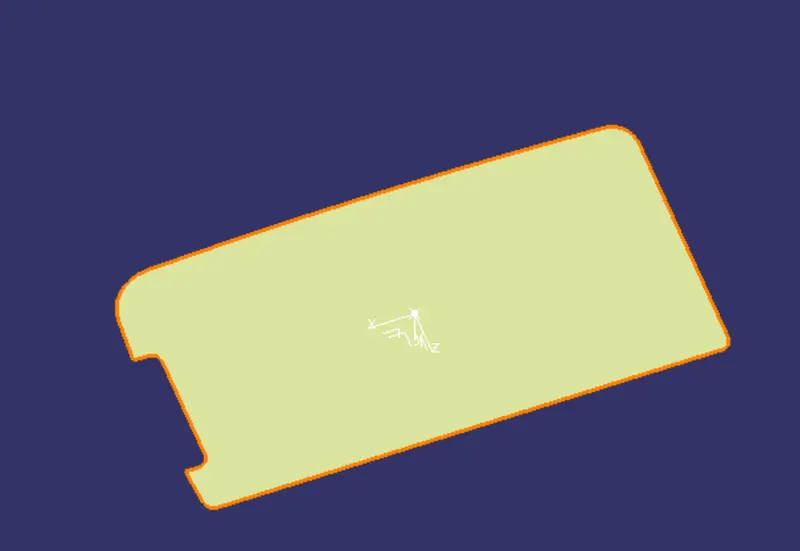

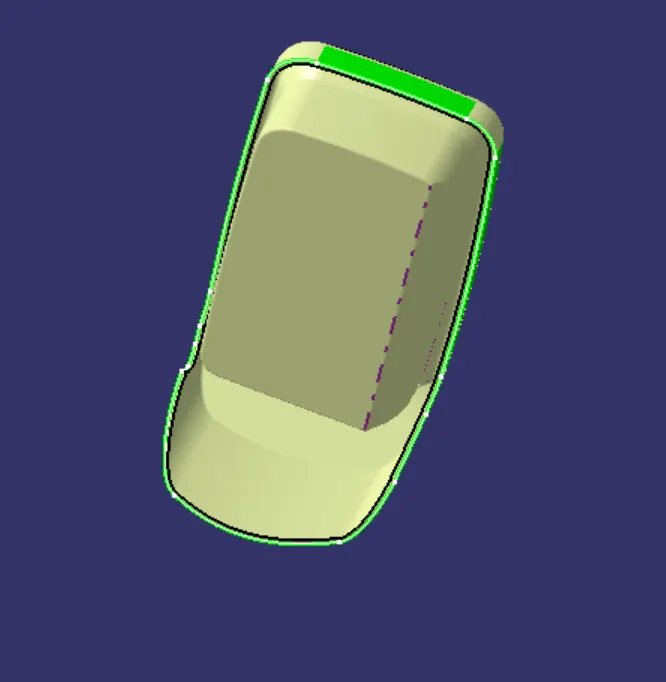

extracts the base surface

untrim all surface and extrapolate the surface at specified length

then trim all the surfaces and offsets upto 2.5mm

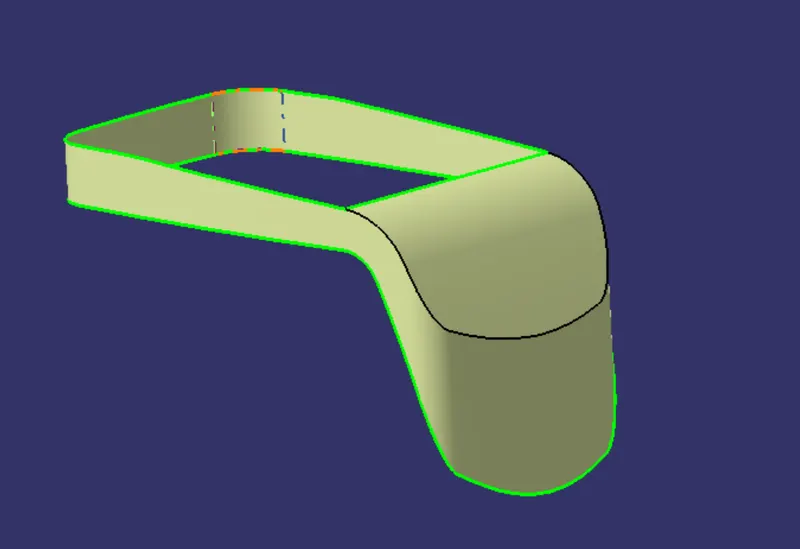

extract top surface

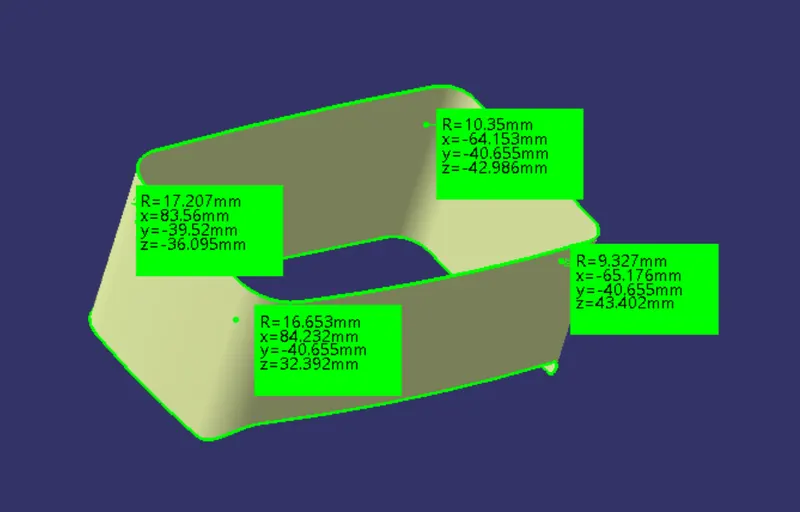

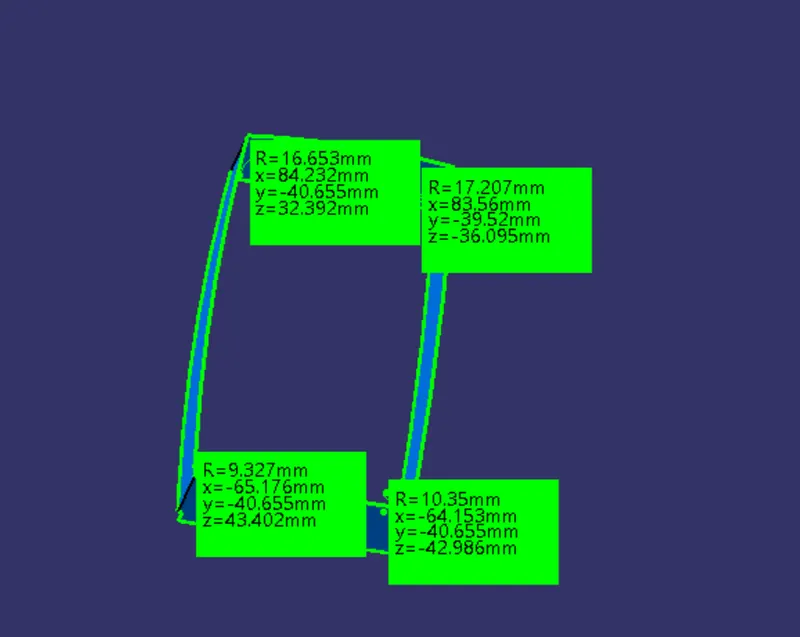

measure the fillet radius

and thats apply on the side wall

trim top wall and side wall

then trims the side wall and base surface

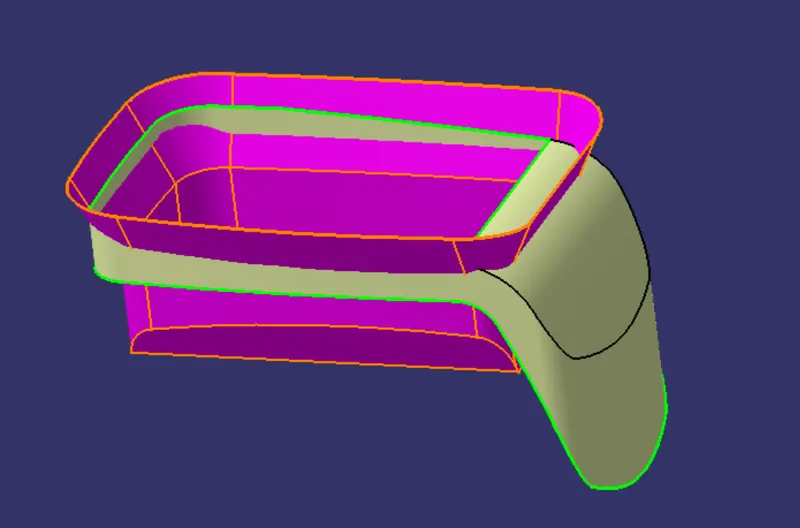

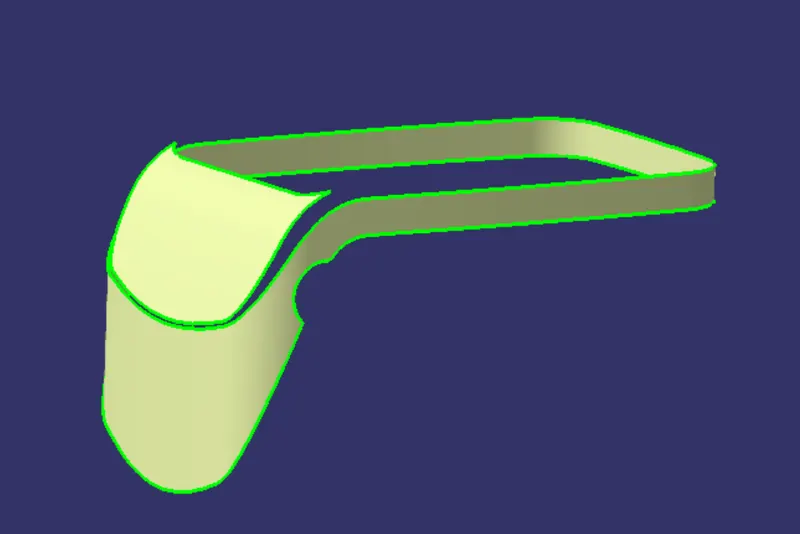

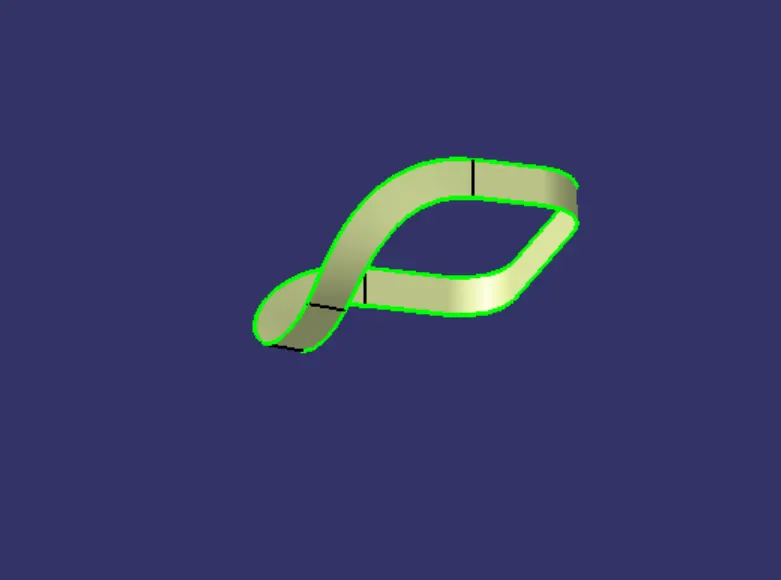

extracts the side flange

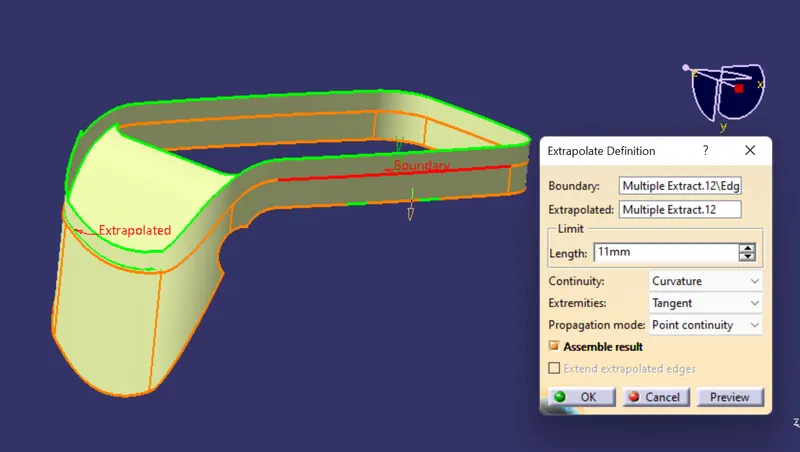

side flange is extrapolate upto 12mm

then untrim the surfaces and enlarge as given dimension

untrim all surface and extrapolate the surface at specified length

then trim all the surfaces and offsets upto 2.5mm

trim both side flanges in a right direction

trim top surface and side flange

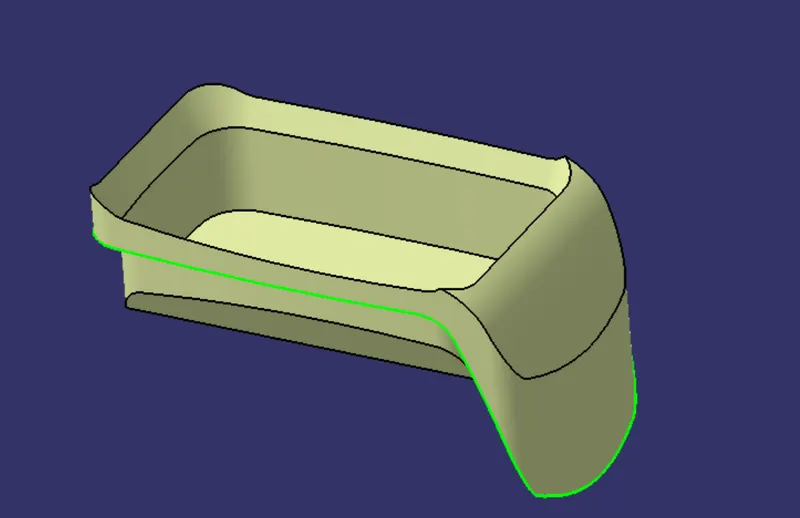

join both surfaces

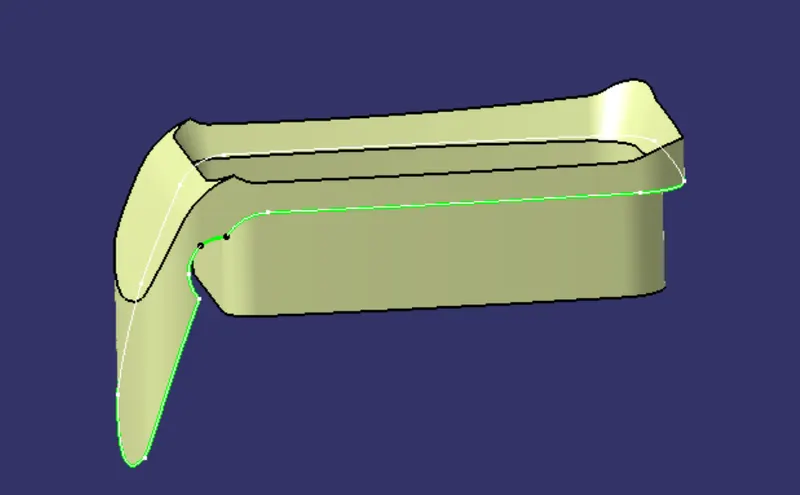

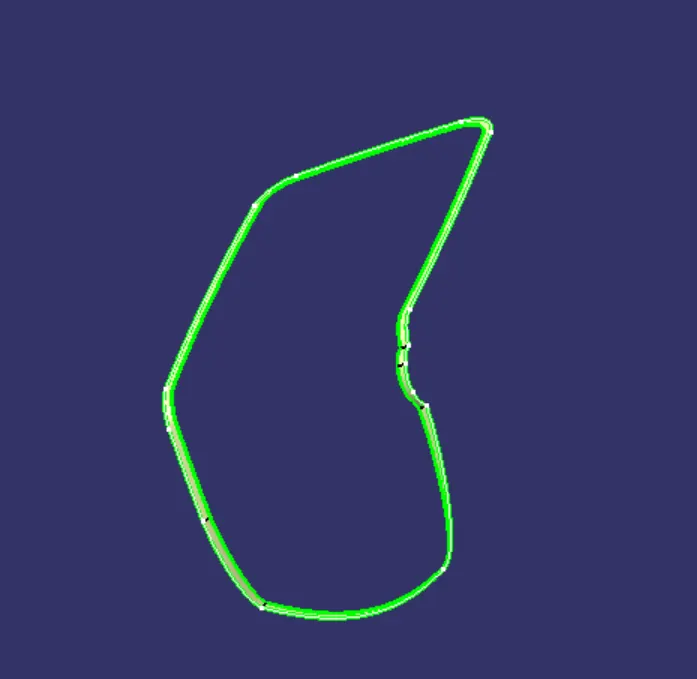

extracts the side edges of a surface

then extracts side face thats connects to extracted line

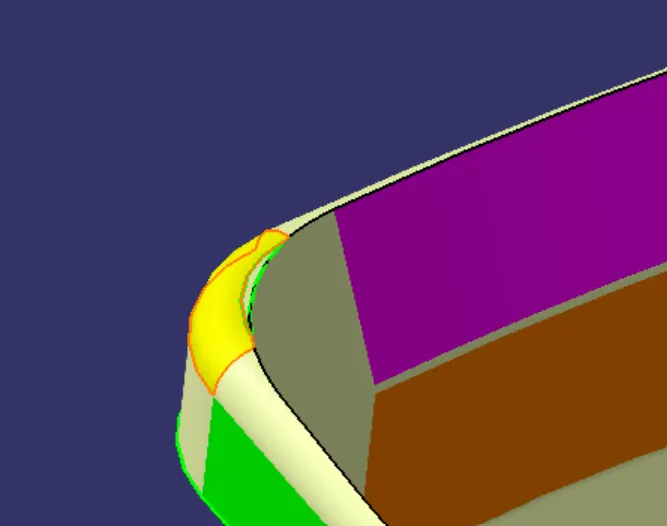

then makes the c surface by using side faces and extracted line

extract the top small surface

untrim all surface and extrapolate the surface at specified length

then trim all the surfaces and offsets upto 2.5mm

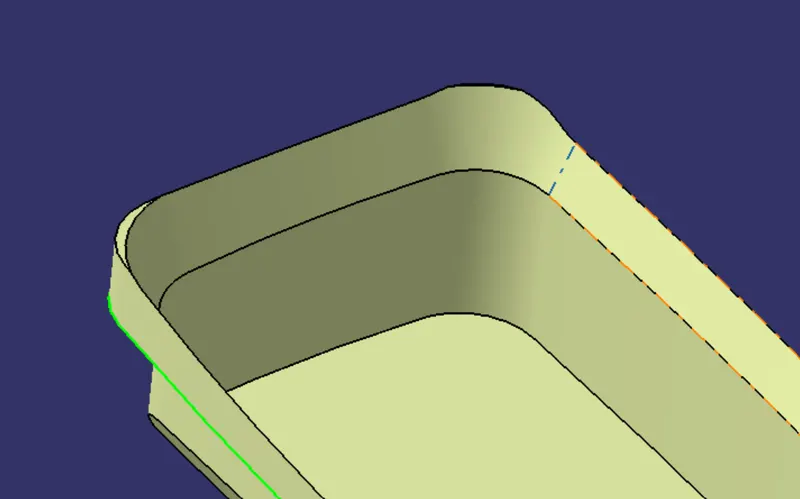

apply fillets an all edges in inside

apply fillets an all edges in outside

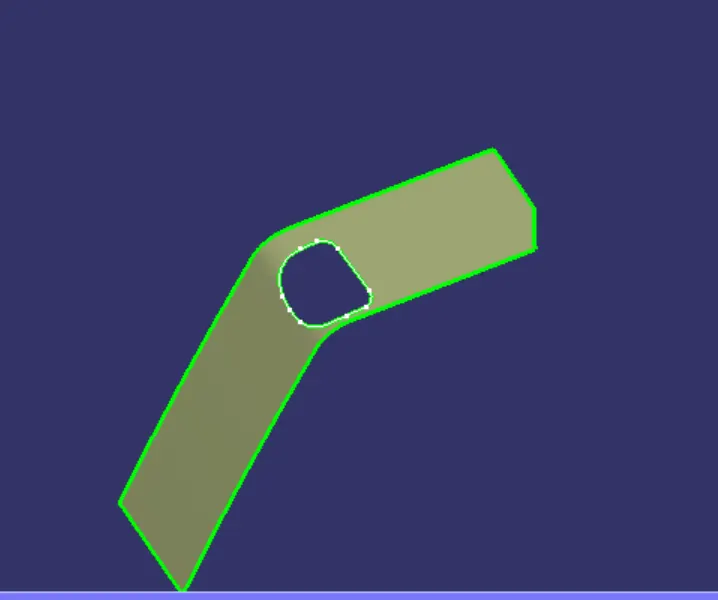

extract the line of hole and connected surfaces

make c surface on the hole side

extract the surface thats near to base surface

untrim all surface and extrapolate the surface at specified length

then trim all the surfaces and offsets upto 2.5mm

its can be combines with existing class b surface

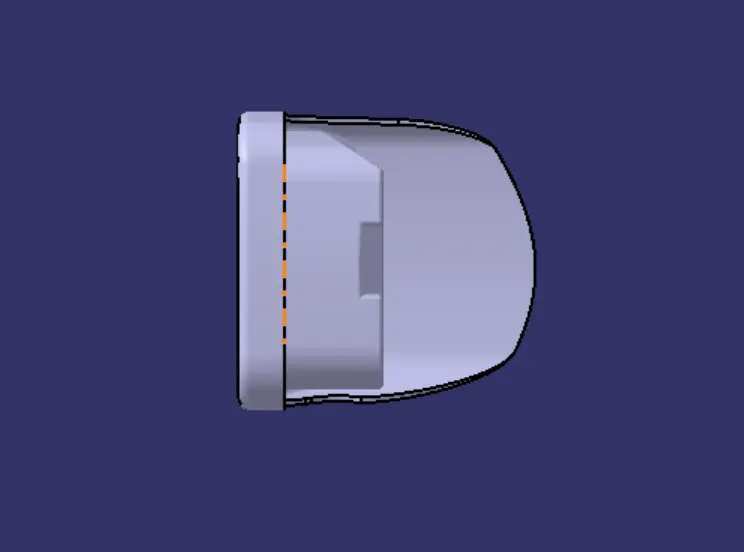

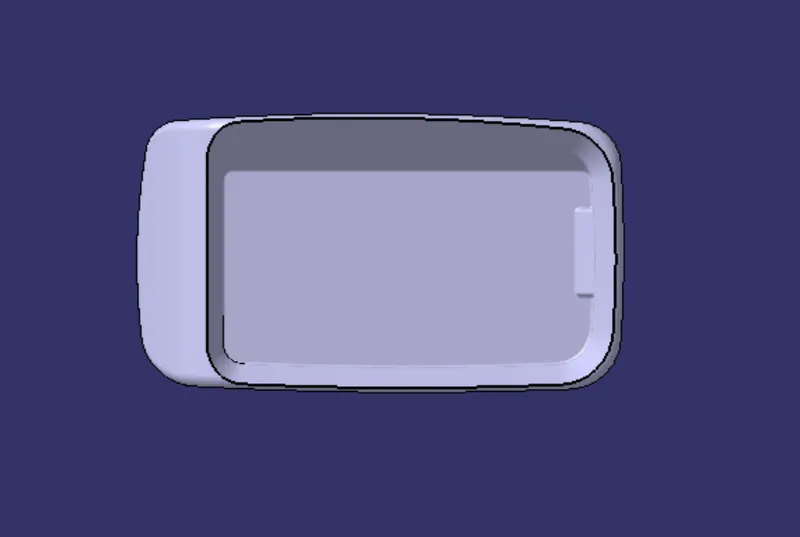

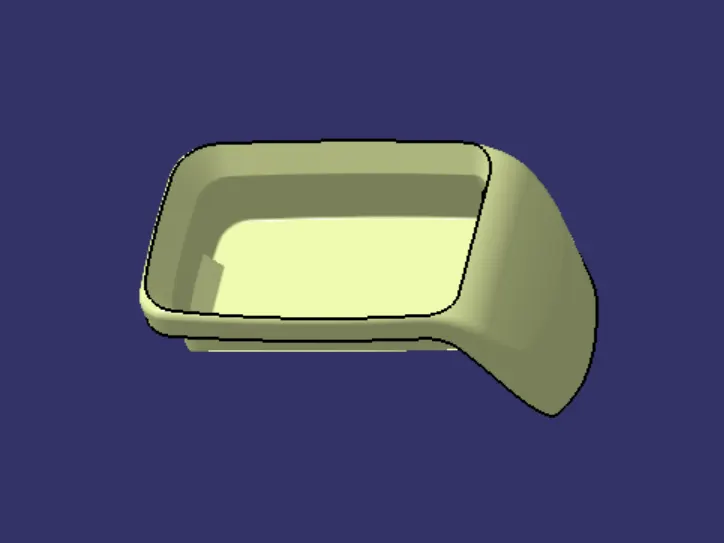

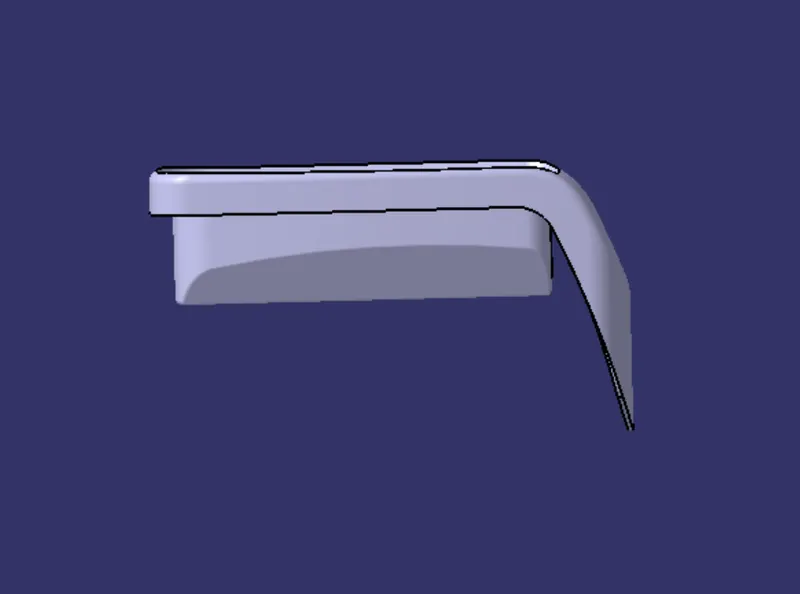

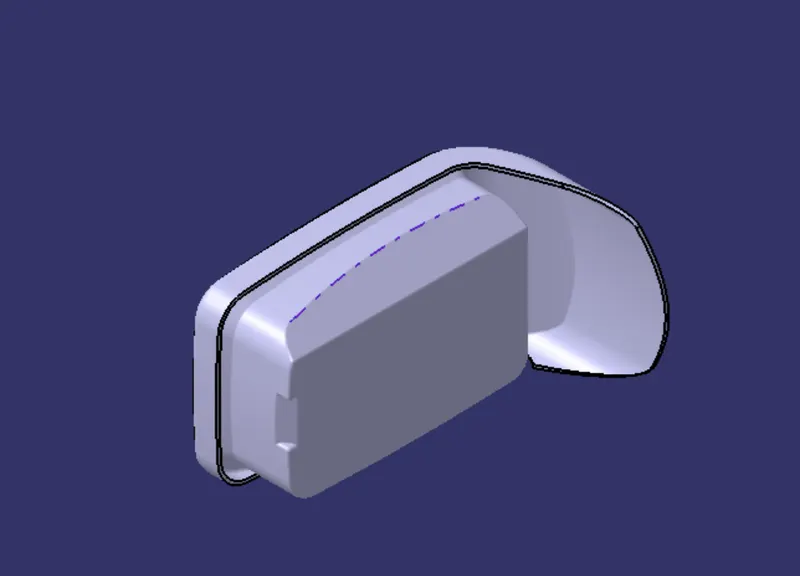

model views

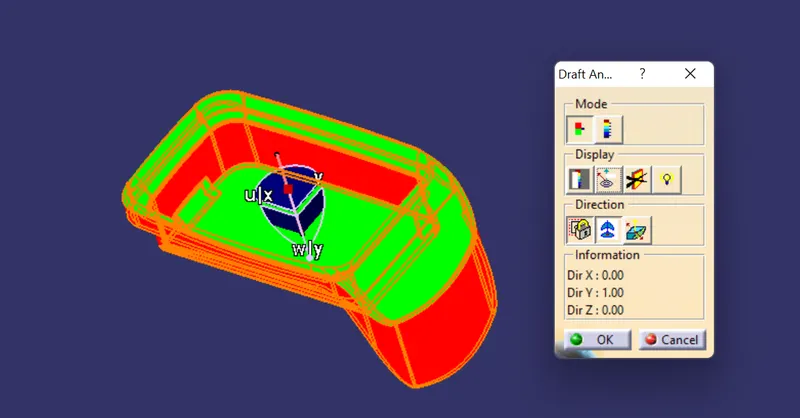

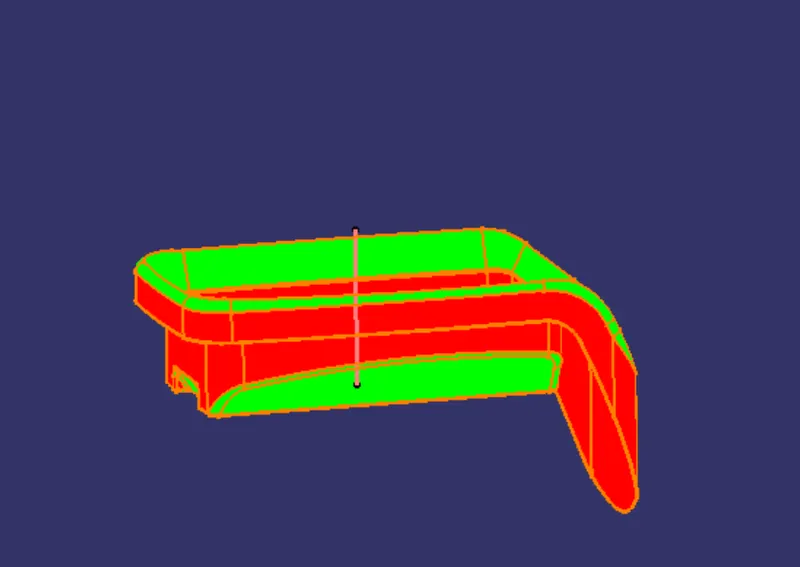

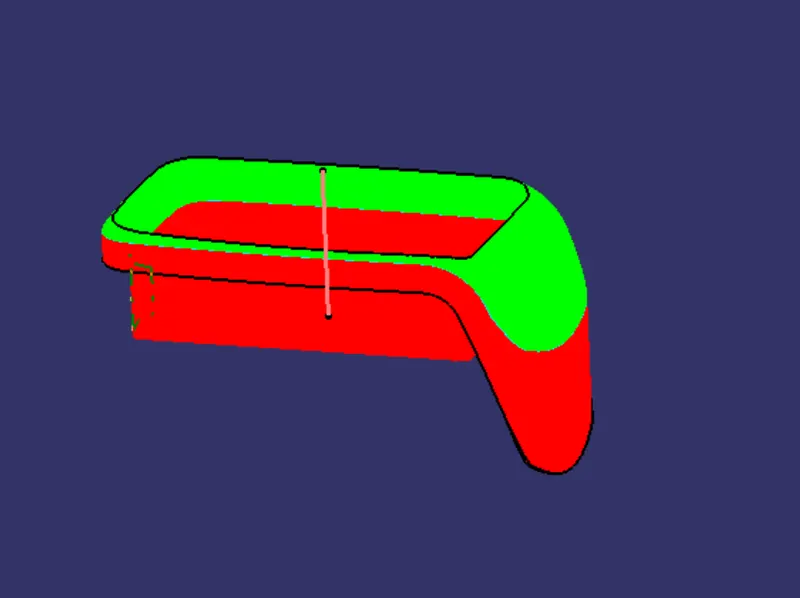

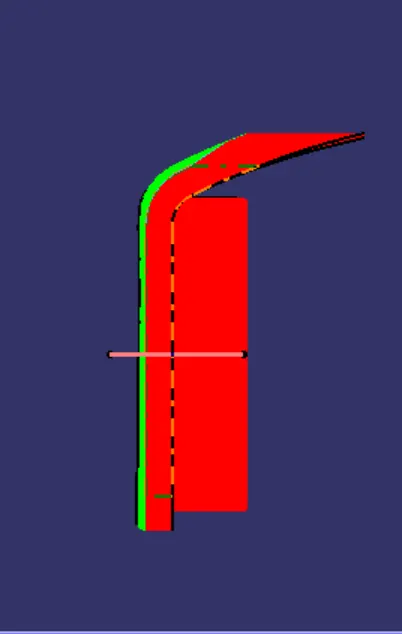

apply draft analisis of part model

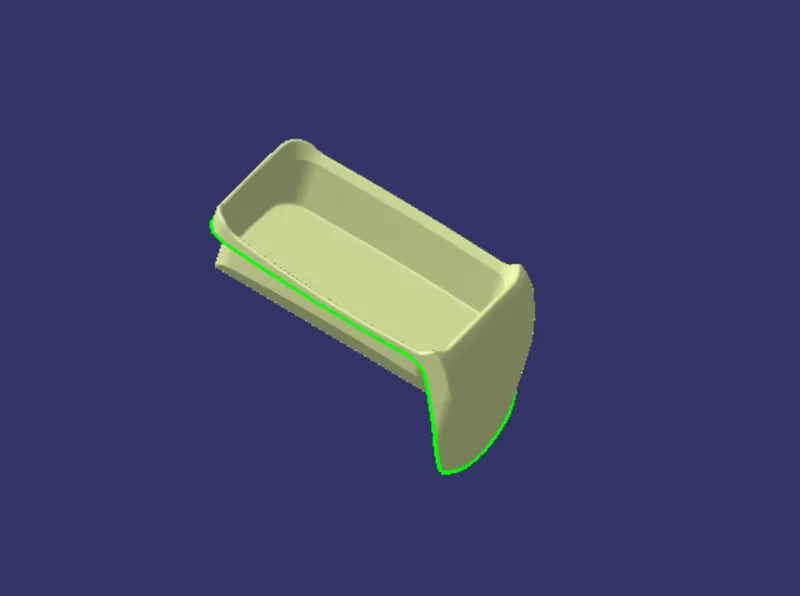

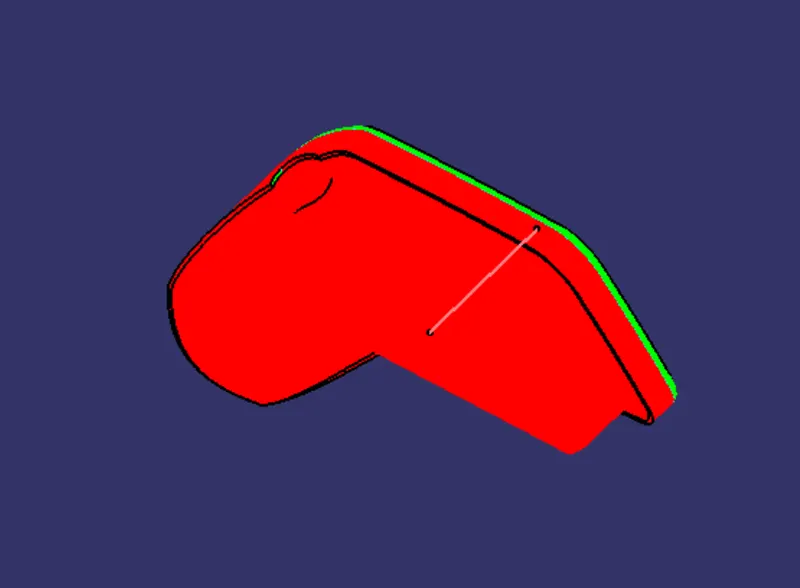

view model of draft
