Week 8 - Challenge 4 - Coin Holder Design

STEPS INVOLVED FOR DRAFT ANALYSIS

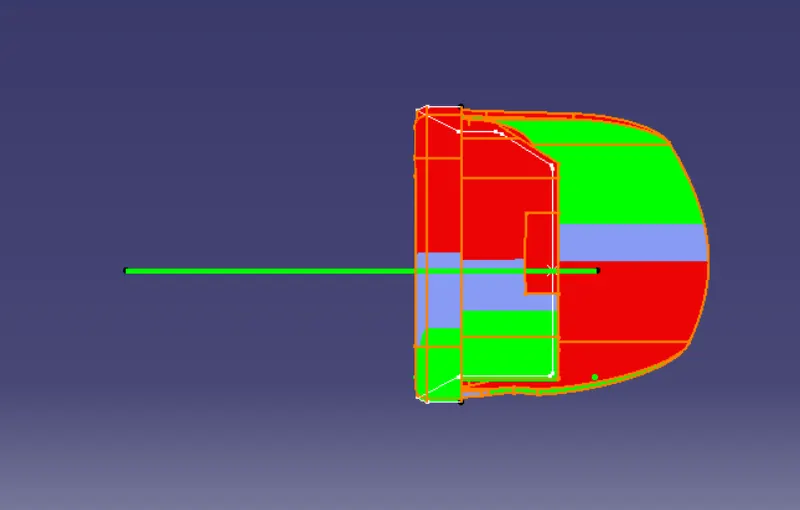

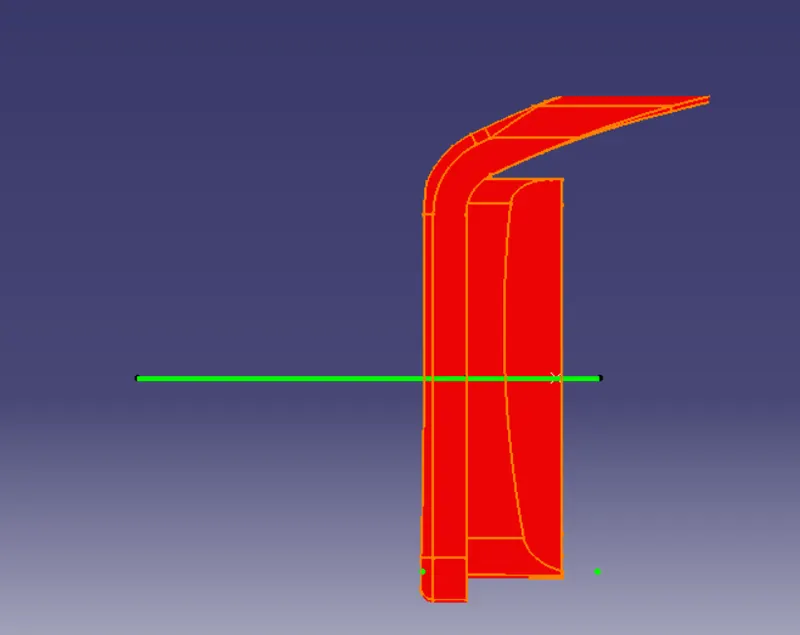

CREATING TOOLING AXIS FOR THE COMPONENT AND CHECKING IN WHICH DIRECTION THE COMPONENT CLEARING THE DIRECTION

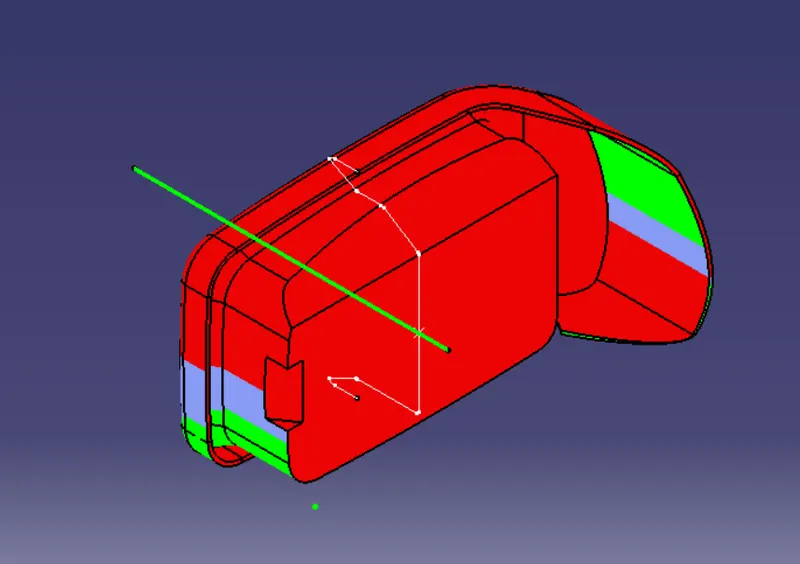

FIRST FINDING THE FACES NOT CLEARING THE TOOLING AXIS AND MAKE IT CLEAR TO THE TOOLING DIRECTION BY MAKING IT BISECT WITH THE MAIN TOOLING DIRECTION.

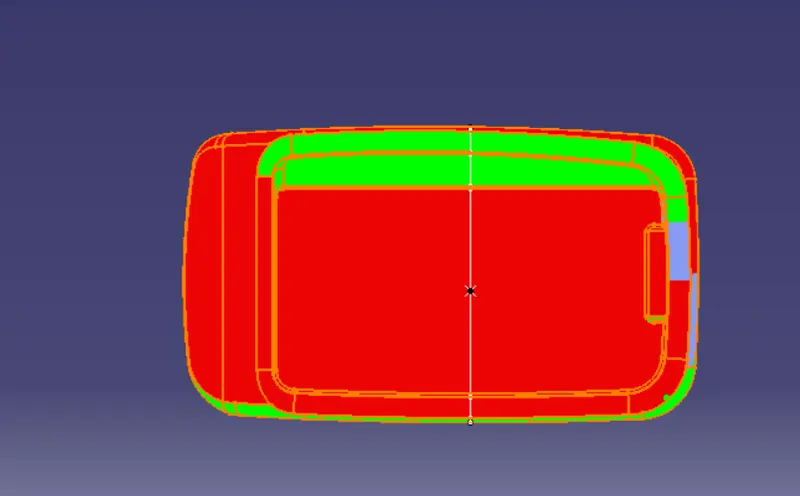

MAKING INTERSECTION FOR THE UNCLEARING TOOLING DIRECTION FACES

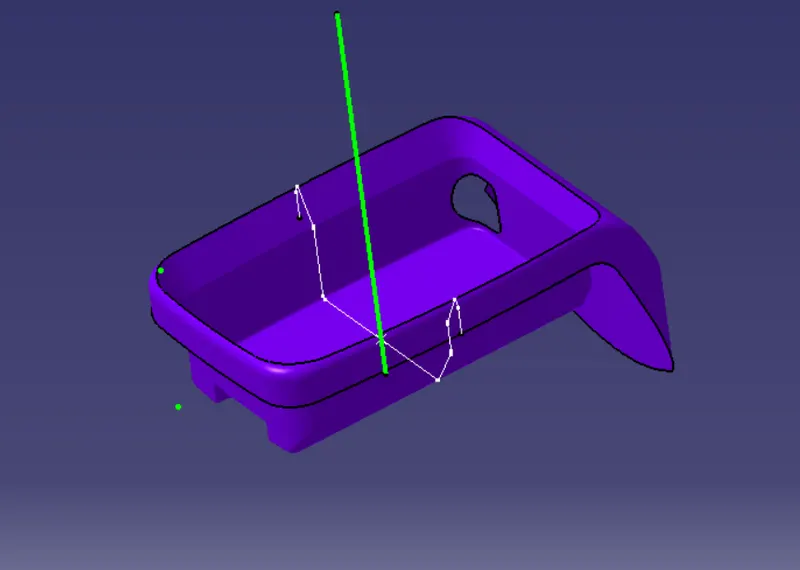

MAKING LINES PARALLEL TO THE FACES AND GETTING IT BISECTED WITH MAIN TOOLING DIRECTION

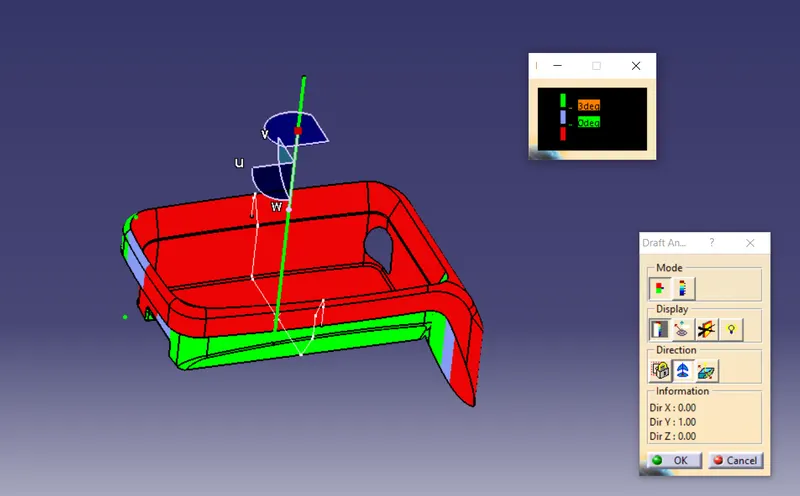

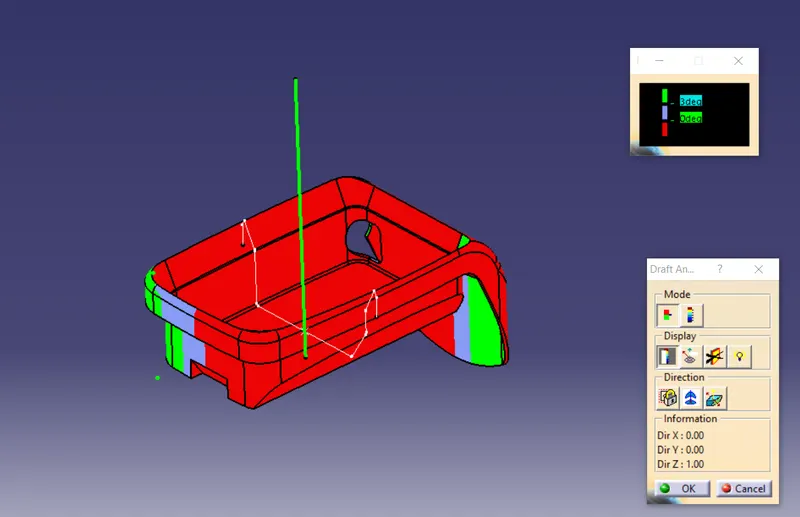

THE DRAFT ANGLE HAS TO BE MAINTAINED MINIMUM OF 3°. The different colour codes are shown in the dialogue box representing the draft analysis at every point . The picture also shows the compass to be assigned to the tooling direction

THICKNESS OF THE COMPONENT IS 2.5mm
