Week 8 - Challenge 4 - Coin Holder Design
Center console Coin Holder
A class - A surface has been provided to me for designing a full solid body out of a surface and Validate it.

In this given surface first I need to check any open boundaries that may create errors while designing.
- After checking I need to create a Tooling Axis for the Class - 'A' surface.
- Then I need to create the Class - 'B' and Class- 'C' surface with the help of the Class - 'A' surface
Tooling axis creation
The tooling axis is the direction of drawing a sheet metal where the finished component is easily ejected on a particular direction and axis. The tooling axis is important for removing the material when finished.
- First, I will create An Axis system, from that axis system I will get two cross-sections. by using that cross-section lines I will create the tooling axis for the surface.

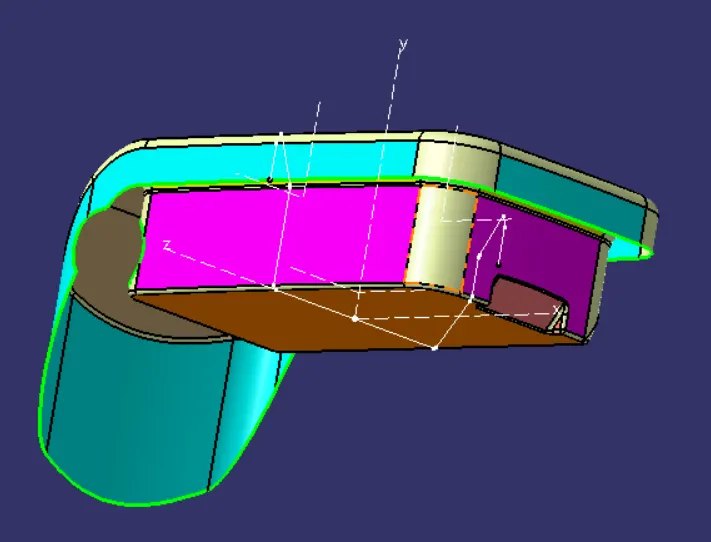

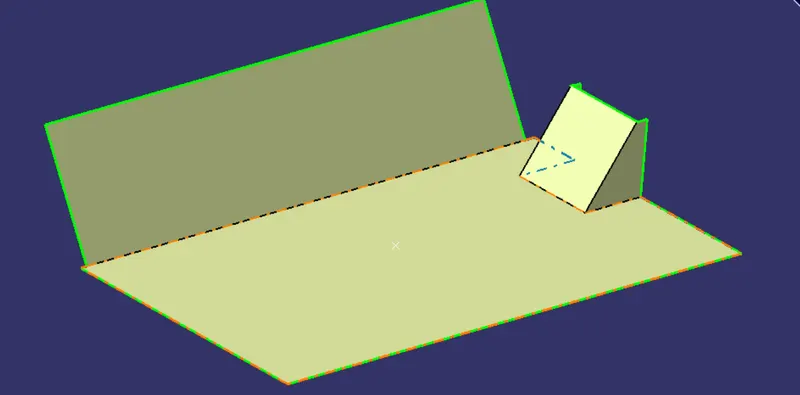

Taken Cross-section along ZY plane

Clearing toling Axis along Y direction

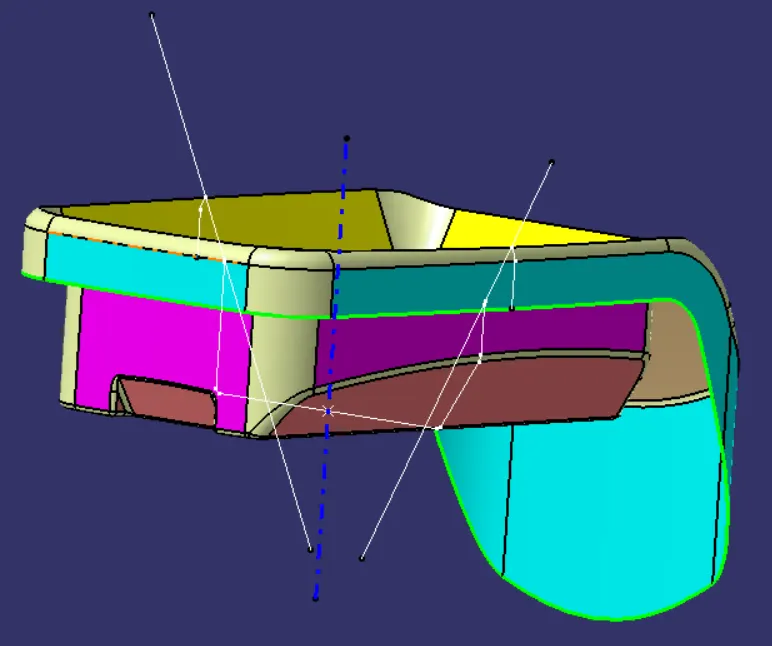

- Now creating a Cross-section along the ZX plane

Clearing tooling axis along the X direction

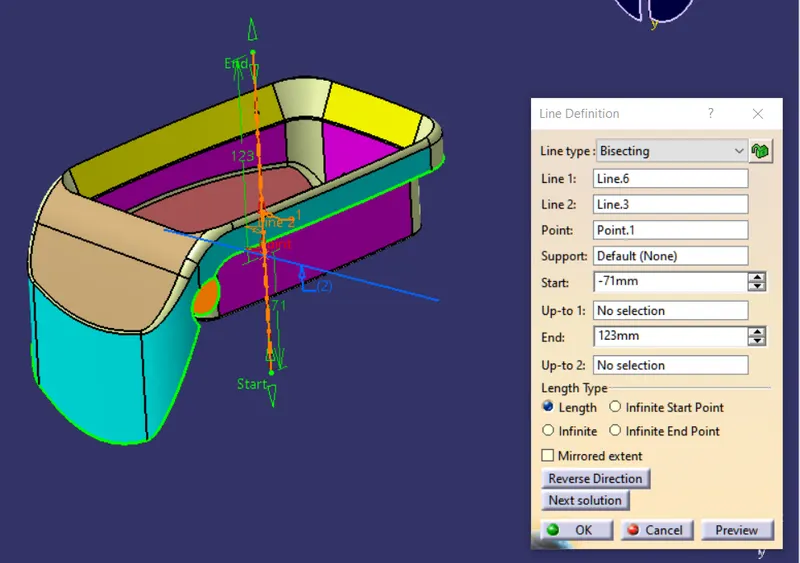

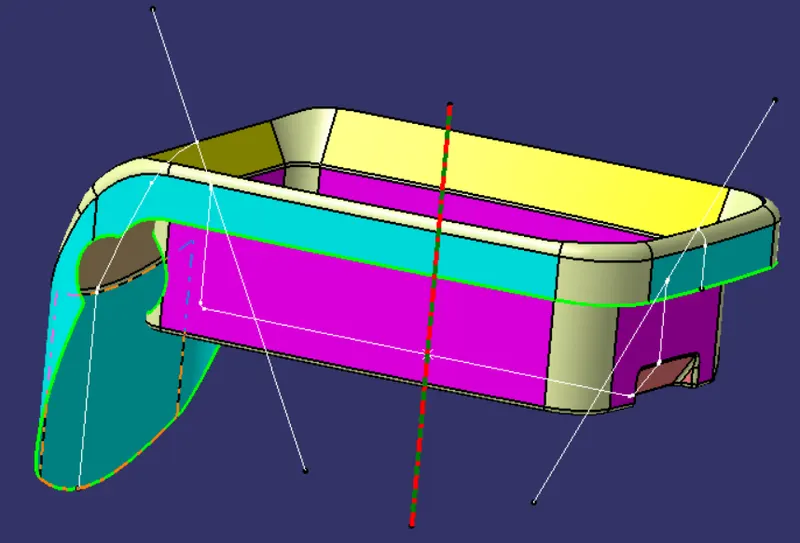

- then using both tooling axis I can now create the main tooling axis for the class - A surface by the bisecting method.

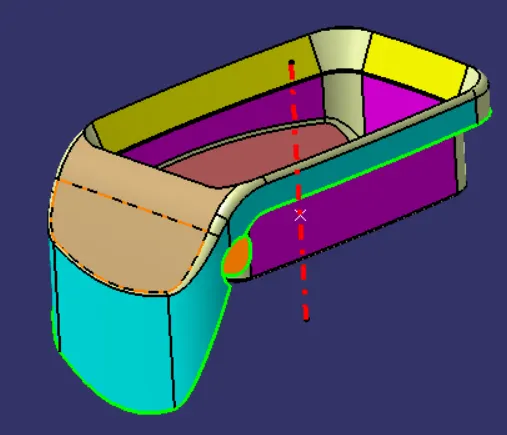

Main tooling Axis

- After the creation of tooling Axis, I will now perform the draft analysis for the provided class - A surface.

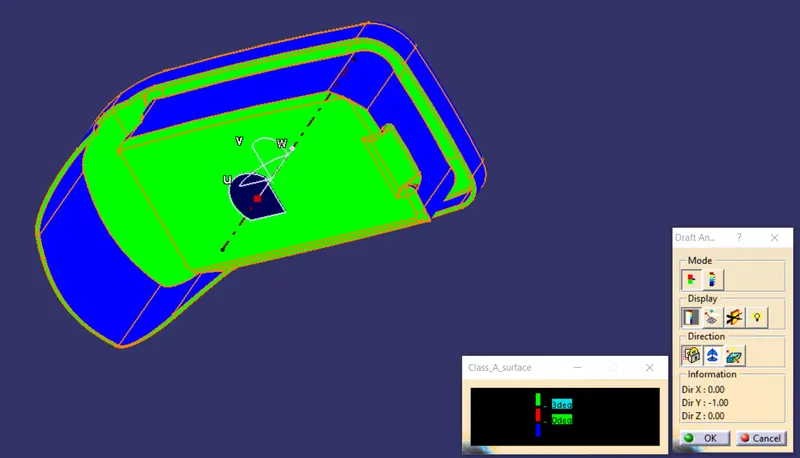

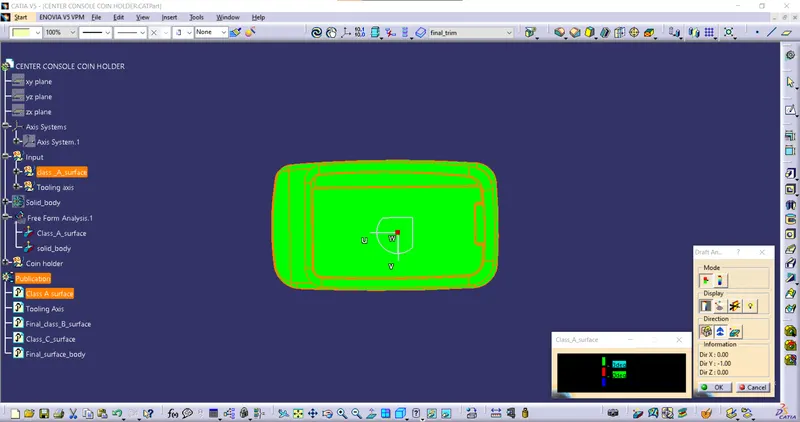

From the created tooling axis, if I see the model from the top, then it has no negative draft.

but if I examine the model briefly it has some negative draft.

after the errors now I may create a secondary tooling axis ( side core tooling Axis), but for that also there should be a minimum of 3-degree draft angle on all the negative sides of this model.

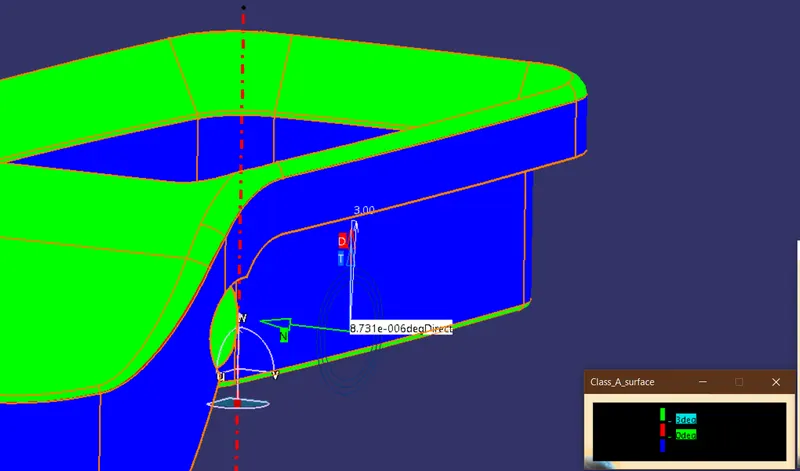

So when I briefly examined the model I observed that the sides have 0 or negative degrees from the tooling axis.

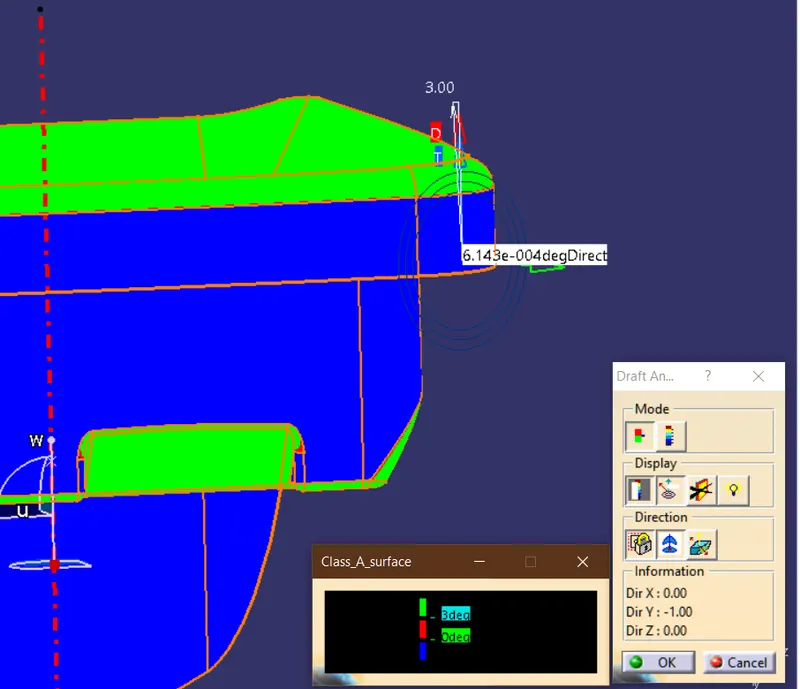

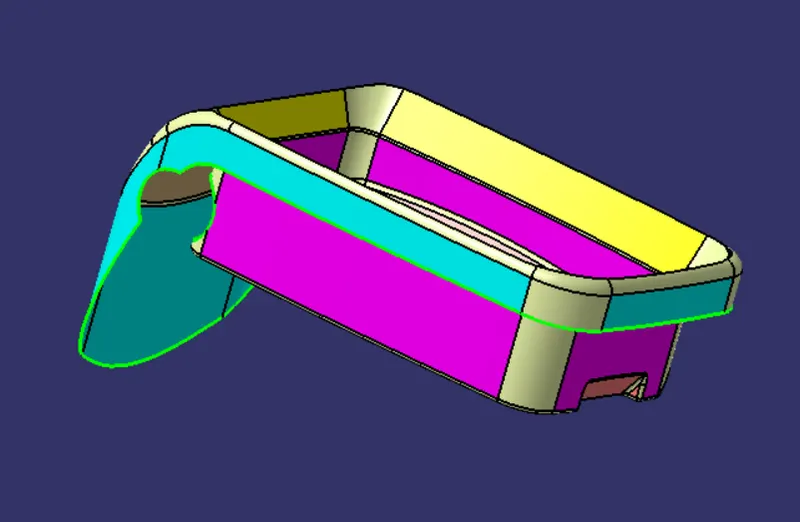

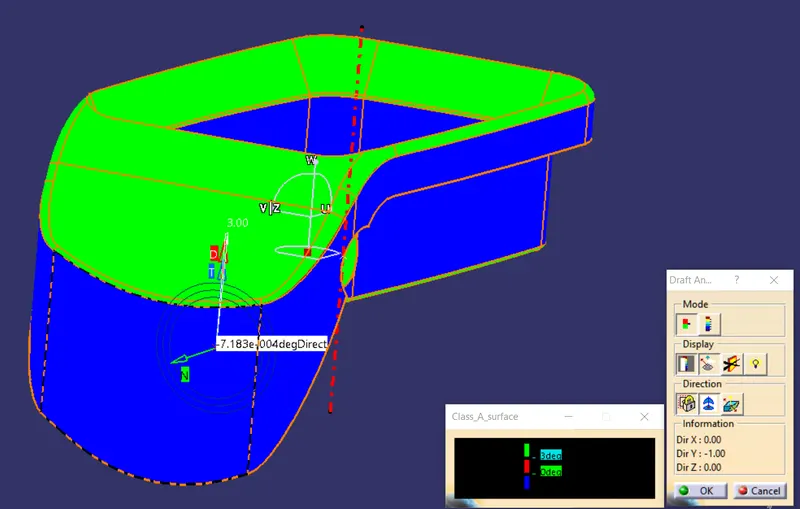

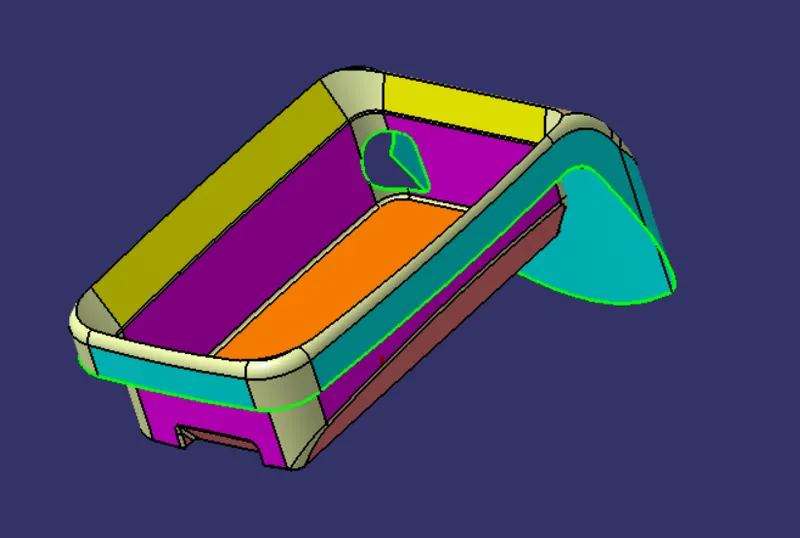

As we can see, these blue surfaces are almost or equal to 0 degrees.
- Now, this is an issue because it will not compete with the recommended classifications of a plastic part manufacturer.
- If the surfaces are at 0 degrees the plastic part won't eject at the end due to contraction after the cooling process.
To tackle this problem there are mainly two reasons which I have come to know.
- one way is to create a secondary and tertiary side core tooling axis to overcome this problem, but the overall point is to manufacture the product with fewer expenses.
- So what I would recommend to the Class - A surface creator to give some draft angles on these sides for 3 to 7 degrees draft to negative sides.
Now keeping the draft issues aside, I Will now Create the Class - B and Class - C surface.

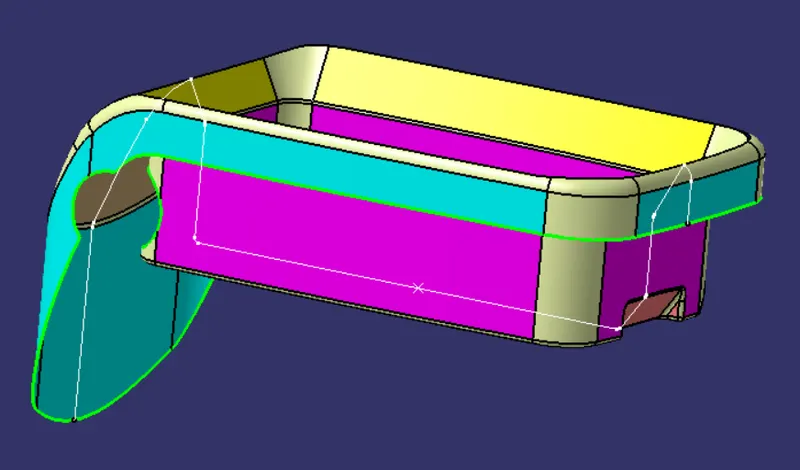

Creation of class - B surface.

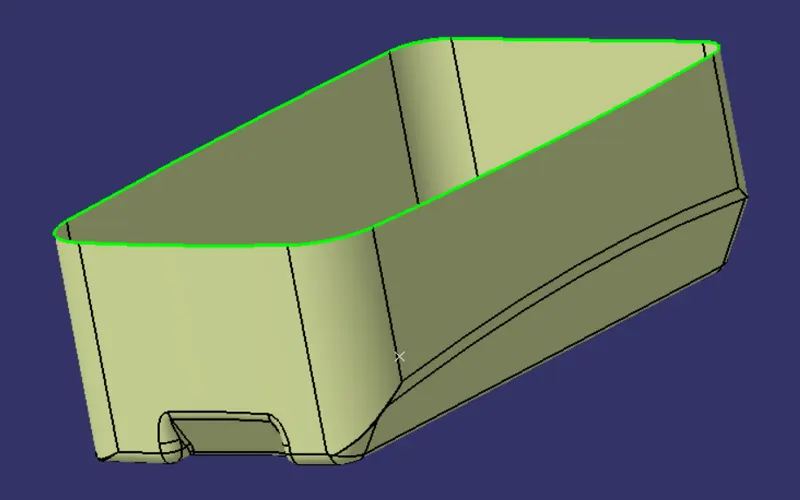

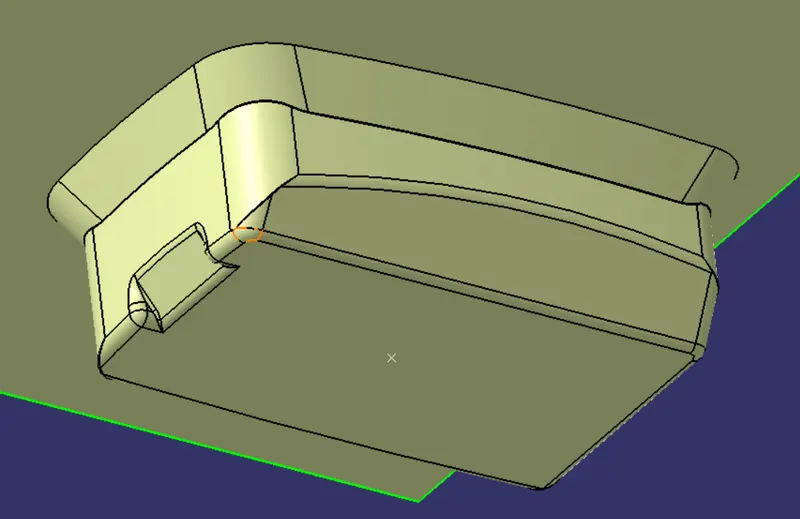

- Starting from the base part of provided Class - A; surface.

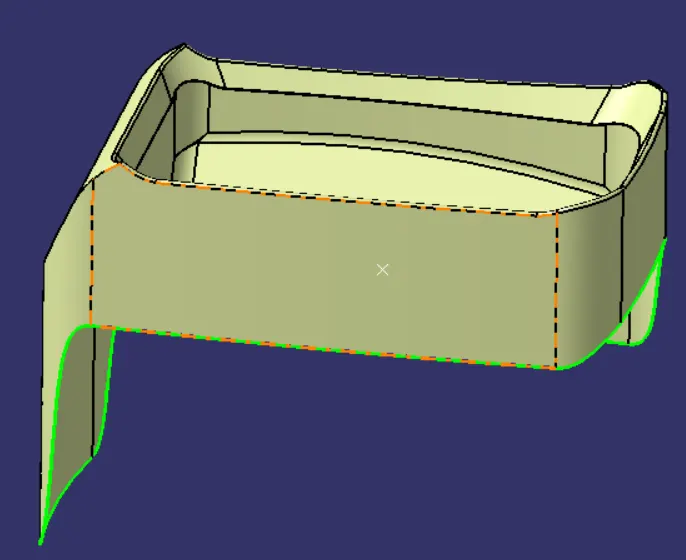

- then sidewalls

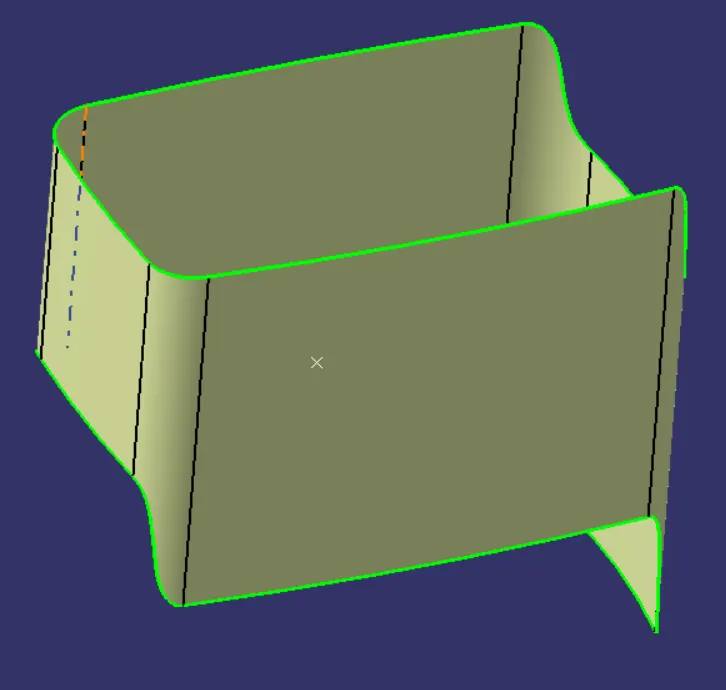

these sidewalls are the one which has 0 degrees to the tooling axis.
- top Walls

- outer walls

- now trimming all the separate surfaces altogether. and will form the Class - B' surface.

Creation of Class - C surface

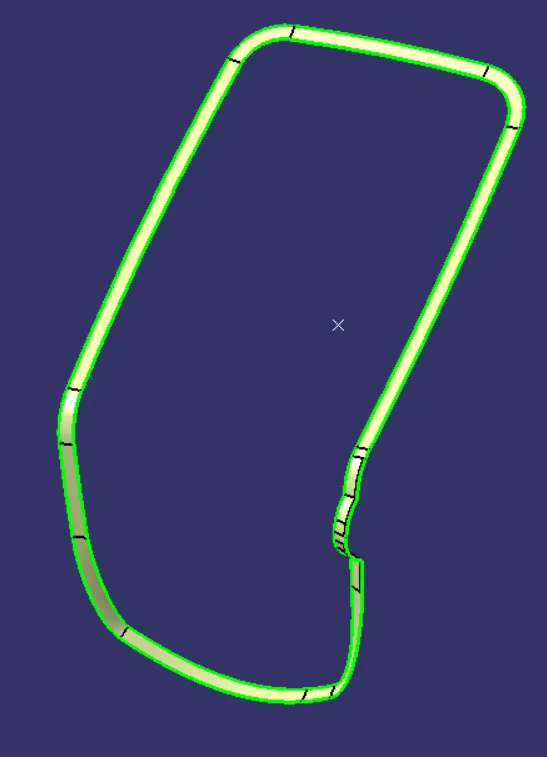

- final output

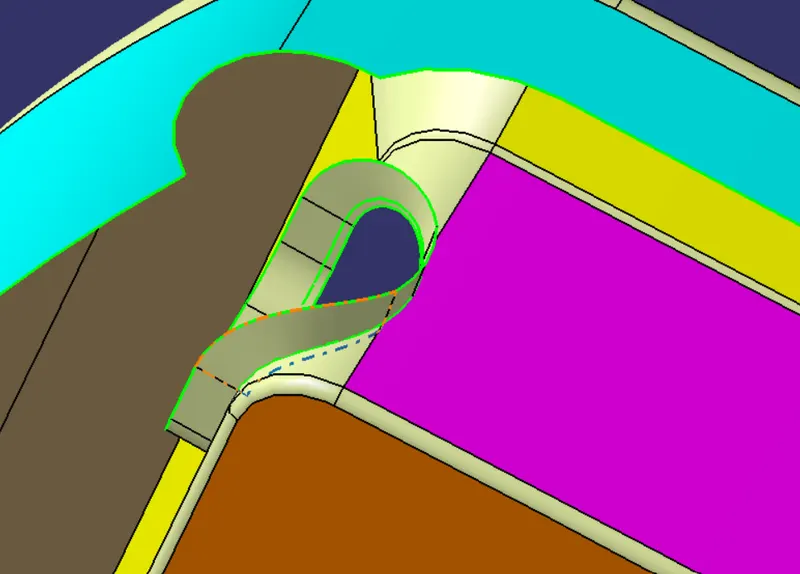

Creation of other surfaces

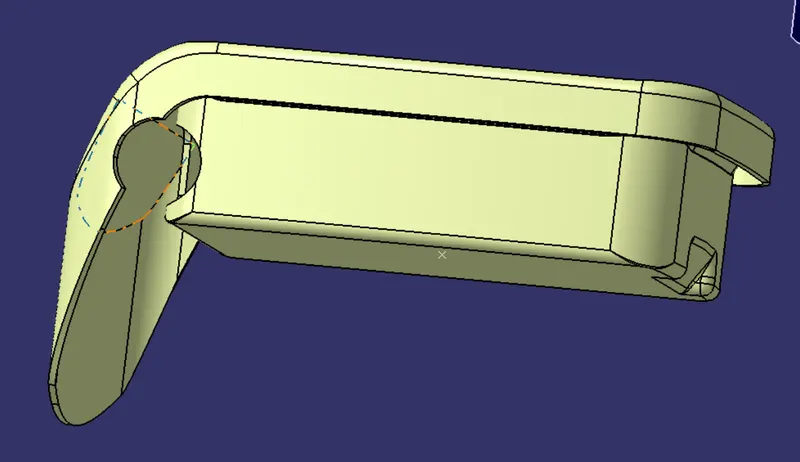

trimming and Joining all the created surfaces together.

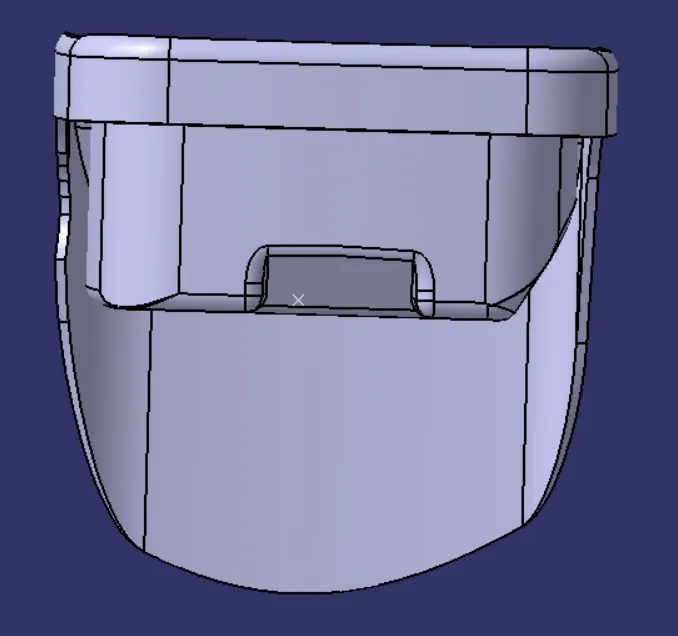

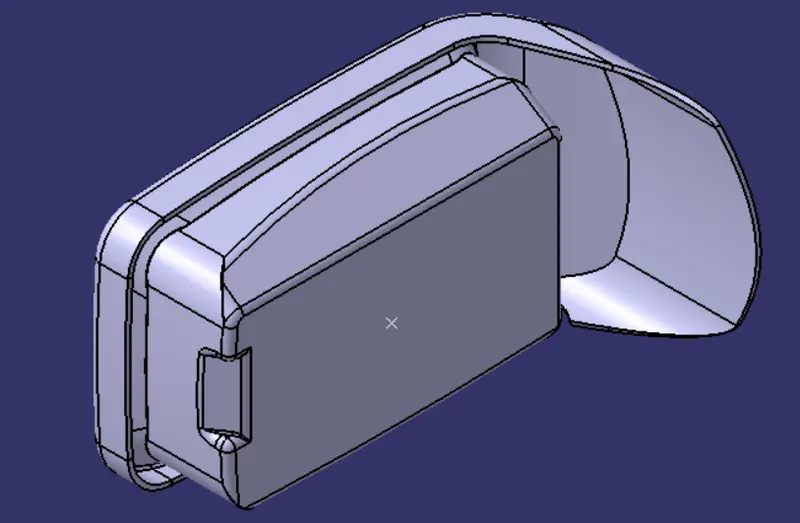

Final plastic model

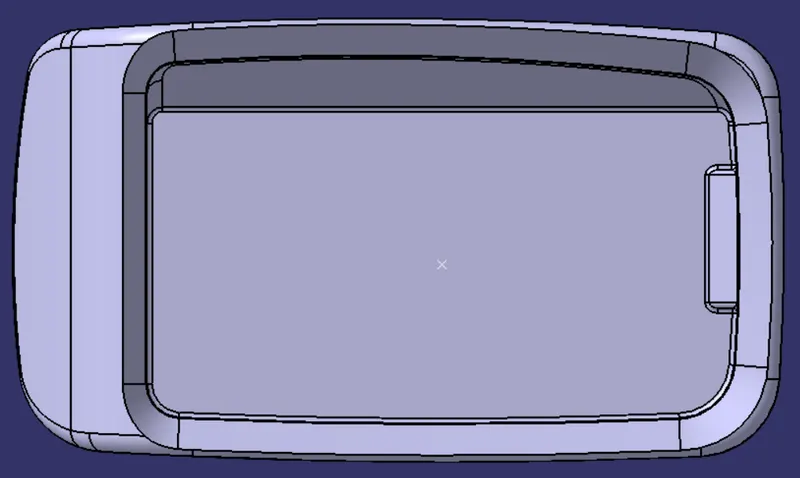

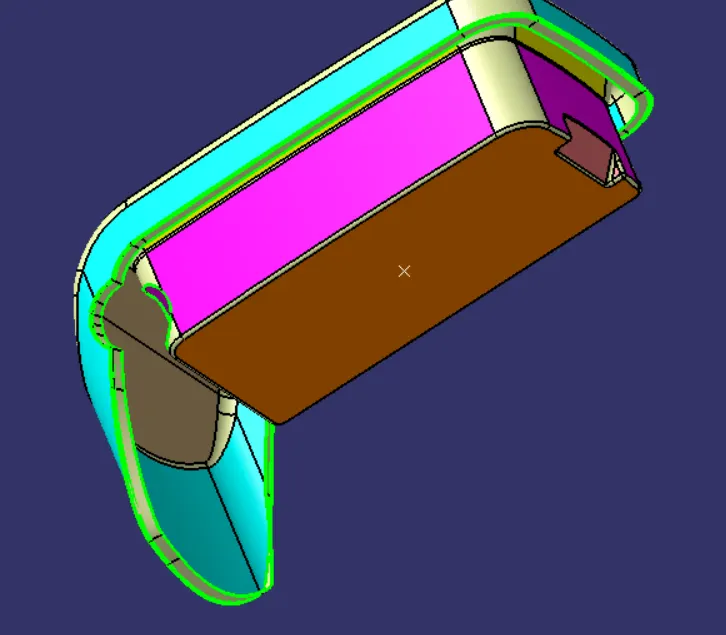

Draft analysis of final model

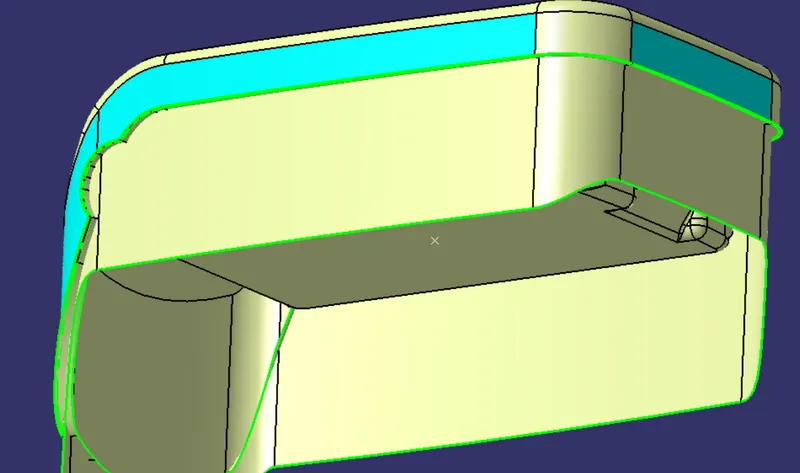

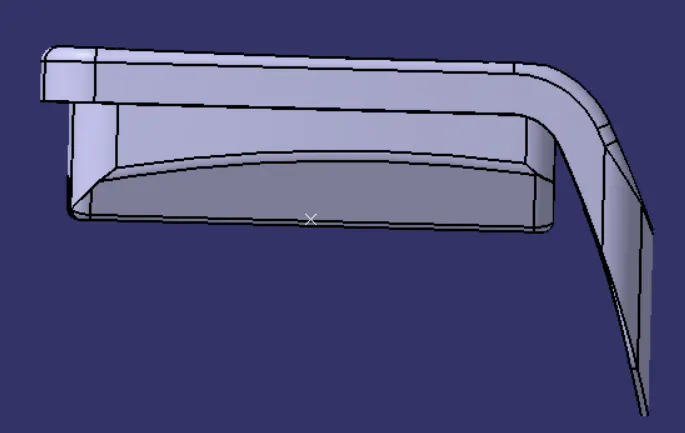

now Making solid body from surface body.

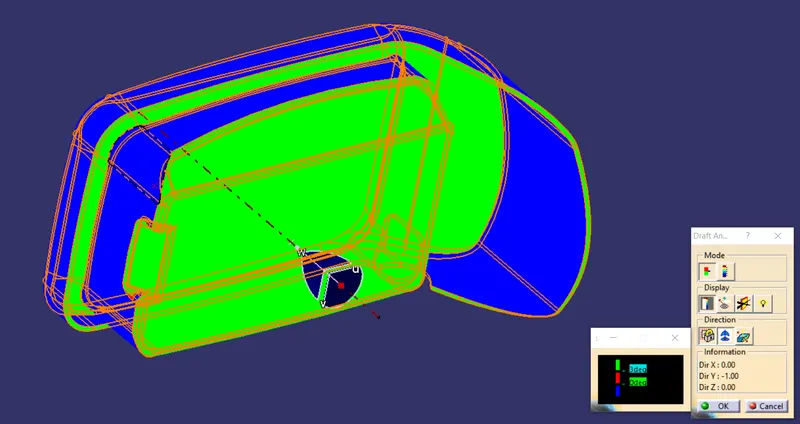

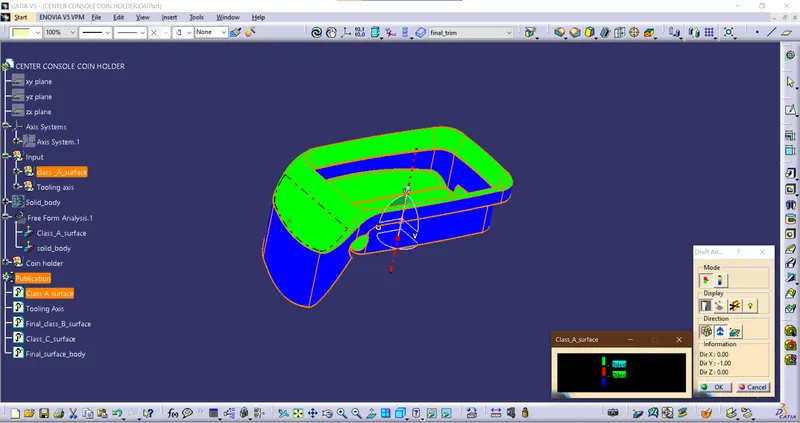

Draft Analysis of solid body

Draft analysis remains the same as of Class - A surface checking.
