Week 8 - Challenge 4 - Bumper
TOOLING AXIS;

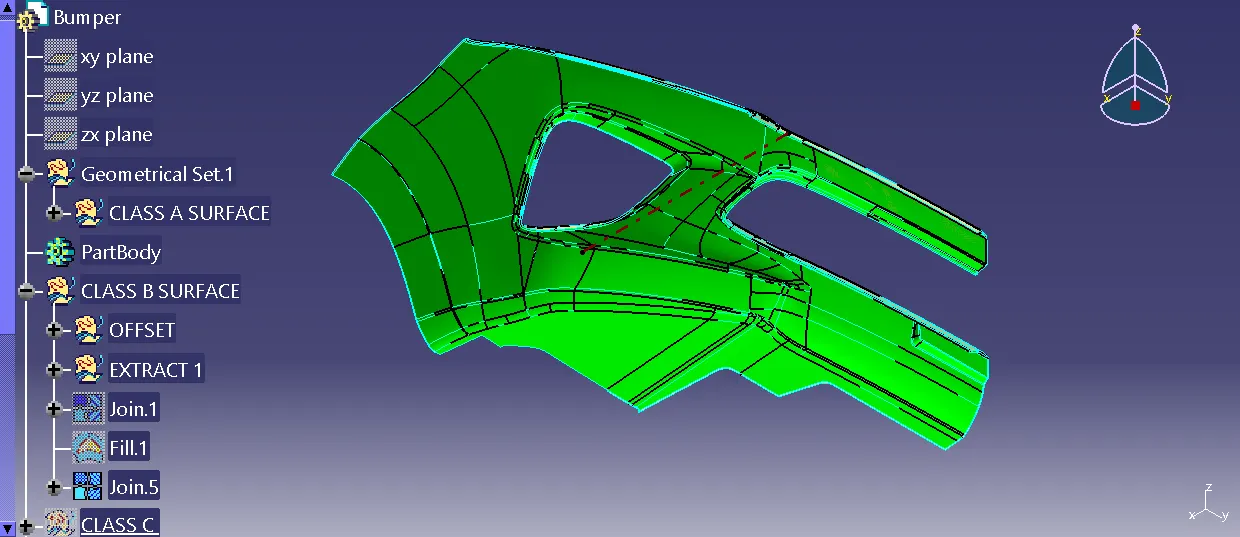

The direction in which the mold or core and cavity opens is the tooling axis. Connectivity of Class-A surface: Checking the connectivity of the surface, this can be done by creating boundaries or by simply using the join option such that any openings can be easily visualized.

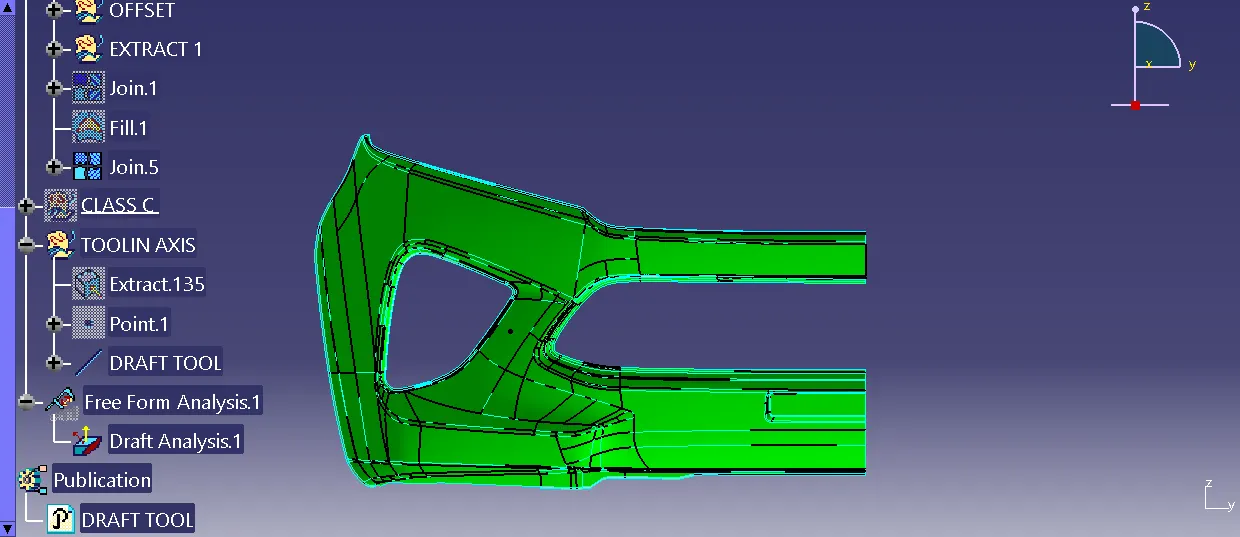

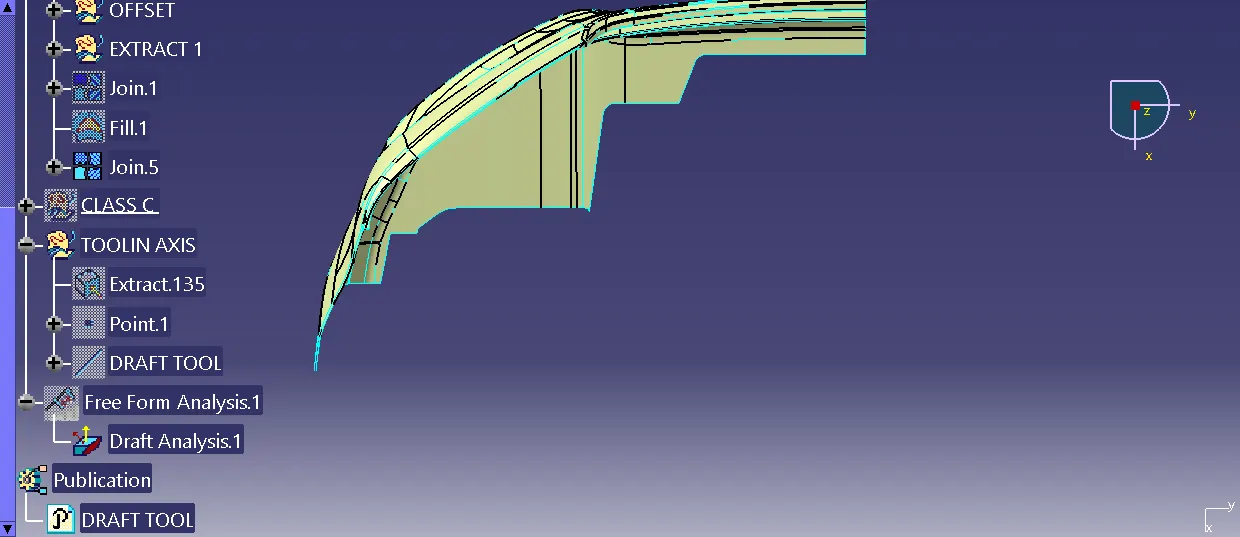

DRAFT ANALYSIS;
Drag the compass and place it over to the line. Select the compass icon from the direction of the Draft Analysis dialog box. The compass may get misplaced from its original position after clicking on the compass icon. Select the compass again and place it over to the line properly one more time.
TOOLING DIRECTION;
The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.
BISECTING METHOD;
The bisection method is used to find the roots of a polynomial equation. It separates the interval and subdivides the interval in which the root of the equation lies. The principle behind this method is the intermediate theorem for continuous functions.
