Week 8 - Challenge 4 - Bumper
Aim : to create B Surface And C surface using Given A surface of the bumper.
- Given A surface

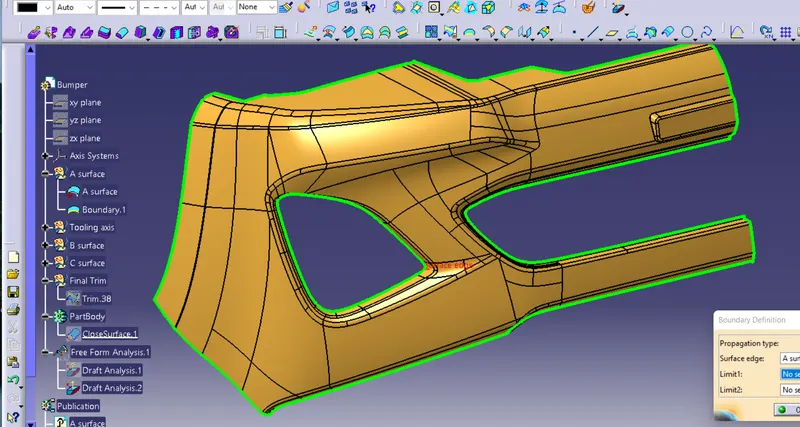

- Given A surface is analysed for any surface irregularities by Boundry command

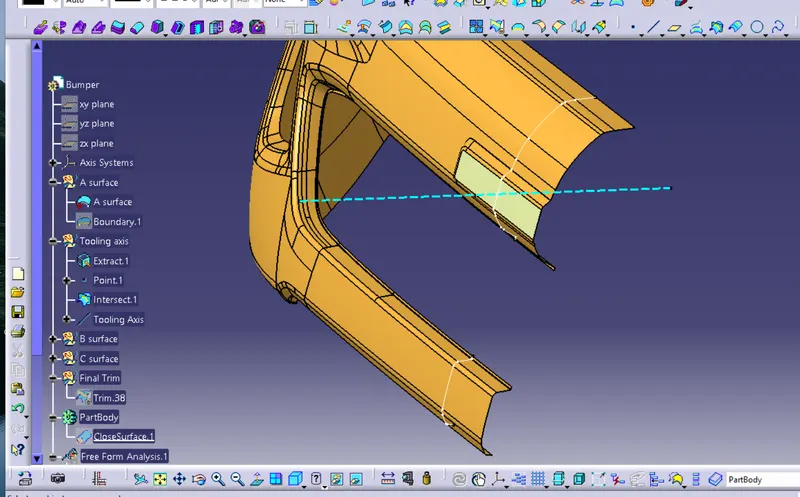

- Creation of Tooling axis : Opening Direction of moulding machine is called tooling direction or tooling axis. Tooling direction is known as primary direction. Here we are taking x direction as tooling direction draft analysis is done for the corresponding.
- Draft Analysis for the A surface : Draft analysis command enables you to detect if the part drafted will be easily removed. As the A surface has the positive draft the part can be easily removed from the mould. we can go for this tooling direction.

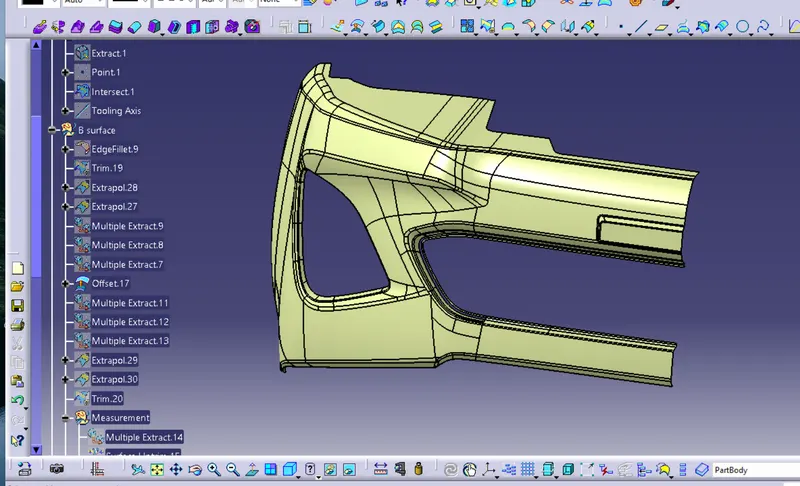

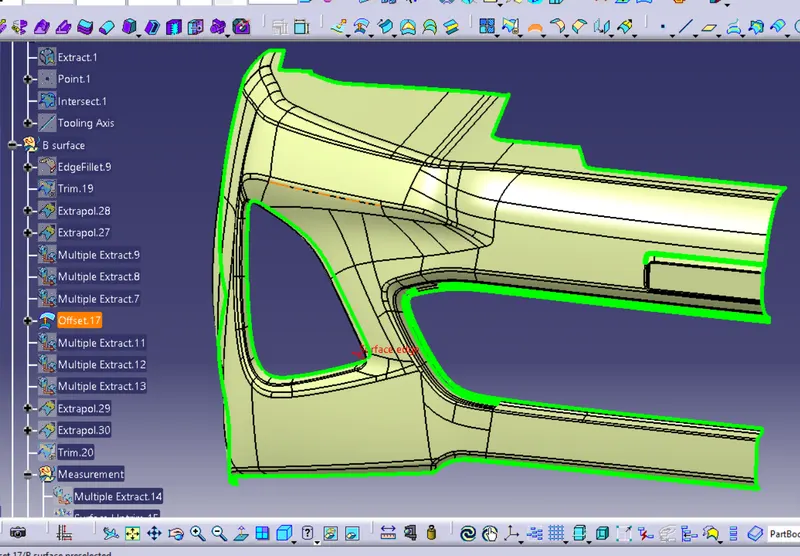

- B Surface creation : B surface is the bottom surface or inner surface of the component. it is created by offsetting A surface to the given thickness.offsetted surface is cheecked and fixed for the improper boundries.
- Offsetted irregularities are corrrected by extracting the irregular part extrapolating and trimming the edges with one and other. giving them fillets.

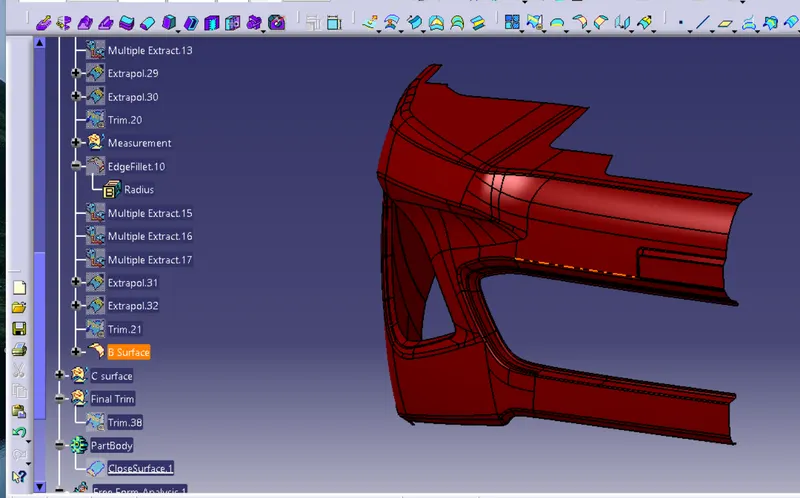

- After filling all the B surface.

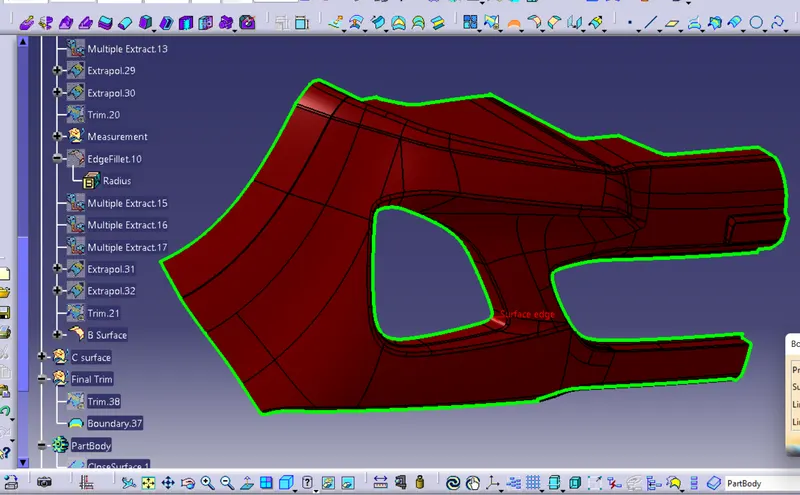

- checking for irregularities : as only outer boundrys are visible so the component is good to go.

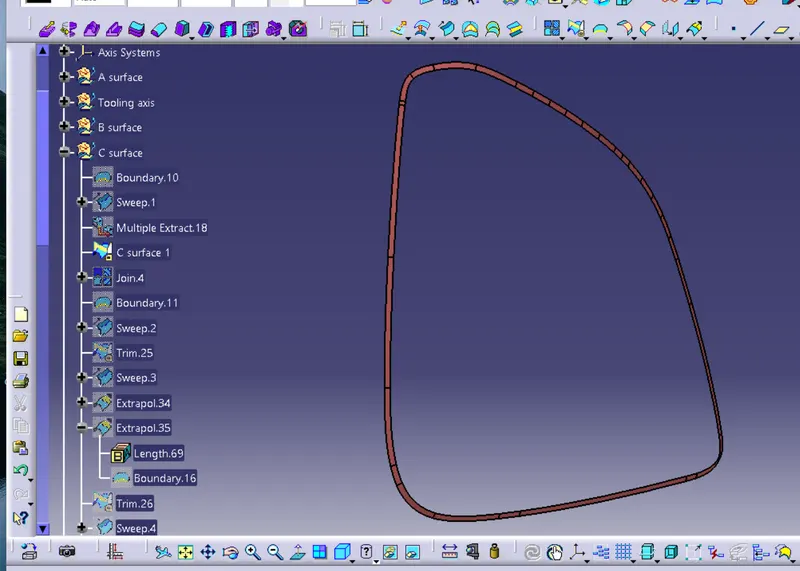

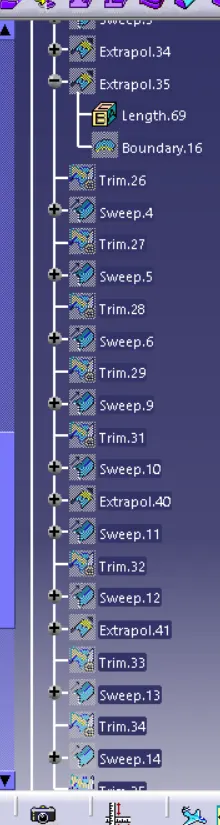

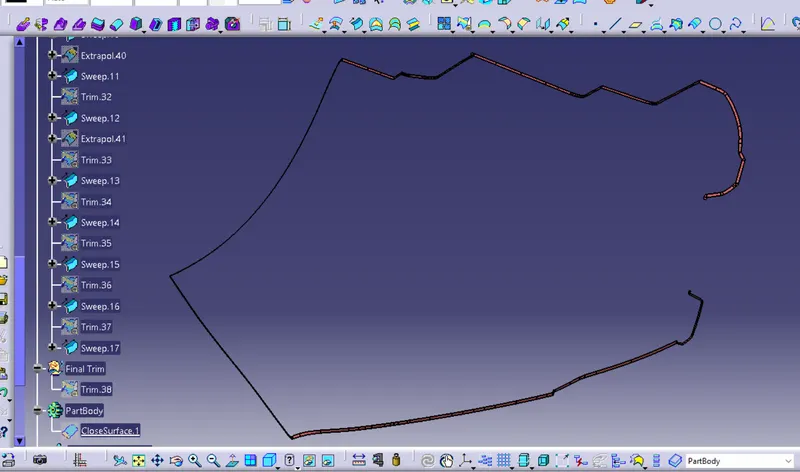

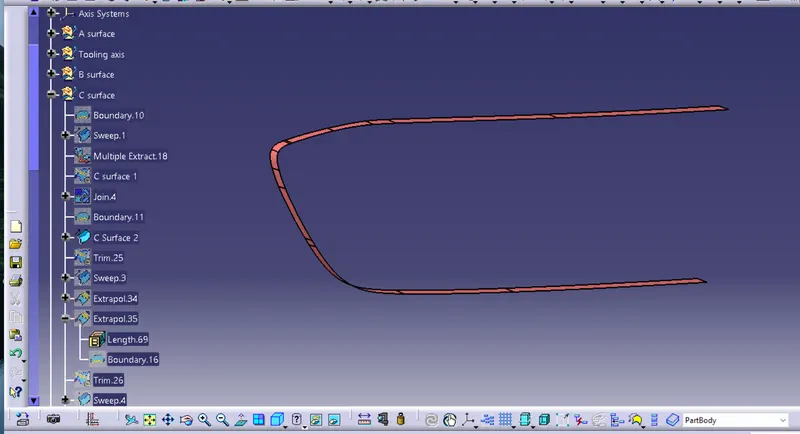

- C surface Creation : C surface is closing Agent which connects A & B surface together and makes a closed body whole together. C surface surface is created by using sweep command sweep direction is perpendicular to the surface.

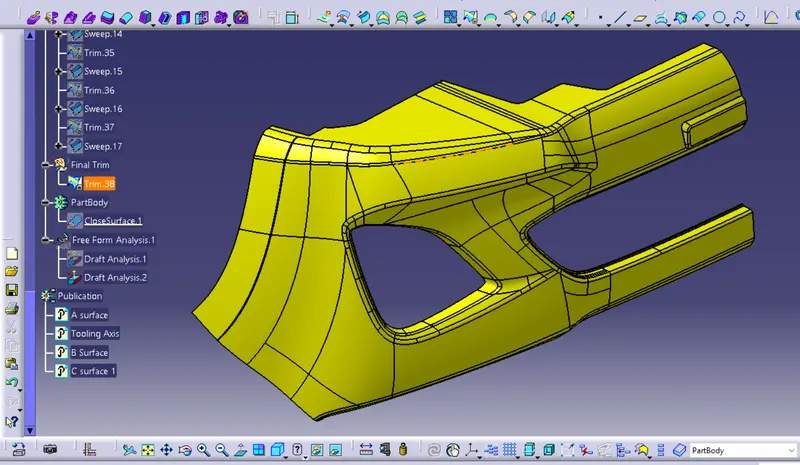

- Final Trim

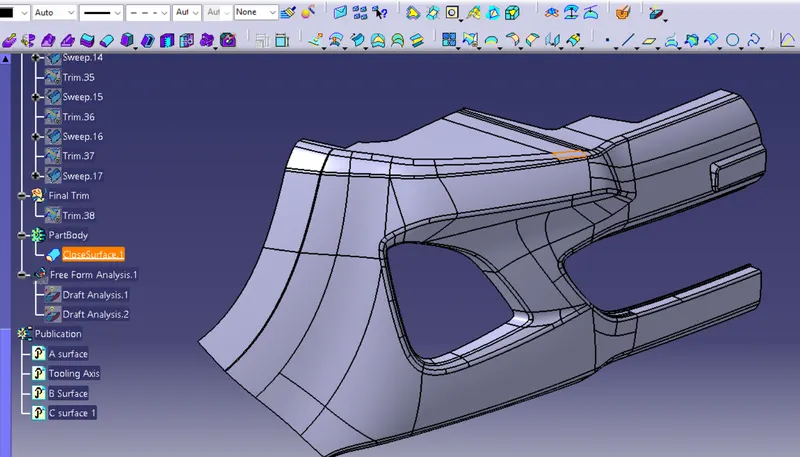

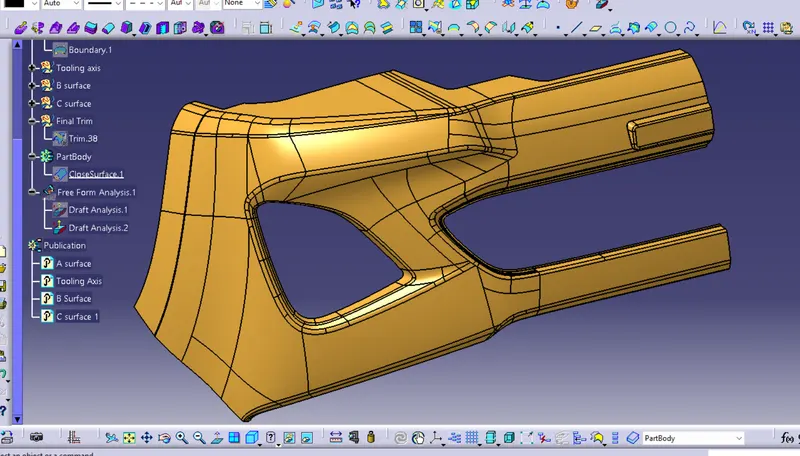

- solid Closure

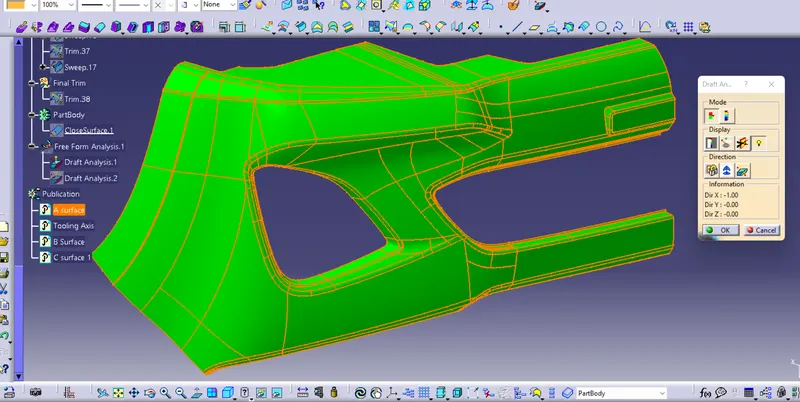

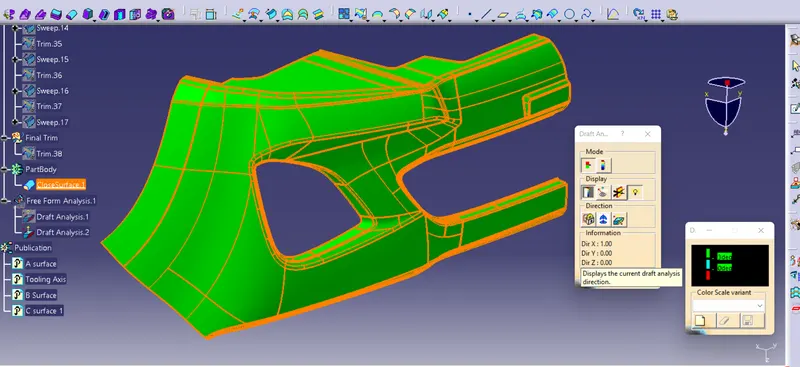

- Draft Analysis For Solid body

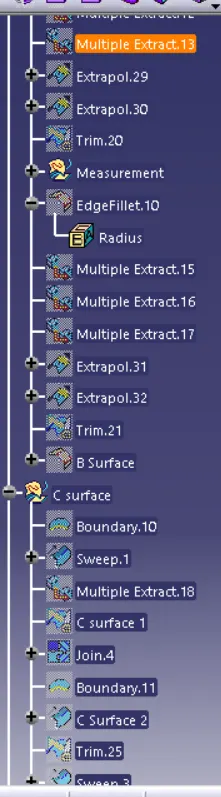

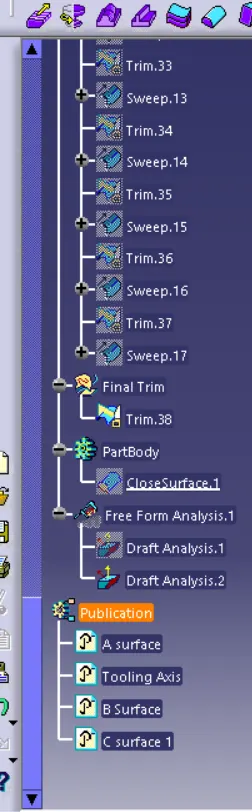

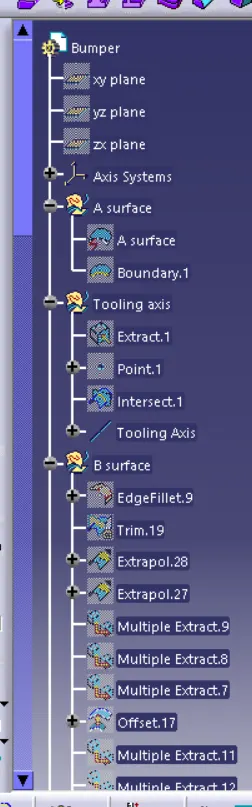

- Geometrical Set
