Week 8 - Challenge 4 - Bumper

Dear Sir,

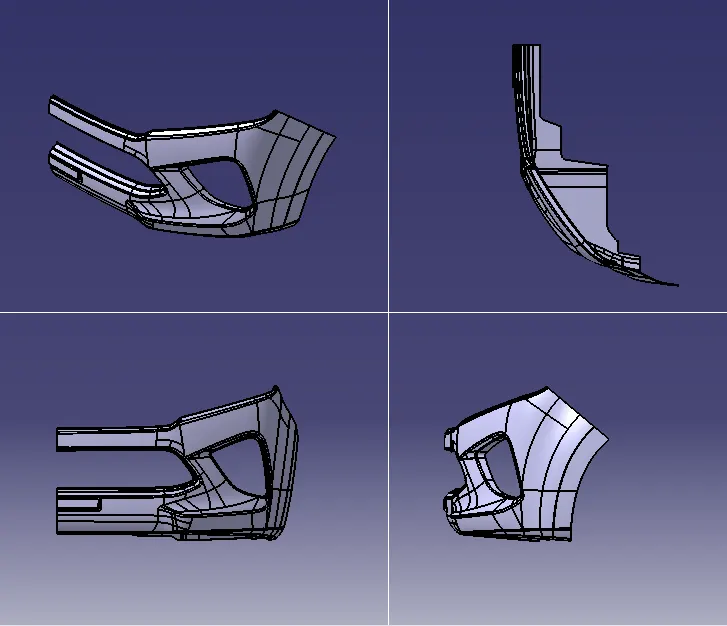

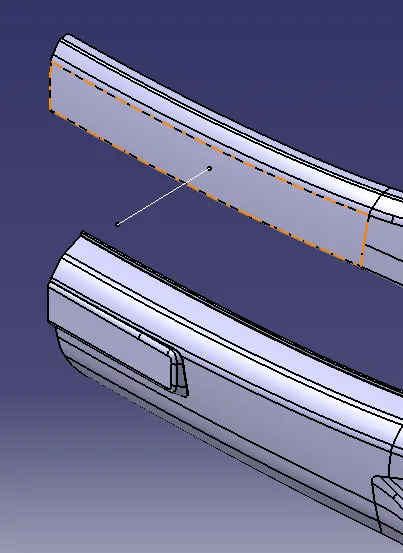

for the tool axis, I have taken a random place & extract that plane.

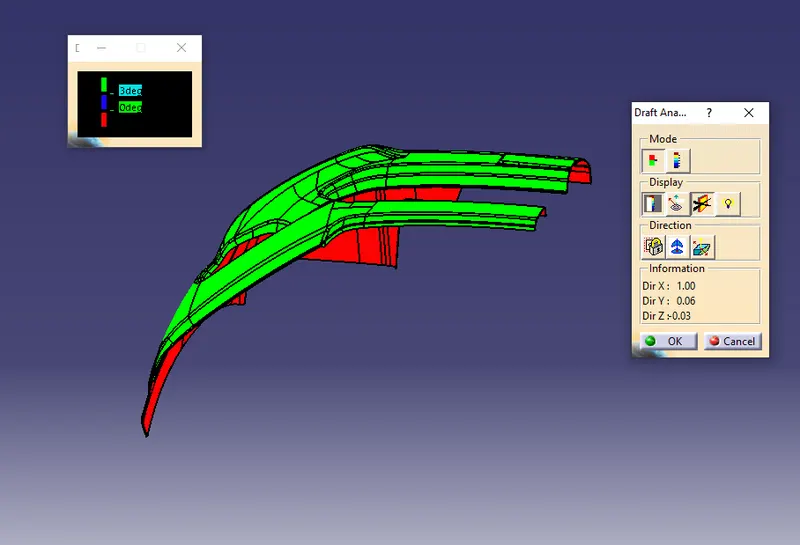

And point the pointer on the sufrace option with the distance of 0.And also the green side are indiacte the angle is with 3 deg which represent the tool axis & red surface is the ejection surface so its represent negative angle.

Analysis

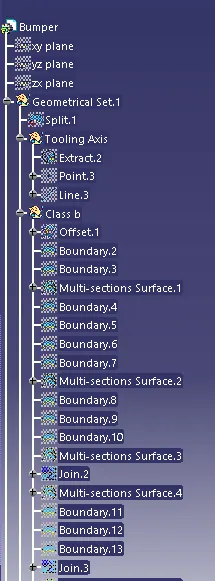

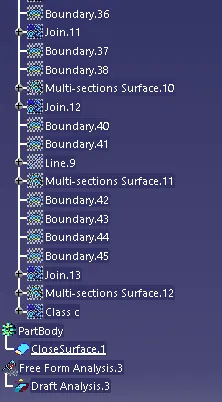

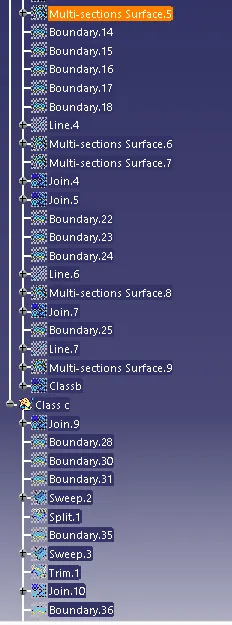

Tree

Projection
