Week 8 - Challenge 4 - Bumper

WEEK 8 CHALLENGE 4 - BUMPER.

B SURFACE CREATION:

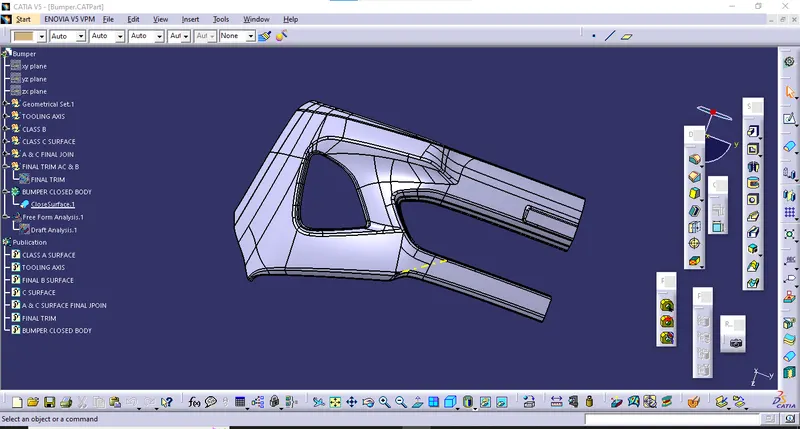

CLASS A,B&C SURFACE FINAL TRIM:

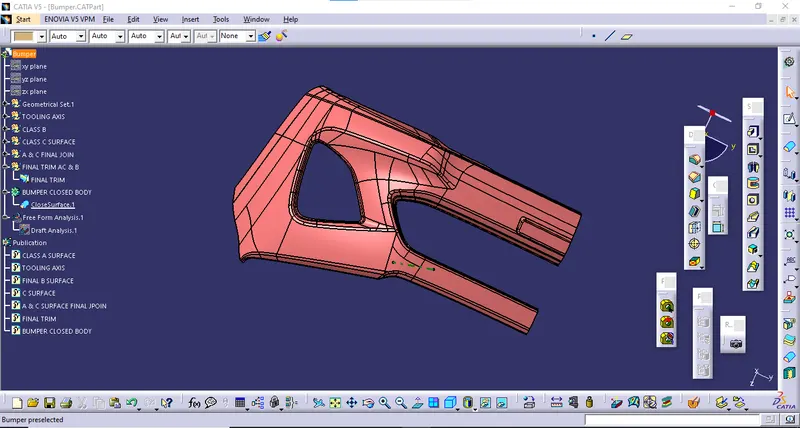

CLOSED SURFACE BODY:

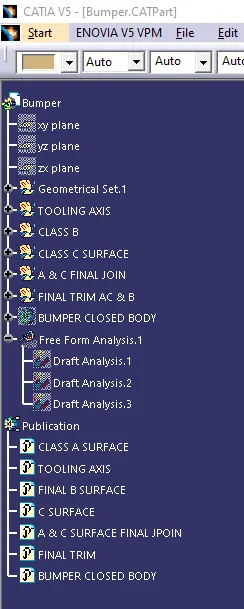

TREE STRUCTURE:

REPORT...

1) begin with, the Referance tooling axis for the given Class-A Surface.

2) Creating centre line by using surafce

3) Creatin the B surface by extracting the given A surface.

4) Publiction of Tooling axis & Surface A.

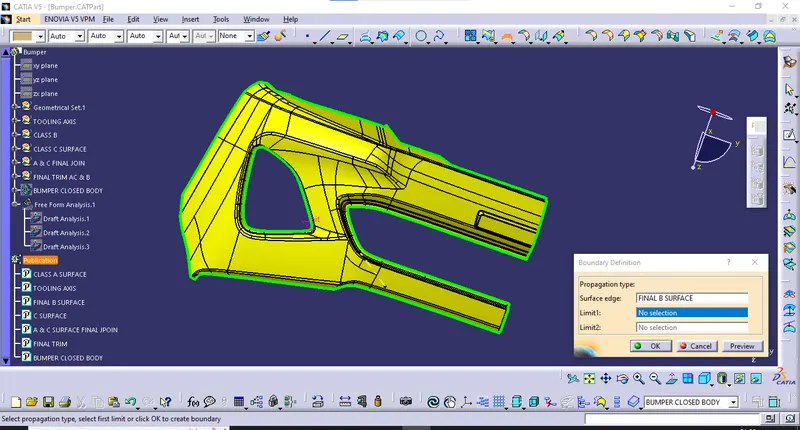

5) By using the A surafce crating the Boundry for the component.

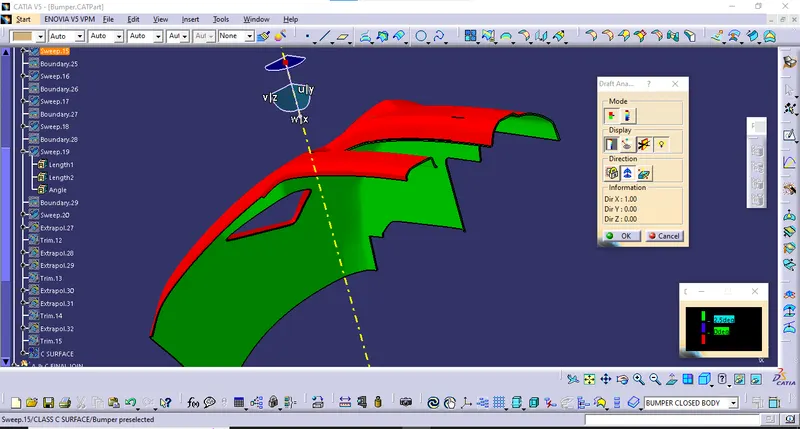

6) Sweeping it towards B surface to create C Surface.

9) Joning the A surface and C surafce ..

10) Then trimming the joined A&C Surface with the B surface..

11) After the switch to part workbench and creating the Closed body..
