Week 8 - Challenge 4 - Bumper

Aim: Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 3 mm

Introduction: The class A surface made by the designer whih is given as input to work on is an outermost surface.

The class B surface is ata certain thickness from the class A and then finally the class C surface that joins class A and class B surfaces is known as a class C surface.

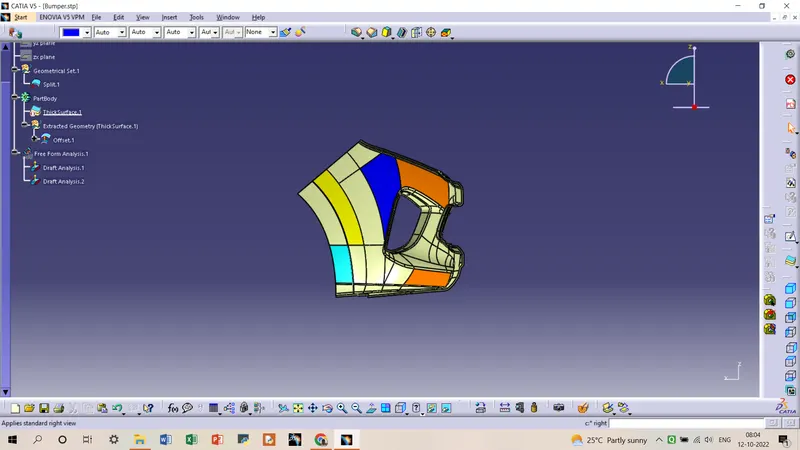

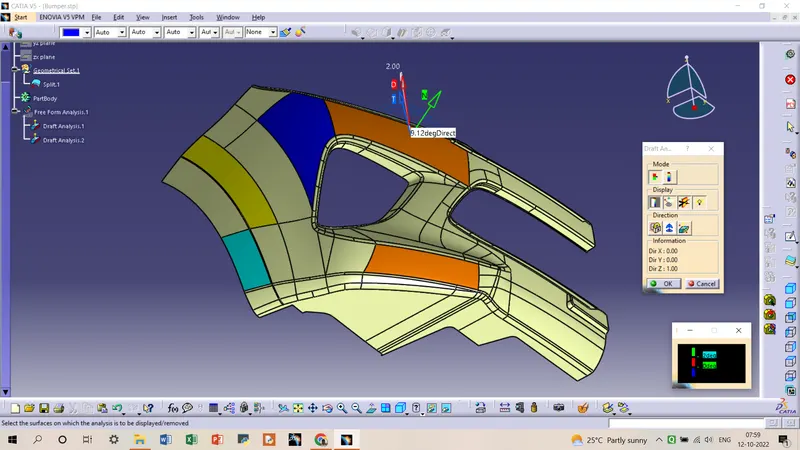

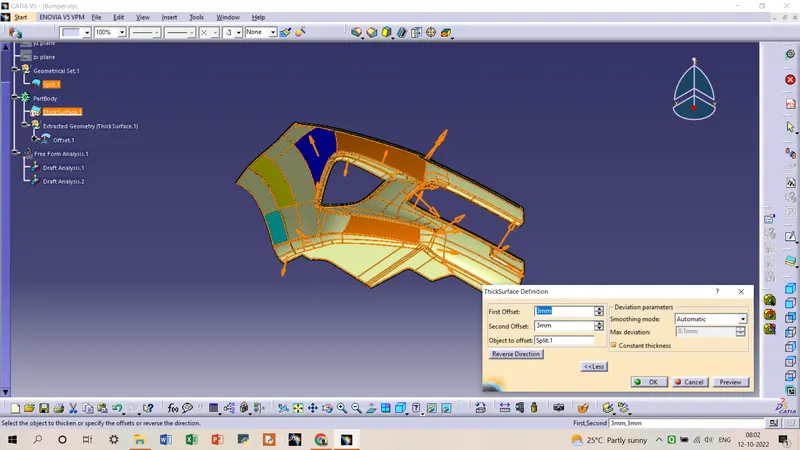

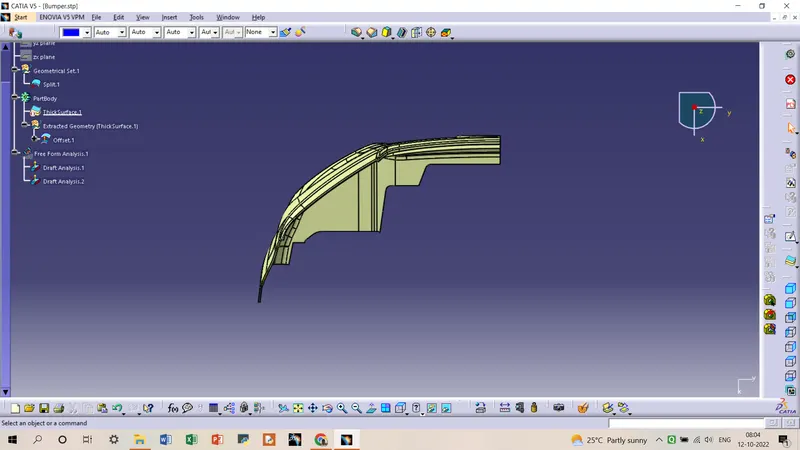

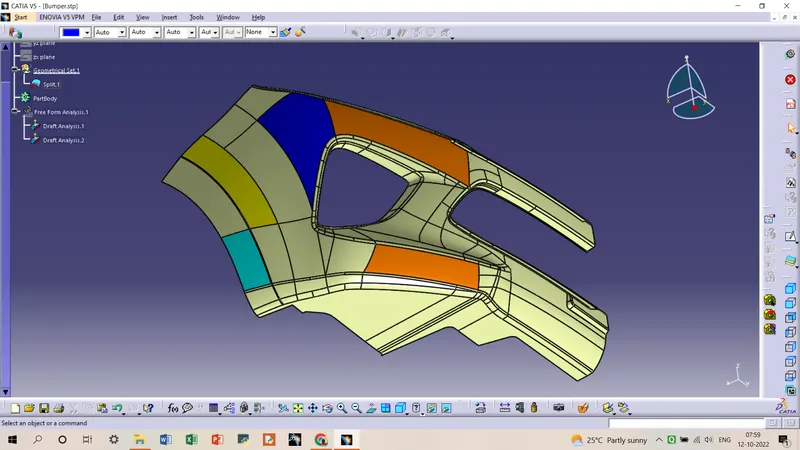

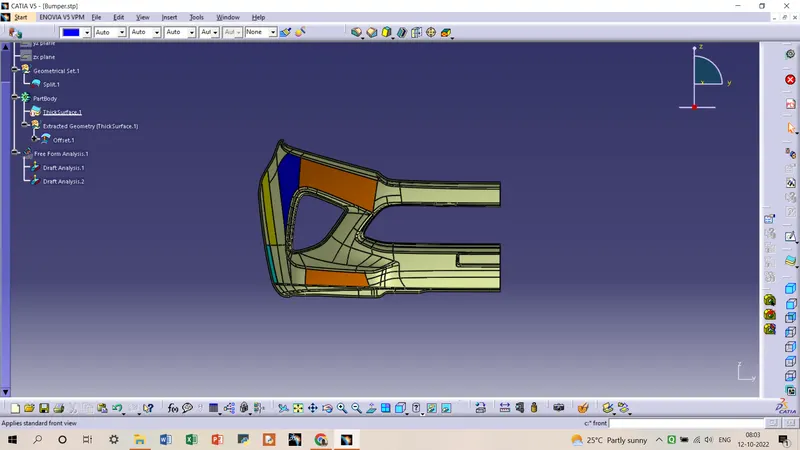

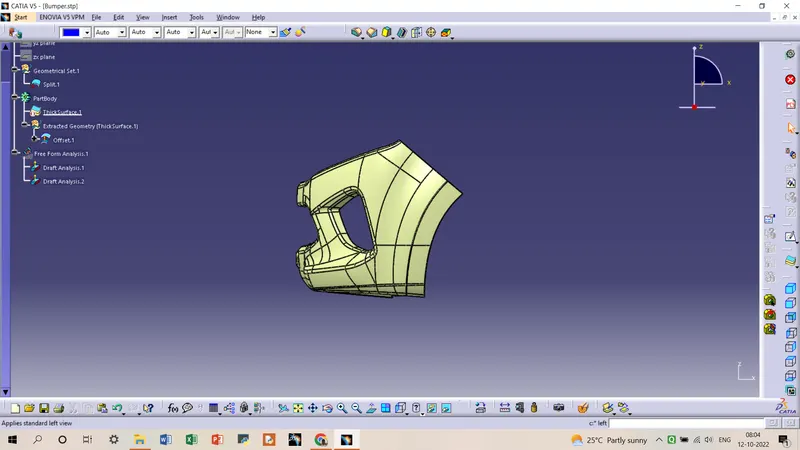

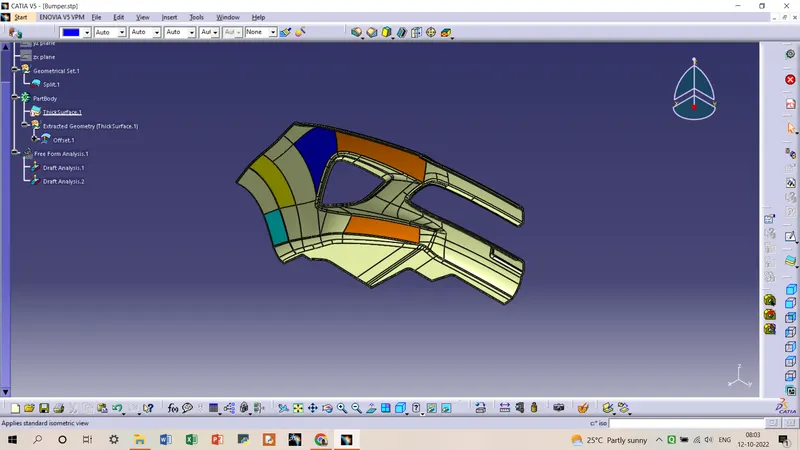

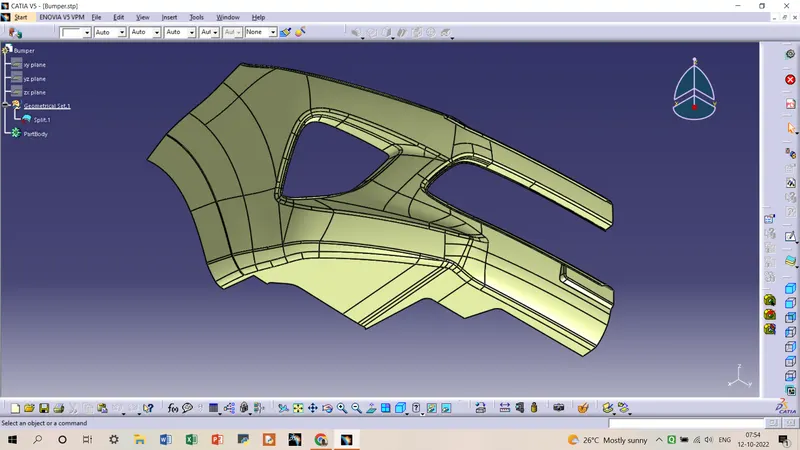

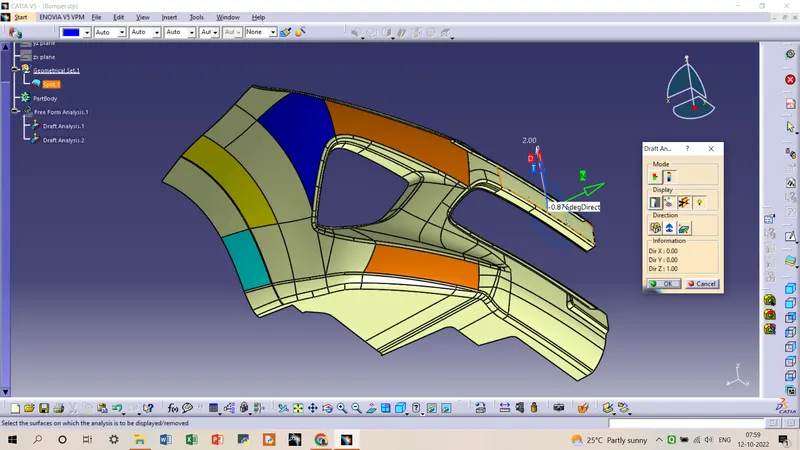

Screenshots as per the submission requirements:
