Week 8 - Challenge 4 - Bumper

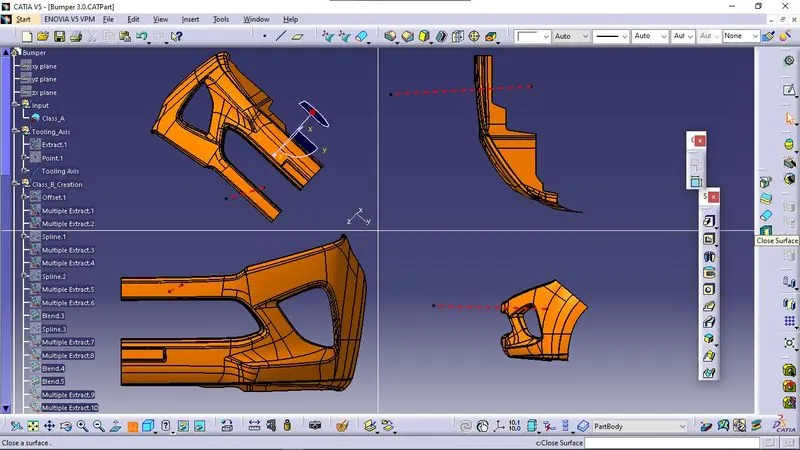

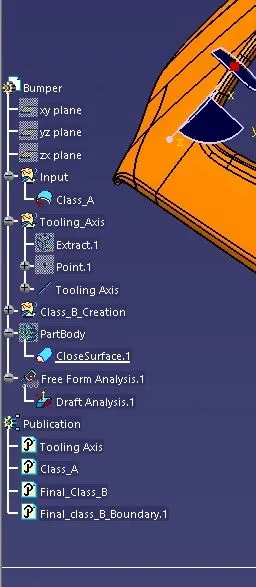

Tooling axis creation

Normal to surface, Represented by the red dotted line.

Draft Analysis

Draft angle= 2.6 Degree

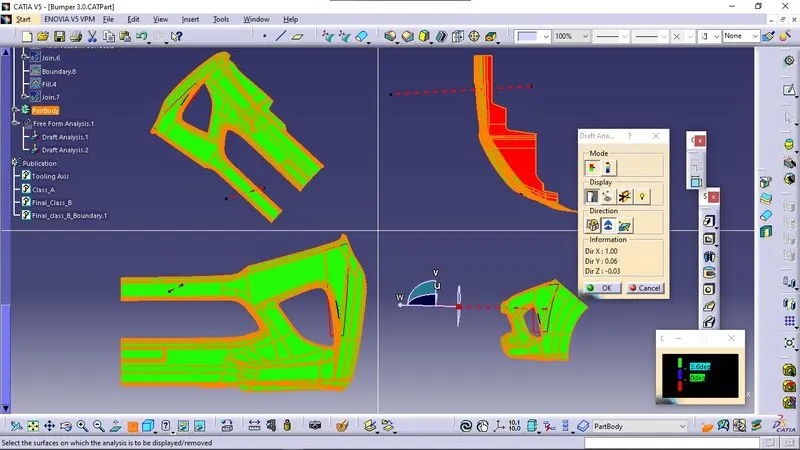

Draft analysis report

Green represents the area were draft angle is greater than 2.6 degree

Red represents the area lower to 2.6 degree angle

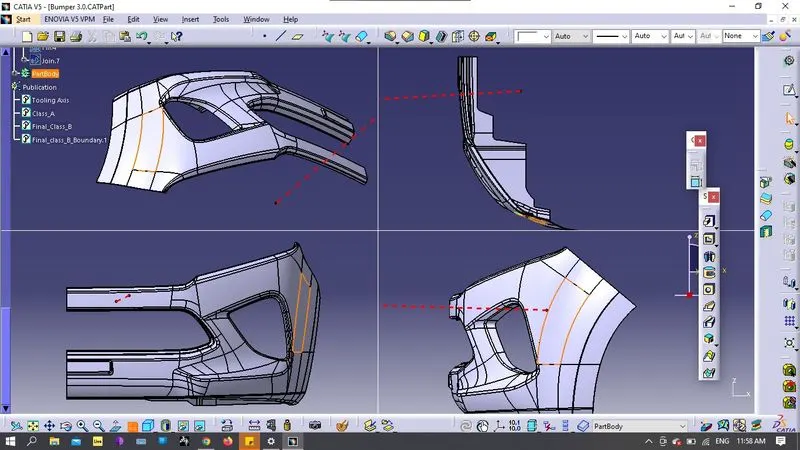

Class C
