Week 8 - Challenge 3 - Coin Holder Design
Aim : To create a solid Coin holder component using Surface Modeling with given A surface and perform draft analysis on both.
- Given A surface

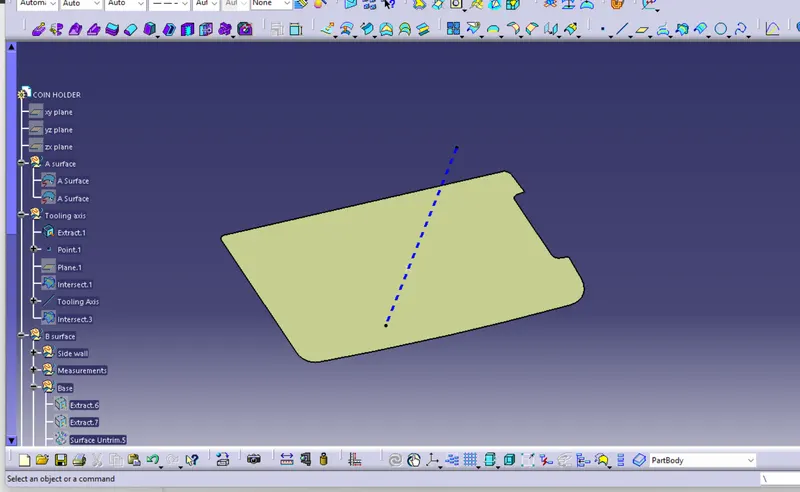

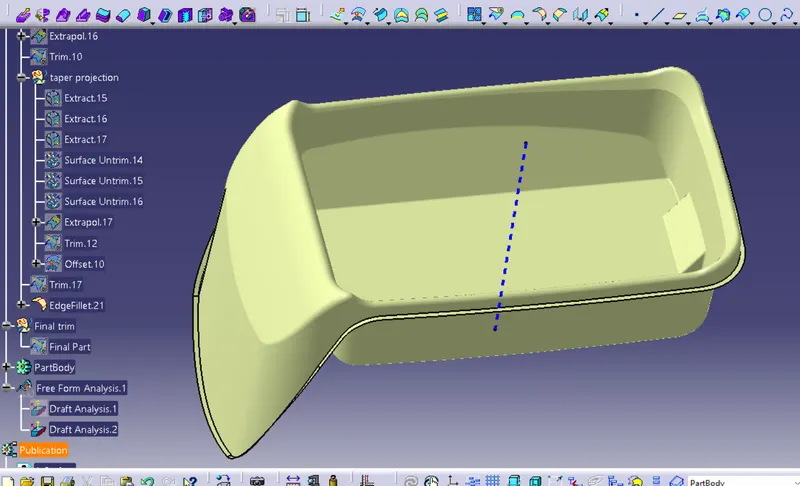

- Tooling axis : As our A surface contains walls which are at 90* with the bottom so we can directly create a tooling axis on the base which is perpendicular to the base.
- B surface : For creating B surface we first extract the walls from A surface. Extracted Faces are then untrimmed and extrapolated. then we will offset to the given thickness of 2.5 mm. we will avoid extracting the filllet corners as they create issues with offset.

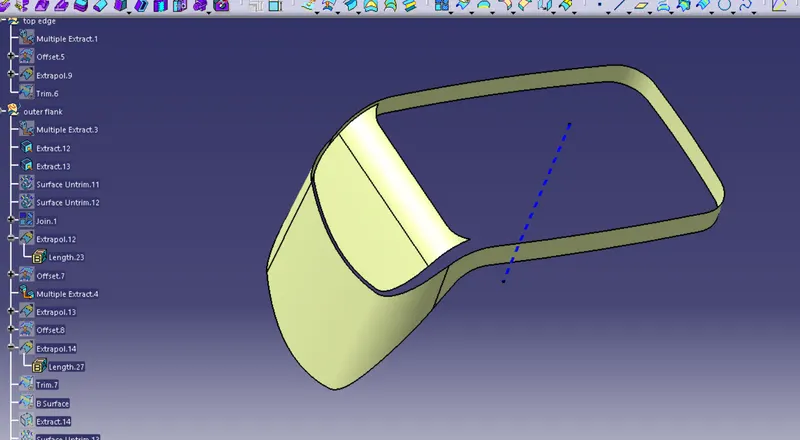

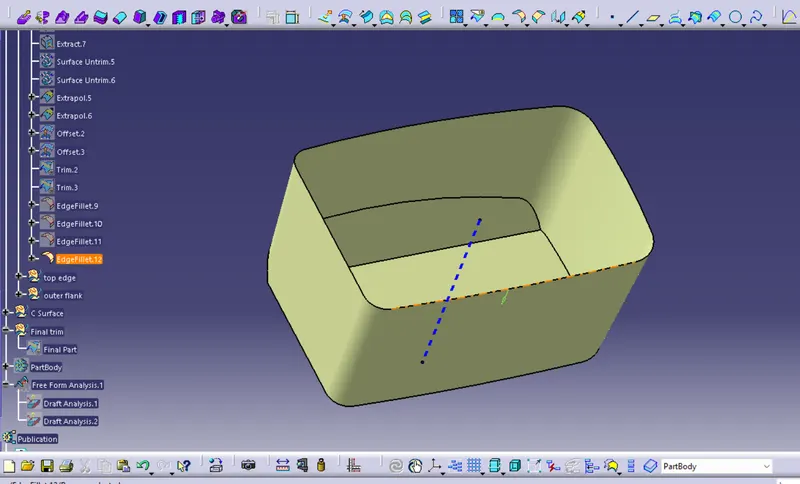

- External Walls

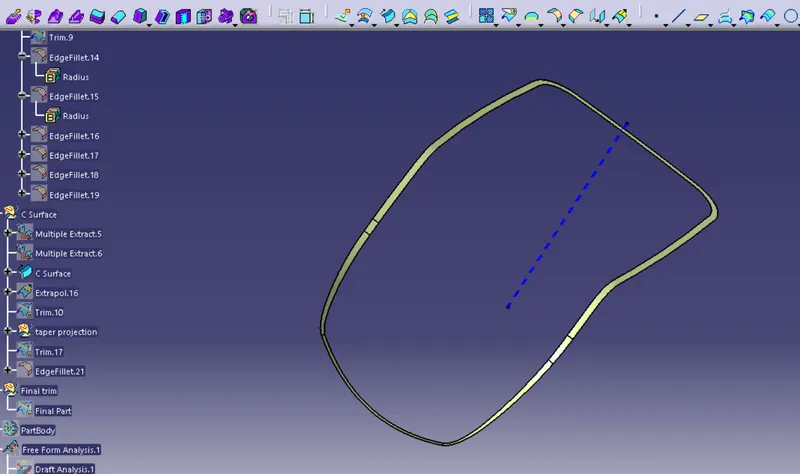

- C Surface

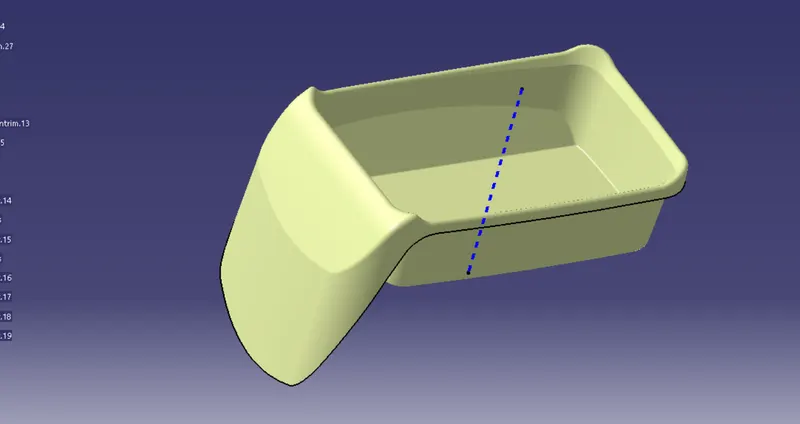

- C surface along with B surface

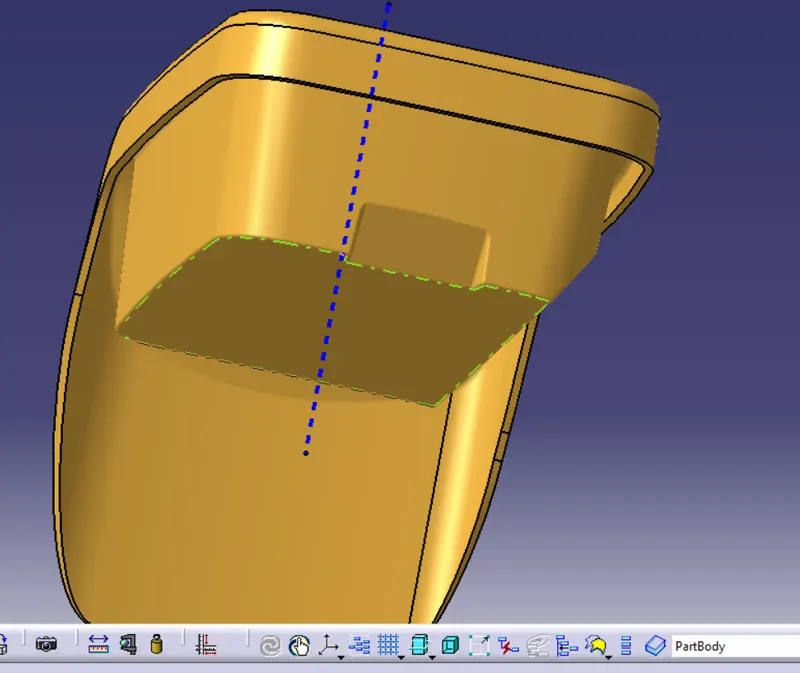

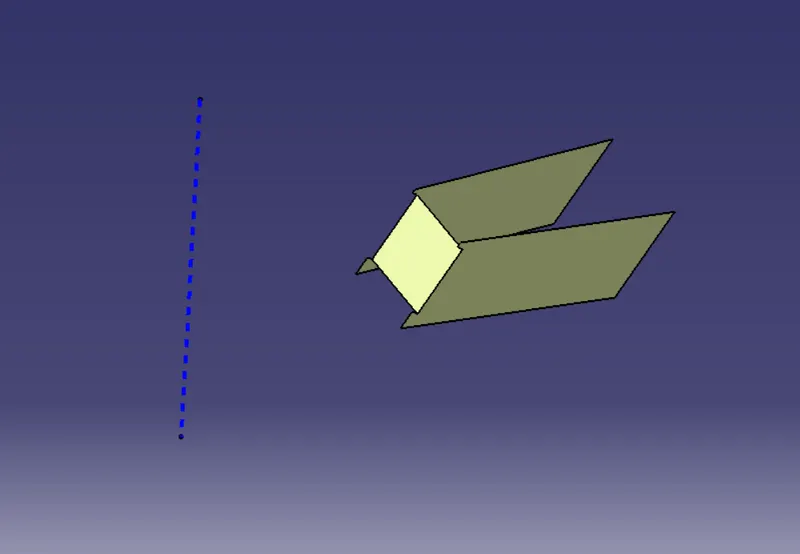

- Bottom Cut

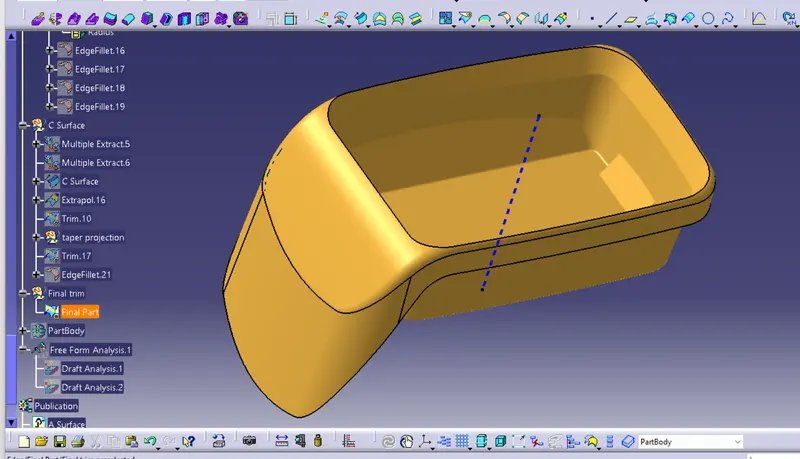

- Final Trim combining A surface, B surface & C surface.

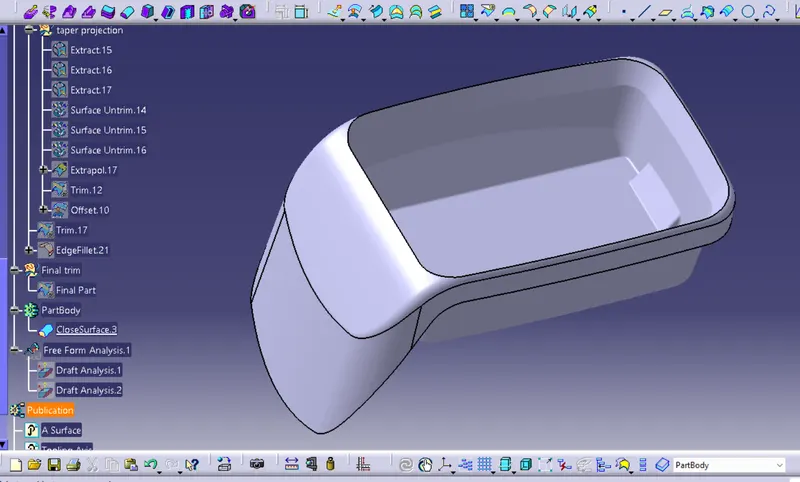

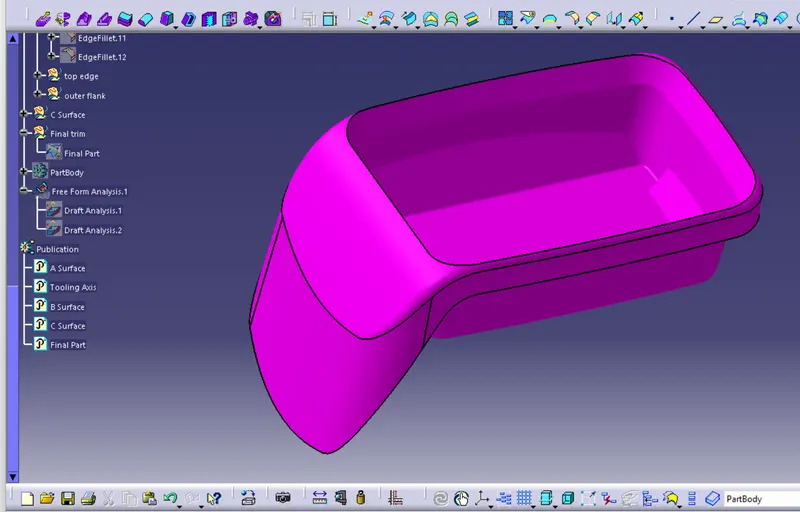

- Solid part
- Draft analysis for A surface

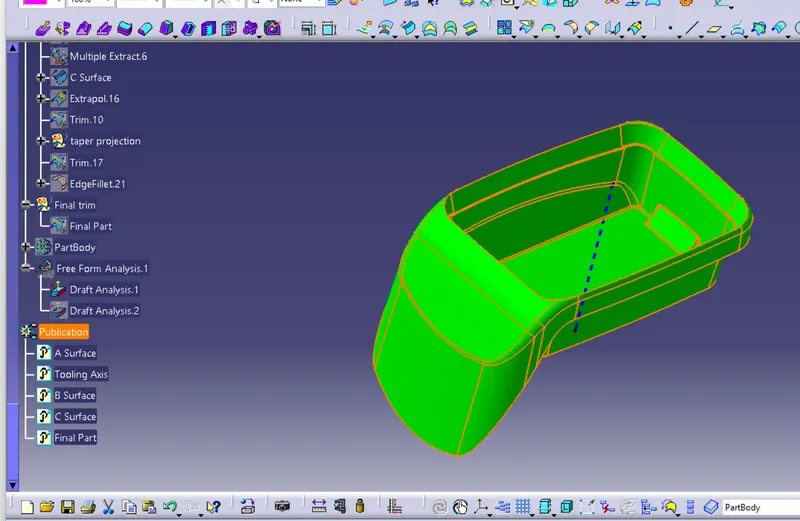

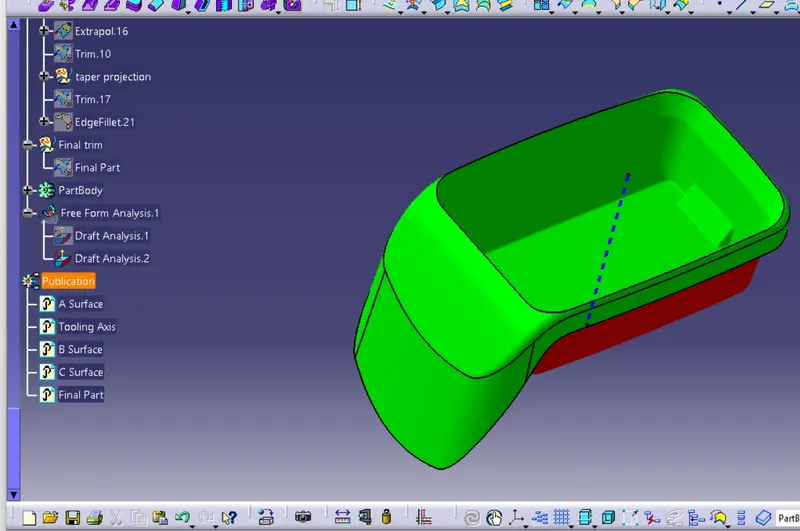

- Draft Analysis for Solid part

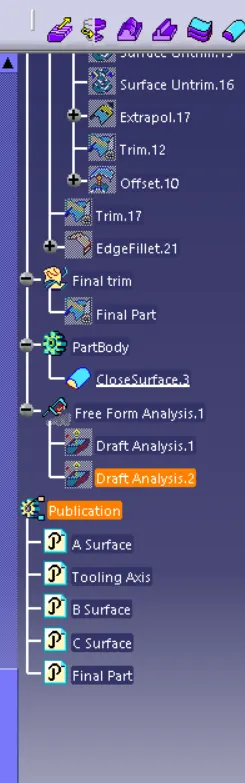

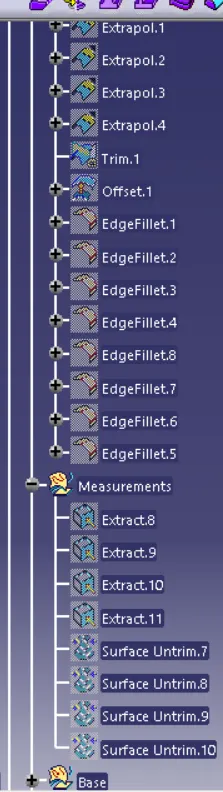

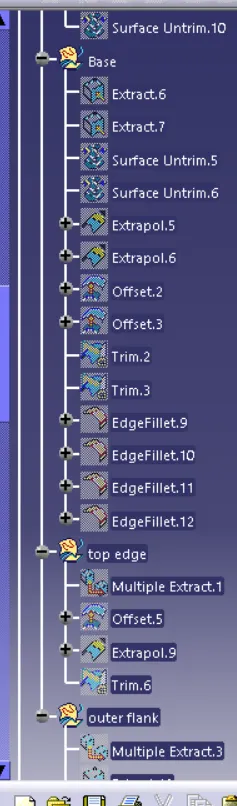

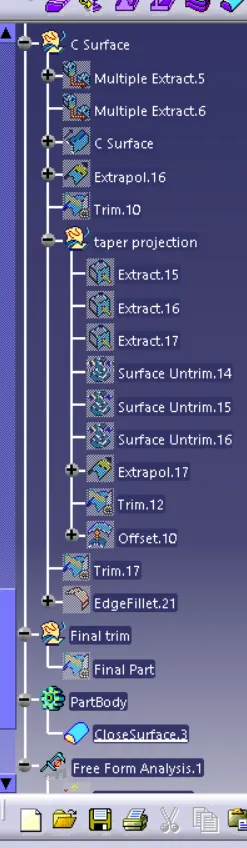

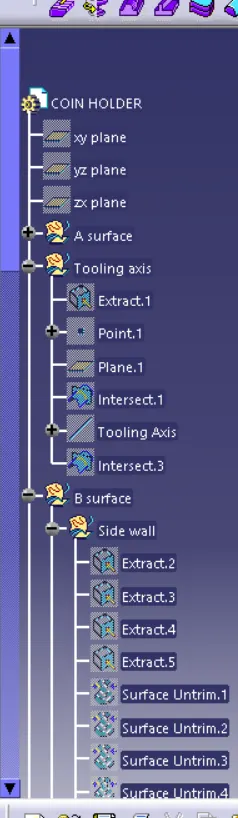

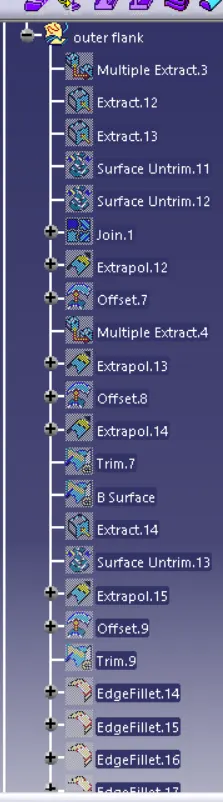

- Geometrical set
