Week 8 - Challenge 3 - Coin Holder Design

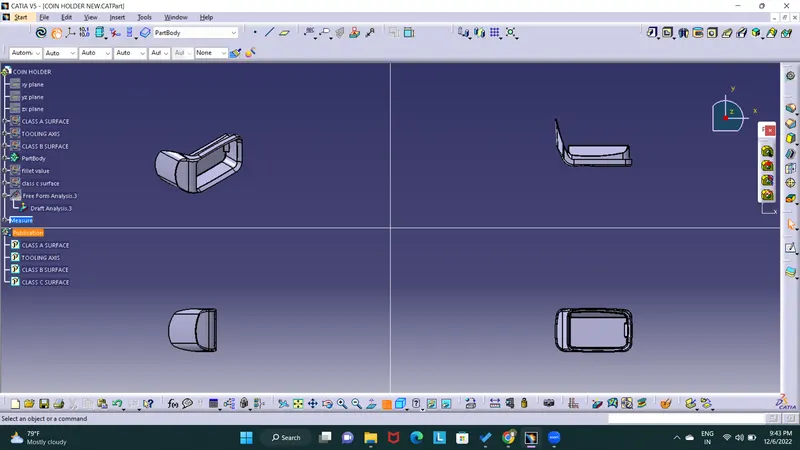

                                                                 COIN HOLDER

CREATION OF TOOLING AXIS :

                        HEAR THE OMPONENT HAVE 4 SIDE 90DEGREE WALL SO WE CREATING A NORMAL LINE TO THE CENTER OF THE PLAIN TO CREATE THE TOOLING AXIS .(OR) DRAW THE TWO NORMAL LINE CORNER OF THE WALL AND SELECT BYSITING LINE OPTION TO CREATE TOOLING AXIS .

   TOOLING AXIS IS USED TO CREAT THE DRAFT ANALYSISS .

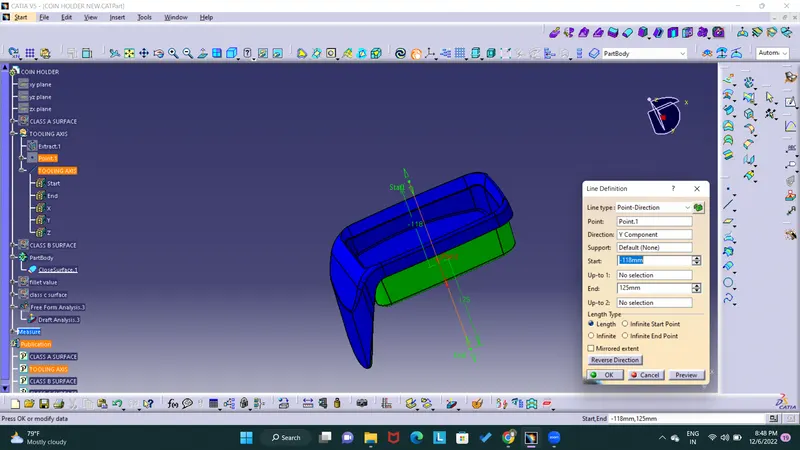

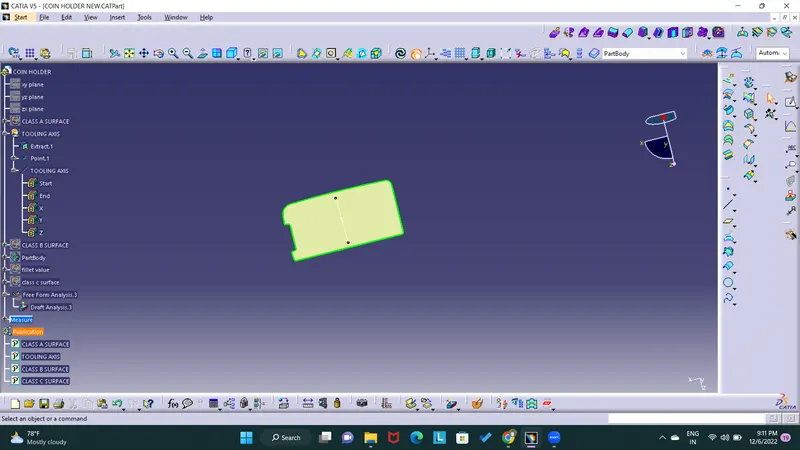

HEAR I EXTRACT THE BASE SURFACE , AFTER EXTRACTION OF THE BASE SURFACE USING POINT OPTION TO CREATE THE POINT CENTER OF THE SURFACE , AFTER CREATING POINT ON THE SURFACE , SELECTED LINE COMMAND , AND SELECT POINT AND DIRECTION COMMAND TO DAR THE PREPENDICULAR LINE TO THE PLAIN .THIS LINE IS KNOWN AS TOOLING AXIS.

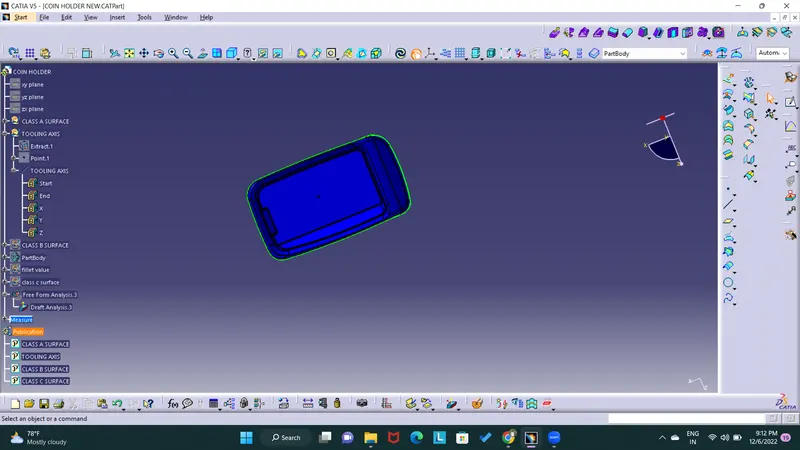

AFTER CREATING THE TOOLING AXIS IS WETHER CORRECT OR WORNGE HEAR THE TOOLING AXIS IS SHOW IN NORMAL TO PLAIN . AND ALL COMPONENTS ARE VISIBLE SO IT IS CORRECT .FIGURE IS BELOW.

CREATION OF DRAFTING ANALYSIS:

 DRAFT ANALYSIS IS MOST IMPORTENT PART IT PLAY THE MAJER ROLE IN CRATING MOLD PART .

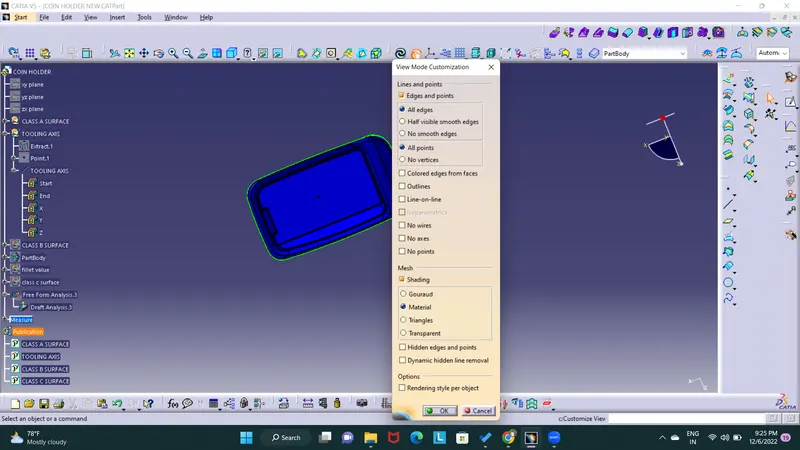

CREATING DRAFT ANALYSIS FIRST GO TO CUSTOMIZE VIEW PERAMETER AND GO TO MESH OPTION SELECT  THE MATERIAL OPTION..

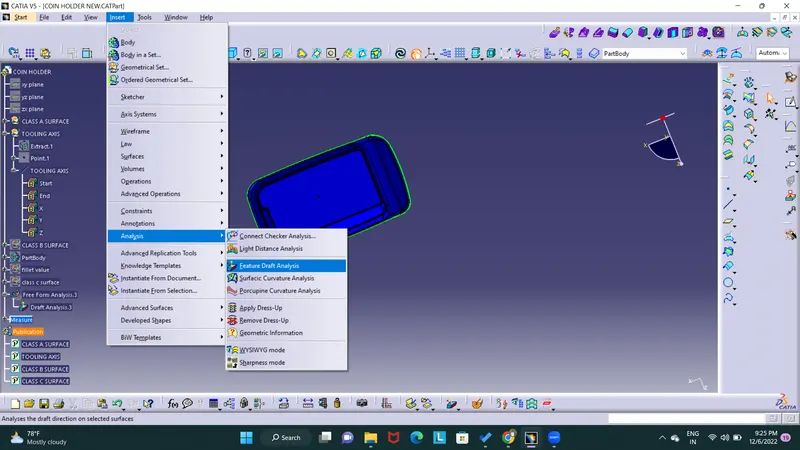

 AFTER SELECTION OF MATERIAL OPTION  IN CUSTOMIZE VIEW PERAMETER  GO TO INSERT SELECT ANALYSIS AND SELECT FEATURE DRAFT ANALYSIS MODE .

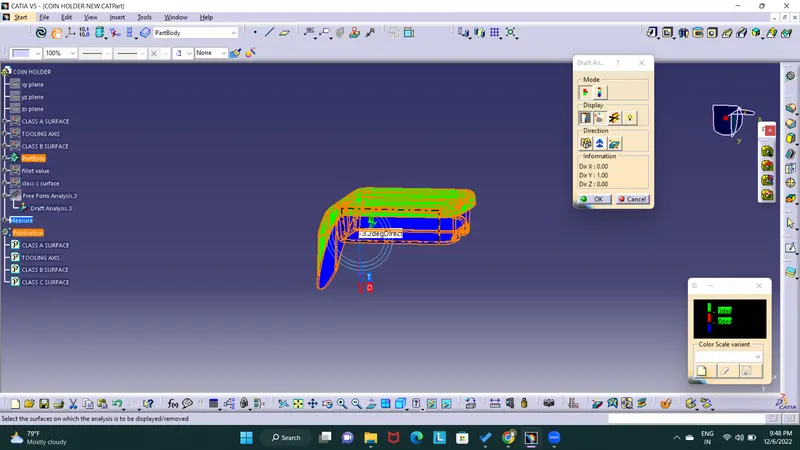

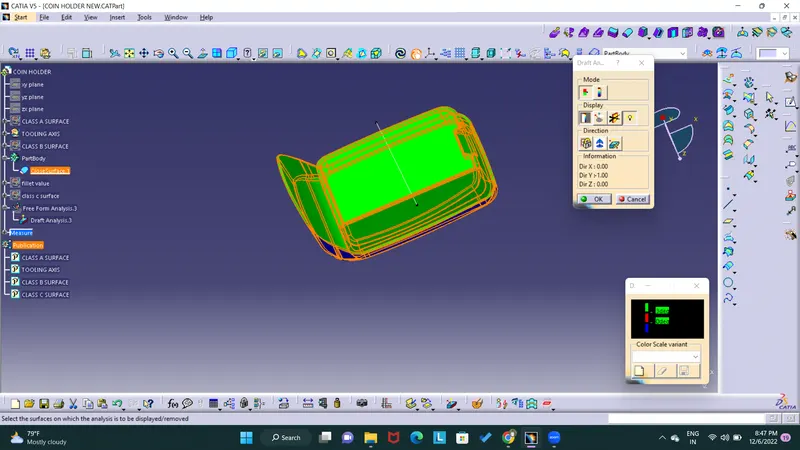

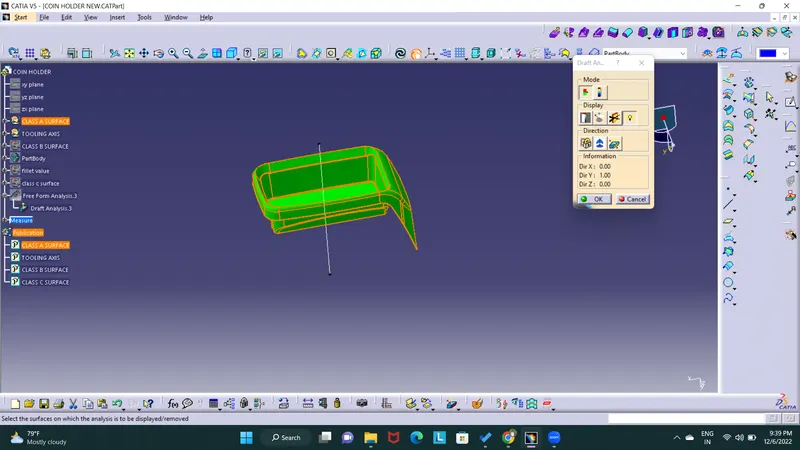

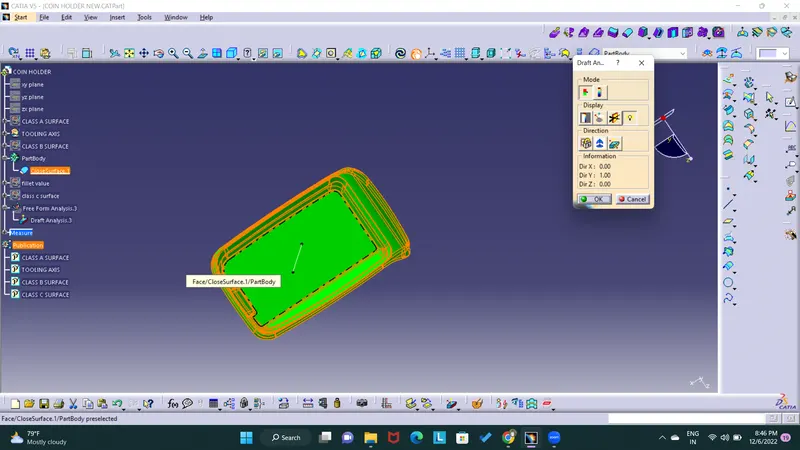

AFTER CLICKING FUTURE DRAFT ANALYSIS  I GET A TWO WINDOWS , AFTER GETTING CLICK THE COMPASS OPTION TO DRAGE THE COMPASS TO CENTER OF THE TOOLING AXIS . AFTER PLACING THE COMPASS LOCK THE COMPASS . IT LOCK THE COMPASS NOT ALLOW TO MOVE. AFTER CLICKING C;LOCK OPTION AND CLICK THE ANALYSIS UNDER RUNNING POINT TO CHECK THE DRAFT ANGLE .

CLASS A DRAFT ANALYSIS:
