Week 8 - Challenge 3 - Coin Holder Design

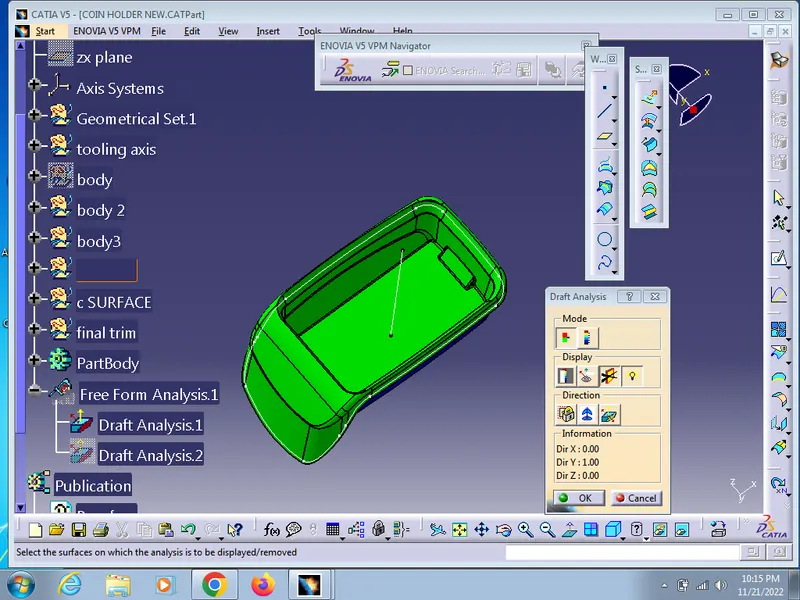

draft analysis is given in picture

method to find the draft analysis. click on the draft analysis and open it . click the compass icon and select the customerize view parameter and select the matrial mode.click on the solid body or surface and find the color showing.

The draft analysis technique is used to analyze whether our part model created in CAD is manufacturable based on the draft condition applied. Here the part should get easily removed from the panel dies (in case of Sheet metal part) or Mold (in case of plastic).
