Week 8 - Challenge 2 - Switch Bezel Design

Note: Report PPT is attached.

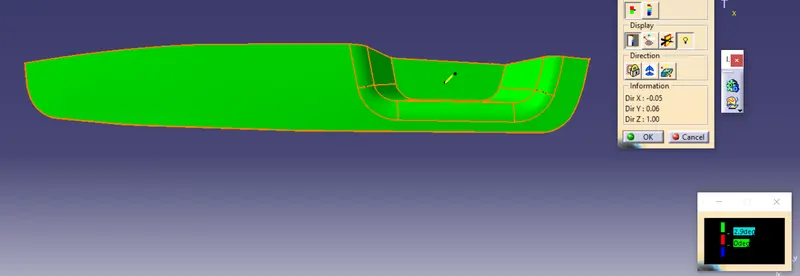

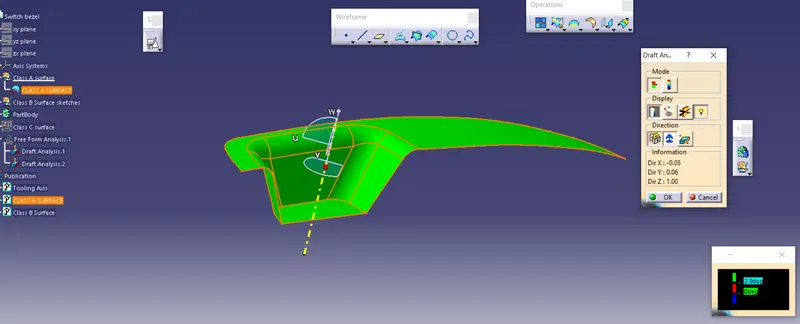

Class A surface; Draft analysis

Class A surface si cleaing for given tooling axis at 2.9 degree.

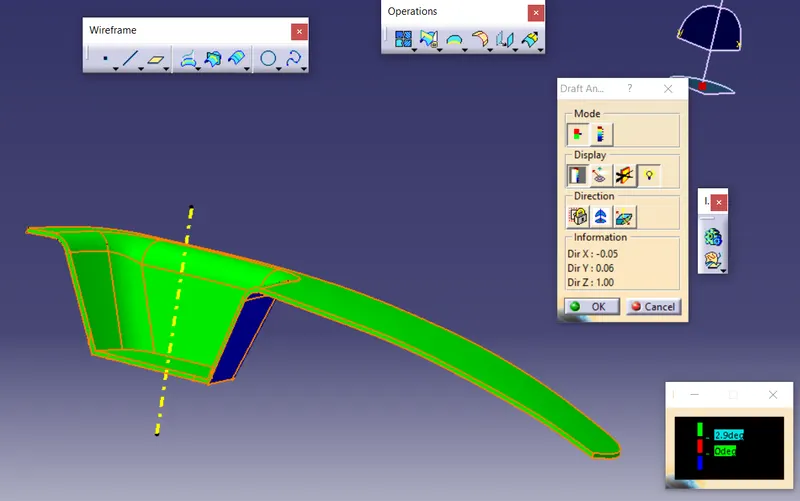

Final Solid Part : Draft Analysis

Both Class A and Class C surface are clearing at 2.9 degree

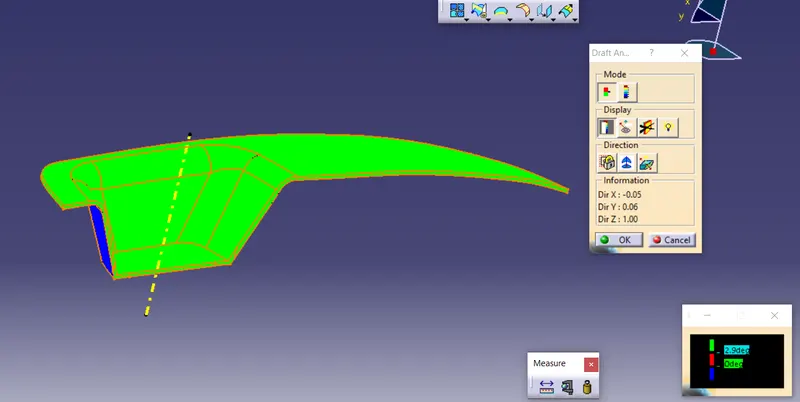

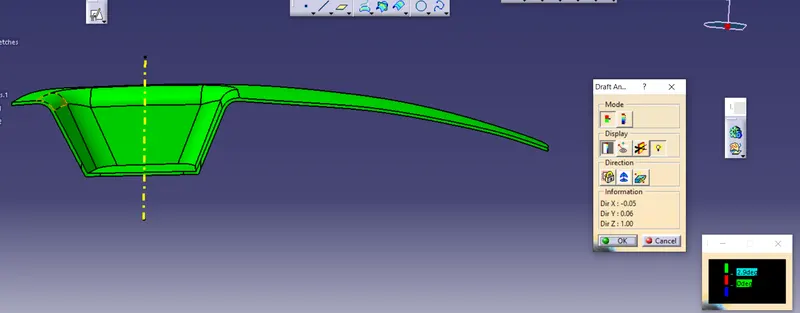

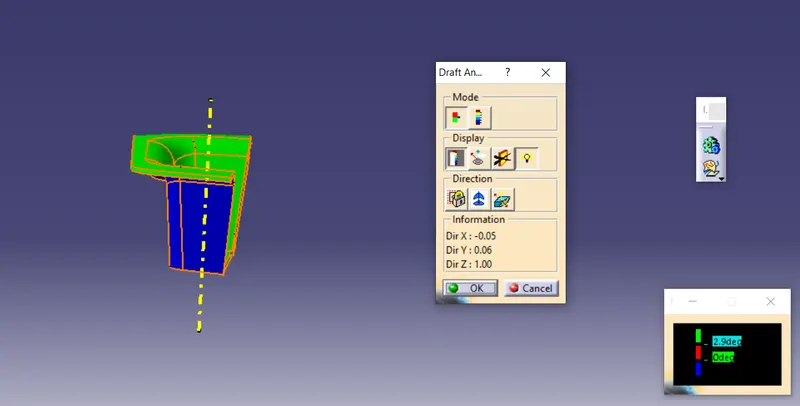

Views With Colur code of Draft Analysis: Class A and Class C Surface=Green at 2.9 Degree, Class B = Blue , Negative angle

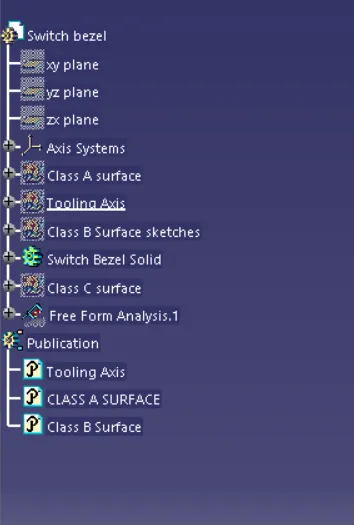

Tree Structure:

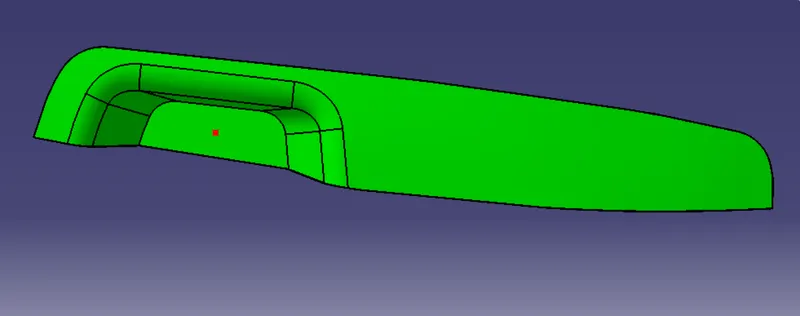

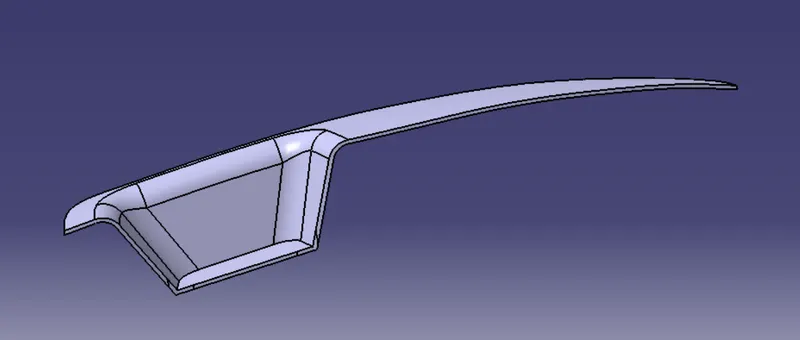

Final Output:
