Week 8 - Challenge 2 - Switch Bezel Design

Aim

Create the Switch Bezel Plastic component through the given Class - A surface

Objective

The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method

Introduction

The control panel bezel is the frame part of the window switch that holds its switch covers and buttons into a place. moulding is the method used to manufacture the plastic trims of an automotive by most OEM's hence by considering the manufacturing consideration the switch bezel is designed.

Design Consideration

1. Class - A surface should be aesthetically smooth and good.

2. Class - B surface should have all the supporting features like ribs.

3. Parting line should coincide with the B surface since flashing couldn't affect the aesthetic of Class - A.

4. Class - C surface should also pass the draft analysis.

Creation of Tooling Direction

1. considering the ejection from the cavity of the mound after manufacturing the interior trim(switch bezel0 must have the nominal 3- degree draft angle

2. Hence the tooling direction is created by considering the above factor and bisecting method is used.

3. The base surface of the class - A was extracted and a point at the centre is created and an axis system was inserted to the point with the current feature is disabled.

4. Then,usingproject intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.

5. Then bisecting lines with the two iclined lines were drawn

6. Now thw same procedures is done along the xz plane but on one side we don't have iclined lines so the centre point is used to extrude a line along the z- direction and gave a measurement of 5 degree (Tentatively).

7. With these two lines frm sketches 1 and 2, the bisecting line is created and published as tooling axis( tooling direction)

Creation of Class - B surface

1. For creating the class - B surfcae the required surface except the offset surface have been extracted and then untrimmed all the surface.

2. Then all the surfaces have been extrapolated to get intersections between them.

3. Since the thickness of the Switch bezel is 2.5 mm the B- Surface was offset to 2.5mm and the required trim operations must be carried out.

4. Finally, the required corners have been filleted 12.5mm ( 15mm-2.5).

Creation Of Class - C surface

1. The requred outer edges of the A- surface were extracted using Multiple Extraxt. Then for avoiding the patches the curve is smoothened using the curve smooth option.

2. Then by using the sweep command the surface was created with following feature controls.

Profile type - line

Subtype - With Draft direction

Guide curve - smooth curve

Draft Direction - Tooling axis

Draft computation Mode - Square

Angle - 3 degree

Angle Sector - Positive Downwaed

Length - 20mm

3. Then by using extrapolate command the edges were intersected between the surface corners which eases the trimming operation

4. Now the requred portion of the c - surface were trimmed out.

Creation Of Closed Surface

1. Now the class - A and Class - c surfaces were joined together by removing the gaps in between them with the help of extrapolation ( tangent continuity ) and trim surface

2. Then the exact surface of the switch Bezel was trimmed from the above - resulted trim surface with the class - b surface.

3. Then by defining the part body by using the closed surface command ib Part Design, the component's solid body is created.

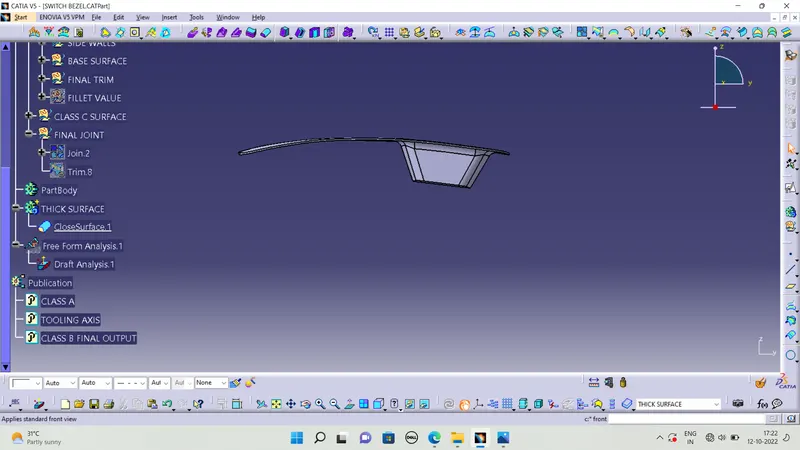

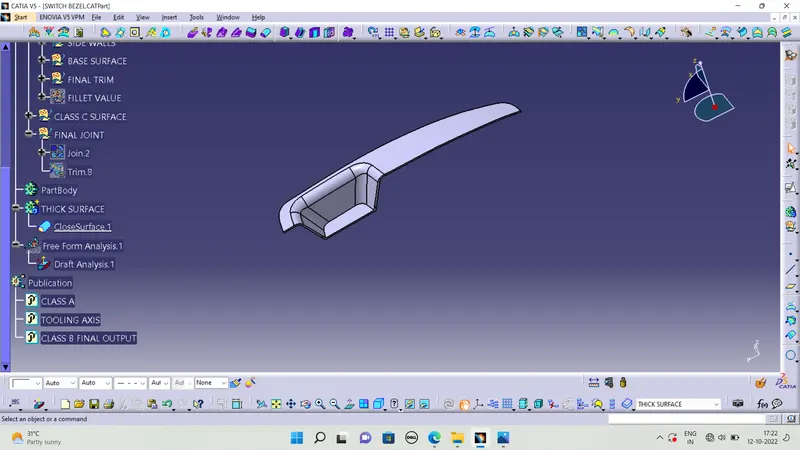

ISOMETRIC VIEW

TOP VIEW

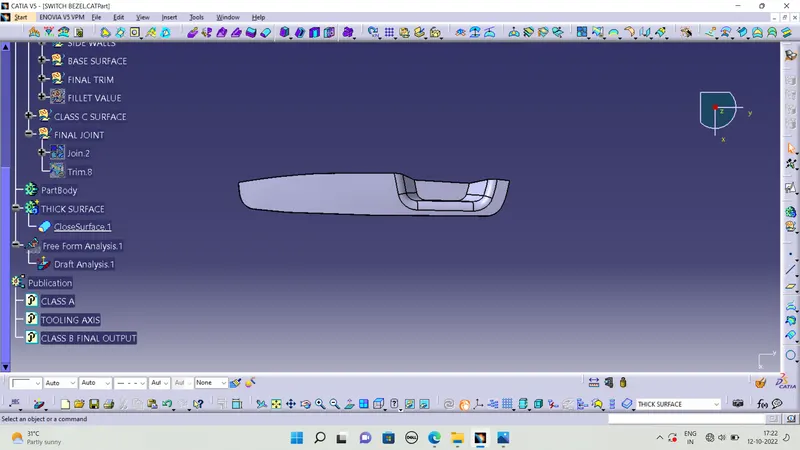

SIDE VIEW

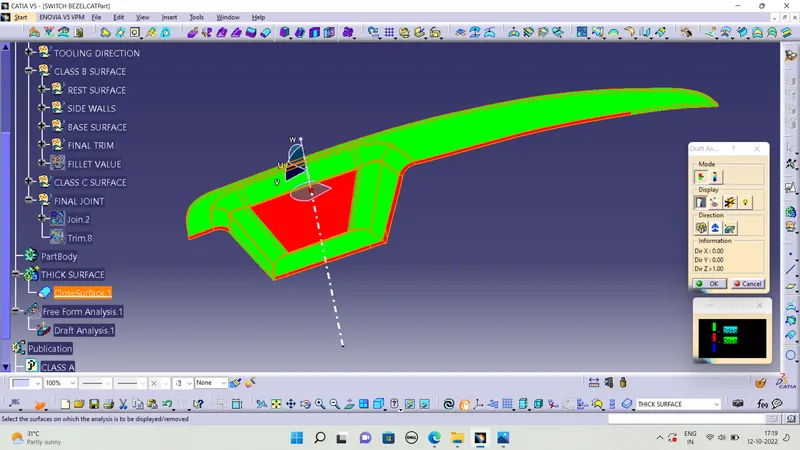

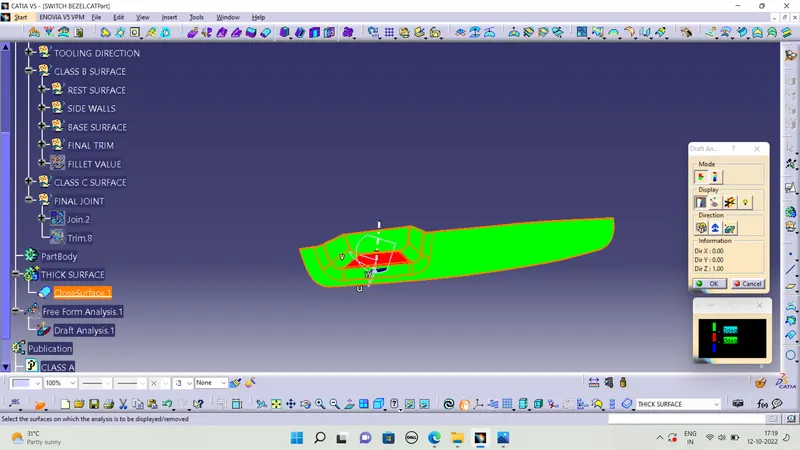

DRAFT ANALYSIS
