Week 8 - Challenge 2 - Base Bracket Design

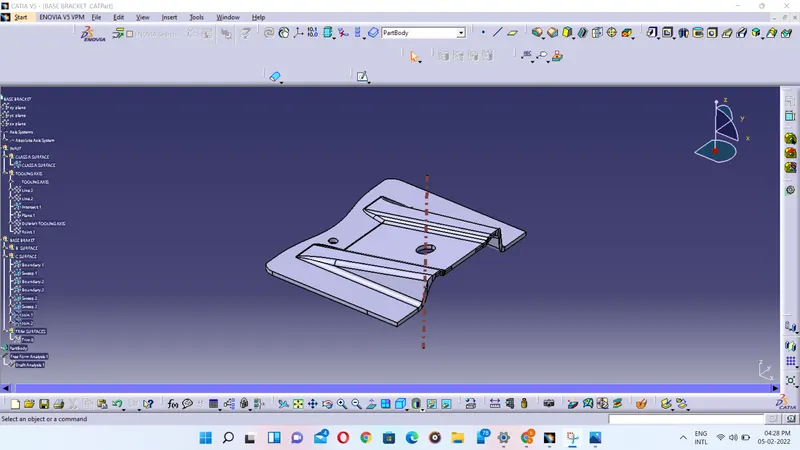

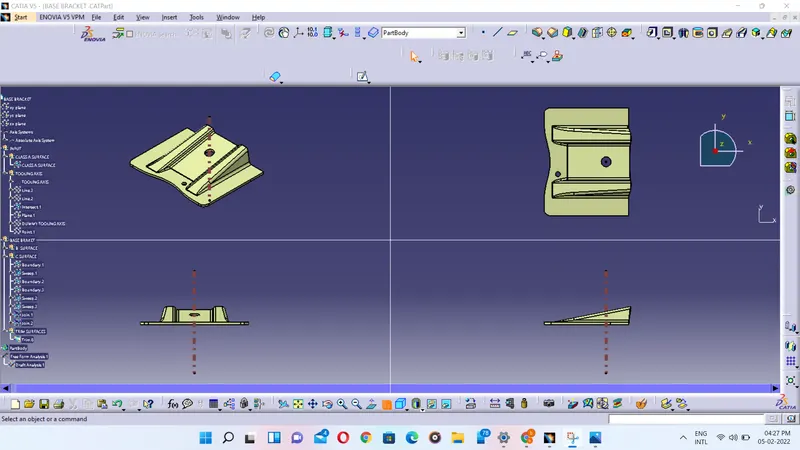

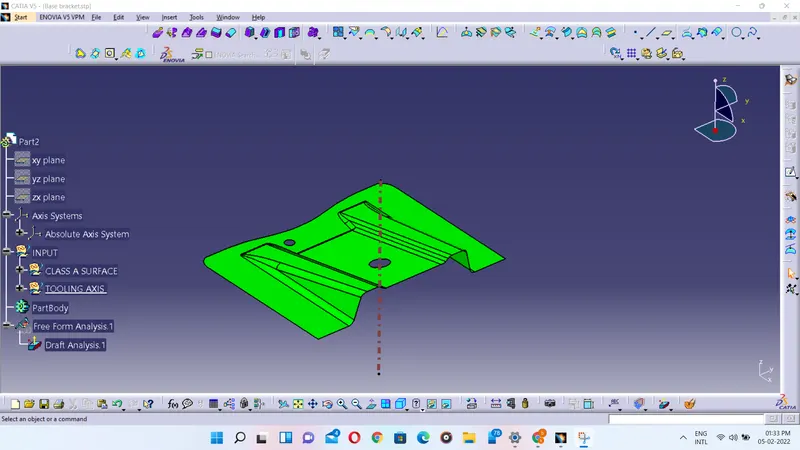

We receive CLASS A . For the CLASS A we create a tooling axis by intersect method with that we created the bisecting line and created the TOOLING AXIS .After that we split the surface into three simple profile

1 we created ribs and we offset over it

2 we created the base we offset the base

3 TRIM the ribs and base in the similar to the CLASS A

Then we join all the parts

Apply the close surface to form a close surface
