Week 8 - Challenge 2 - Base Bracket Design

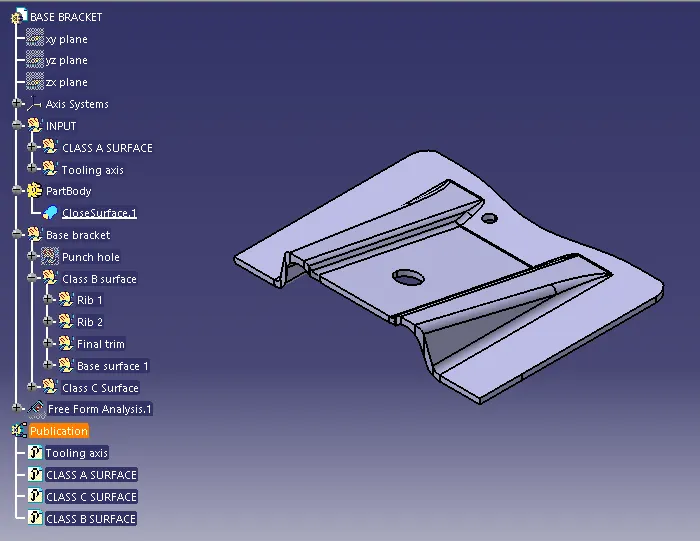

Tree structure with Thickened Body

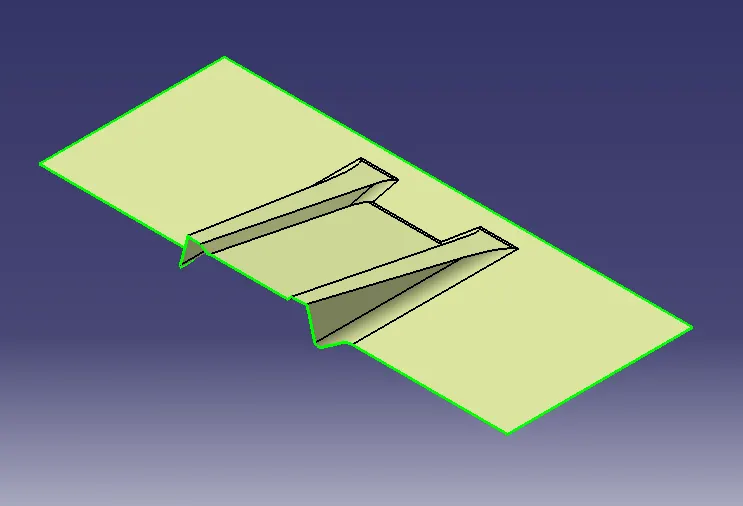

CLASS A SURFACE

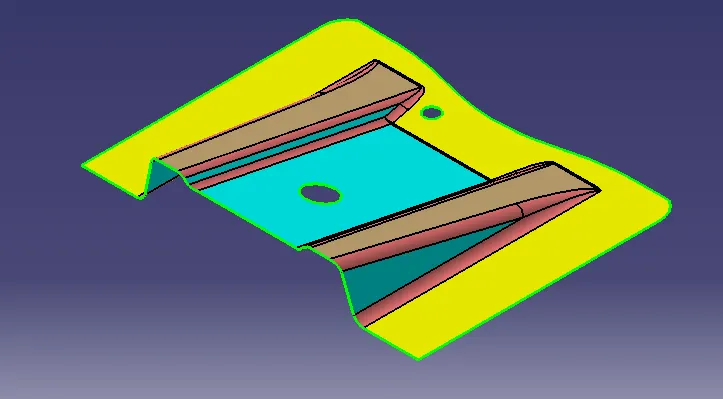

CLASS B SURFACE

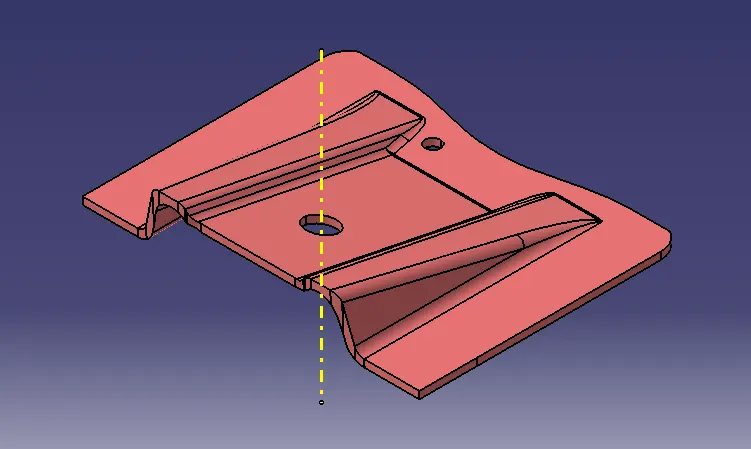

CLASS C SURFACE with Tooling axis

Tooling axis is created using the 'Bisecting Method' which intersects the point of the top hole and the tooling axis line created by 'bisect' line command.

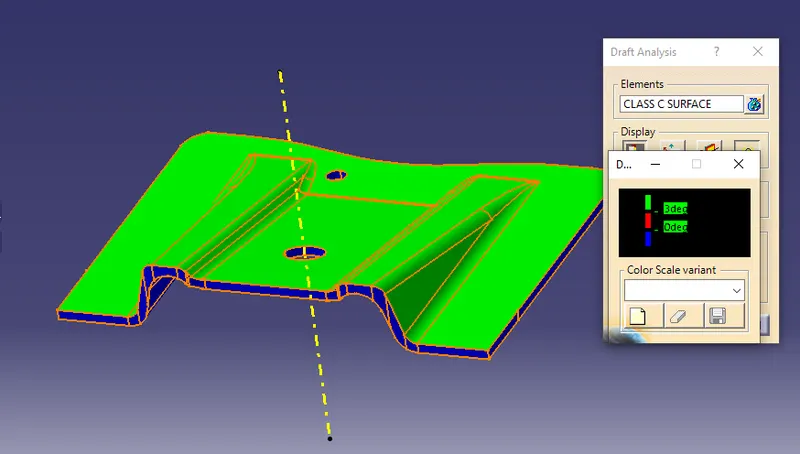

DRAFT ANALYSIS

A minimum of 3'degree draft angle is given while designing the surface and the checked using 'draft analysis' for clearance of the features provided with draft angle on the basis of 'Tooling axis'.
