Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Draft Analysis of Fan Cover

Aim:

• To create the tooling axis for the given Fan cover model on the draft angle basis and perform the Draft analysis on the Fan cover.

Objective:

• The tooling axis for the given Fan cover should be created to fill the draft angle criteria.
• The Draft analysis should be done to check whether the tooling axis is created correctly.

Output:

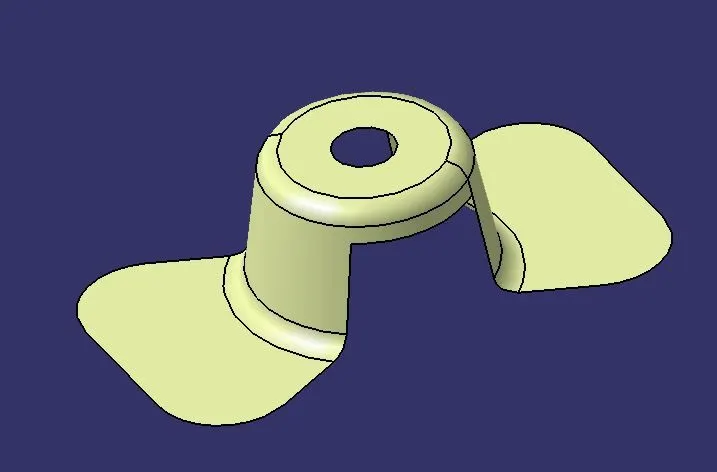

Class A Surface

Class A surface Analysis

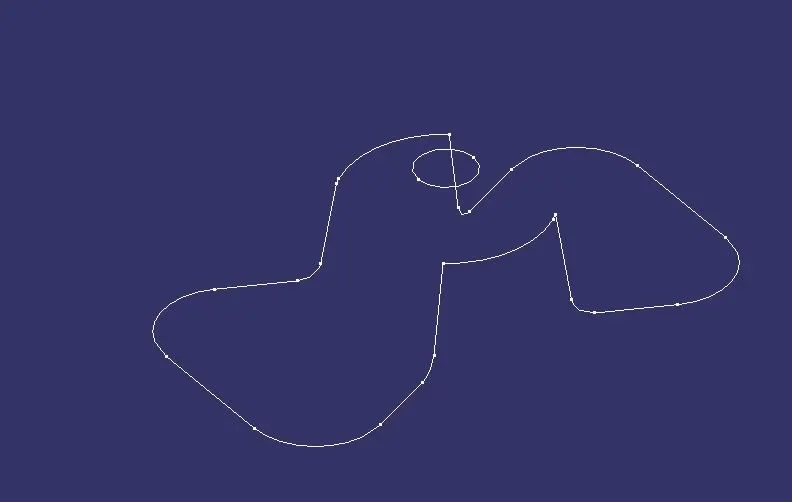

• The Boundary is created from the given Fan cover Surface A.
• The Disassemble is done to separate the curve and to verify whether there is any joint issue in the given Class-A surface.
• The verification is done and there is no joint issue in Fan cover Class A surface.

Tooling Axis Creation

• The tooling axis is created by intersect method.
• The point is created.
• Then by knowing the basis of manufacturing the tooling axis is created.
• The given Fan cover is viewed in the x, y, and z axes.
• The dummy axis is created to find the absolute tooling axis for a given fan cover.

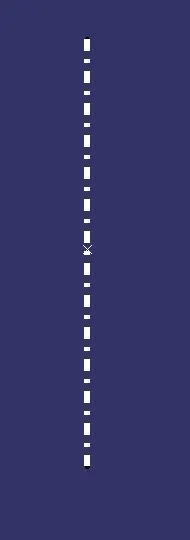

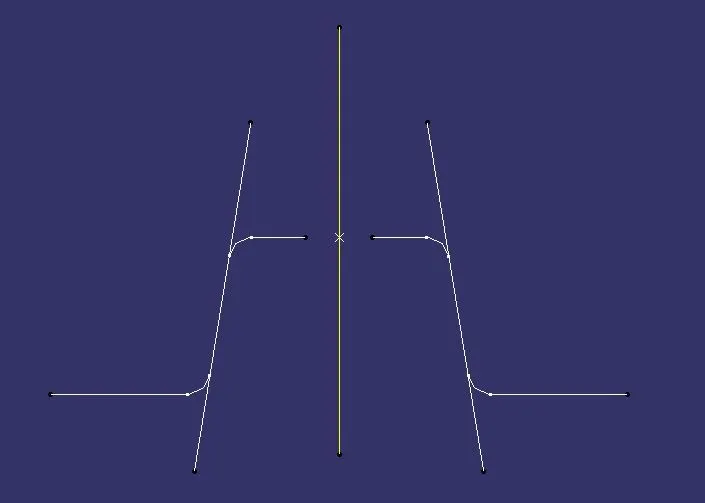

• The Dummy tooling Axis is created for the X-axis by using the bisecting line method.

• The Dummy tooling Axis is created for the Y-axis by using the bisecting line method.

• By using the Created tooling of X and Y the Absolute tooling is created.

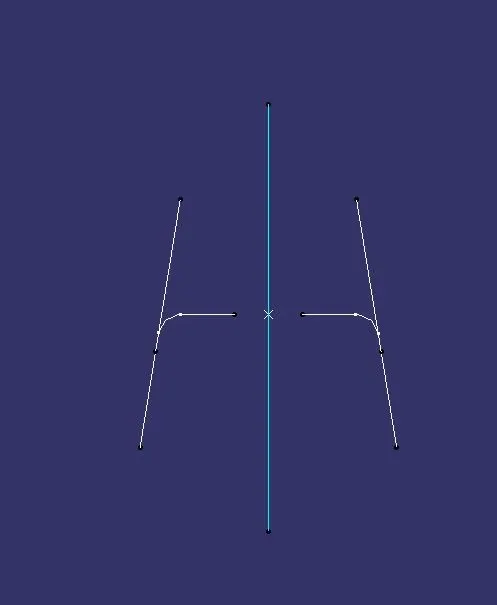

• The bisecting lines are used to create the Absolute tooling axis.
• The two bisecting lines are the Dummy tooling axis of the X and Y axes and through the point.

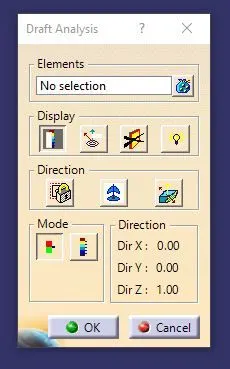

Draft Analysis

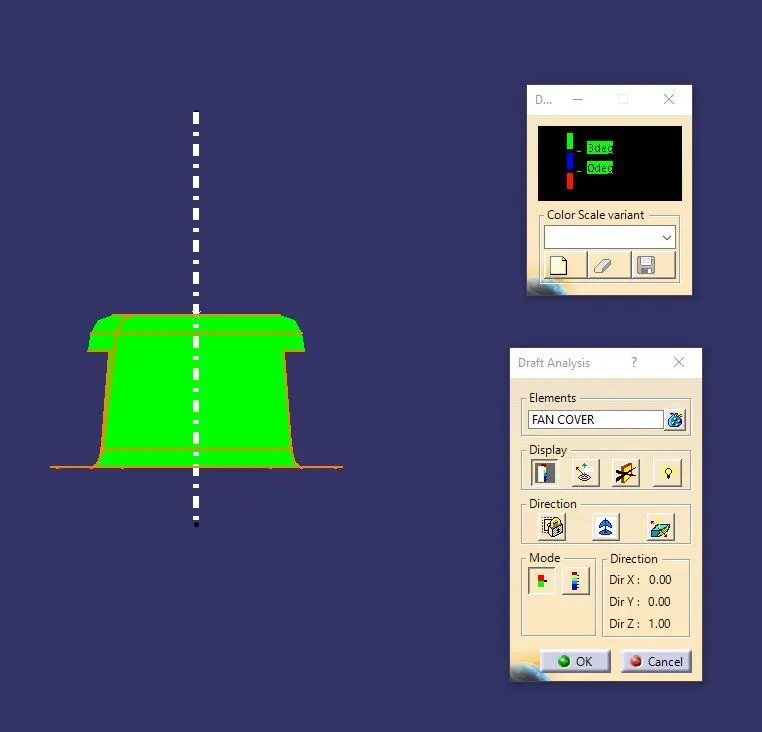

• The Daft analysis is created to see whether the absolute tooling Axis is created correctly or not.

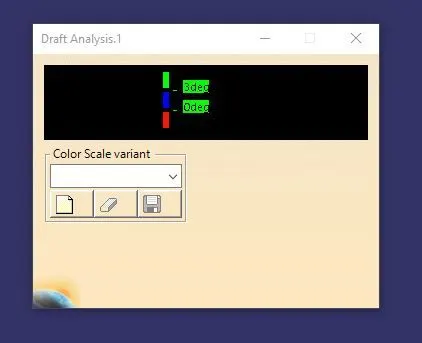

• The draft angle is within the limit as per the analysis.
• The Draft analysis is done and the Tooling axis created for Fan cover is good to go for the manufacturing process.

Output Images

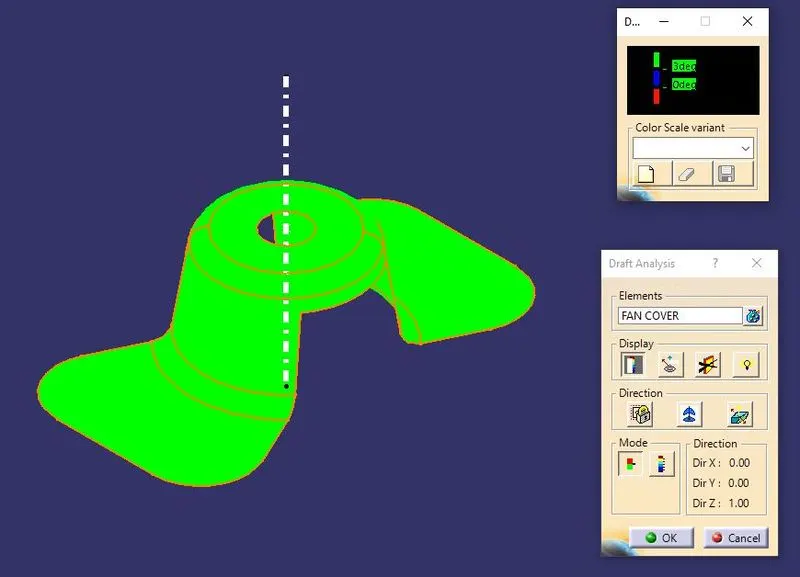

Isometric view

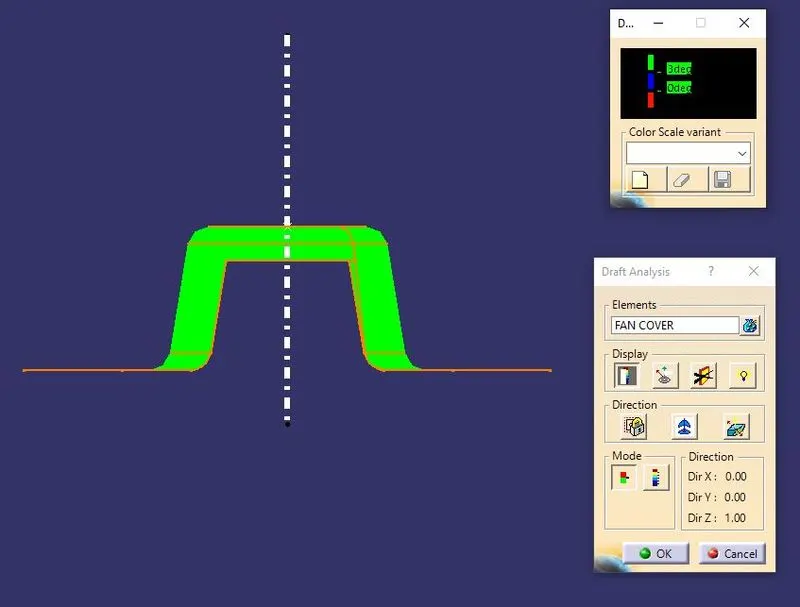

Front View

Side View

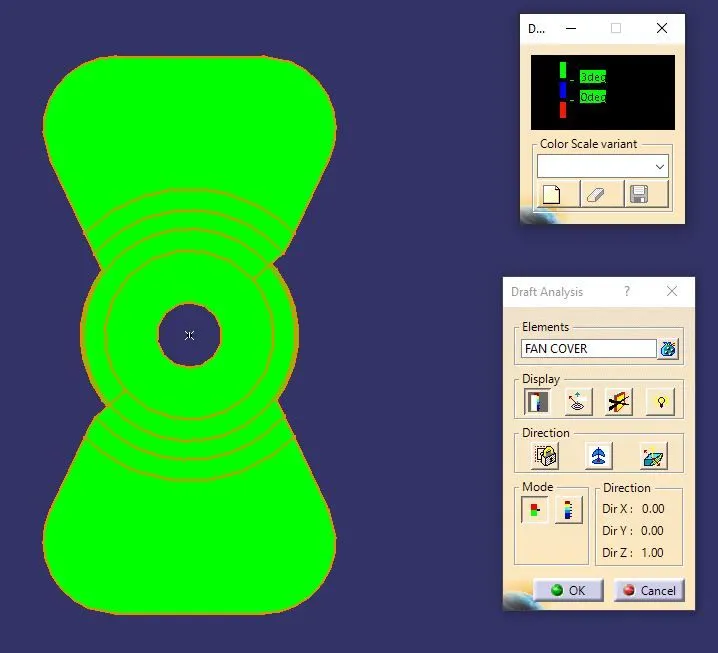

Top view

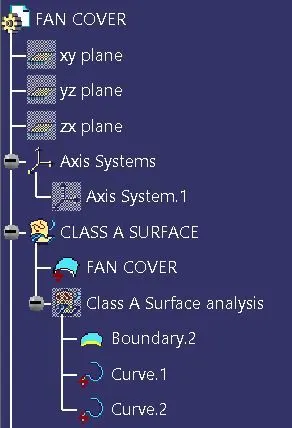

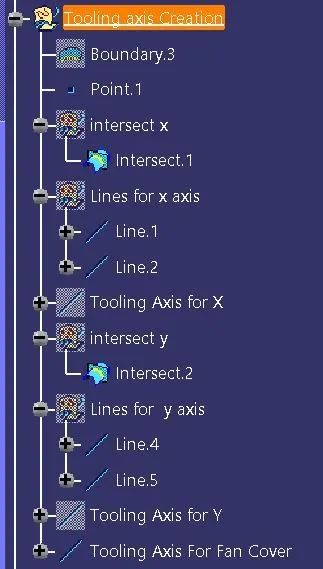

Structural tree

Conclusion:

• The Tooling Axis for the given Fan Cover Class A surface is created.
• The Draft analysis is done.
