Week 8 - Challenge 1 - Base Bracket Design

Aim-

Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Thickness of Plastic Part - 2.5 mm

• Tree Structure
• Ensure Proper Tree Structure
• Geometrical sets should have a proper name based on the sketches present inside of it
• All the sketches should be created under the Geometrical set
• Use the Close Surface feature to make a solid body from the surface.
• Publications: Use the publication option and publish the below
  • Tooling Axis
  • Class A, B, and C surface

Ans:-

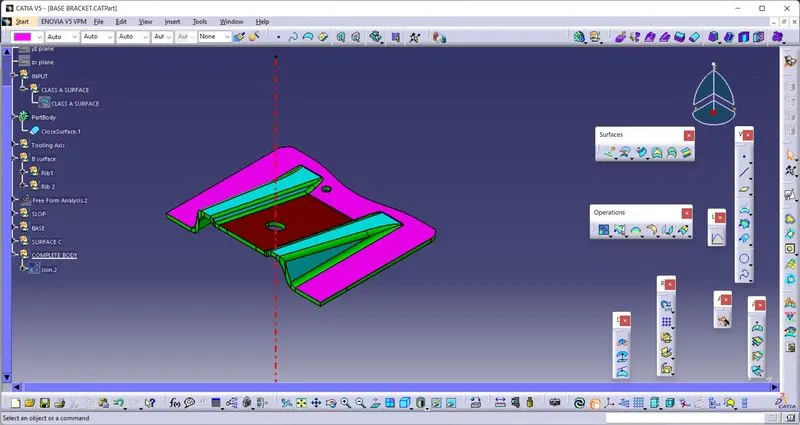

EX CO

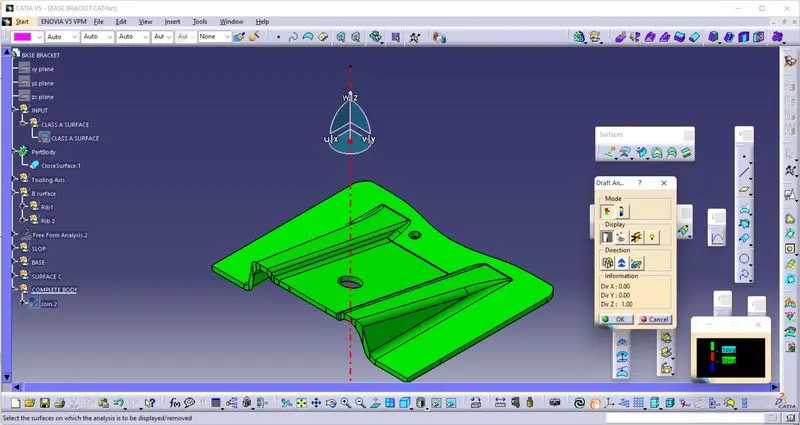

EX DA

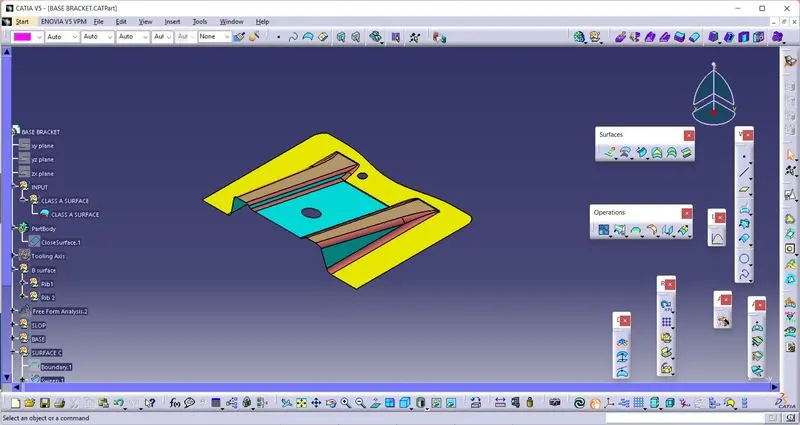

EX1 given surface

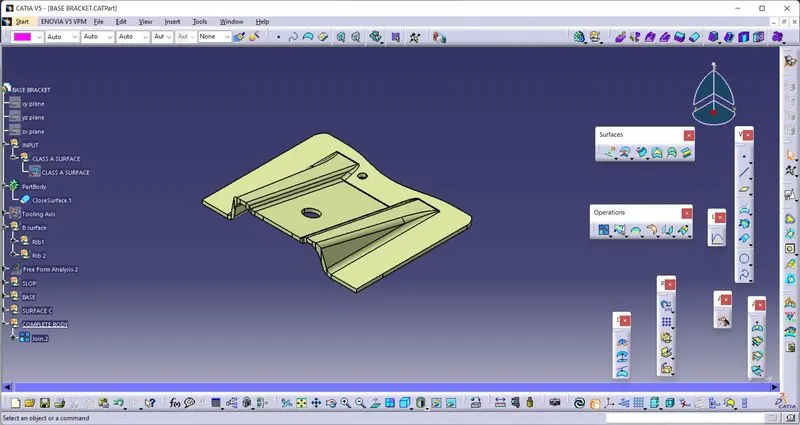

EX1 3D

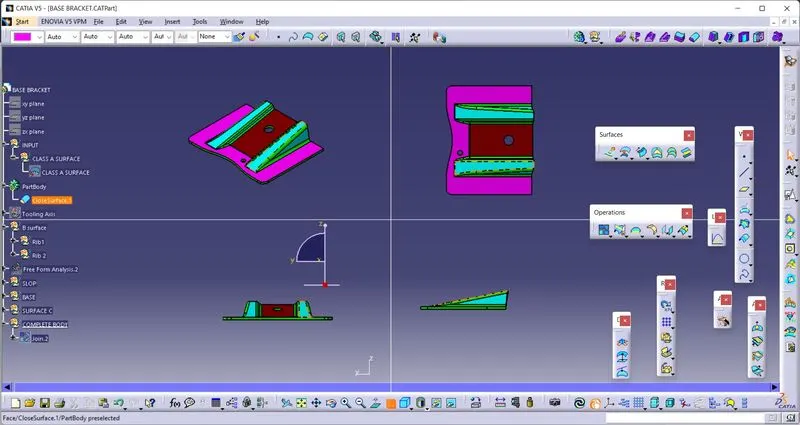

EX S

Please Find the attached links

BASE BR….CATPart 859.19 KB
