Week 8 - Challenge 1 - Base Bracket Design
- WHAT IS TOOL AXIS ?
ANS. WHEN WE CREAT A AXIS FOR ANY PARTICULAR PART OR PRODUCT TO MEASURE DRAFT ANGLE THAT IS TOOL AXIS.
- HOW DID YOU CREAT TOOL AXIS?
ANS. FIRSTLY ON THE REFERENCE OF SURFACE AND TAKE NEW GEOMETRICAL SET,AFTER THAT WE SELECT POINT COMMAND AND SELECT CIRCLE AS A REFERENCE AND POINT PLOTTED AFTER THAT WE GO TO LINE COMMAND AND SELECT POINT AND DIRECTION OPTION CHOOSE POINT AND GIVE Z AXIS DIRECTION AND CREAT LINE. NOW,WE GO TO INSERT SELECT ANALYSIS AND FEATURE DRAFT ANALYSIS OPTION SELECT SURFACE DRAG THE CAMPUS ON LINE AND SWITCH ON THE USES THE CAMPUS TO DEFINE THE NEW CURRENT DRAFT DIRECTION OPTION, AFTER THAT IF YOUR BOTH SIDE OF SURFACE IS GREEN NOW YOUR SURFACE IS READY TO MAKE SURFACE B.
- WHAT IS DRAFT ANALYSIS?WHY DO WE NEED TO PERFORE DRAFT ANALYSIS?
ANS. DRAFT ANALYSIS IS THE WAY TO KNOW DRAFT ANGLE IN SURFACES.BY THE HELP OF DRAFT ANALYSIS WE KNOW THE DRAFT ANGLE IN SURFACE AND ALSO KNOW WHERE IS UNDER CUT.SO, FOR FINDING UNDERCUT WE NEED TO PERFORM DRAFT ANALYSIS.
4.WHAT IS CLASS A SURFACE?
ANS.CLASS A SURFACE IS A VISIBLE SURFACE WHICH SURFACE SEEN BY US IN ANY PRODUCT.IT LOOKS STYLER AND ATTRACTIVE.AND A BEST FINISHING YOU SEEN IN CLASS A SURFACE.
- DRAFT ANALYSIS OF CLASS A SURCAE?

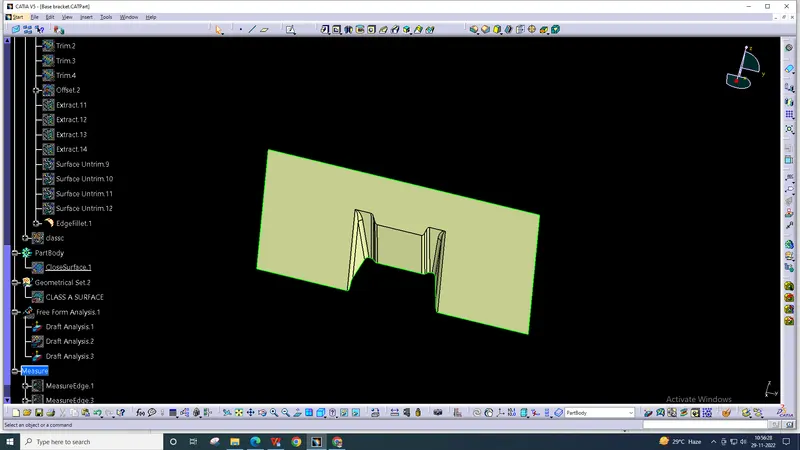

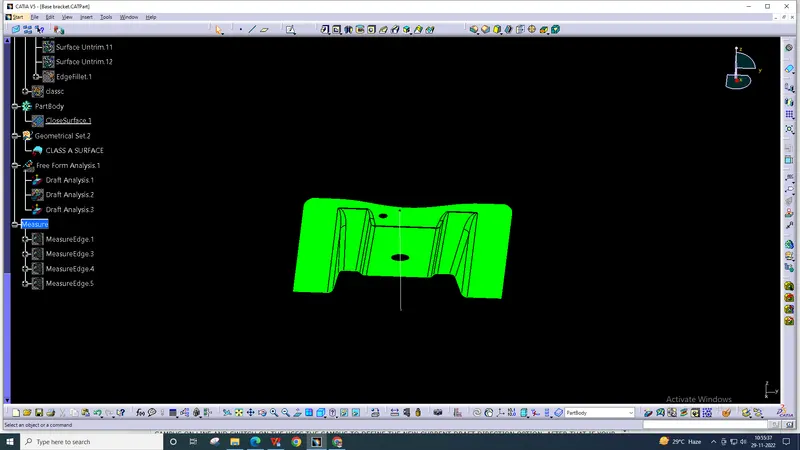

ANS. FIRSTLY ON THE REFERENCE OF SURFACE AND TAKE NEW GEOMETRICAL SET,AFTER THAT WE EXTRACT A FLAT SURFACE AND PLOT A POINT ON SURFACE BY USING POINT ON SURFACE OPTION AFTER THAT MAKE A LINE ON POINT BY USING NORMAL TO SURACE OPTION. NOW,WE GO TO INSERT SELECT ANALYSIS AND FEATURE DRAFT ANALYSIS OPTION SELECT SURFACE DRAG THE CAMPUS ON LINE AND SWITCH ON THE USES THE CAMPUS TO DEFINE THE NEW CURRENT DRAFT DIRECTION OPTION, AFTER THAT IF YOUR BOTH SIDE OF SURFACE IS GREEN NOW YOUR SURFACE IS READY TO MAKE SURFACE B.
6.WHAT IS CLASS B SURFACE?
ANS. CLASS B SURFACE IS A HIDDEN BACK INSIDE PART WHERE MANY SUPPORTS AND MARKS ARE VISIBLE BUT THIS A HIDDEN FACE SO THAT IS NOT A ISSUE. CLASS B SURFACE IS ALSO A THICNESS OF THE PART.
7.CLASS B CREATION?

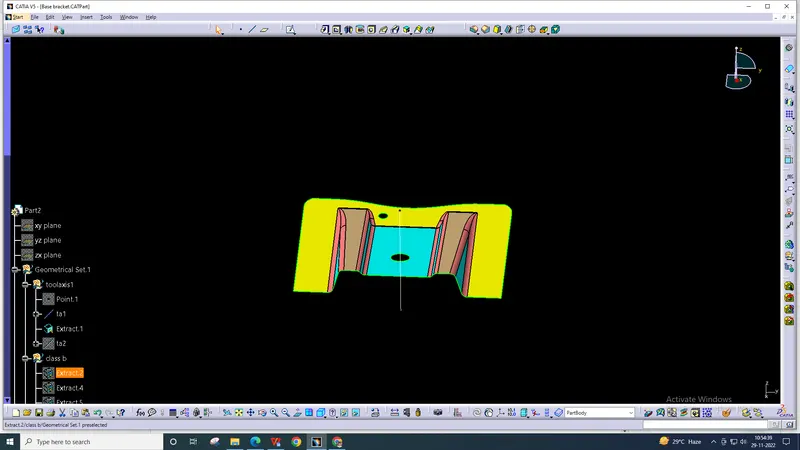

ANS. FIRSTLY EXTRACT ALL THE FLAT SURFACE AND UNTRIM ALL THIS AFTER THAT WE EXPTRAPOLATE ALL THE SURFACES AND TRIM AS WE NEED AFTER THAT WE MEASURE ALL THE RADIUS FROM SURFACE A AND GIVE THE RADIUS IN SURFACE B .NOW YOUR SURFACE B IS READY.
8.WHAT IS CLASS C SURFACE?
ANS. THE COMBINATION OF CLASS A SURFACE AND CLASS B SURFACE IS CLASS C SURFACE. NOW WE CAN SAY THAT FINAL SURFACE IS A CLASS C SURFACE IN WHICH CLASS A SURFACE ,CLASS B SURFACE AND THICKNESS IS ALSO PRESENT.
- CLASS C CREATION?

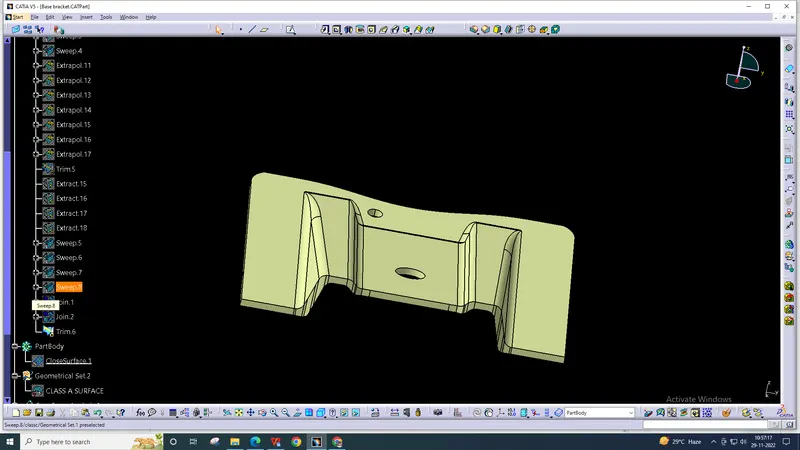

ANS. SELECT ALL THE BOUNDARY AFTER THAT SELECT SMOOTH CURVE TO SMOOTH THE BOUNDARIES NOW WE SELECT SWEEP COMMAND AND SELECT GUIDE CURE AND ANGLE GIVE DRAFT ANGLE AND SELECT WHERE IS ANGLE EXTERIOR OR INTERIOR. NOW OFFSET B SURFACE HOW MANY YOU WANT WITHOUT PROVIDING RADIUS AND TRIM WITH THW BOUNDARIES THAT YOU MAKE AND NOW WE FOUND CLOSE SURFACE.
- FINAL SOLID BODY DRAFT ANALYSIS?

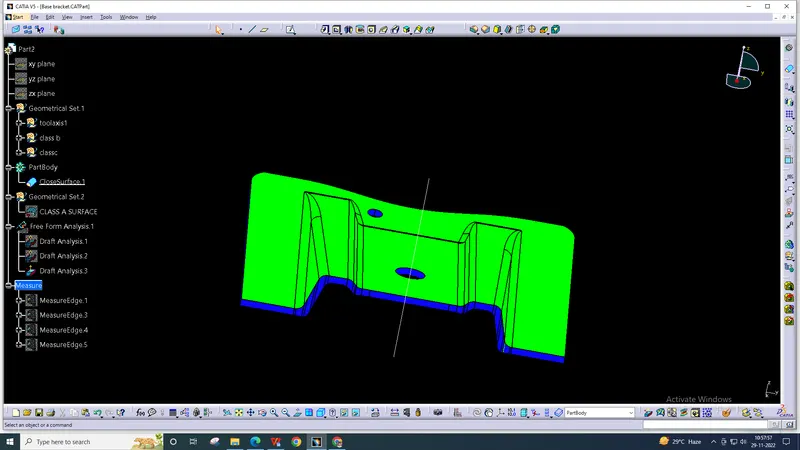

ANS.GO TO PART DESIGN CHOOSE SOLID OPTION SELECT PART NOW YOUR PART IS BECOME SOLIDE AFTER THAT UNHINE THE LINE WHICH U MAKE IN DRAFT ANALYSIS IN CLASS A SURFACE AND WE GO TO INSERT SELECT ANALYSIS AND DRAFT ANALYSIS OPTION SELECT PART DRAG THE CAMPUS ON LINE AND SWITCH ON THE USES THE CAMPUS TO DEFINE THE NEW CURRENT DRAFT DIRECTION OPTION, AFTER THAT IF YOUR BOTH SIDE OF SURFACE IS GREEN, THE DRAFT ANALYSIS IS DONE SUCCESSFULLY.
- JUSTIFICATION OF MANUFACTURING?
ANS. DRAFT ANGLE IN PART DESING MUST BE 3 DEGREE SO THAT WE EASILY EJECT THE PART WITH FRICTION BETWEEN PART AND CORE OR CAVITY.DRAFT ANGLE IS MOST IMPORTANT IN ANY PRODUCT DESIGN
