Week 8 - Challenge 1 - Base Bracket Design

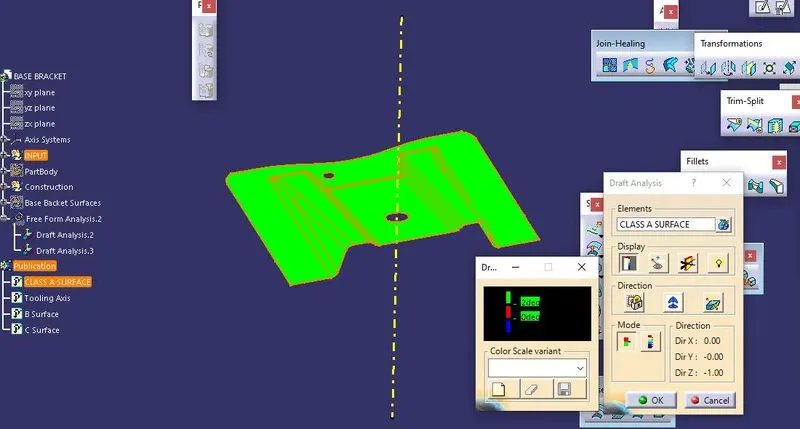

Class A Surace Analysis

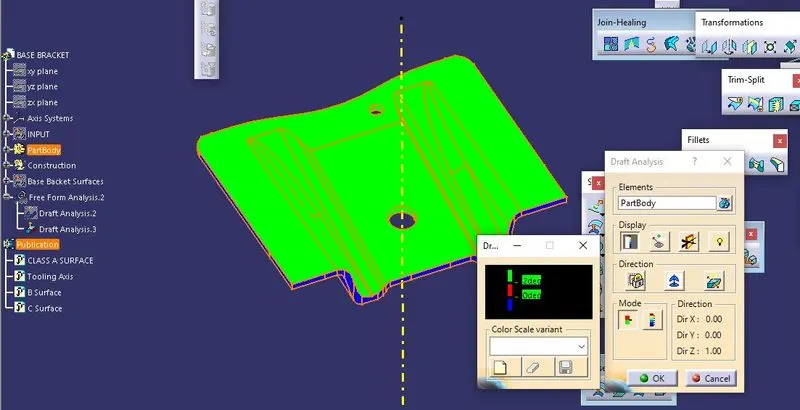

Final Plastic Component Analysis. when a outer and inner draft angle we creat a one direction for both draft, so we need to manufacture this part i this orienation. that clearing all Drafting sides.
Solid Model front view

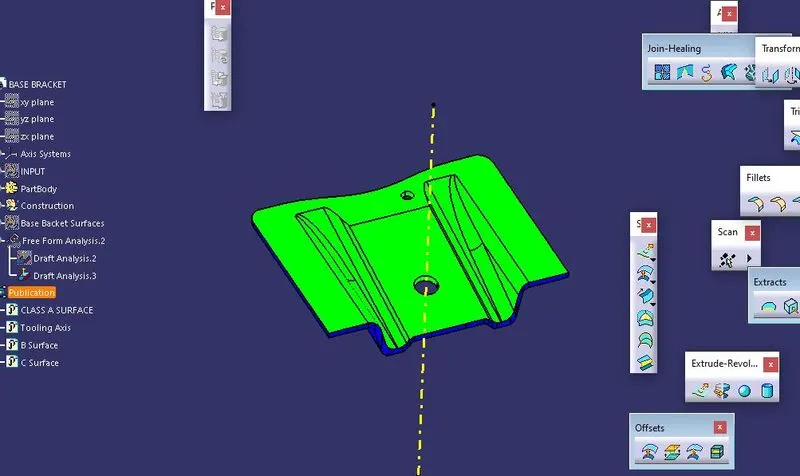

Solid Model Iso view

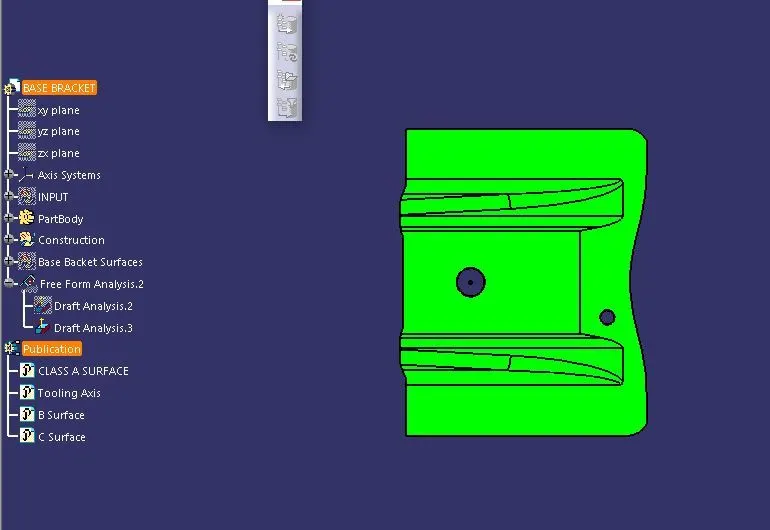

Solid Model Top view

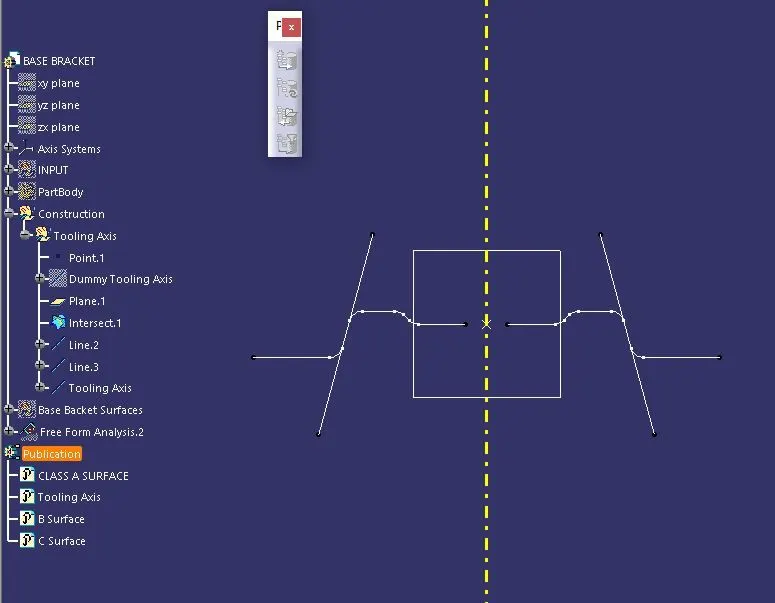

Solid Model Top view - By Selecting two side tapper line we make a extended line and then that two line Bisecting With a oin and i creat a tooling axis.
