Week 8 - Challenge 1 - Base Bracket Design

DRAFTING ANALYSIS ON BASE BRACKET CLASS A SURFACE AND CREATING PLASTIC COMPONENT FROM IT:

DRAFTING:

   When developing parts for plastic injection molding, applying draft (or a taper) to the faces of the part is critical to improving the moldability of your part. Without it, parts run the risk of poor cosmetic finishes, and may bend, break, or warp due to molding stresses caused by the plastic cooling. Equally important, an absence of draft may prevent parts from ejecting from the mold, damaging not only the parts, but possibly the mold itself—a costly and time-consuming detour.

DRAFTING ANALYSIS:

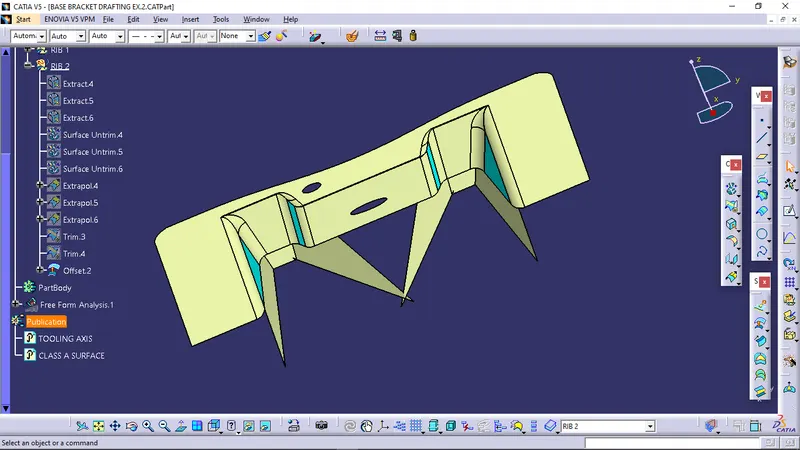

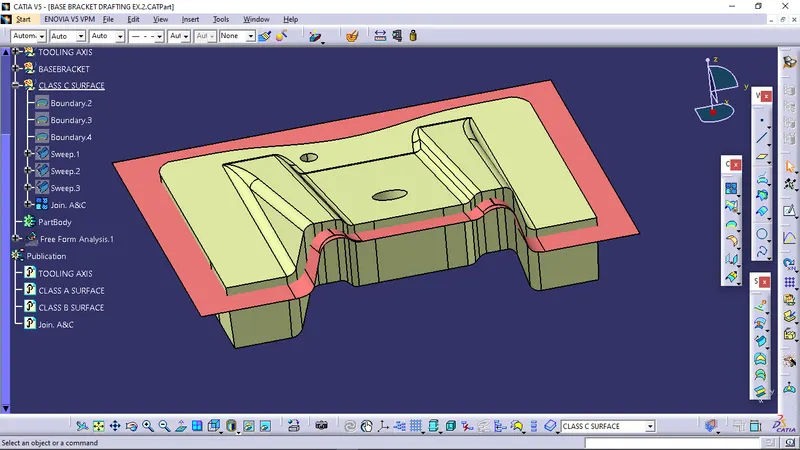

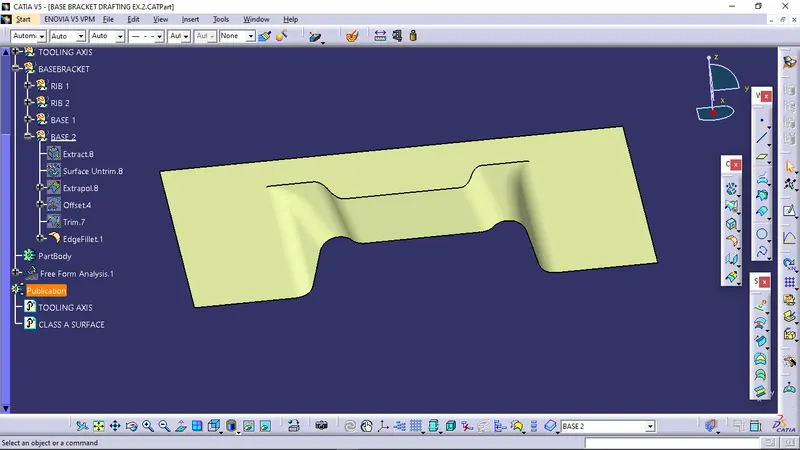

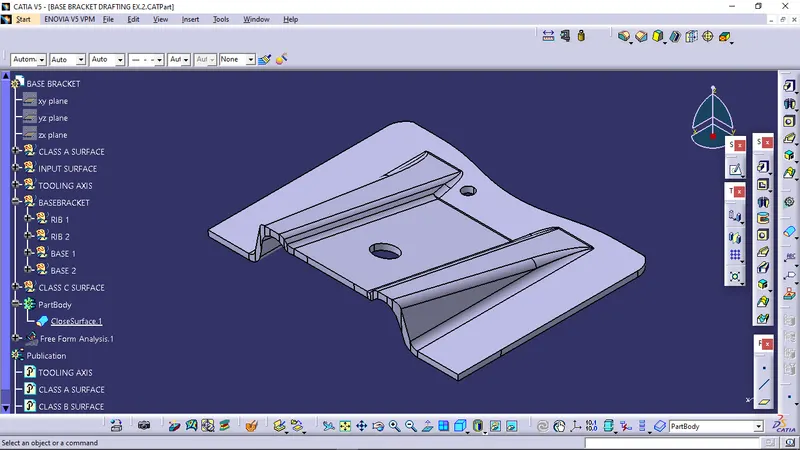

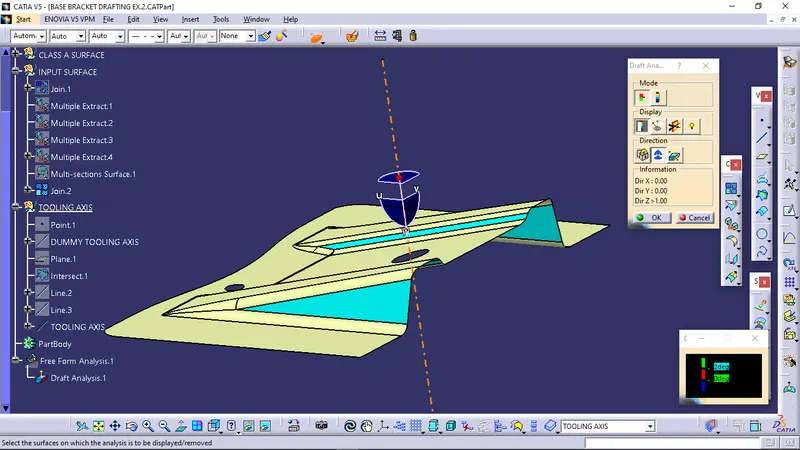

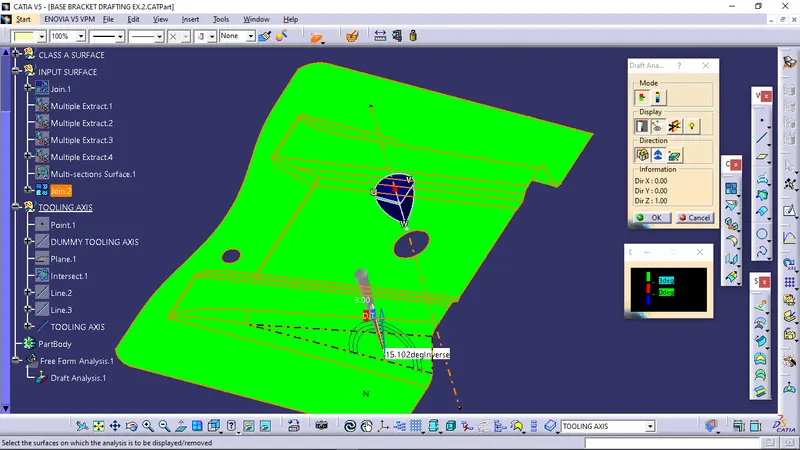

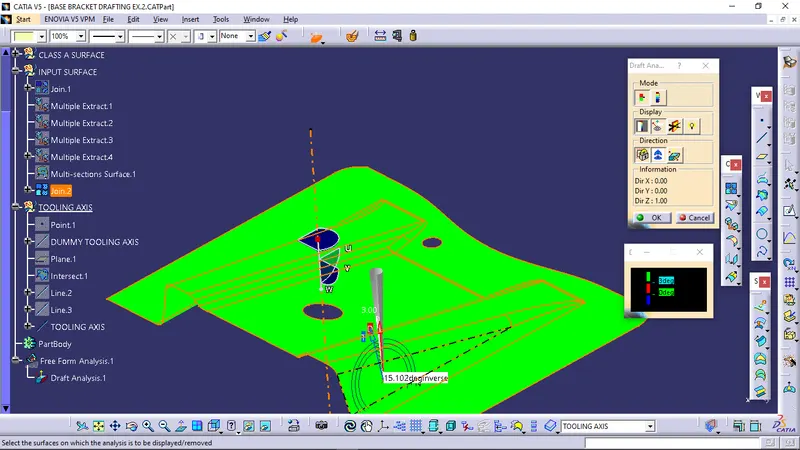

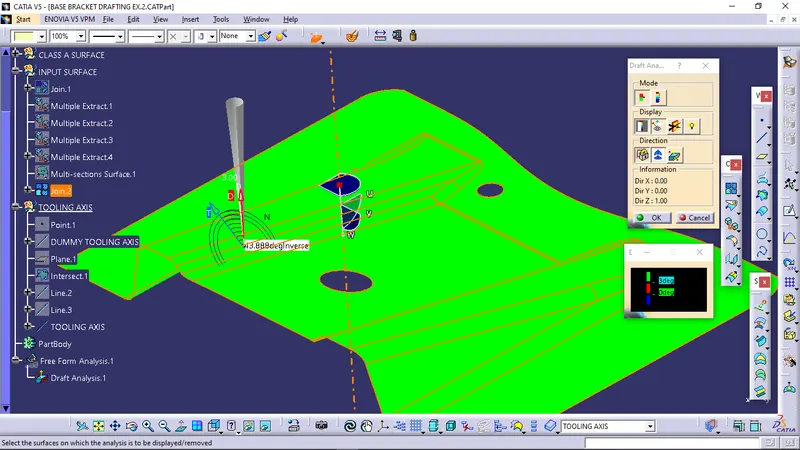

    The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.



PROCEDRE:

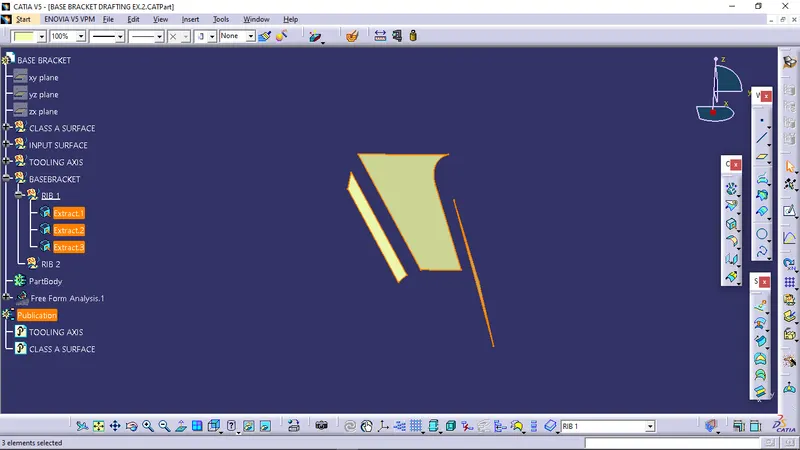

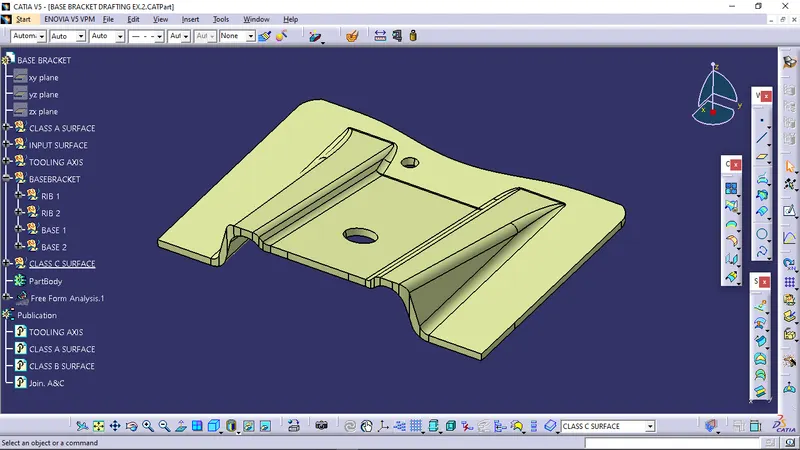

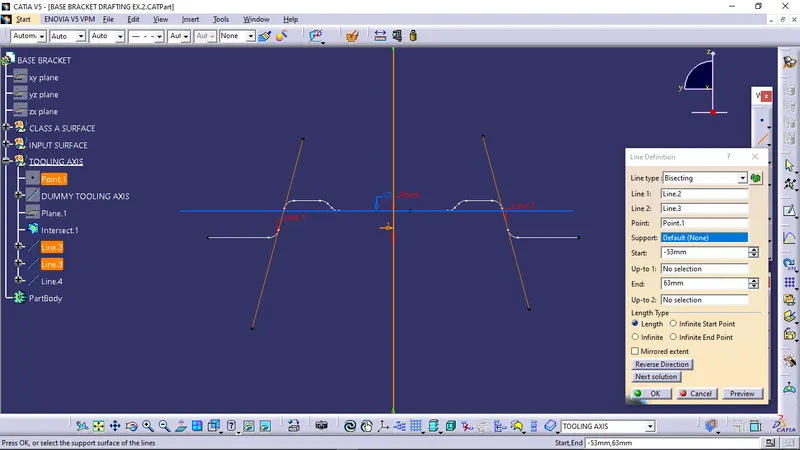

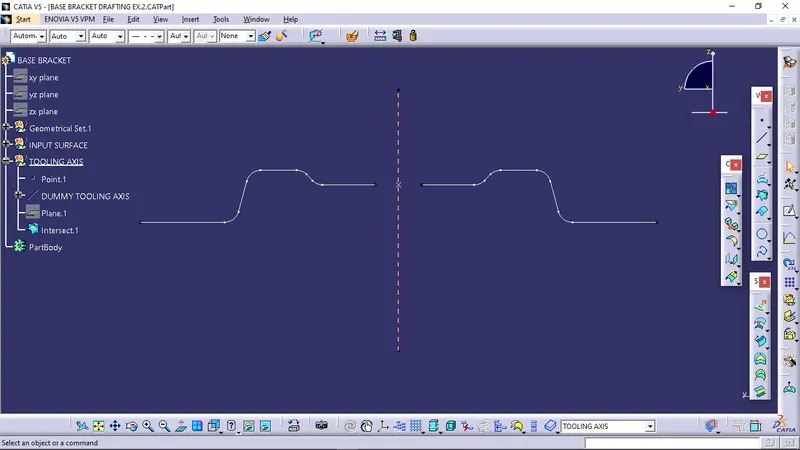

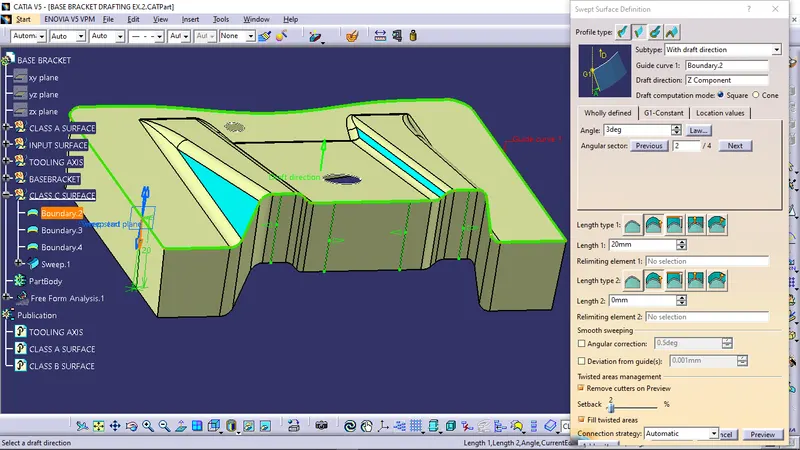

•  Created a dummy axis and Intersection on the Base Bracket.
