Week 8 - Challenge 1 - Base Bracket Design

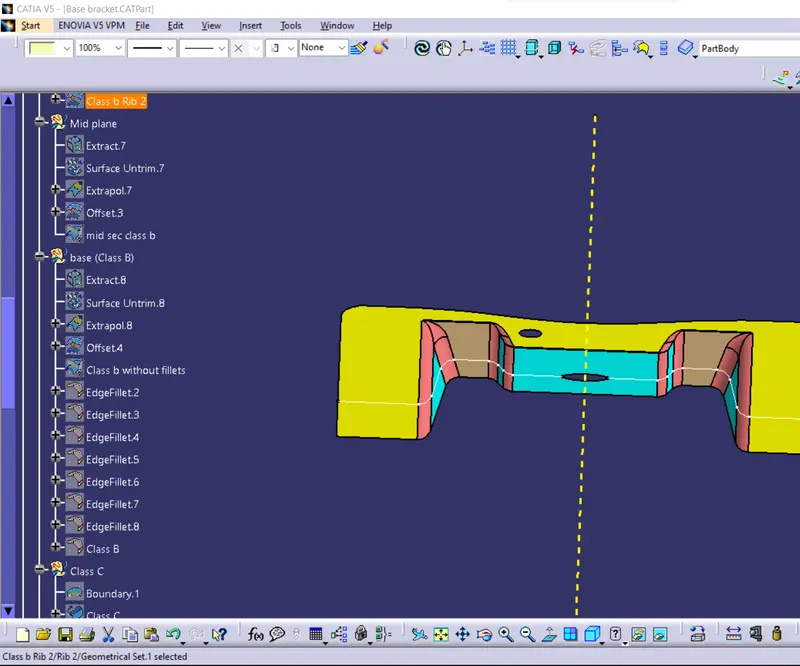

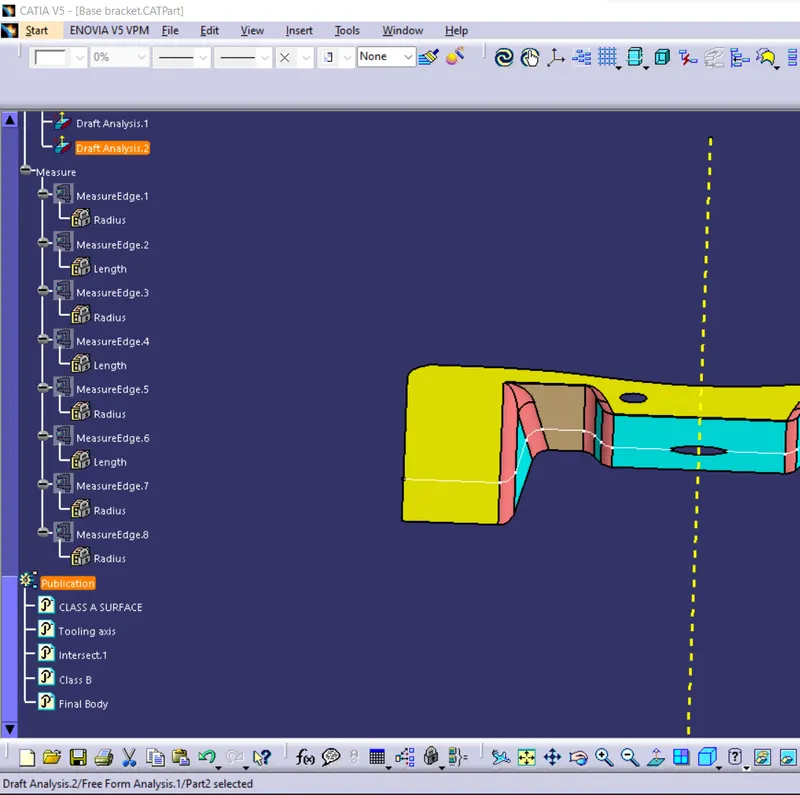

Geometrical tree set

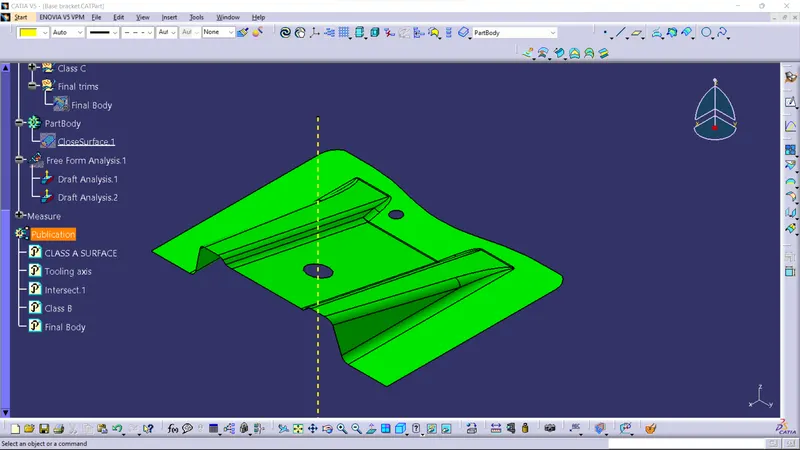

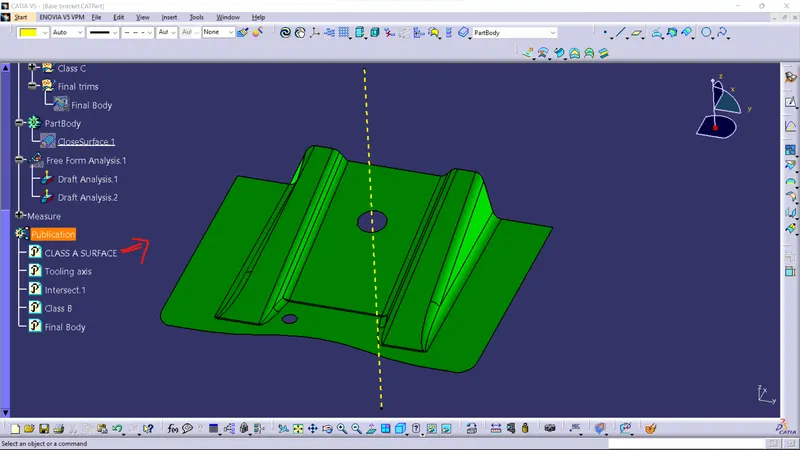

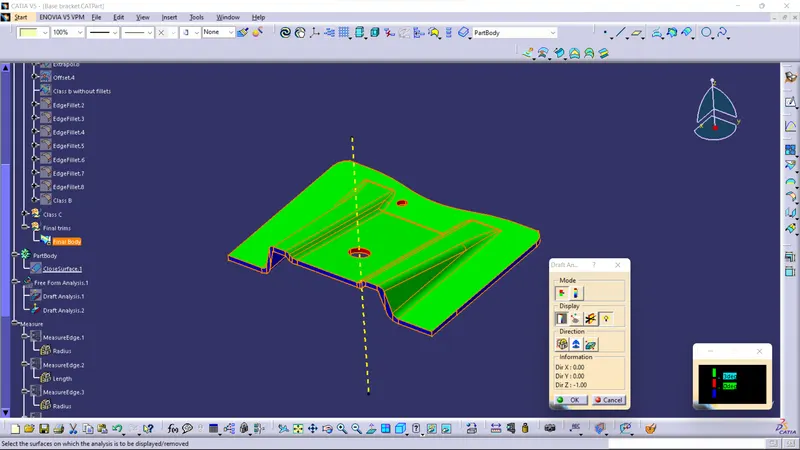

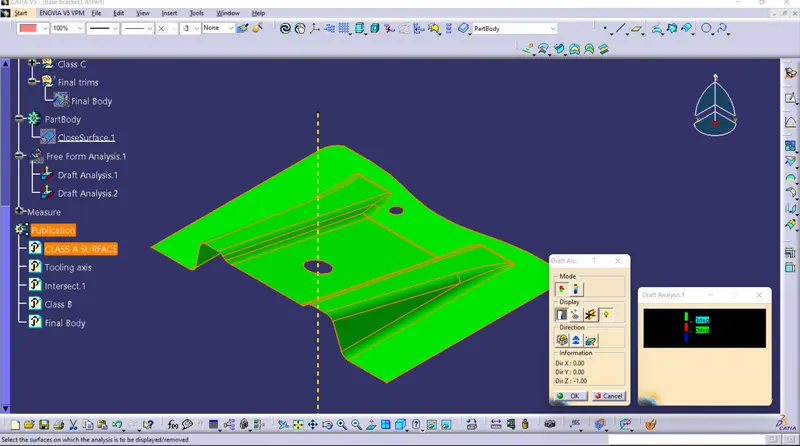

Draft analysis

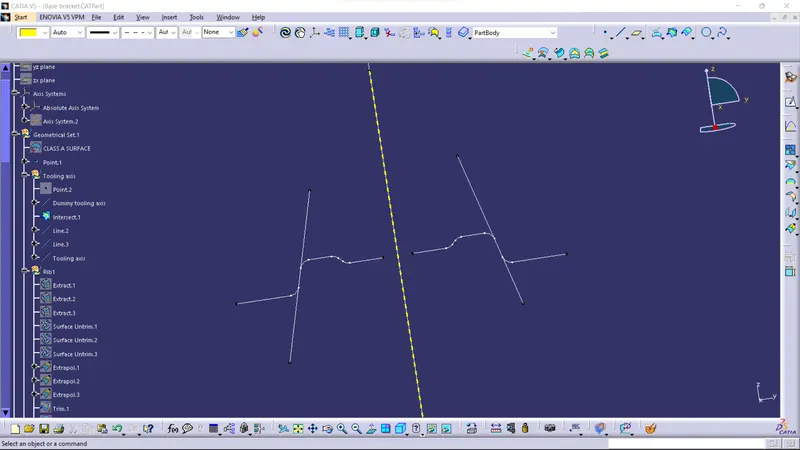

The tooling axis was selected using the bisecting method. I have considered the center of a circle shown in the class A surface as my tooling axis reference point. I placed my axis there and got the intersection line of zy plane. Then I took two drafted lines and extended them and drew a line using the bisecting option. Afterward, I have done the drafting analysis which was all green, i.e, my tooling axis is usable.

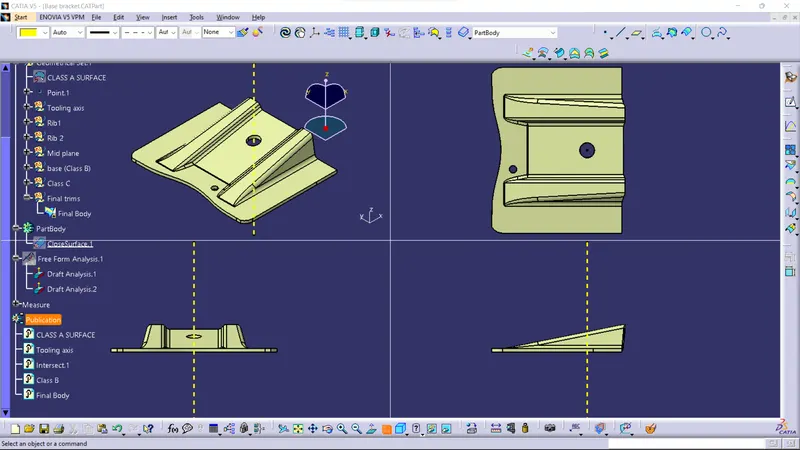

Isometric view, side view, front view, top view

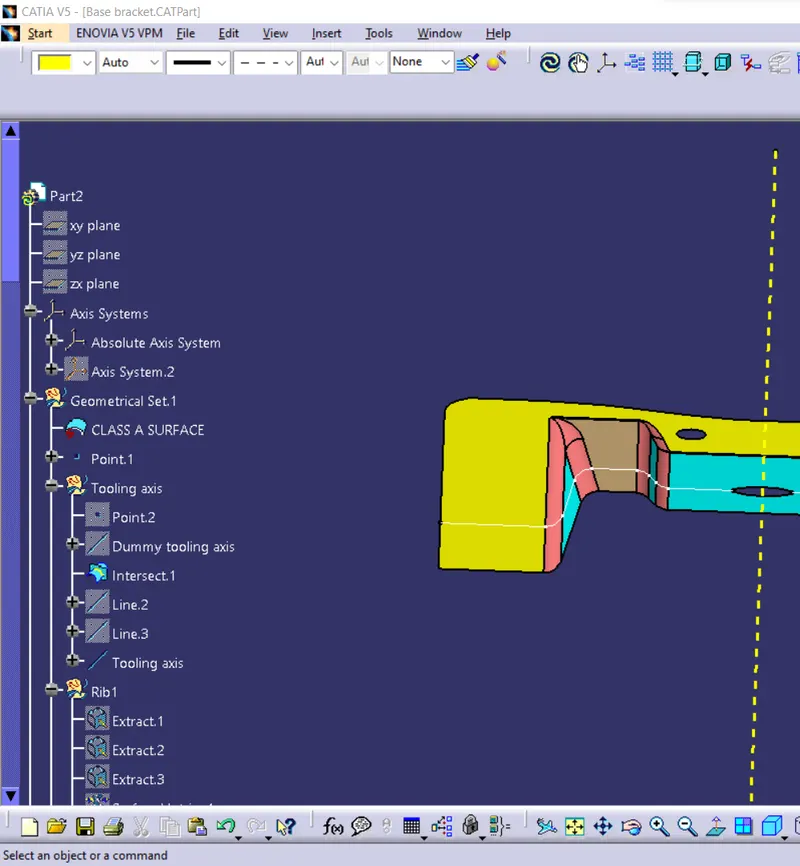

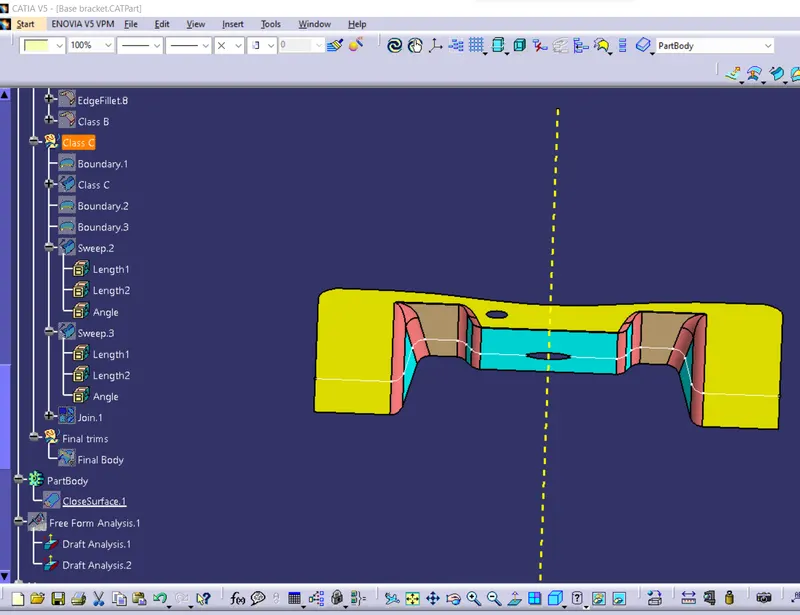

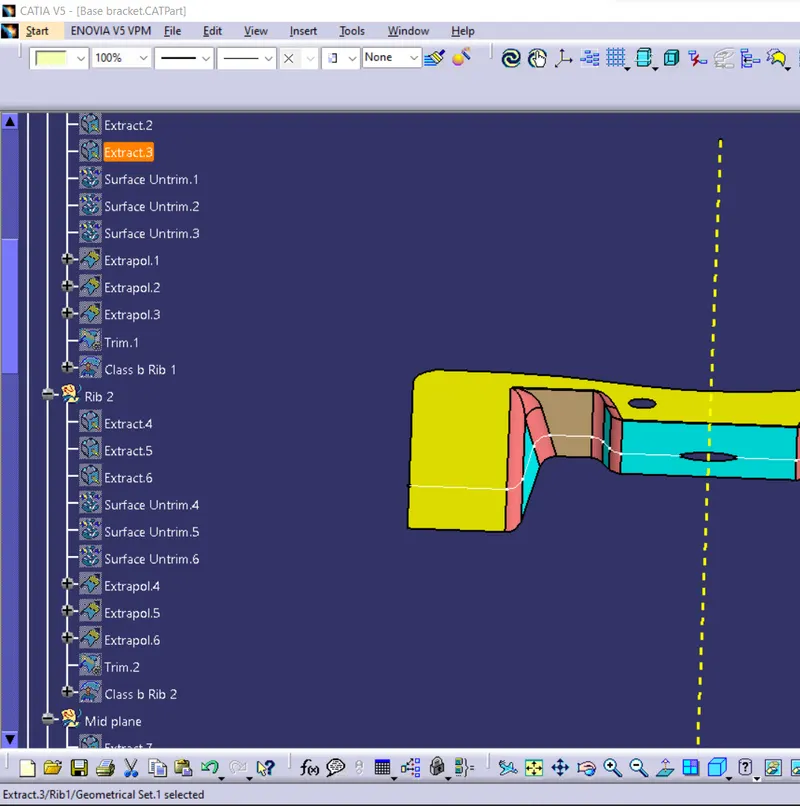

Geometrical tree set

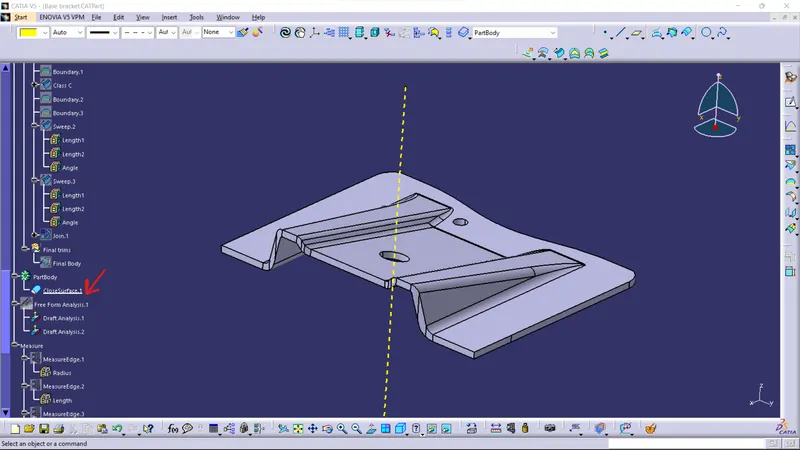

Solid body
