Week 8 - Challenge 1 - Base Bracket Design

TOOLING AXIS : TOOLING AXIS IS A DIRECTION IN WHICH MOULD OPENS OR CORE & CAVITY OPENS IS CALLED TOOLING AXIS.

* BEFORE CREATING A TOOLING AXIS, NEED TO CHECK IN WHICH DIRECTION ALL THE SURFACE OF THE PART CAN BE CLEARLY VIEWED.

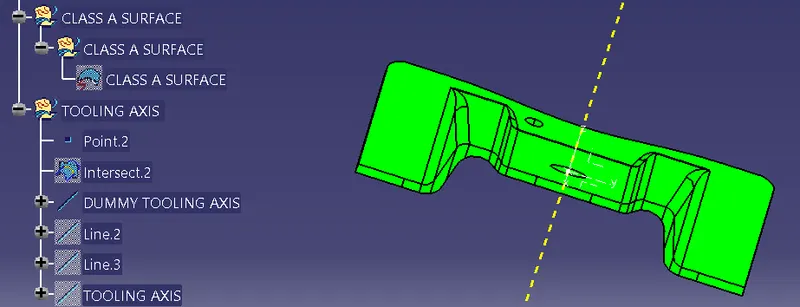

* BASE BRACKET I HAVE CREATED TOOLING AXIS AS SHOWN BELOW FIXTURE.

DRAFT ANALYSIS : DRAFT ANALYSIS IS USED TO EASILY ANALYZE A PART FOR PROPER DRAFT ANGLE.

DRAFT ANGLE DESCRIBES THE AMOUNT OF TAPER FOR PLASTIC PARTS PERPENDICULAR TO PARTING LINE.

BASE BRACKET DRAFT ANGLE WILL CLEAR WITH AN ANLE OF 2.5°.
