Week 8-3D Tetra Meshing Challenge

W-8-3D Tetra Meshing Challenge

AIM: To create tetra meshing of three given models.

PROCEDURE:

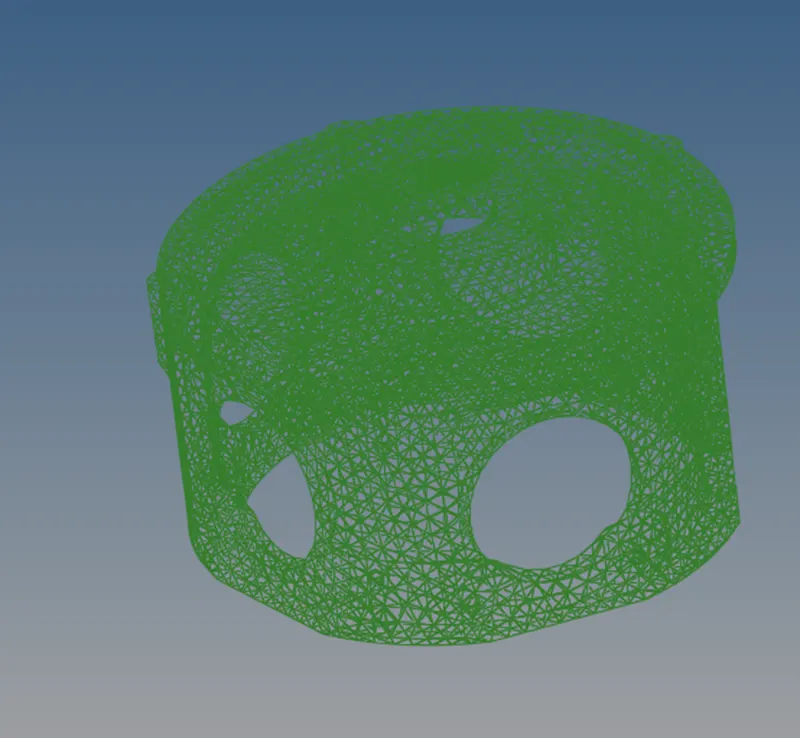

FIRST MODEL:

• Surface meshing was done at first.
• After clearing quality 3-d tetra meshing was carried out.

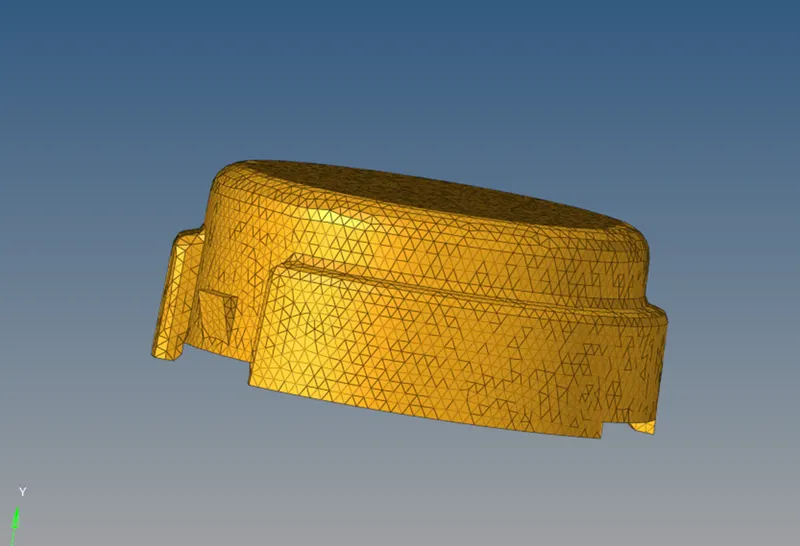

SECOND MODEL:

• Volume meshing was carried out with target element length.

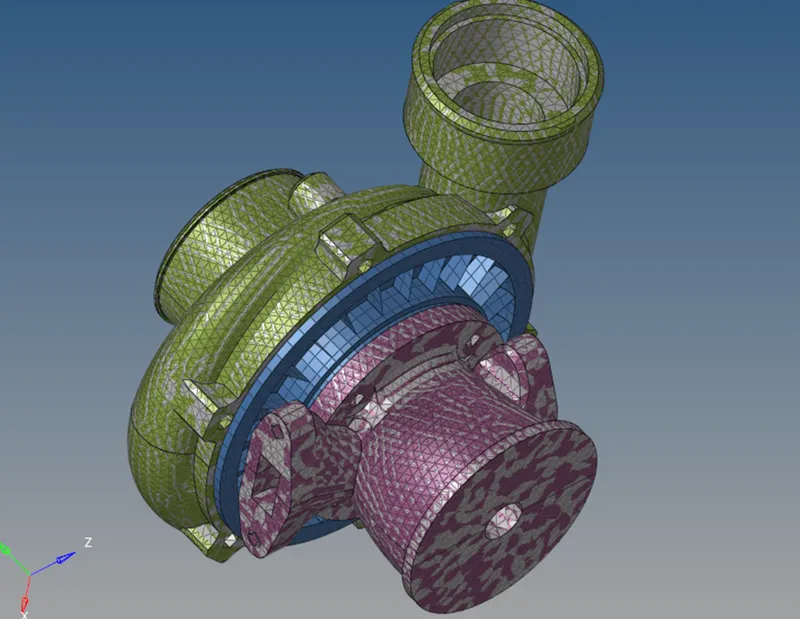

THIRD MODEL:

• Volume meshing was carried out with target element length.

RESULTS:

NOTE: Model is not uploading.So it is uploaded to gdrive and link is given on the uploaded text file.
