Week 8-3D Tetra Meshing Challenge
- Create a Teramesh for Housing component with the following quality criteria.
TetraMesh Generation Method: 2D to 3D Conversion
Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units
Tet collapse: 0.15

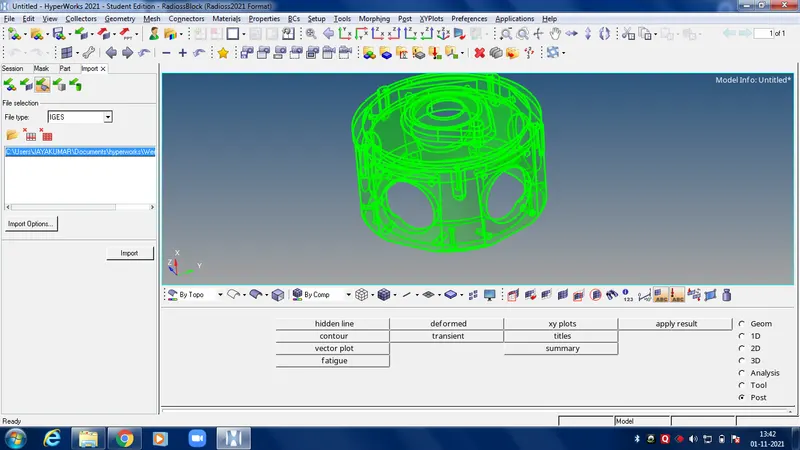

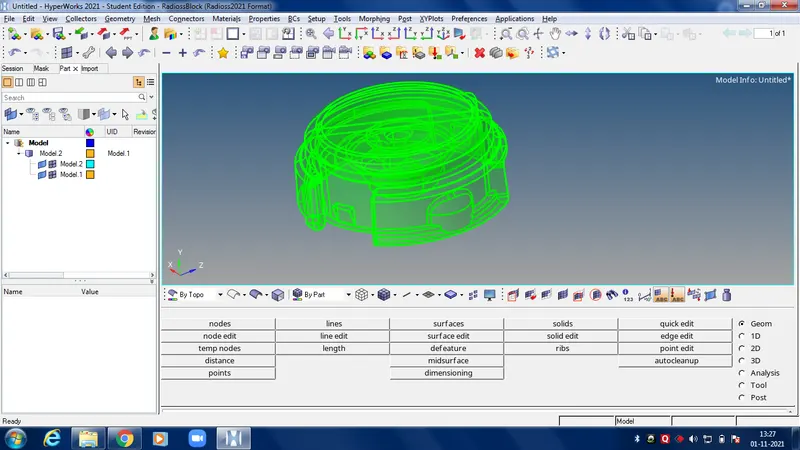

Given geoementry :-

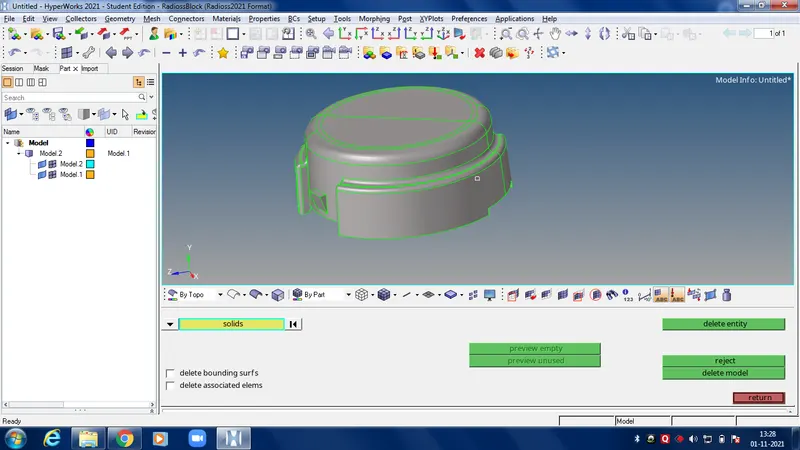

Delete the solids for gementry clean up
Toggle the lines which is unwanrted in the geomentry

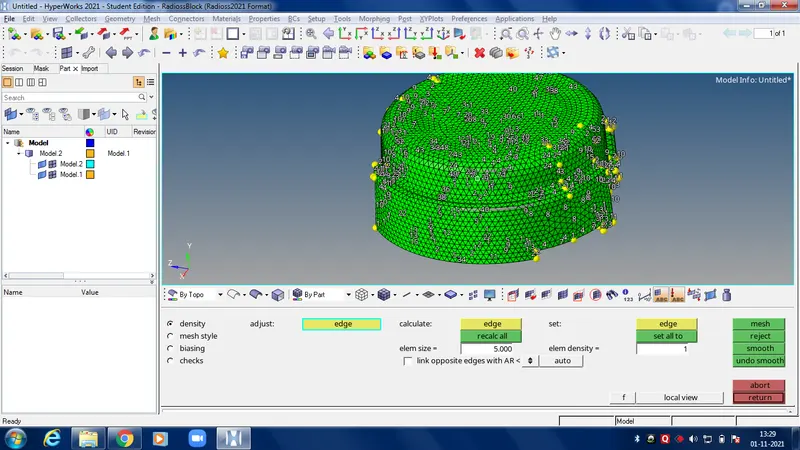

Generate 2D tria mesh for the component with given quality

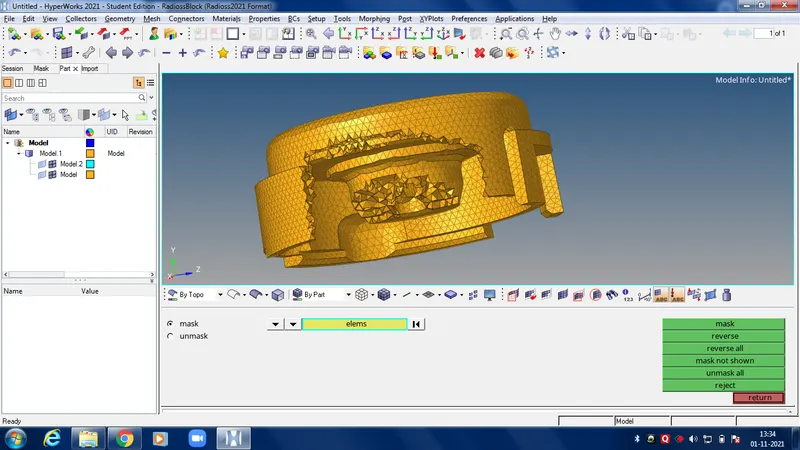

After that convert to 3D terta mesh and then check quality criteria and fix it
- For the given model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 3 Units.
Tet Collapse: 0.15

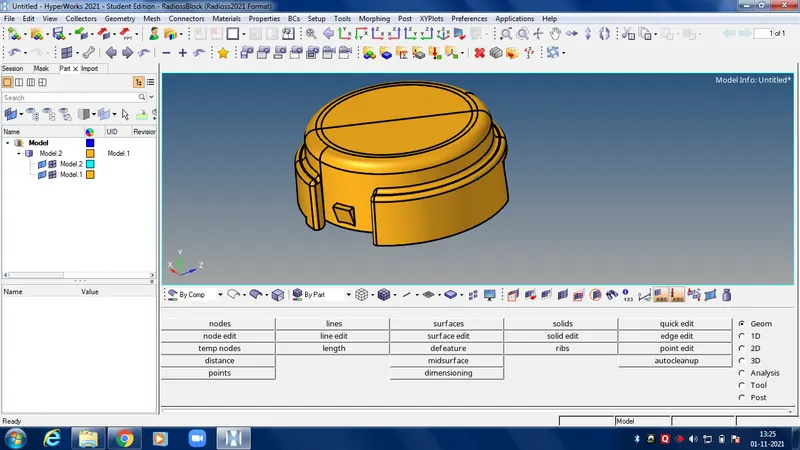

Given geoementry

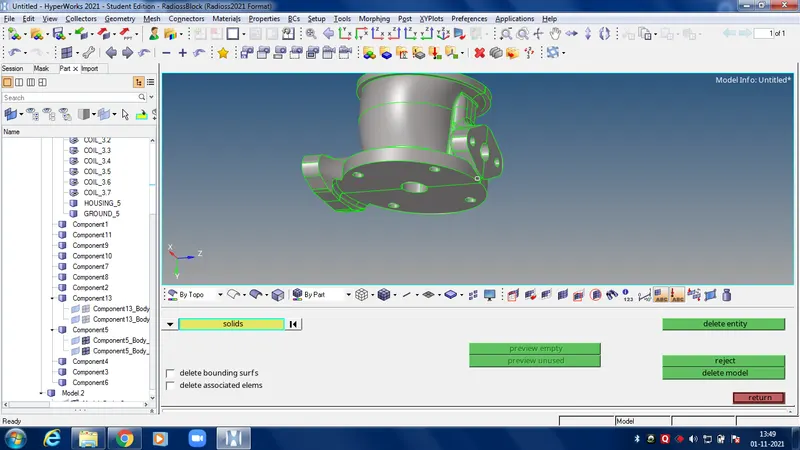

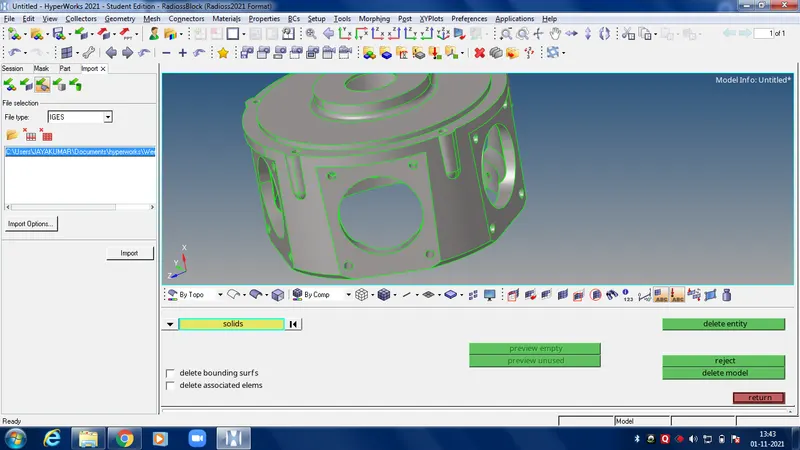

and Delete the solids for gementry clean up

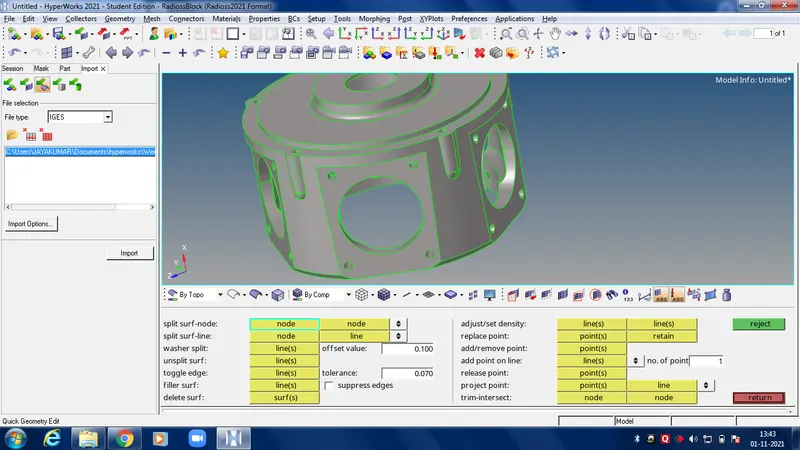

replace the points to reduce the quality defect

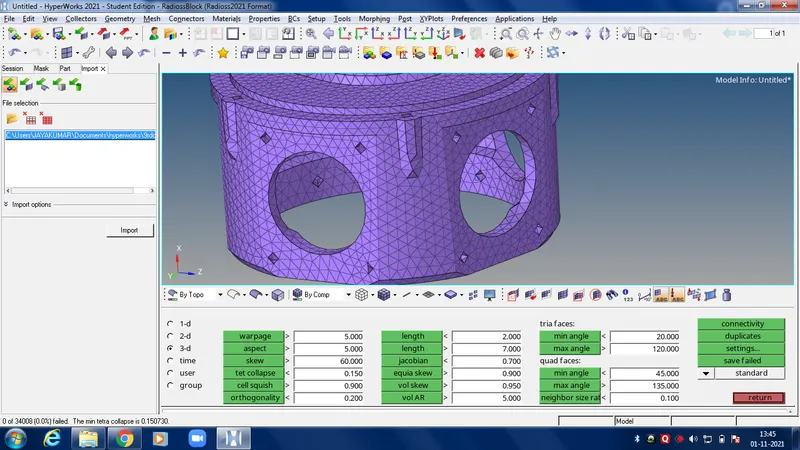

And then create volume terta mesh with required target elements and tec collapse

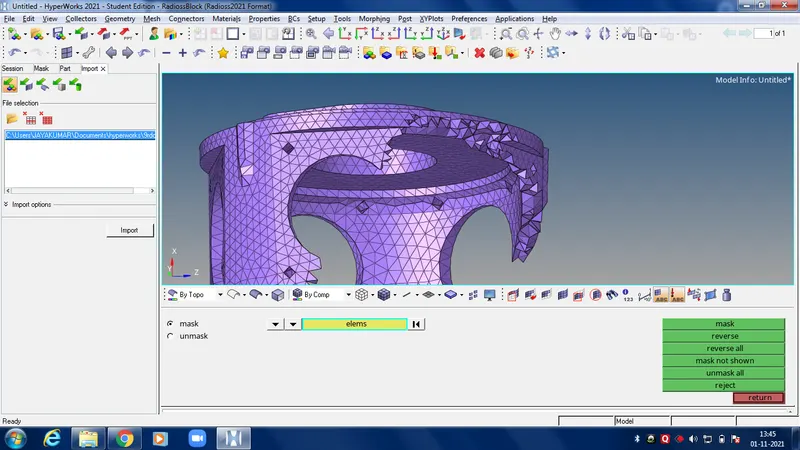

Final finshed product with given quality criteria
- For the given assembly model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 4 Units.
Tet Collapse: 0.15

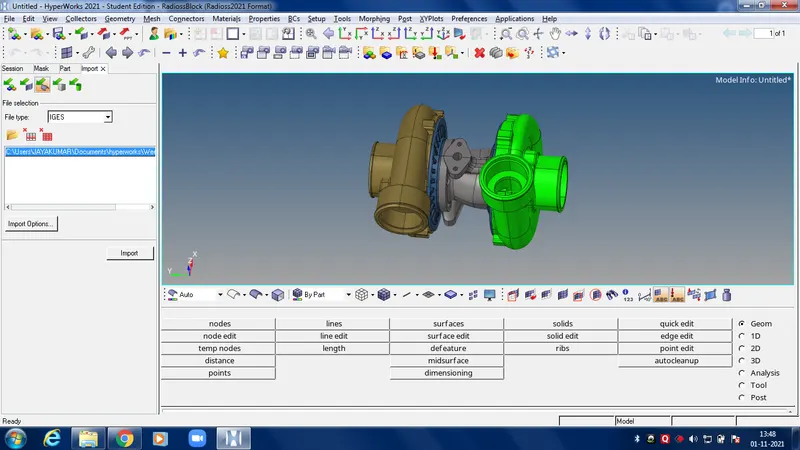

Given geomentry

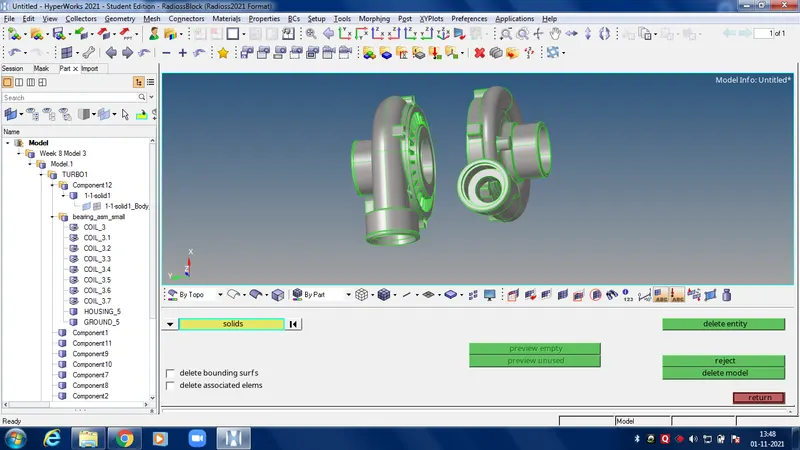

Split the geomentry for better mesh and quality
Clean the geomentry and toggle unwanted lines

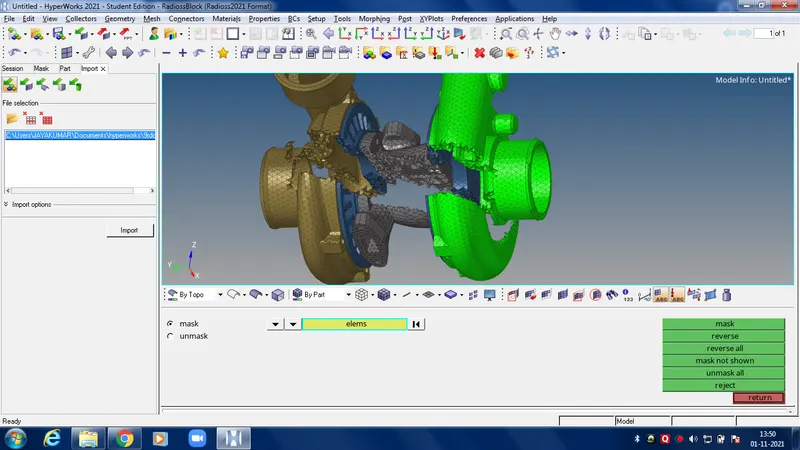

And then create volume terta mesh with required target elements and tec collapse

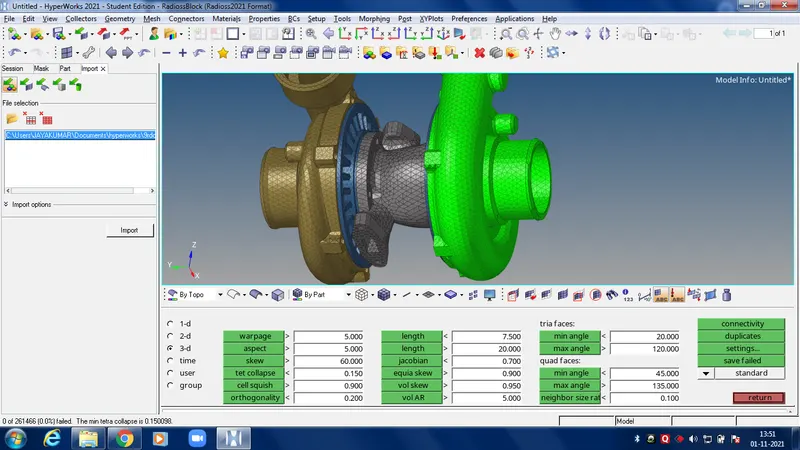

Final finished product
